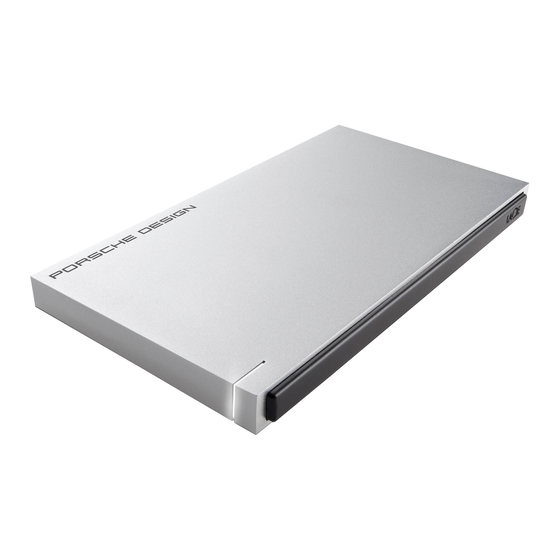

LaCie Porsche Design P′9223 User Manual

Mobile hard drive
Hide thumbs Also See for Porsche Design P′9223:
Table of Contents

Advertisement

Quick Links

Download this manual
PORSCHE DESIGN P'9223 HARD DRIVE USER MANUAL
CLICK HERE TO ACCESS UP-TO-DATE ONLINE VERSION
of this document for the most recent content as well as for features such as expandable
illustrations, easier navigation, and search capability.
Porsche Design P'9223 Hard Drive User Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Porsche Design P′9223 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LaCie Porsche Design P′9223

Summary of Contents for LaCie Porsche Design P′9223

  • Page 1 PORSCHE DESIGN P'9223 HARD DRIVE USER MANUAL CLICK HERE TO ACCESS UP-TO-DATE ONLINE VERSION of this document for the most recent content as well as for features such as expandable illustrations, easier navigation, and search capability. Porsche Design P'9223 Hard Drive User Manual...

  • Page 2: Box Content

    It was developed especially for your Mac. These pages will guide you through the process of connecting your LaCie product and will explain its features. If this manual doesn't answer your questions or if you are having trouble, consult the Getting Help page.

  • Page 3: Status Light Information

    STATUS LIGHT INFORMATION Your hard drive features a status light, which will indicate certain disk behaviors. Refer to the chart below for details. Light Behavior Status On, Steady Drive is on Flickering Data access On for 1 second, off for 30 seconds Eco Mode Drive is off Porsche Design P'9223 Hard Drive User Manual...

  • Page 4: Cables And Connectors

    Your LaCie drive is shipped with a SuperSpeed USB 3.0 cable to ensure maximum data transfer performance when connected to a compatible USB 3.0 port. The cable will also work when connected to a USB 2.0 or 1.1 port, but drive performance will be limited to their respective transfer rates.
  • Page 5 In the event that the USB bus on your computer does not provide the necessary power to operate your mobile LaCie hard disk, you can connect a USB-Y cable to the drive and to your computer's USB 3.0 or USB 2.0 ports to ensure adequate power.

  • Page 6: Getting Connected

    Caution: Do not stack multiple LaCie Porsche Design P'9223 hard drives, as they may overheat. Installing your LaCie hard drive is easy for all users thanks to LaCie Setup Assistant. Please follow the setup steps in the order they are given to ensure that your LaCie hard drive's volume mounts correctly on your computer.

  • Page 7: Step 2 - Launch Lacie Setup Assistant

    Open the LACIE SETUP volume on your desktop and then double click LaCie Setup Windows users AutoPlay: Windows AutoPlay may detect your LaCie hard drive as soon as it is connected to your computer. If the AutoPlay window appears, click on Open folder to view files using Windows Explorer and double click LaCie Setup.
  • Page 8 Manual access: Open the LACIE SETUP volume in Computer (My Computer for Windows XP) and double click LaCie Setup. Porsche Design P'9223 Hard Drive User Manual...
  • Page 9 Setup LaCie Setup Assistant does not prevent you from using your computer's native disk utility program to format or partition your LaCie drive. Simply follow the Setup Assistant through completion, then use Disk Utility for Mac or Disk Management for Windows to reformat your drive.
  • Page 10 Use the slider to partition your LaCie hard drive. Moving the slider to the left will reduce the size of the Compatible volume (called LaCie Share on some products) (for Windows and Mac). If you do not want the Compatible / LaCie Share volume, move the slider all the way to the left. The LaCie volume will be formatted for your operating system, HFS+ for Mac or NTFS for Windows.
  • Page 11 Windows A window prompt alerts you that the disk will be formatted. Select Yes to continue. Windows LaCie Setup Assistant will format the hard drive. Register your LaCie device. Click Next to continue. New Account Porsche Design P'9223 Hard Drive User Manual...
  • Page 12 LaCie Setup Assistant has finished. Follow the software utility installer before completing LaCie Setup Assistant. Windows Click Next to continue. LaCie Setup Assistant provides a summary of the installation. Click Finish to close the program. Your LaCie hard drive is now ready for use. Porsche Design P'9223 Hard Drive User Manual...
  • Page 13 Software will be installed on the product's storage, not on your computer. It will be located on the volume entitled “Compatible” or “LaCie Share” if it exists, otherwise on “LaCie”. Important info: Please note that LaCie software utilities may be installed at any time. Once the format is complete, the LaCie Setup Assistant application will be available on:...

  • Page 14: Lacie Desktop Manager

    LACIE DESKTOP MANAGER LaCie Desktop Manager unlocks the full potential of your Lacie hard drive. It will allow you to see advanced information on your drive and to configure Eco Mode. Note: LaCie Desktop Manager is not compatible with all LaCie devices. Only compatible LaCie devices will appear in LaCie Desktop Manager.
  • Page 15 Windows Note: If you have manually formatted the drive using your operating system's disk utility instead of or after running the LaCie Setup Assistant, you will need to download the LaCie Desktop Manager from www.lacie.com/support/. Porsche Design P'9223 Hard Drive User Manual...
  • Page 16 INFO TAB When you run LaCie Desktop Manager, you will see that all compatible connected LaCie devices will appear in the left-hand column. Choose the drive you wish to manage and make sure the Info tab is selected. On this page you will see advanced information on your drive, such as device name, the internal hard disk serial number (not the LaCie product serial number), available capacity, connection type, etc.
  • Page 17 Eco Mode. Eco Mode and Mac OS X: Based upon your LaCie hard drive, Eco Mode may be managed by Mac OS X. If prompted, please click on Energy Saver Settings to enter the System Preferences. Select “Put the hard disk(s) to sleep when possible”...

  • Page 18: Unmounting Your Drive

    MAC USERS Drag the storage device icon to the Trash. (The icon pictured below is a generic USB device icon. Your LaCie storage may be represented by an icon that looks like the device itself.) When the icon disappears from the desktop, the storage device can be disconnected.
  • Page 19 From the System Tray (located in the lower right-hand side of your screen) click on the plug icon (note the white check mark inside a green circle). A message will appear, detailing the devices that may be safely unmounted. Select Eject for the device you wish to unmount. A message will appear notifying you that it is safe to remove it. Porsche Design P'9223 Hard Drive User Manual...

  • Page 20: Optional Formatting And Partitioning

    OPTIONAL FORMATTING AND PARTITIONING Standard LaCie storage devices will prompt you to run LaCie Setup Assistant when they are first connected to a computer (Windows or Mac). LaCie Setup Assistant helps you to quickly format the storage device according to your needs.

  • Page 21: Formatting Instructions

    Caution: Formatting will erase everything on the storage device. LaCie highly recommends that you back up all data on your storage device before performing the steps below. LaCie is not responsible for any data lost due to formatting, partitioning, or using a LaCie storage device.
  • Page 22 Porsche Design P'9223 Hard Drive User Manual...
  • Page 23 Right-click on Computer and choose Manage. From the Manage window select Disk Management. From the list of storage devices in the middle of the Disk Management window, locate your LaCie device. By default, a partition is already created on the device with LaCie software utilities. Follow your operating system instructions to reset the existing partition.

  • Page 24: Getting Help

    GETTING HELP If you are having problems with your LaCie product, consult the table below for a list of available resources. Order Source Description Location Concise steps to Quick follow for getting your Either a printed leaflet or accessory box and included in the...

  • Page 25: Troubleshooting Topics

    A: If your computer has a low-performance internal hard drive (typically a notebook or netbook computer), it will limit the transfer speed since the internal drive's transfer speed will be significantly less than that of your LaCie USB 3.0 hard disk.

  • Page 26: Mac Os X Users

    Q: Did you get an error message telling you that the drive has been disconnected when coming out of sleep mode? A: Simply ignore this message. The drive will remount to the desktop. LaCie drives conserve power by spinning down when you set your computer to sleep mode, and when the computer is awoken from sleep, it may not give the drive enough time to spin-up from its sleep mode.
  • Page 27 + on the left side. If you're not sure if your drive is listed, unplug it, then reconnect it. The entry that changes is your LaCie drive. Q: Does your disk not appear at all? A: Proceed to physical troubleshooting topics above.

  • Page 28: Health And Safety Precautions

    Never expose your device to rain, or use it near water, or in damp or wet conditions. Never place objects containing liquids on the LaCie hard drive, as they may spill into its openings. Doing so increases the risk of electrical shock, short-circuiting, fire or personal injury.

  • Page 29: General Use Precautions

    GENERAL USE PRECAUTIONS Do not expose the LaCie hard drive to temperatures outside the range of 5º C to 30º C (41º F to 86º F); or to operational humidity beyond 10-80%, non-condensing, or non-operating humidity beyond 5-90%, non-condensing. Doing so may damage the LaCie hard drive or disfigure its casing. Avoid placing your LaCie hard drive near a source of heat or exposing it to sunlight (even through a window).

  • Page 30: Warranty Information

    LaCie (“LaCie”) warrants, to the original purchaser, that this equipment shall be free of defects in materials and workmanship for a period of one (1), two (2), three (3), or five (5) years, depending on the model, from LaCie's date of original shipment when the equipment is used normally and is properly serviced when needed. If you discover a defect covered by the warranty set forth above, your sole and exclusive remedy will be for LaCie, in its sole discretion to (i) repair or replace the product at no charge to you;...

  • Page 31: Exclusions And Limitations

    Any loss, corruption or destruction of data while using a LaCie drive is the sole responsibility of the user, and under no circumstances will LaCie be held liable for the recovery or restoration of this data. To help prevent the loss of your data, LaCie highly recommends that you keep TWO copies of your data;...

  • Page 32: Note To Australian Customers

    Within the 15 calendar days of purchase, should you experience an issue with your new LaCie product, we ask you to return the product to the place where it was originally bought. You will be required to give a proof of purchase.

  • Page 33: Legal Information

    LEGAL INFORMATION COPYRIGHTS Copyright © 2012 LaCie. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written consent of LaCie.

  • Page 34: Canada Compliance Statement

    MANUFACTURER'S DECLARATION FOR CE CERTIFICATION We, LaCie, solemnly declare that this product conforms to the following European standards: Electromagnetic Compatibility Directive (2004/108/EC); Low-Voltage Directive: 2006/95/EC TRADEMARKS Apple, Mac, Time Machine, and Macintosh are registered trademarks of Apple Computer, Inc.
