Summary of Contents for eXact Videowall Mount PDVWXUN easyHook 55 L

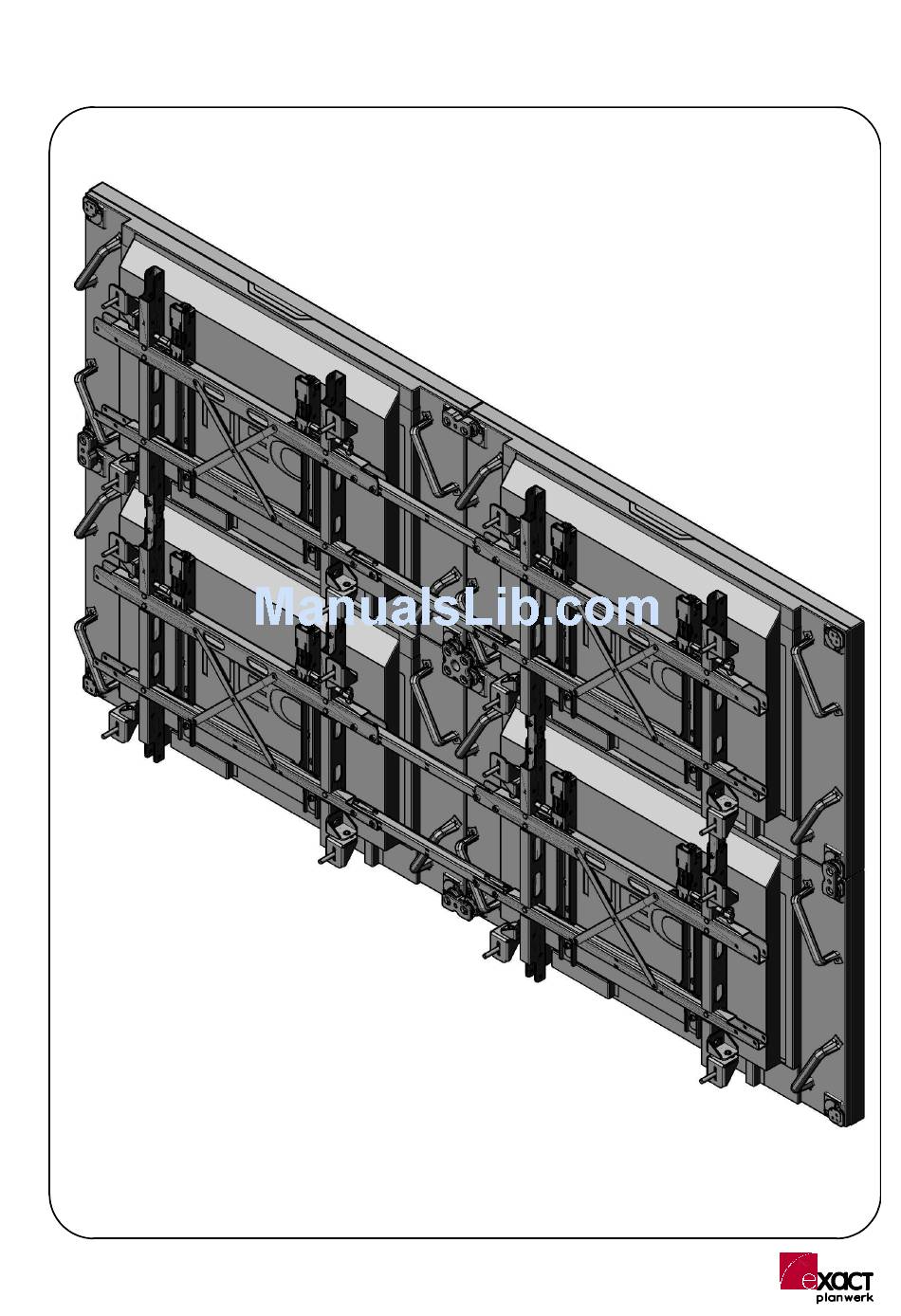

- Page 1 assembly instructions for easyHook NEC55 landscape...
- Page 2 assembly instructions for easyHook NEC55 drill pattern X551UN...
- Page 3 assembly instructions for easyHook NEC55 step 1 - mounting on wall...
- Page 4 assembly instructions for easyHook NEC55 step 2 - install connectors (horizontal-LS) M8x16 M8x16...
- Page 5 assembly instructions for easyHook NEC55 step 3 - install connectors (vertical-LS) M8x16 M8x16...
- Page 6 assembly instructions for easyHook NEC55 step 4 - hang in screens anchor-plate slide on the quadt-magnet, before you hang in each 4th screen of any cross joint.
- Page 7 assembly instructions for easyHook NEC55 step 5 - screen adjustment adjustable (up/down) push to unlock the safety catch adjustable (left/right)
