HP StorageWorks 2300 - Disk System Configuration page 3

Step 9
Tighten the cam lever screws 9A in Figure 1).
Step 10
Re-connect power cord.
Step 11
Monitor the power supply LEDs (A & B in Figure 2).
Green LED (A) indicates that the power supply is functioning. See Table 1 for full details of power supply
LED behaviors.

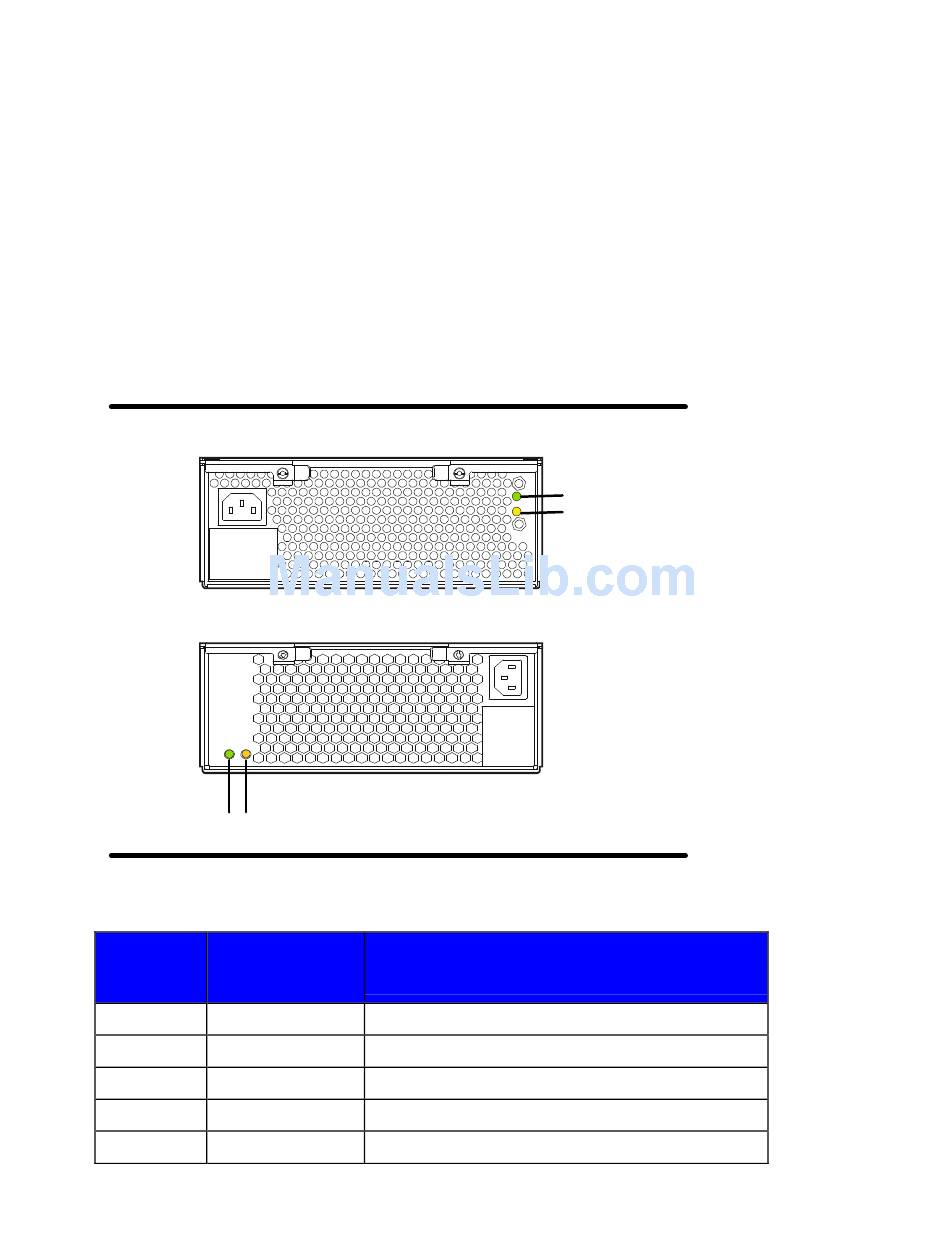

Figure 2: Power Module LEDs (Upper: Controller Enclosure; Lower: Disk Enclosure)
A B
Table 1: Power Module LEDs Status Indications
A
Power On Power Fault
LED (Green) LED (Amber)
Off
On
Off
On
*
B
Off Power module not under power.
Off Power module under power and operating normally.
On Power module fault.
On Power module fault (rare indication).
Flashing Host identifying power module.
*Can be on, off, or flashing
A
B
Indication
3
