Sony KV-27FS16 - 27" Trinitron Wega Dimensions

KV-27FS16
RM-Y169 REMOTE CONTROL
24 7/8"
12 1/2"
12 1/2"

NOTE:

WHERE THERE ARE CLOSE TOLERANCES INVOLVED IN CABINET BUILDING
OR APPLICATIONS WHICH REQUIRE A GREAT DEGREE OF PRECISION WE
RECOMMEND THAT THE PRODUCT ITSELF BE USED TO MAKE THE ACTUAL
MEASUREMENTS. SONY WILL NOT BE RESPONSIBLE FOR INACCURACIES
IN THE DESIGN OR MANUFACTURE OF ENCLOSURES .
Consumer Integrated Systems • Park Ridge, New Jersey 07656 • FAX (201) 986 3062 • b2b.sel.sony.com
Features and specifications subject to change without notice. • Non-metric weights and measurements are approximate.

MODEL:

DESCRIPTION:

DESCRIPTION:
DIMENSIONS DIMENSIONS
(WHD):
(WHD):
27 5/8" x 24 7/8" x 20 1/8"

WEIGHT:

WEIGHT:

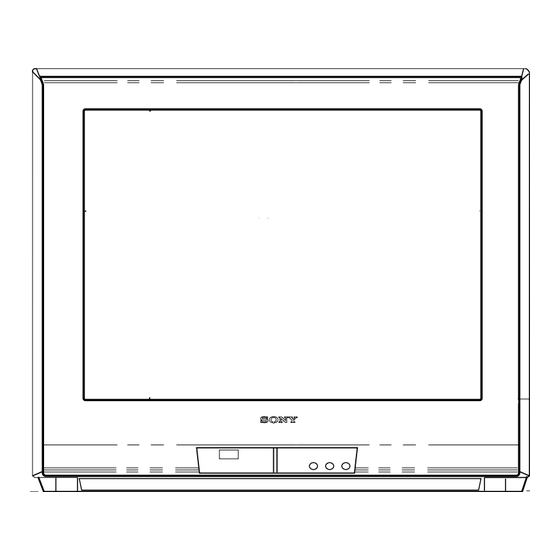

FRONT VIEW

27 5/8"
21 7/8"
16 1/2"

BOTTOM VIEW

27" FD Trinitron ®
POWER
Monitor/Receiver
REQUIREMENTS:
POWER
CONSUMPTION:
99 lbs
5 5/8"
120V AC
60Hz
170w(max)
1w(stby)
