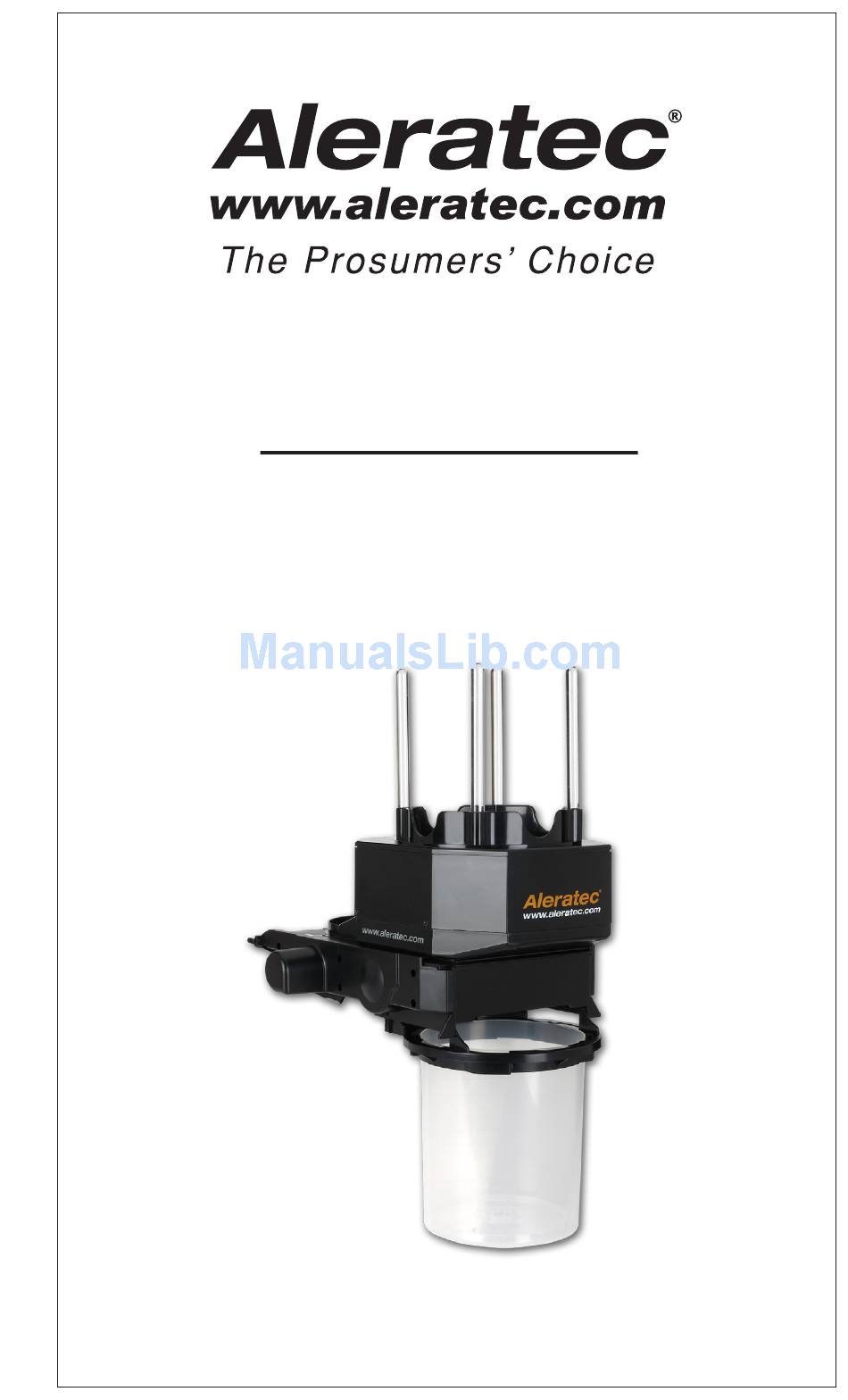

  • Page 1 USER GUIDE Aleratec RoboJet Disc Autoloader™ Part No. 360104...
  • Page 2 Aleratec, Inc. 9851 Owensmouth Avenue Chatsworth, CA 91311 U.S.A. Aleratec is a registered trademark and RoboJet Disc Autoloader™ is a ® trademark of Aleratec, Inc. Check out Aleratec Online! • Blog.Aleratec.com • Facebook.com/Aleratec • Twitter.com/Aleratec • YouTube.com/Aleratec Please record the following information to help expedite any warranty claim: Model No.
  • Page 3 Operation with non-approved equipment or unshielded cables is likely to result in interference to radio and TV reception. The user is cautioned that changes and/or modifications made to this equipment, without the approval of manufacturer, could void the user’s authority to operate this equipment. www.aleratec.com...
  • Page 4 www.aleratec.com...

  • Page 5: Table Of Contents

    Installing Aleratec’s RoboJet Disc Autoloader Software ......7 Setup Autoloader ..................9 Using the RoboJet Disc Autoloader ........13 Powering on the Printer ................13 Getting to know the Aleratec Autoloader application ......16 Using the Aleratec RoboJet Disc Autoloader Application ....18 Troubleshooting ................20 Specifications .................24 Technical Support ................26...
  • Page 6 www.aleratec.com...

  • Page 7: Introduction

    Thank you for purchasing the Aleratec RoboJet Disc Autoloader. Please read this User Guide thoroughly before using this product. Product Features The Aleratec RoboJet Disc Autoloader is a fully automatic disc loading system for compatible printers. Features include: ▪ Up to 100 disc capacity ▪...

  • Page 8: Key Items

    Introduction Key Items on the RoboJet Disc Autoloader A. Disc Holder Post Slots E. Printer Mode Switch B. Disc Load Mechanism F. USB Port C. Disc Bin Holder G. Power Port D. Autoloader Disc Tray www.aleratec.com...

  • Page 9: Precautions

    Avoid placing the RoboJet Disc Autoloader in a location subject to: • High humidity • High temperature • Excessive dust • Mechanical vibration • Direct sunlight • Electromagnetic radiation 1. Choose a flat, level surface for the printer and Autoloader near a table edge. (This is important because the disc bin will hang over the table edge once installed) 2. Allow adequate clearance for moving parts. 3. Do not place near heat sources such as radiators or air ducts, or in a place subject to direct sunlight, excessive dust, mechanical vibration or shock. 4. Good care will help assure maximum product life. Improper operating environment and misuse may void the warranty. www.aleratec.com...

  • Page 10: Printer Requirements

    Epson inkjet printers which support disc printing. Below is a list of other compatible Epson printer models. Designed for Epson Artisan 50 Can also work with Epson models: Asia: R290, T50 America: R280 Europe: R285, P50 Japan: E301, E302 www.aleratec.com...

  • Page 11: Installation

    Follow the instructions that came with your compatible printer product and install the printer. Connect the printer to your computer using the included hub.* Make sure all required supporting software and drivers are installed successfully and working properly. USB2.0 Hub Note: The printer and Autoloader must both be connected to your PC using the included hub in order for the Autoloader software to work properly. www.aleratec.com...

  • Page 12: Minimum Hardware And Software Requirements

    Avoid exposing the RoboJet Disc Autoloader to sudden changes in temperature as condensation may form inside. Operating the RoboJet Disc Autoloader immediately after a sudden increase in temperature may result in damage. Transportation Keep the original packing materials for future moving or shipping of the RoboJet Disc Autoloader. www.aleratec.com...

  • Page 13: Installing Aleratec's Robojet Disc Autoloader Software

    CD/DVD drive that you are using, select “Explore/Open” and double click on AUTORUN.exe. If your PC does not have an optical drive that can read CDs, contact Aleratec support with your purchase information. 2. Install the Prolific Driver.
  • Page 14 5. The setup wizard will guide you through several steps screens to configure the installation. Choose a “Typical” setup and continue on until the installation is complete. 6. Once the installation has been completed successfully, you will see shortcuts for the “Aleratec RoboJet Disc Autoloader” application on your desktop. www.aleratec.com...

  • Page 15: Setup Autoloader

    Installation Set Up Autoloader 1. Make sure that the printer is OFF when setting up the Autoloader. Open manual feed door on printer 2. Remove printer “paper feed” tray www.aleratec.com...
  • Page 16 Installation 3. Insert Autoloader into printer “disc tray” slots at a 45 degree angle 45˚ 4. Lay Autoloader down on table www.aleratec.com...
  • Page 17 Installation 5. Insert Disc holder posts 6. Attach Disc bin www.aleratec.com...
  • Page 18 Installation 7. Attach power cord and plug into power outlet 8. Attach included USB cord into included USB2.0 hub and attach hub to the computer. Both the printer and Autoloader must be connected to your PC using the included USB2.0 hub in order for the Autoloader software to work properly. USB2.0 Hub Note: Make sure the RoboJet software/driver installation is complete before connecting the Autoloader to the computer. www.aleratec.com...

  • Page 19: Using The Robojet Disc Autoloader

    Printer Mode Switch can be pushed forward to the disc icon position, which signals the printer that discs are to be printed. Disc Position Printer Mode Switch Paper Position 1. Move Printer Mode Switch to paper position. www.aleratec.com...
  • Page 20 Using the RoboJet Disc Autoloader Powering on the Printer 2. Power on the printer. 3. Wait for printer to initialize and show a steady green indicator on its power button. www.aleratec.com...
  • Page 21 4. Move Printer Mode Switch to the disc position. 5. Load blank discs. Note: The RoboJet Disc Autoloader can process up to 100 standard discs. However, Aleratec HydroGuard inkjet printable discs have a special printable surface that resists moisture, smears and smudges, and is slightly thicker than standard discs.

  • Page 22: Getting To Know The Aleratec Autoloader Application

    Using the RoboJet Disc Autoloader Getting to know the Aleratec Autoloader application A. Printer Status Panel – Shows the status of your RoboJet Disc Autoloader equipped printer, if one is detected. B. Dry Disc Timeout – Sets a delay before dropping a completed disc into the bin for discs that need a little more time to dry.
  • Page 23 Using the RoboJet Disc Autoloader Getting to know the Aleratec Autoloader application 1. Once you’ve run the Aleratec RoboJet Disc Autoloader Application, the program will automatically scan for an autoloader equipped printer. If the correct components are not found, the Device Status will display “Device Not Ready”...

  • Page 24: Using The Aleratec Robojet Disc Autoloader Application

    Using the RoboJet Disc Autoloader Using the Aleratec RoboJet Disc Autoloader Application 1. To begin printing, just click on the “Start Autoloader” button. The Device Status will show “Autoloader Started”. www.aleratec.com...
  • Page 25 Using the RoboJet Disc Autoloader Using the Aleratec RoboJet Disc Autoloader Application 2. You may now use Epson Print CD or any other optical disc printing application to print your discs. When configuring the print settings, make sure to choose the appropriate media type for the printer.

  • Page 26: Troubleshooting

    ▪ There is a problem with your printer installation. Check to make sure that your printer is being detected properly and that you can print from it. Make sure the Autoloader unit is positioned correctly (see page 3). 3. Epson “CD/DVD tray not set correctly” warning message appears when printing. ▪ This is normal. Please ignore. www.aleratec.com...
  • Page 27 ▪ There are not enough blank discs in the Autoloader to complete the job. Load blank discs and click the “Continue” button. This error can also happen when a completed disc has not been dispensed properly. If this is the case, clear the disc(s) and click the “Continue” button. www.aleratec.com...
  • Page 28 5. Click the “Tray In” button on the RoboJet Disc Autoloader screen 6. Push the disc tray back into the unit and make sure the “B” and “C” arrows are aligned 7. Make sure the Autoloader is positioned correctly (see page 3). www.aleratec.com...
  • Page 29 ▪ Some types of discs are also “stickier” than others, especially when taken from a brand new spindle. It often helps to “fan” these discs prior to loading them into the Autoloader (briefly separate each individual disc from the one above and below it on the spindle). www.aleratec.com...

  • Page 30: Specifications

    Dimensions • Width 12.75 inches (324mm) (without disc bin or guide rods) • Height 7.75 inches (197mm) • Length 11 inches (280mm) Weight • 1.2kg / 2.6lb Electrical Specifications • Input Voltage 100-240V AC • Input Frequency 50/60 Hz www.aleratec.com...
  • Page 31 • Superior Print Quality with bright, vibrant colors • Quick Drying Disc Surface Aleratec Inkjet Printable Duplicator Grade Blu-ray recordable, 25-Pack media (4x BD-R part number: 370102, 6x BD-R part number: 370104). Check the Aleratec website at www.aleratec.com for additional Inkjet printable media. www.aleratec.com...

  • Page 32: Technical Support

    Technical Support After reading this User Guide, if you need additional assistance with this product, please contact Aleratec Technical Support. Our technical staff will be happy to assist you, but they may need your help to better assist you. Calling Aleratec Technical Support without all the necessary information can be both time consuming and frustrating.

  • Page 33: Service And Support

    If the product fails during normal and proper use within the warranty period, Aleratec, Inc. will, at its option, repair or replace the product at no cost (except shipping and insurance). This limited warranty does not...
  • Page 34 (even if Aleratec, Inc. has been advised of the possibility of such damages).
  • Page 35 Duplicator, to prepay shipping charges, and to use the original shipping container or equivalent. Any service outside the scope of this limited warranty shall be at Aleratec, Inc.’s or its Authorized Service Provider’s rates and terms then in effect. This warranty gives you specific legal rights; you may also have other rights which vary from state to state.

  • Page 36: Technical Support Fax Back Form

    I am experiencing the following problems with my RoboJet Disc Autoloader : _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ By answering these questions, your problem will be solved more rapidly. Make copies as necessary. You can reach us electronically at: www.aleratec. com on the internet. www.aleratec.com...
  • Page 37 Document Number: 360104_UG_ENG_Rev. A Copyright © 2011 Specifications subject to change without notice. Aleratec, Inc. 9851 Owensmouth Avenue Chatsworth, CA 91311 U.S.A. www.aleratec.com...
