Behringer A500 User Manual
Professional 600-watt reference-class studio power amplifier
Hide thumbs
Also See for A500:
- Quick start manual (12 pages) ,
- User manual (11 pages) ,
- User manual (10 pages)
Related Manuals for Behringer A500
Summary of Contents for Behringer A500

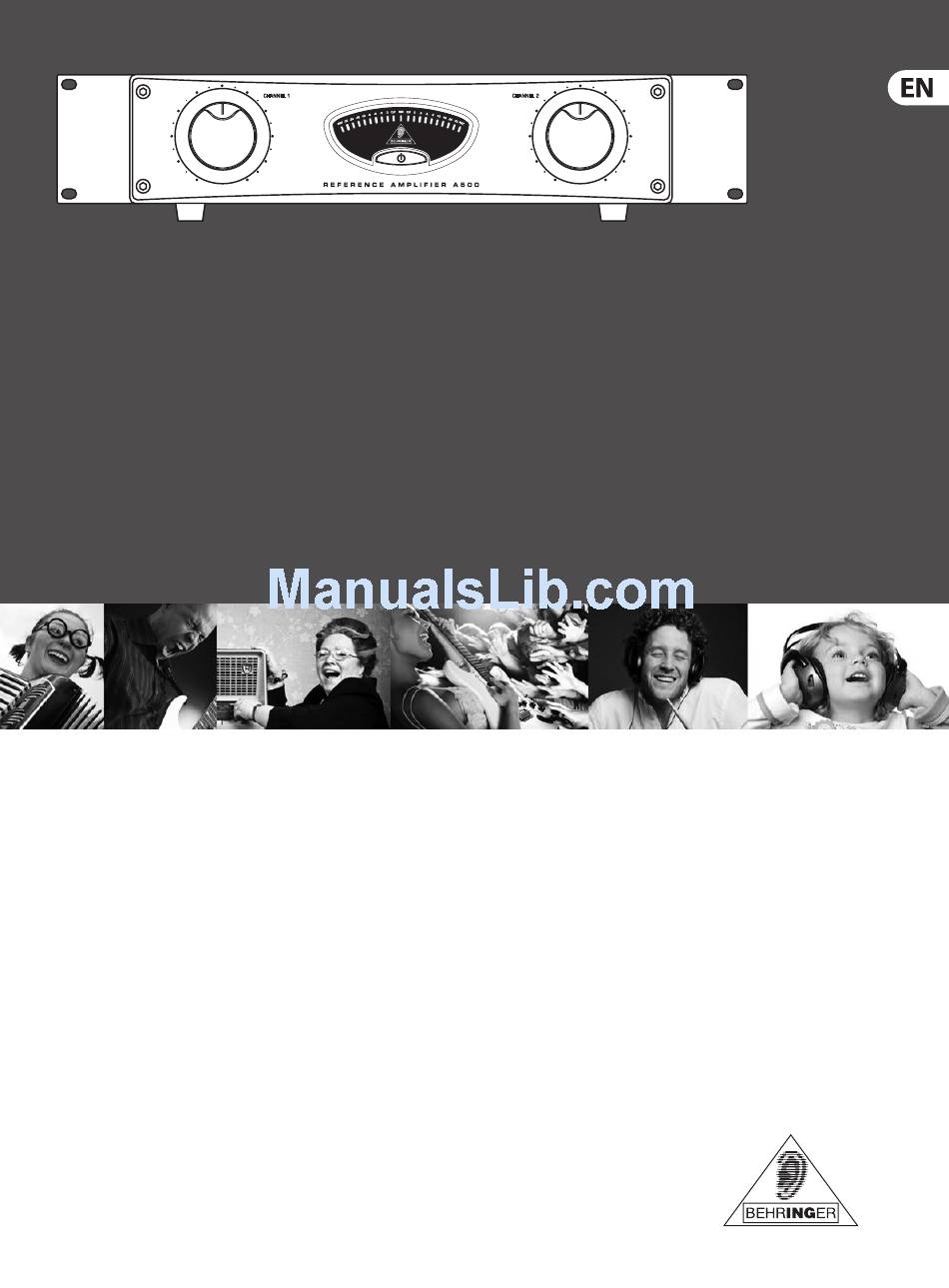

- Page 1 User Manual REFERENCE AMPLIFIER A500 Professional 600-Watt Reference-Class Studio Power Amplifier behringer.com...
-
Page 2: Table Of Contents
REFERENCE AMPLIFIER A500 User Manual Table of Contents Thank you ............... 2 Important Safety Instructions ........3 Legal Disclaimer ............. 3 Limited Warranty ............3 1. Introduction ............... 5 1.1 Before you get started ............5 1.1.1 Shipment ................5 1.1.2 Initial operation ............. -
Page 3: Important Safety Instructions
BEHRINGER’ s website behringer. com under electrician for replacement of the obsolete outlet. “Where to Buy“, or you can contact the BEHRINGER offi ce Protect the power cord from being walked on or closest to you. -
Page 4: Limitation Of Liability
If the product needs to be modifi ed or Authorized BEHRINGER dealers do not sell new [ 1 0] adapted in order to comply with applicable technical products directly in online auctions. -
Page 5: Introduction
◊ If the unit is damaged, please do NOT return it to BEHRINGER. Instead, notify your dealer and the shipping company immediately. Should your BEHRINGER product malfunction, it is our intention to have it Otherwise, claims for damage or replacement may not be honored. -
Page 6: Control Elements
REFERENCE AMPLIFIER A500 User Manual Control Elements The front Fig. 2.1: Control elements in the front POWER switch is used to power up the A500. The POWER switch should PROT LED lights up whenever the protective circuitry mutes the speaker... -
Page 7: Application Examples
In this mode, both channels run independently with a separate input signal. Connect passive loudspeakers, preferably high-quality studio monitors, such Here you will connect an output of your mixing console, your HiFi preamp or as the BEHRINGER TRUTH B2031P. Set the STEREO/BRIDGED MONO switch [ 8 ] to another signal source. -
Page 8: Installation
REFERENCE AMPLIFIER A500 User Manual Installation Please only connect the speaker using the BRIDGED MONO connector [ 9 ] or by using both of the middle binding posts [ 1 0] . Installation in a rack ◊ Always power the A500 down using the POWER switch whenever you make any changes to the operating mode settings. -
Page 9: Audio Connections
REFERENCE AMPLIFIER A500 User Manual Audio connections Balanced ¼" TRS connector Various cables are needed for different types of applications. The following illustrations show the correct wiring. Always use high-grade cables. strain relief clamp sleeve ring Balanced use with XLR connectors... -
Page 10: Specifications
10 kΩ unbalanced, 20 kΩ balanced Signal-to-Noise >100 dBA BEHRINGER is constantly striving to maintain the highest professional standards. As a result of these efforts, modifications may be made from time to time to existing products without prior notice. Specifications and Controls appearance may differ from those listed or illustrated. - Page 11 (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Important information: Changes or modifications to the equipment not expressly approved by BEHRINGER USA can void the user’s authority to use the equipment. behringer.com...
