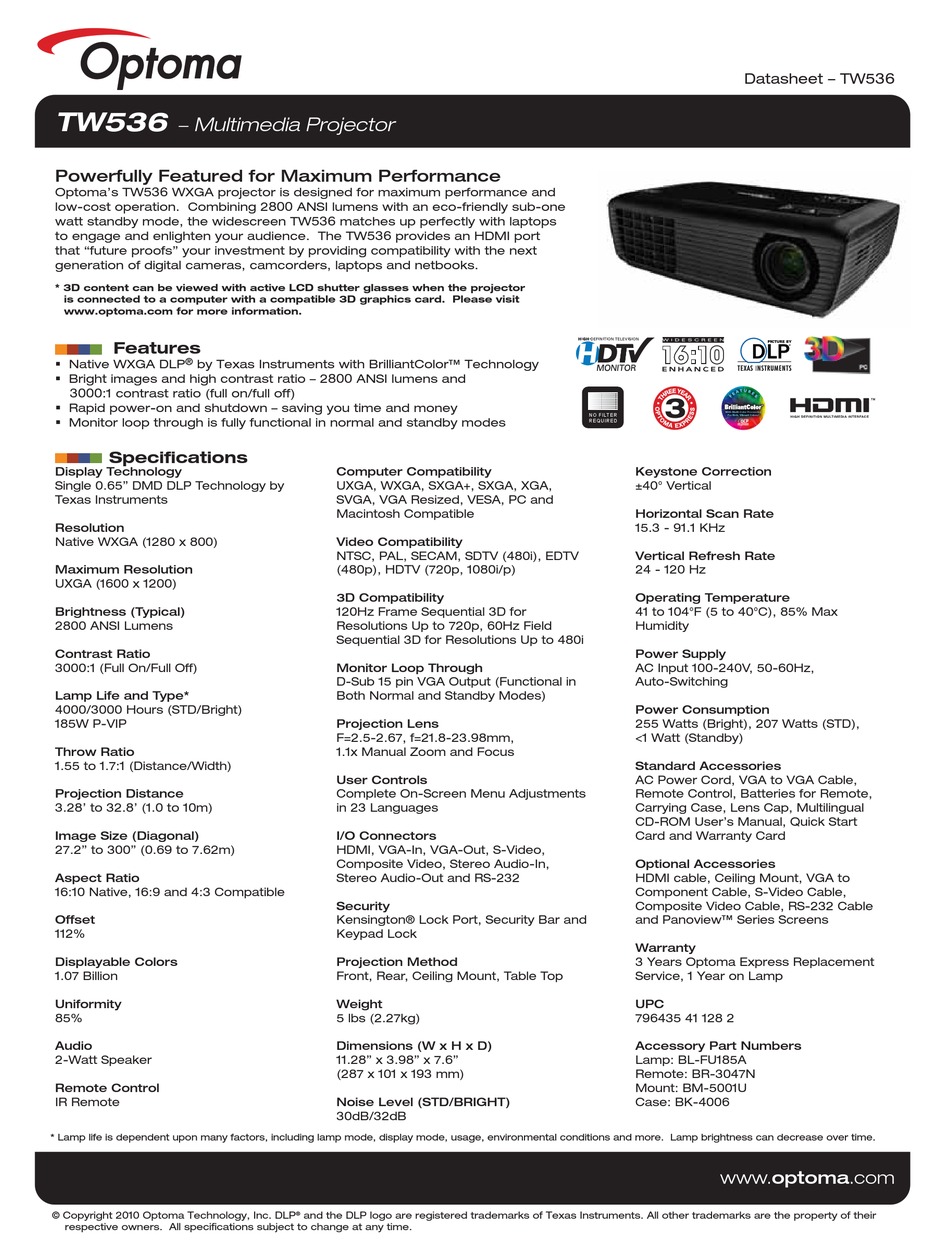

Optoma TW536 Datasheet

TW536
− Multimedia Projector
Powerfully Featured for Maximum Performance
Optoma's TW536 WXGA projector is designed for maximum performance and
low-cost operation. Combining 2800 ANSI lumens with an eco-friendly sub-one
watt standby mode, the widescreen TW536 matches up perfectly with laptops
to engage and enlighten your audience. The TW536 provides an HDMI port
that "future proofs" your investment by providing compatibility with the next
generation of digital cameras, camcorders, laptops and netbooks.
* 3D content can be viewed with active LCD shutter glasses when the projector
is connected to a computer with a compatible 3D graphics card. Please visit
www.optoma.com for more information.
Features
 Native WXGA DLP ® by Texas Instruments with BrilliantColor™ Technology
 Bright images and high contrast ratio – 2800 ANSI lumens and
3000:1 contrast ratio (full on/full off)
 Rapid power-on and shutdown – saving you time and money
 Monitor loop through is fully functional in normal and standby modes

Specifications

Display Technology
Single 0.65" DMD DLP Technology by
Texas Instruments
Resolution
Native WXGA (1280 x 800)
Maximum Resolution
UXGA (1600 x 1200)
Brightness (Typical)
2800 ANSI Lumens
Contrast Ratio
3000:1 (Full On/Full Off)
Lamp Life and Type*
4000/3000 Hours (STD/Bright)
185W P-VIP
Throw Ratio
1.55 to 1.7:1 (Distance/Width)
Projection Distance
3.28' to 32.8' (1.0 to 10m)
Image Size (Diagonal)
27.2" to 300" (0.69 to 7.62m)
Aspect Ratio
16:10 Native, 16:9 and 4:3 Compatible
Offset
112%
Displayable Colors
1.07 Billion
Uniformity
85%
Audio
2-Watt Speaker
Remote Control
IR Remote
* Lamp life is dependent upon many factors, including lamp mode, display mode, usage, environmental conditions and more. Lamp brightness can decrease over time.
© Copyright 2010 Optoma Technology, Inc. DLP
respective owners. All specifications subject to change at any time.
Computer Compatibility
UXGA, WXGA, SXGA+, SXGA, XGA,
SVGA, VGA Resized, VESA, PC and
Macintosh Compatible
Video Compatibility
NTSC, PAL, SECAM, SDTV (480i), EDTV
(480p), HDTV (720p, 1080i/p)
3D Compatibility
120Hz Frame Sequential 3D for
Resolutions Up to 720p, 60Hz Field
Sequential 3D for Resolutions Up to 480i
Monitor Loop Through
D-Sub 15 pin VGA Output (Functional in
Both Normal and Standby Modes)
Projection Lens
F=2.5-2.67, f=21.8-23.98mm,
1.1x Manual Zoom and Focus
User Controls
Complete On-Screen Menu Adjustments
in 23 Languages
I/O Connectors
HDMI, VGA-In, VGA-Out, S-Video,
Composite Video, Stereo Audio-In,
Stereo Audio-Out and RS-232
Security
Kensington® Lock Port, Security Bar and
Keypad Lock
Projection Method
Front, Rear, Ceiling Mount, Table Top
Weight
5 lbs (2.27kg)
Dimensions (W x H x D)
11.28" x 3.98" x 7.6"
(287 x 101 x 193 mm)
Noise Level (STD/BRIGHT)
30dB/32dB
® and the DLP logo are registered trademarks of Texas Instruments. All other trademarks are the property of their
Datasheet – TW536
NO FILTER
REQUIRED
Keystone Correction
±40° Vertical
Horizontal Scan Rate
15.3 - 91.1 KHz
Vertical Refresh Rate
24 - 120 Hz
Operating Temperature
41 to 104°F (5 to 40°C), 85% Max
Humidity
Power Supply
AC Input 100-240V, 50-60Hz,
Auto-Switching
Power Consumption
255 Watts (Bright), 207 Watts (STD),
<1 Watt (Standby)
Standard Accessories
AC Power Cord, VGA to VGA Cable,
Remote Control, Batteries for Remote,
Carrying Case, Lens Cap, Multilingual
CD-ROM User's Manual, Quick Start
Card and Warranty Card
Optional Accessories
HDMI cable, Ceiling Mount, VGA to
Component Cable, S-Video Cable,
Composite Video Cable, RS-232 Cable
and Panoview™ Series Screens
Warranty
3 Years Optoma Express Replacement
Service, 1 Year on Lamp
UPC
796435 41 128 2
Accessory Part Numbers
Lamp: BL-FU185A
Remote: BR-3047N
Mount: BM-5001U
Case: BK-4006
www.optoma.com
