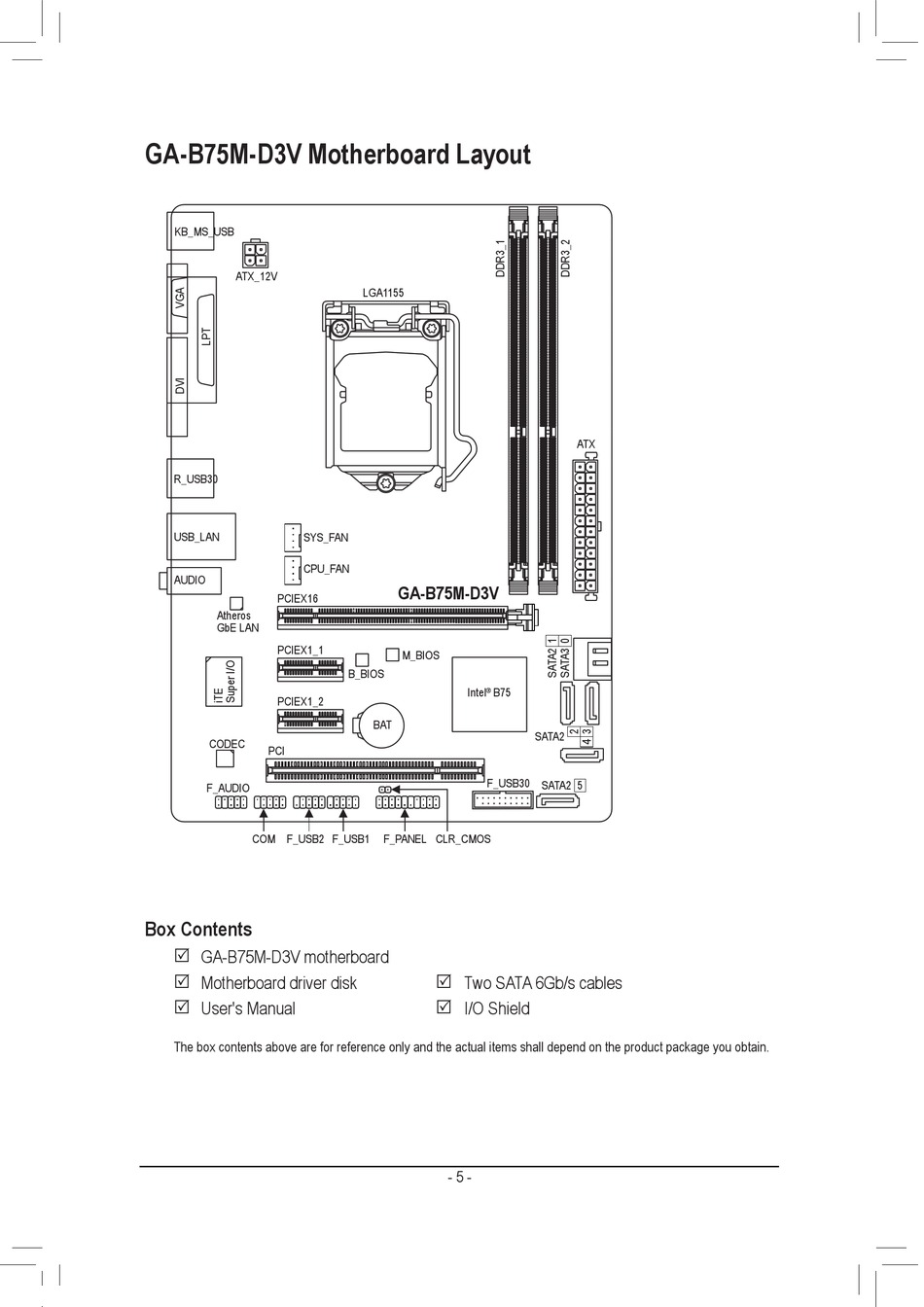

Ga-B75M-D3V Motherboard Layout - Gigabyte GA-B75M-D3V User Manual

GA-B75M-D3V Motherboard Layout

KB_MS_USB
ATX_12V
R_USB30
USB_LAN SYS_FAN
CPU_FAN
AUDIO
PCIEX16
Atheros
GbE LAN
PCIEX1_1
PCIEX1_2
CODEC
PCI
F_AUDIO
COM F_USB2 F_USB1
Box Contents
GA-B75M-D3V motherboard
5
Motherboard driver disk
5
User's Manual
5
The box contents above are for reference only and the actual items shall depend on the product package you obtain.
LGA1155
GA-B75M-D3V
M_BIOS
B_BIOS
Intel B75
®
BAT
F_USB30
F_PANEL CLR_CMOS
Two SATA 6Gb/s cables
5
I/O Shield
5
- 5 -
ATX
SATA2
SATA2 5
