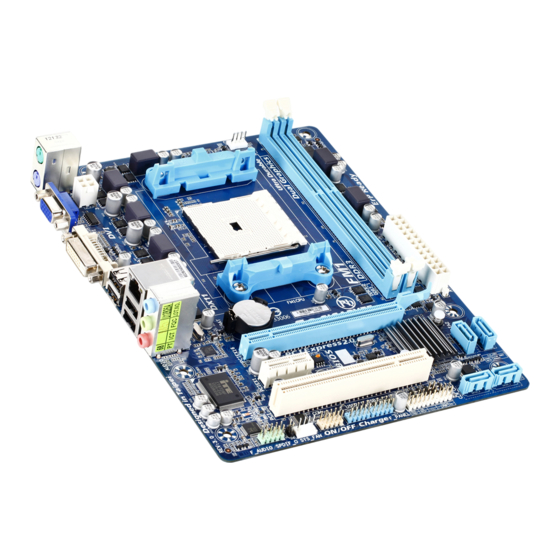

Gigabyte GA-A55M-DS2 User Manual
  1. Manuals
  2. Brands
  3. Gigabyte Manuals
  4. Motherboard
  5. GA-A55M-DS2
  6. User manual

Gigabyte GA-A55M-DS2 User Manual

User manual
Hide thumbs Also See for GA-A55M-DS2:
Table of Contents

Advertisement

Quick Links

See also: User Manual
GA-A55M-DS2
User's Manual
Rev. 1001
12ME-A55MDS2-1001R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GA-A55M-DS2 and is the answer not in the manual?

Questions and answers

Related Manuals for Gigabyte GA-A55M-DS2

Summary of Contents for Gigabyte GA-A55M-DS2

  • Page 1 GA-A55M-DS2 User's Manual Rev. 1001 12ME-A55MDS2-1001R...

  • Page 3: Identifying Motherboard Revision

    The trademarks mentioned in this manual are legally registered to their respective owners. Disclaimer Information in this manual is protected by copyright laws and is the property of GIGABYTE. Changes to the specifications and features in this manual may be made by GIGABYTE with- out prior notice.

  • Page 4: Table Of Contents

    Table of Contents GA-A55M-DS2 Motherboard Layout ................5 GA-A55M-DS2 Motherboard Block Diagram ..............6 Chapter 1 Hardware Installation ..................7 Installation Precautions ................... 7 Product Specifications ..................8 Installing the APU ..................10 Installing the Memory ..................11 Installing an Expansion Card ................11 Setup of the AMD Dual Graphics Configuration ........... 12 Back Panel Connectors .................

  • Page 5: Ga-A55M-Ds2 Motherboard Layout

    GA-A55M-DS2 Motherboard Layout CPU_FAN KB_MS ATX_12V Socket FM1 R_USB USB_LAN Realtek/Atheros AUDIO GbE LAN GA-A55M-DS2 PCIEX16 SATA2_3 PCIEX1 SATA2_2 AMD A55 IT8728 SATA2_0 SATA2_1 CODEC F_USB1 CLR_CMOS F_AUDIO SYS_FAN M_BIOS SPDIF_O B_BIOS F_USB2 F_PANEL Box Contents GA-A55M-DS2 motherboard Motherboard driver disk...

  • Page 6: Ga-A55M-Ds2 Motherboard Block Diagram

    GA-A55M-DS2 Motherboard Block Diagram 1 PCI Express x16 APU CLK+/- (100 MHz) DISP CLK+/- (100 MHz) DDR3 1866/1600/1333/1066 MHz AMD APU 1 PCI Express x1 Dual Channel Memory PCIe CLK (100 MHz) DVI-D D-Sub PCI Express Bus Realtek/Atheros GbE LAN RJ45 8 USB 2.0/1.1...

  • Page 7: Chapter 1 Hardware Installation

    Chapter 1 Hardware Installation Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's manual and follow these procedures: Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or •...

  • Page 8: Product Specifications

    4 GB. Dual channel memory architecture Š Support for DDR3 1866/1600/1333/1066 MHz memory modules Š (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) Onboard APU: Š...
  • Page 9 Internal 1 x APU fan header Š Connectors 1 x system fan header Š 1 x front panel header Š 1 x front panel audio header Š 1 x S/PDIF Out header Š 2 x USB 2.0/1.1 headers Š 1 x serial port header Š...

  • Page 10: Installing The Apu

    Form Factor Micro ATX Form Factor; 22.5cm x 17.4cm Š * GIGABYTE reserves the right to make any changes to the product specifications and product-related information without prior notice. Installing the APU Read the following guidelines before you begin to install the APU: • Make sure that the motherboard supports the APU.

  • Page 11: Installing The Memory

    Make sure that the motherboard supports the memory. It is recommended that memory of the • same capacity, brand, speed, and chips be used. (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) Always turn off the computer and unplug the power cord from the power outlet before installing •...

  • Page 12: Setup Of The Amd Dual Graphics Configuration

    1-6 Setup of the AMD Dual Graphics Configuration Combining the onboard GPU with a discrete graphics card, AMD's Dual Graphics technology can provide significantly advanced display performance for AMD platform. Read the following instructions on configuring a Dual Graphics system. A. System Requirements - AMD A series processor - Windows 7 operating system - An AMD Dual Graphics technology-supported motherboard and correct driver - An AMD Radeon HD 6000 series graphics card that supports AMD Dual Graphics technology (for more...

  • Page 13: Back Panel Connectors

    Back Panel Connectors PS/2 Keyboard and PS/2 Mouse Port Use the upper port (green) to connect a PS/2 mouse and the lower port (purple) to connect a PS/2 keyboard. D-Sub Port (Note 1) The D-Sub port supports a 15-pin D-Sub connector. Connect a monitor that supports D-Sub connection to this port.

  • Page 14: Internal Connectors

    Internal Connectors ATX_12V F_AUDIO SPDIF_O CPU_FAN F_USB1/F_USB2 SYS_FAN SATA2_0/1/2/3 CLR_CMOS F_PANEL Read the following guidelines before connecting external devices: First make sure your devices are compliant with the connectors you wish to connect. • Before installing the devices, be sure to turn off the devices and your computer. Unplug the •...
  • Page 15 1/2) ATX_12V/ATX (2x2 12V Power Connector and 2x12 Main Power Connector) With the use of the power connector, the power supply can supply enough stable power to all the com- ponents on the motherboard. Before connecting the power connector, first make sure the power supply is turned off and all devices are properly installed. The power connector possesses a foolproof design. Connect the power supply cable to the power connector in the correct orientation.

  • Page 16: Sata 3Gb/S Connectors

    3/4) CPU_FAN/SYS_FAN (Fan Headers) The motherboard has a 4-pin CPU fan header (CPU_FAN) and a 4-pin system fan header (SYS_FAN). Most fan headers possess a foolproof insertion design. When connecting a fan cable, be sure to connect it in the correct orientation (the black connector wire is the ground wire). The motherboard supports APU fan speed control, which requires the use of a APU fan with fan speed control design.

  • Page 17: Front Panel Header

    6) F_PANEL (Front Panel Header) Connect the power switch, reset switch, speaker, and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables. Message/Power/ Power Sleep LED Switch Speaker F_AUDIO(H) F_PANEL(NH)
  • Page 18 7) F_AUDIO (Front Panel Audio Header) The front panel audio header supports Intel High Definition audio (HD) and AC'97 audio. You may connect your chassis front panel audio module to this header. Make sure the wire assignments of the module con- nector match the pin assignments of the motherboard header. Incorrect connection between the module connector and the motherboard header will make the device unable to work or even damage it.
  • Page 19 9) F_USB1/F_USB2 (USB 2.0/1.1 Headers) The headers conform to USB 2.0/1.1 specification. Each USB header can provide two USB ports via an optional USB bracket. For purchasing the optional USB bracket, please contact the local dealer. Pin No. Definition Power (5V) Power (5V) USB DX- USB DY- USB DX+...

  • Page 20: Battery

    11) CLR_CMOS (Clearing CMOS Jumper) Use this jumper to clear the CMOS values (e.g. date information and BIOS configurations) and reset the CMOS values to factory defaults. To clear the CMOS values, place a jumper cap on the two pins to temporarily short the two pins or use a metal object like a screwdriver to touch the two pins for a few seconds.

  • Page 21: Chapter 2 Bios Setup

    To see more advanced BIOS Setup menu options, you can press <Ctrl> + <F1> in the main menu of the BIOS Setup program. To upgrade the BIOS, use either the GIGABYTE Q-Flash or @BIOS utility. Q-Flash allows the user to quickly and easily upgrade or back up BIOS without entering the operating •...

  • Page 22: The Main Menu

    The Main Menu Once you enter the BIOS Setup program, the Main Menu (as shown below) appears on the screen. Use ar- row keys to move among the items and press <Enter> to accept or enter a sub-menu. (Sample BIOS Version: E9) CMOS Setup Utility-Copyright (C) 1984-2011 Award Software MB Intelligent Tweaker(M.I.T.) Load Fail-Safe Defaults ...

  • Page 23: Mb Intelligent Tweaker(M.i.t.)

    2-3 MB Intelligent Tweaker(M.I.T.) CMOS Setup Utility-Copyright (C) 1984-2011 Award Software MB Intelligent Tweaker(M.I.T.) Item Help  IGX Configuration [Press Enter] Menu Level  CPU Clock Ratio [Auto] 2400Mhz Core Performance Boost (Note) [Enabled] CPB Ratio [Auto] 2400Mhz (Note) CPU Host Clock Control [Auto] x CPU Host Clock PCIe Spread Spectrum [Disabled] Set Memory Clock [Auto] x Memory Clock...
  • Page 24 CPU Clock Ratio Allows you to alter the clock ratio for the installed CPU. The adjustable range is dependent on the CPU being installed. Core Performance Boost (Note) Allows you to determine whether to enable the Core Performance Boost (CPB) technology, a CPU performance-boost technology.
  • Page 25 DRAM Configuration CMOS Setup Utility-Copyright (C) 1984-2011 Award Software DRAM Configuration Item Help DDR3 Timing Items [Auto] SPD Auto Menu Level  x 1T/2T Command Timing Auto x CAS# latency Auto x RAS to CAS R/W Delay Auto x Row Precharge Time Auto x Minimum RAS Active Time Auto x TwTr Command Delay Auto...
  • Page 26 Bank Interleaving Enables or disables memory bank interleaving. Enabled allows the system to simultaneously access dif- ferent banks of the memory to increase memory performance and stability. (Default: Enabled) ******** System Voltage Optimized ******** System Voltage Control Determines whether to manually set the system voltages. Auto lets the BIOS automatically set the system voltages as required.

  • Page 27: Standard Cmos Features

    2-4 Standard CMOS Features CMOS Setup Utility-Copyright (C) 1984-2011 Award Software Standard CMOS Features Item Help Date (mm:dd:yy) Wed, Jul 20 2011 Menu Level  Time (hh:mm:ss) 22:31:24  IDE Channel 0 Master [None]  IDE Channel 0 Slave [None]  IDE Channel 1 Master [None]  IDE Channel 1 Slave [None] Halt On [All, But Keyboard] Base Memory 640K Extended Memory 941M...

  • Page 28: Advanced Bios Features

    2-5 Advanced BIOS Features CMOS Setup Utility-Copyright (C) 1984-2011 Award Software Advanced BIOS Features Item Help  IGX Configuration [Press Enter] Menu Level  AMD C6 Support [Disabled] Virtualization [Disabled] AMD K8 Cool&Quiet control [Auto] C-state Pmin [Auto]  Hard Disk Boot Priority [Press Enter] EFI CD/DVD Boot Option [Auto] First Boot Device [Hard Disk] Second Boot Device [CDROM] Third Boot Device [USB-HDD] Password Check [Setup] HDD S.M.A.R.T. Capability [Disabled] Away Mode...

  • Page 29: Integrated Peripherals

    (Default: Disabled) Full Screen LOGO Show Allows you to determine whether to display the GIGABYTE Logo at system startup. Disabled displays normal POST message. (Default: Enabled) Init Display First Specifies the first initiation of the monitor display from the installed PCI graphics card, PCI Express graphics card, or the onboard graphics.
  • Page 30 RAID Enables RAID for the SATA controller. AHCI Configures the SATA controllers to AHCI mode. Advanced Host Controller Interface (AHCI) is an interface specification that allows the storage driver to enable advanced Serial ATA features such as Native Command Queuing and hot plug. OnChip SATA Port as ESP CMOS Setup Utility-Copyright (C) 1984-2011 Award Software OnChip SATA Port as ESP...

  • Page 31: Power Management Setup

    Onboard Audio Function Enables or disables the onboard audio function. (Default: Enabled) If you wish to install a 3rd party add-in audio card instead of using the onboard audio, set this item to Disabled. USB Controllers Enables or disables the integrated USB controllers. (Default: Enabled) Disabled will turn off all of the USB functionalities below.
  • Page 32 PME Event Wake Up Allows the system to be awakened from an ACPI sleep state by a wake-up signal from a PCI or PCIe de- vice. Note: To use this function, you need an ATX power supply providing at least 1A on the +5VSB lead. (Default: Enabled) HPET Support (Note)

  • Page 33: Pc Health Status

    PC Health Status CMOS Setup Utility-Copyright (C) 1984-2011 Award Software PC Health Status Item Help Reset Case Open Status [Disabled] Menu Level  Case Opened Vcore 1.364V DDR15V 1.536V +12V 11.950V Vcc3 3.048V Current System Temperature Current CPU Temperature Current CPU FAN Speed 1962 RPM Current SYSTEM FAN Speed 0 RPM CPU Warning Temperature...

  • Page 34: Load Fail-Safe Defaults

    2-9 Load Fail-Safe Defaults CMOS Setup Utility-Copyright (C) 1984-2011 Award Software MB Intelligent Tweaker(M.I.T.) Load Fail-Safe Defaults  Standard CMOS Features Load Optimized Defaults  Advanced BIOS Features Set Supervisor Password  Integrated Peripherals Set User Password  Power Management Setup Save & Exit Setup ...

  • Page 35: Set Supervisor/User Password

    2-11 Set Supervisor/User Password CMOS Setup Utility-Copyright (C) 1984-2011 Award Software MB Intelligent Tweaker(M.I.T.) Load Fail-Safe Defaults  Standard CMOS Features Load Optimized Defaults  Advanced BIOS Features Set Supervisor Password  Integrated Peripherals Set User Password  Power Management Setup Save &...

  • Page 36: Exit Without Saving

    2-13 Exit Without Saving CMOS Setup Utility-Copyright (C) 1984-2011 Award Software MB Intelligent Tweaker(M.I.T.) Load Fail-Safe Defaults  Standard CMOS Features Load Optimized Defaults  Quit Without Saving (Y/N)? N Advanced BIOS Features Set Supervisor Password  Integrated Peripherals Set User Password ...

  • Page 37: Chapter 4 Appendix

    Chapter 4 Appendix 4-1 Configuring SATA Hard Drive(s) Before you begin Please prepare: • At least two SATA hard drives (to ensure optimal performance, it is recommended that you use two hard drives with identical model and capacity). If you do not want to create RAID, you may prepare only one hard drive.
  • Page 38 5. Press <Ctrl>+<Y> keys to save the information. The message in Figure 1 will appear. Press <Ctrl>+<Y> to input the array name. If you do not input the array name, the default array name will be used. Please press Ctrl-Y key to input the LD Name or press any key to exit.

  • Page 39: Regulatory Statements

    Contravention will be prosecuted. We believe that the information contained herein was accurate in all respects at the time of printing. GIGABYTE cannot, however, assume any responsibility for errors or omissions in this text. Also note that the information in this document is subject to change without notice and should not be construed as a commitment by GIGABYTE.
  • Page 40 - 40 -...
  • Page 41 - 41 -...
  • Page 42 - 42 -...
  • Page 43 - 43 -...
  • Page 44 WEB address (English): http://www.gigabyte.com WEB address (Chinese): http://www.gigabyte.tw You may go to the GIGABYTE website, select your language in the language list on the top right corner of the website. • GIGABYTE Global Service System To submit a technical or non-technical (Sales/Market- ing) question, please link to: http://ggts.gigabyte.com.tw...
