Ryobi RY39500 Repair Sheet

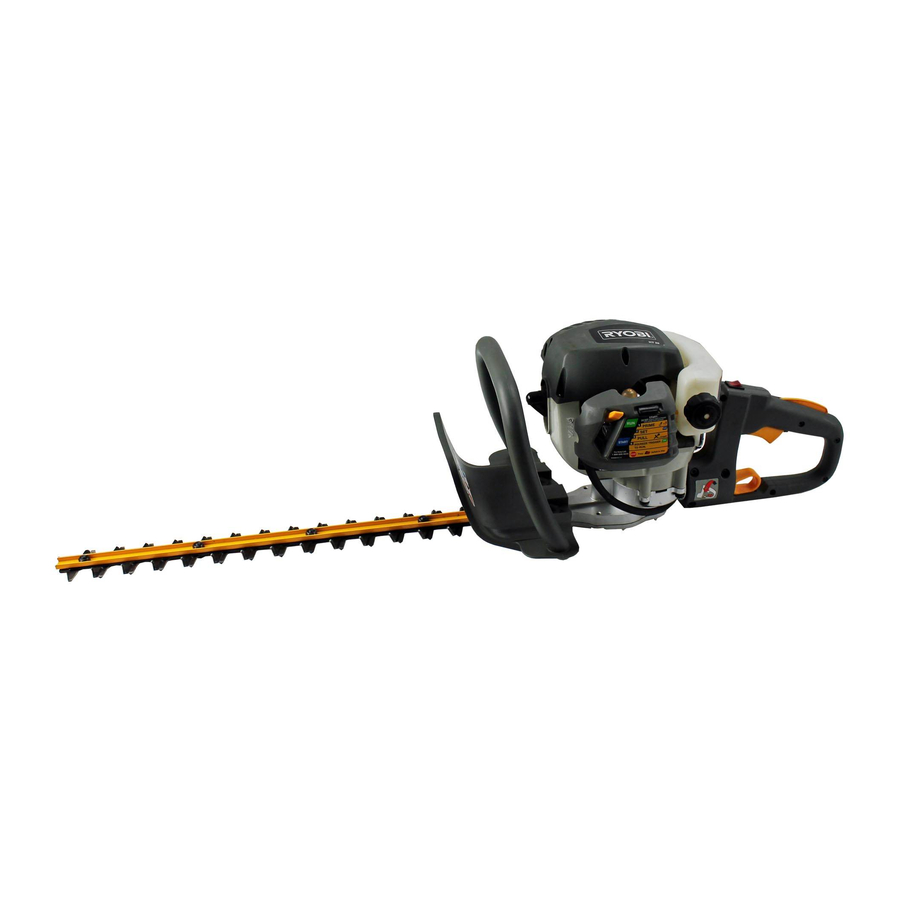

26cc hedge trimmer
Hide thumbs
Also See for RY39500:
- Operator's manual (18 pages) ,
- Replacement parts list (4 pages) ,
- Operator's manual (42 pages)
Advertisement
Table of Contents
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ryobi RY39500
Summary of Contents for Ryobi RY39500
- Page 1 RYOBI 26cc HEDGE TRIMMER MODEL NO. RY39500 aLL vERsIONs REPaIR sHEET...
- Page 2 RYOBI 26cc HEDGE TRIMMER – MODEL NUMBER RY39500 Figure a...
- Page 3 RYOBI 26cc HEDGE TRIMMER – MODEL NUMBER RY39500 PaRTs LIsT (FIGURE PaRT PaRT NUMBER DEsCRIPTION NUMBER DEsCRIPTION 120900035 Front Handle (Inc. Key No. 2) ........1 T308233001 Cover ..............1 940964006 Warning Label ............1 660788003 * Screw (M5 x 17.5 mm Washer Hd.) ......5 870174001 * Spark Plug (Champion RCJ6Y) ......1...
- Page 4 RYOBI 26cc HEDGE TRIMMER – MODEL NUMBER RY39500 FIGURE C Figure B...
- Page 5 RYOBI 26cc HEDGE TRIMMER – MODEL NUMBER RY39500 PaRTs LIsT (FIGURE PaRT PaRT NUMBER DEsCRIPTION NUMBER DEsCRIPTION 660927005 * Screw (M5 x 28 mm) ..........3 678187002 C-Ring ..............1 660466001 * Screw (M4 x 18 mm) ..........5 640115001 Gear Box..............
- Page 6 RYOBI 26cc HEDGE TRIMMER – MODEL NUMBER RY39500 Figure C...
- Page 7 RYOBI 26cc HEDGE TRIMMER – MODEL NUMBER RY39500 PaRTs LIsT (FIGURE PaRT PaRT NUMBER DEsCRIPTION NUMBER DEsCRIPTION 901550001 Crankcase Cover Gasket........1 660638003 * Screw (10-24 x 2-1/8 in.) ........2 638337001 Crankcase Cover ..........1 638442002 Heat Shield (Muffler) ........... 1 308990017 Muffler Assembly ..........
