Multi Editor Essential Owner's Manual
• Copying of the commercially available music sequence data and/or digital audio files is strictly
prohibited except for your personal use.
• The software and this owner's manual are exclusive copyrights of Yamaha Corporation.
• Copying of the software or reproduction of this manual in whole or in part by any means is expressly
forbidden without the written consent of the manufacturer.
© 2011 Yamaha Corporation. All rights reserved.
For information about the MIDI settings of the MOTIF XF, S90XS/S70XS, MOX6/MOX8, and MOTIF XS, MOTIF-RACK XS, refer to the respective manuals.
This application lets you edit the Mixer/Effect/EQ parameters in the Song/Pattern or Multi mode of the MOTIF XF, S90XS/S70XS, MOX6/MOX8, MOTIF XS, MOTIF-RACK XS
from your iPad. Select a Song, Pattern or Multi on the instrument, edit the Mixing parameters of the selected Voice on the iPad, then store the edited Mixing parameters as
a Song , Pattern or Multi on the instrument.
Multi Editor Essential
Utility window
For setting the parameters
common to all the displays.
MIXER display
The instructions in this manual use the MOTIF XF as an example.
Depending on your particular musical instrument, there may not be equivalent displays or buttons.
What is Multi Editor Essential?
EFFECT display
MEQ display
Chorus display
Reverb display
Master Effect display
• Yamaha makes no representations or warranties with regard to the use of the software and
documentation and cannot be held responsible for the results of the use of this manual and the
software.
• The screen displays as illustrated in this Owner's Manual are for instructional purposes, and may
appear somewhat different from the screens which appear on your devicer.
• Apple, iPad are trademarks of Apple Inc., registered in the U.S. and other countries.
• The company names and product names in this Owner's Manual are the trademarks or registered
trademarks of their respective companies.
iMX-1
MIDI OUT
iPad
MIDI IN

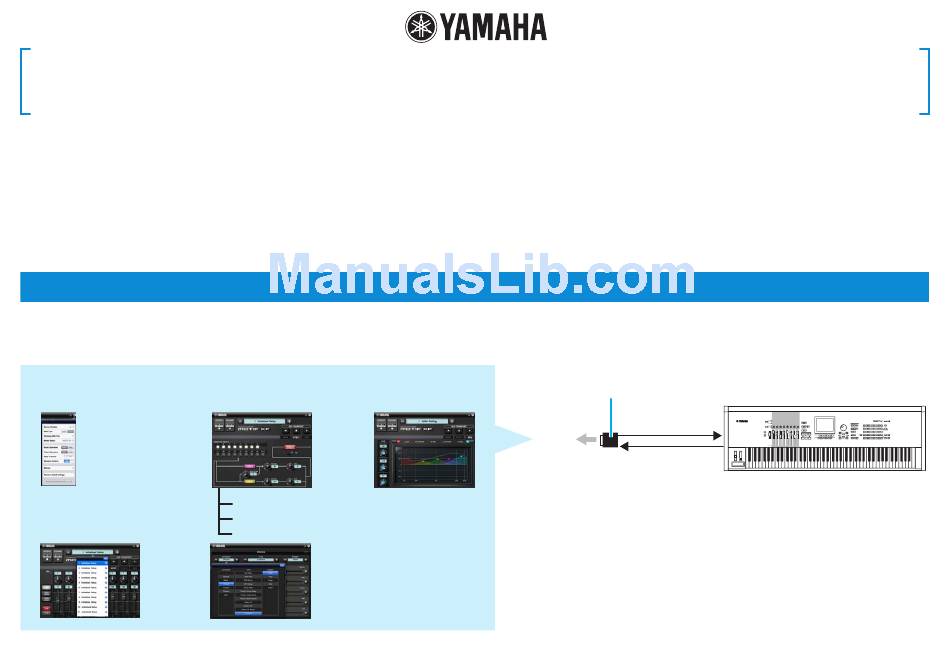

By using MIDI cables and a Yamaha i-MX1, connect the instrument to an iPad.
The MOTIF XF can be connected via wireless Network MIDI.
For details about wireless MIDI connectivity, refer to the "New Functions in
MOTIF XF Version 1.20" Manual.
NOTE
• Before editing, enter the Song, Pattern or Multi mode.
• After editing, store the edited settings as a Song, Pattern or Multi.
MOTIF XF, S90XS/S70XS,
MOX6/MOX8, MOTIF XS,
MOTIF-RACK XS
MIDI IN
MIDI OUT
