Transition Networks J/VD-MRX-01 User Manual

Stand-alone am video copper-to-fiber video system
Hide thumbs
1
2
3
4
5

Advertisement

Table of Contents

Enlarged version

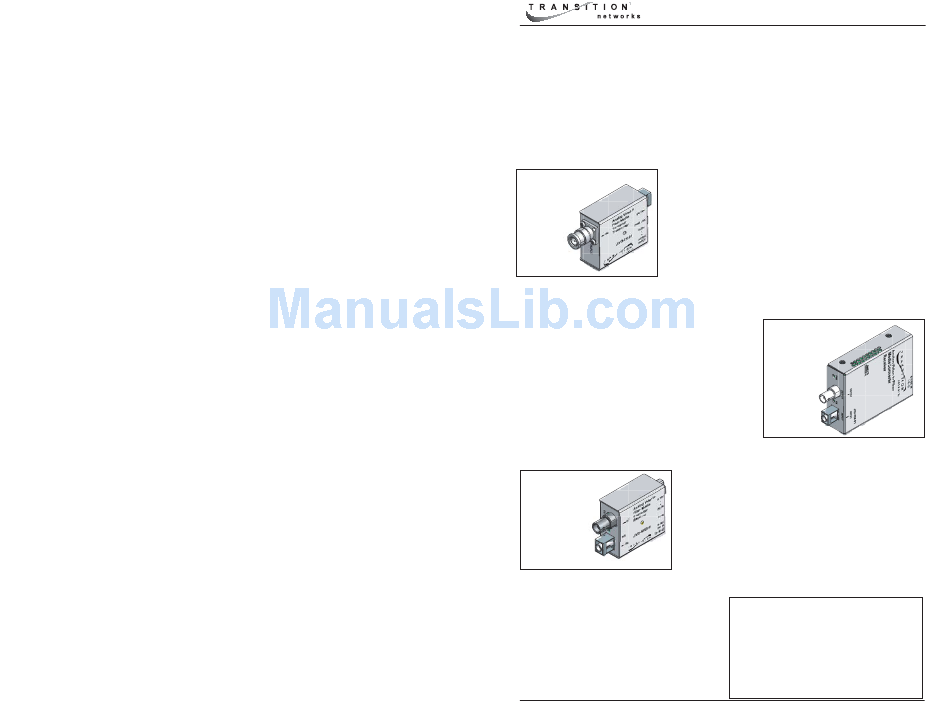

User's Guide
J/VD-TX-01, J/VD-RX-01 and J/VD-MRX-01
Stand-Alone AM Video Copper-to-Fiber Video System
• AM Video
• Plug-and-play design for easy installation
• NTSC, PAL, SECAM compatible
• CCTV video equipment compatible
• Automatic gain control (AGC)
• One-way signal transmission through the system
• Realtime full color video
• Extended temperature rated for use in controlled
outdoor applications
The J/VD-TX-01 fiber transmitter permits connecting a
J/VD-TX-01
video camera to a video monitor through multimode
(MM) or single mode (SM) fiber. Its small form factor
allows mounting directly to the camera's coax video
output port. This unit incorporates two status LEDs:
power and coax video RX. It operates as a coax receiver
and a fiber transmitter.
• Stand-alone version only
• One SC or ST fiber transmitter port
• One 75-ohm BNC video receiver port
The J/VD-RX-01 standard size fiber receiver is a
companion to the J/VD-TX-01 series transmitter.
This receiver mounts into Transition's E-MCR-04
12-position rack-mount shelf. This unit incorporates
two status LEDs: power status and fiber video RX.
It operates as a fiber receiver and a coax transmitter
to a monitor.
• Stand-alone version only
• One SC or ST fiber receiver port
• One 75-ohm BNC video transmitter port
The J/VD-MRX-01 small-form-factor fiber receiver is
J/VD-MRX-01
a similar sized companion to the J/VD-TX-01 series
transmitter. This unit incorporates two status LEDs:
power and fiber video RX. It operates as a fiber
receiver and a coax transmitter to a monitor.
• Stand-alone version only
• One SC or ST fiber receiver port
• One 75-ohm BNC video transmitter port
J/VD-RX-01
Installation . . . . . . . . . . . . . . . . . .3
Operation . . . . . . . . . . . . . . . . . . .4
Cable Specification . . . . . . . . . . .4
Technical Specifications . . . . . . . .5
Troubleshooting . . . . . . . . . . . . . .6
Contact Us . . . . . . . . . . . . . . . . . .7
Compliance Information . . . . . . . .8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the J/VD-MRX-01 and is the answer not in the manual?

Questions and answers

Summary of Contents for Transition Networks J/VD-MRX-01

  • Page 1 User’s Guide J/VD-TX-01, J/VD-RX-01 and J/VD-MRX-01 Stand-Alone AM Video Copper-to-Fiber Video System • AM Video • Plug-and-play design for easy installation • NTSC, PAL, SECAM compatible • CCTV video equipment compatible • Automatic gain control (AGC) • One-way signal transmission through the system •...

  • Page 2: Installation

    J/VD-TX-01, J/VD-RX-01, J/VD-MRX-01 J/VD-TX-01, J/VD-RX-01, J/VD-MRX-01 The video transmitter/receiver system has the following copper connections. Installation Connector Type Number Description Connecting power 75-Ohm BNC 75-Ohm coax cable, 30.5 m (100ft) Transmitter and receiver back panels: The various fiber connections are available on separate models. Single mode and multimode units come in the following configurations.

  • Page 3: Operation

    J/VD-TX-01, J/VD-RX-01, J/VD-MRX-01 J/VD-TX-01, J/VD-RX-01, J/VD-MRX-01 Operation Technical Specifications • Make sure that power is supplied to the transmitter, receiver, and camera, with the Use 75 ohm BNC connectors on 75 ohm cable only. monitor turned ON. Transition Networks models J/VD-TX-01, J/VD-RX-01, J/VD-MRX-01 video system •...

  • Page 4: Troubleshooting

    J/VD-TX-01, J/VD-RX-01, J/VD-MRX-01 J/VD-TX-01, J/VD-RX-01, J/VD-MRX-01 Troubleshooting Contact Us If there are problems with the system setup or a system failure occurs, isolate and correct the problem by determining the answers to the following questions and then Technical support Technical support is available 24 hours a day. taking the indicated action: US and Canada: 1-800-260-1312...

  • Page 5: Compliance Information

    J/VD-TX-01, J/VD-RX-01, J/VD-MRX-01 Compliance Information CISPR22/EN55022 Class A CE Mark FCC regulations This equipment has been tested and found to comply with the limits for a class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
