Brother BAS-416 Quick Reference Manual

BAS-416,416A-Quick Reference Guide
BAS-416,416A-Quick Reference Guide

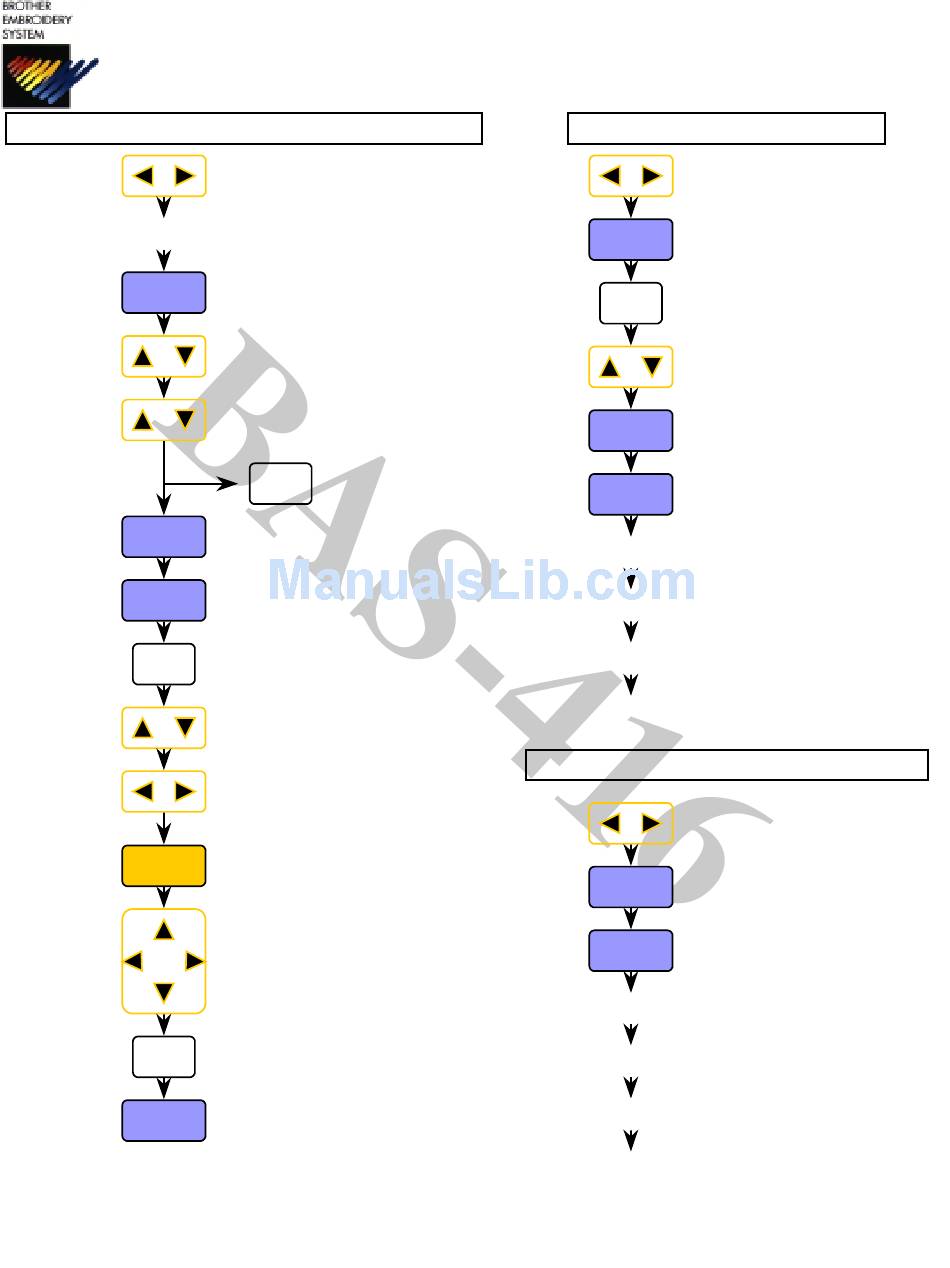

ENTERING DISK DATA & SETTING THE COLOR SEQUENCE
1.
2.
Insert floppy disk into disk drive
3.
ENTER
4.
5.
6.
ENTER
7.
START
8.
NEEDLE
SET
9.
10.
11.
END
12.
13.
#
14.
START
For Technical Assistance Please Call 1-877-4BROTHER
Use BACK and FORWARD keys
to pick an empty memory location.
Press ENTER.
Press UP or DOWN arrow to begin
reading the disk.
Press UP or DOWN arrows to scroll
the disk directory.
Press (*) key to read
*
the design name.
Press ENTER to copy the design to
the machine memory.
Press START to calculate design
size and number of color changes.
Press NEEDLE SET to enter
color programming mode.
Press UP or Down arrow keys to
assign needle number (Color).
Press FORWARD arrow to select
next color of design or BACK arrow
for previous color of design.
Press END to exit needle set mode.
Use ARROW keys to center your
design in the frame.
Press (#) key to trace the mask
(outside edge) of the design.
Press START to start sewing.
ENTER A DESIGN FROM EDITOR MODE
ENTER
Press the (#) key until "EDITOR"
#
appears on the screen.
Press UP or DOWN arrows to begin
reading computer directory.
Press ENTER to copy the design to
ENTER
the machine memory.
Press START to calculate design
START
size and number of color changes.
Program color sequence (see Step 8)
Use ARROW keys to center your design (see Step 12)
Press (#) key to trace the mask of the design (see Step 13)
Press START to start sewing (see Step 14)
ENTER A DESIGN FROM THE MACHINE MEMORY
ENTER
START
Program color sequence (see Step 8)
Use ARROW keys to center your design (see Step 12)
Press (#) key to trace the mask of the design (see Step 13)
Press START to start sewing (see Step 14)
Use BACK and FORWARD keys
to pick an empty memory location.
Press ENTER.
Use BACK and FORWARD keys
to pick a design from memory.
Press ENTER to view design name
Press START to calculate design
size and number of color changes.
