E.F. Johnson Company 3000 SERIES Setup And Alignment Manual

Efjohnson switch user manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

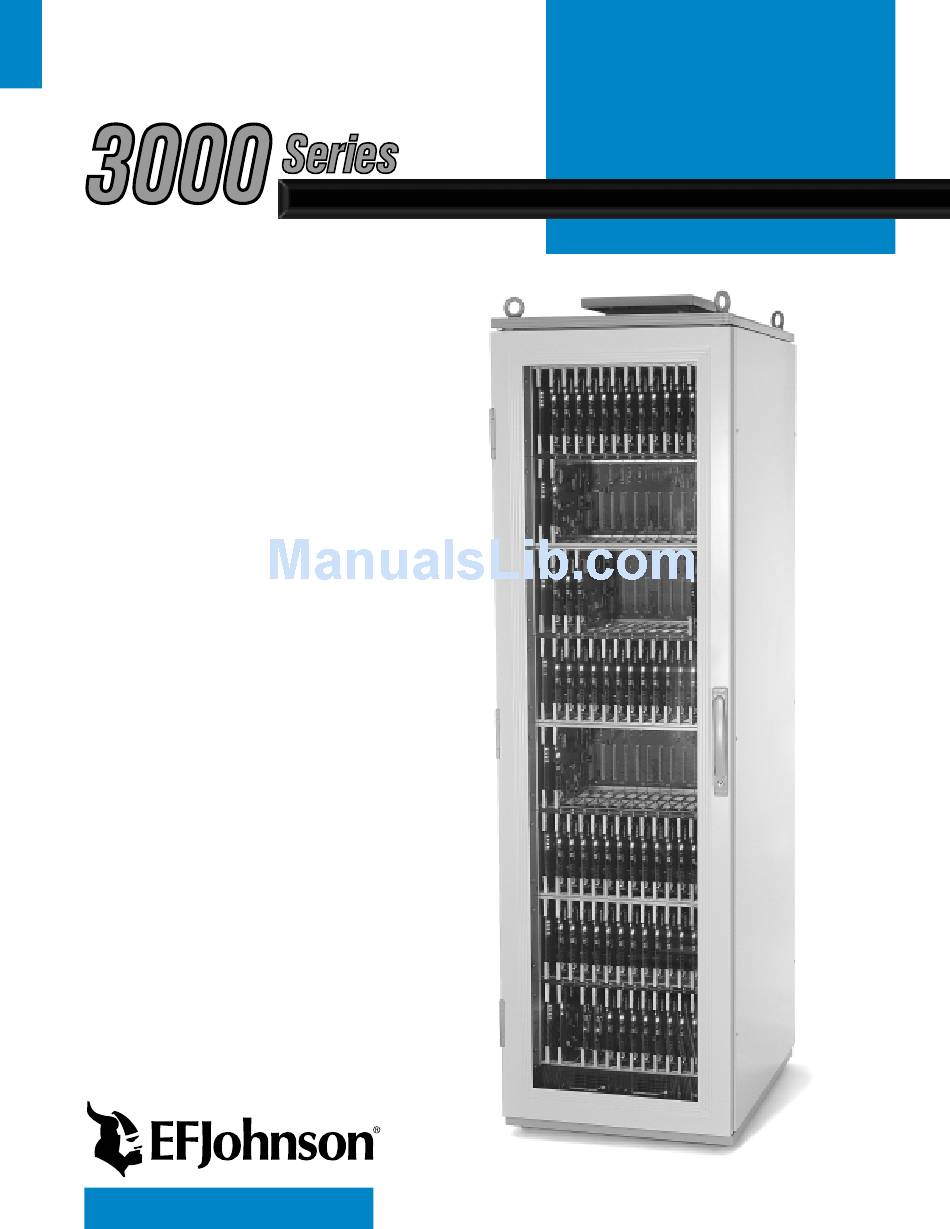

SET-UP AND
ALIGNMENT
MULTI-NET
®
II SWITCH
M
-N
II
ULTI
ET
®
3000 S
ERIES
S
WITCH
S
-U
A
ET
P
ND
A
LIGNMENT
October 2003
Supersedes: Part No. 001-3139-003/004; 5/99

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3000 SERIES and is the answer not in the manual?

Questions and answers

Summary of Contents for E.F. Johnson Company 3000 SERIES

  • Page 1 SET-UP AND ALIGNMENT MULTI-NET ® II SWITCH ULTI ® 3000 S ERIES WITCH LIGNMENT October 2003 Supersedes: Part No. 001-3139-003/004; 5/99...
  • Page 3 Information in this manual is subject to change without notice. The EFJohnson Company will not be liable for any misunderstanding due to misinformation or errors found in this document.

  • Page 4: Safety Information

    EFJohnson could void the user’s authority to operate this equipment (FCC rules, 47CFR Part 15.19). LAND MOBILE PRODUCT WARRANTY The manufacturer’s warranty statement for this product is available from your product supplier or from EFJohnson Company, 299 Johnson Avenue, Box 1249, Waseca, MN 56093-0514. Phone (507) 835-6222.

  • Page 5: Table Of Contents

    Conventional System ..... . 1-1 3000 Series Switch ..... . . 1-1 Call Processor .
  • Page 6 BBM SETUP PROCEDURE ....7-3 Switch Settings ......7-3 Jumper Placement .
  • Page 7 12.2 IDM SETUP PROCEDURE ....12-2 Switch Settings ......12-2 IDM Jumper Placement .
  • Page 8 15.2 VDM SETUP PROCEDURE ... . . 15-1 Switch Settings ......15-1 Jumper Placement .
  • Page 9 Mobile To Unique ID For a Mobile Outside Switch ......B-3 Mobile To Directed Group Call (DTMF Entry Within Switch) .
  • Page 10 NetNIM Shelf w/o CIM/CCMs Sw & Jmpr Set. 23-5 23-6 2-Shelf 3000 Series Switch....23-6 23-7 4-Shelf 3000 Series Switch....23-6 23-8 6-Shelf Switch Rack Layout.
  • Page 11 Switch Modules ......2-2 Average Voltage/Current/Power ... . 4-1 Power Supply Connections .
  • Page 12 TABLE OF CONTENTS TABLE OF CONTENTS (CONT’D) This page intentionally left blank. viii...

  • Page 13: Introduction

    For parts list, schematic diagrams, and circuit board component layout information, refer to the 3000 Series Switch Service Manual, Part No. 001- 3139-102. For more detailed information on the opera- tion of the entire system, refer to Multi-Net Applica- tion Note, Part No.

  • Page 14: Status Repeater Channel

    1.2.13 PUBLIC SWITCHED TELEPHONE NETWORK (PSTN) If interconnect calls are to be placed by mobiles or landside users to mobiles, the Switch is connected to the Public Switched Telephone Network. The specific mobiles which can place calls and other inter-...
  • Page 15 SECTION 2 3000 SERIES SWITCH 2.1 INTRODUCTION A Multi-Net radio system is a combination of several key elements that together make up a commu- nication system. By using the basic elements of a Multi-Net system as building blocks, a Multi-Net system can be designed to meet the communication needs of almost any type of user.

  • Page 16: Elements Of The Switch

    2.2 ELEMENTS OF THE SWITCH The Switch is a rack of modules. The rack may contain the following modules: (Table 2-1). Table 2-1 SWITCH MODULES NetNIM Network Interface Module Channel Interface Module Conventional Channel Module Dispatch Channel Module Dispatch Interface Module...
  • Page 17 SHELF 2 16 17 18 19 20 21 22 23 24 25 26 27 SHELF 1 POWER SUPPLY Figure 2-1 2-SHELF 3000 SERIES SWITCH SHELF 4 48 49 50 51 52 53 54 55 56 57 58 59 SHELF 3...

  • Page 18: Shelf Switch Rack Layout

    SHELF 6 SHELF 5 SHELF 4 SHELF 3 35 36 SHELF 2 SHELF 1 “A” POWER SUPPLY Figure 2-3 6-SHELF SWITCH RACK LAYOUT 3000 SERIES SWITCH “B”...

  • Page 19: Shelf Switch Rack Setup

    112 113 114 115 116 117 118 119 120 121 122 123 SHELF 7 99 100 101 102 103 104 105 106 107 SHELF 6 SHELF 5 SHELF 4 51 52 SHELF 3 SHELF 2 SHELF 1 “A” POWER SUPPLY Figure 2-4 8-SHELF SWITCH RACK SETUP 3000 SERIES SWITCH “B”...
  • Page 20 3000 SERIES SWITCH This page intentionally left blank.

  • Page 21: Architecture

    3.1 INTRODUCTION The architecture of the Switch includes the modules or elements that make up the physical portions of the switch and the busses that carry data, control and voice information. 3.2 SWITCH INTERFACES The main interfaces to the switch are as follows (see Figure 3-1): a.

  • Page 22: Bus Structure

    A 1200 baud sync-escape protocol bus that passes control and status between SNMs. • PSTN or PABX Connects to a PSTN (Public Switch Telephone Network) or a PABX (Private Automatic Branch Exchange) for outgoing and incoming telephone calls. ARCHITECTURE PSTN OR PABX...

  • Page 23: Control Bus

    3.3.2 CONTROL BUS The following are descriptions of control buses. Refer to Figure 3-3. 1. The IDB Idle/Collision line is a three level line that indicates if the line is idle, busy or collision occurred for the IDB communication process. This provides for high speed CSMA of the IDB.

  • Page 24: Voice Bus

    VOICE TONE CHANNEL MODULE INTERFACE MODULE CIMs MASTER SYNC / MASTER CLOCK 3.3.3 VOICE BUS The following are descriptions of voice buses. Refer to Figure 3-4. 1. VTM Bus A 2.048 MHz Pulse Code Modulated (PCM) bus containing 32 slots of tones or voice the modules use to indicate call progress to an end user by means of audio information.

  • Page 25: Specifications

    SYSTEM RACK Dimensions Environment Average Power Average Heat Weight MODULES Dimensions Weight Environment Maximum Power and Current SYSTEM and SUBSCRIBER MANAGER Computer Dimensions Weight Power and Current Dimensions Weight Power and Current Environment SPECIFICATIONS 19" W x 31" D x 83.5" H 0 C to 50 C (32 F to 122 F) at 20% to 80% humidity (noncondensing) 72 Modules x 5.1W ÷...
  • Page 26 ARCHITECTURE This page intentionally left blank.

  • Page 27: System Rack

    4.1 TWO SHELF 3000 SERIES SWITCH The system rack is a framework for modules that consists of up to two shelves with thirteen slots per shelf. In each shelf, twelve slots are for function modules and one slot is reserved for the power module.

  • Page 28: Two Shelf Power Supply

    4.1.3 TWO SHELF POWER SUPPLY The Power Supply has a 115/230V AC 50/60 Hz input and 4 continuous duty outputs as follows: +5V DC 24A. -5V DC 6A. +12V DC 3A. -12V DC 5A. The power supply can handle 2-shelves and has the following connections: 4 separate +5V 2A connections.

  • Page 29: Verify Voltages On Power Distribution Cable

    Black Blue Black 4.1.9 SYSTEM TEST PROCEDURE The following test procedure is for the Switch with six Power Termination Modules (PTMs), one Network Interface Module (NetNIM) and one Voice Termination Module (VTM). 1. Install all Power Termination Cables onto the back- plane at mating connector P33.

  • Page 30: S1 Switch Settings

    Shelf Number Switch 1, Open Sections ALL Closed Shelf S1 Switch Settings Verify switch settings of S1 in Table 4-15 for each shelf address (see Figure 4-5). Backplane Switch Settings Verify the backplane switch settings for S2 - S8 on each shelf are set with all sections closed.

  • Page 31: Final Configuration Verification

    NOTE: Make sure both power supplies are turned OFF. 1. Disconnect AC Power Cables from AC power source. 2. All PTMs should be installed and configured as follows: Switch Sections Closed S5, S7 1 - 8 S6, S8 3. Select one of the Backplane boards for measuring.

  • Page 32: Shelf 3000 Series Switch Backplane Cables

    19.2 19.2 SHELF 2 SHELF 1 NIM SHELF Figure 4-1 2-SHELF 3000 SERIES SWITCH BACKPLANE CABLES Figure 4-2 2-SHELF 3000 SERIES SWITCH SETUP NOTE: The four readings should be ±1 ohm from the test specifications. 7. Test is completed. POWER SUPPLY...

  • Page 33: Four Shelf 3000 Series Switch

    4.2 FOUR SHELF 3000 SERIES SWITCH The system rack is a framework for modules that consists of up to 4-shelves with 13-slots per shelf. In each shelf, 12-slots are for function modules and 1-slot is reserved for the power module. The power supplies for the shelves are located in the lower portion of the rack framework.

  • Page 34: Voltage Adjustments

    Table 4-7 POWER SUPPLY CONNECTIONS Wire Color Term 1 AC (Hot) Term 2 AC (Ntrl) Term 3 AC (Gnd) Term 1 Term 2 Term 3 Term 4 Term 5 Term 6 +12V Term 7 -12V Term 8 Term 9 4.2.5 VOLTAGE ADJUSTMENTS See Figure 4-10 for location of components and Table 4-2 for wire connections.

  • Page 35: System Test Procedure

    +12V ±1V Common Shelf Number Shelf S1 Switch Settings Verify switch settings of S1 in Table 4-15 for each shelf address (see Figure 4-5). Backplane Switch Settings Verify the backplane switch settings for S2 - S8 on each shelf are set as follows:...
  • Page 36 1. On both CIMs place a patch cord from the top jack of J1 to the top jack of J2 (see Figure 10-1). 2. Close S1, sections 3-4; open sections 1-2 on each module. 3. On both CIMs set switch sections as follows: Switch Section 1-2 open; 3-4 closed 1-2 closed;...

  • Page 37: Final Configuration Verification

    NOTE: Make sure both power supplies are turned OFF. 1. Disconnect AC Power Cables from AC power source. 2. All PTMs should be installed and configured as follows: Switch Sections Closed S5, S7 2,5,6,7 S6, S8 2,5,6 3. Select one of the six Backplane boards for measuring.

  • Page 38: Shelf 3000 Series Switch Backplane Cables

    SHELF 1 NIM SHELF POWER SUPPLY Figure 4-3 4-SHELF 3000 SERIES SWITCH BACKPLANE CABLES 48 49 50 51 52 53 54 55 56 57 58 59 32 33 34 35 36 37 38 39 40 41 42 43 16 17 18 19 20 21 22 23 24 25 26 27...

  • Page 39: Six Shelf 3000 Series Switch

    4.3 SIX SHELF 3000 SERIES SWITCH The system rack is a framework for modules that consists of up to 6-shelves with 13-slots per shelf. In each shelf, 12-slots are for function modules and 1-slot is reserved for the power module. The power supplies for the shelves are located in the lower portion of the rack framework.

  • Page 40: Verify Resistance Of Bus Bar And Power Supply Lines

    Black Blue Black 4.3.6 SYSTEM TEST PROCEDURE The following test procedure is for the Switch with six Power Termination Modules (PTMs), one Network Interface Module (NetNIM) and one Voice Termination Module (VTM). 1. Install all Power Termination Cables onto the back- plane at mating connector P33.

  • Page 41: Pcm Cable Location

    Shelf Number Switch 1, Open Sections ALL Closed Shelf S1 Switch Settings Verify switch settings of S1 in Table 4-15 for each shelf address (see Figure 4-5). Backplane Switch Settings Verify the backplane switch settings for S2 - S8 on each shelf are set as follows:...
  • Page 42 1. On both CIMs place a patch cord from the top jack of J1 to the top jack of J2 (see Figure 10-1). 2. Close S1, sections 3-4; open sections 1-2 on each module. 3. On both CIMs set switch sections as follows: Switch Section 1-2 open; 3-4 closed 1-2 closed;...

  • Page 43: Final Configuration Verification

    NOTE: Make sure both power supplies are turned OFF. 1. Disconnect AC Power Cables from AC power source. 2. All PTMs should be installed and configured as follows: Switch Sections Closed S5, S7 2,5,6,7 S6, S8 2,5,6 3. Select one of the six Backplane boards for measuring.

  • Page 44: Six Shelf 3000 Series Switch Backplane Cables

    SHELF 6 023-3039-842 SHELF 5 STANDARD SHELF 597-3003-295 SHELF 4 SHELF 3 597-3003-295 SHELF 2 SHELF 1 NIM SHELF “A” POWER SUPPLY Figure 4-5 SIX SHELF 3000 SERIES SWITCH BACKPLANE CABLES 023-3039-841 023-3039-870 023-3039-870 “B” 4-18 SYSTEM RACK...

  • Page 45: Six Shelf 3000 Series Switch Setup

    32 33 34 35 36 37 38 39 40 41 42 43 SHELF 2 16 17 18 19 20 21 22 23 24 25 26 27 SHELF 1 “A” POWER SUPPLY Figure 4-6 SIX SHELF 3000 SERIES SWITCH SETUP 4-19 72 73 74 75 10 11 “B” SYSTEM RACK...

  • Page 46: Eight Shelf 3000 Series Switch

    4.4 EIGHT SHELF 3000 SERIES SWITCH The system rack is a framework for modules that consists of up to 8-shelves with 13-slots per shelf. In each shelf, 12-slots are for function modules and 1-slot is reserved for the power module. The power supplies for the shelves are located in the lower portion of the rack framework.

  • Page 47: Verify Cooling Fan Air Flow Direction

    Cables for Shelves 1-6. 2. Turn Power Supply "A" OFF. 4.4.6 SYSTEM TEST PROCEDURE The following test procedure is for the 3000 Series Switch with: 8 - Power Termination Modules (PTMs) 1 - Network Interface Module (NetNIM) 1 - Voice Termination Module (VTM).
  • Page 48 Shelf S1 Switch Settings Verify switch settings of S1 in Table 4-20 for each shelf address (see Figure 4-8). Table 4-20 S1 SWITCH SETTINGS Shelf Number Switch 1, Open Sections ALL Closed Backplane Switch Settings Verify the backplane switch settings for S2 - S8...

  • Page 49: Final Configuration Verification

    4. Set one CIM for System Test "5" (S5-Sections 1-3 open; Sections 2-4 closed). Place this module in any slot on Shelf 1. 5. Set the second CIM for System Test "6". (S5-Sections 2-3 open; 1-4 closed). Place this module in any slot on Shelf 8. 6.
  • Page 50 2. All PTMs should be installed and configured as follows: Switch Sections Closed S5, S7 3,4,5,6,7 S6, S8 2,3,6 3. Select one of the 8 Backplane boards for measuring. Measurements can be made on any of the 64-pin connectors on the Backplane selected.
  • Page 51 SHELF 8 023-3039-842 SHELF 7 STANDARD SHELF SHELF 6 SHELF 5 SHELF 4 SHELF 3 023-3039-842 SHELF 2 SHELF 1 NIM SHELF “A” Figure 4-7 EIGHT SHELF 3000 SERIES SWITCH BACKPLANE CABLES 023-3039-841 023-3039-841 “B” POWER SUPPLY 4-25 SYSTEM RACK...

  • Page 52: Shelf 3000 Series Switch Rack Setup

    32 33 34 35 36 37 38 39 40 41 42 43 SHELF 2 16 17 18 19 20 21 22 23 24 25 26 27 SHELF 1 “A” POWER SUPPLY Figure 4-8 8-SHELF 3000 SERIES SWITCH RACK SETUP 4-26 10 11 “B” SYSTEM RACK...

  • Page 53: Shelf Power Supply Interconnect

    BACKPLANE P33 SHELF 2 (POWER SUPPLY HARNESS PN 023-3139-105) -48V -12V +12V +12V BACKPLANE P33 SHELF 1 (POWER SUPPLY HARNESS PN 023-3139-105) -48V -12V +12V +12V Figure 4-9 2-4 SHELF POWER SUPPLY INTERCONNECT POWER SUPPLY POSITION “B” AC IN (LOAD) AC IN (GND) AC (NEUTRAL) POWER SUPPLY POSITION “A”...

  • Page 54: Shelf Power Supply Interconnect Diagram

    BUS BAR ASSEMBLY +5V SENSE (RED) +12V SENSE (BLUE) +12V (BLUE) +12V RETURN (BLACK) -48V RETURN (BLACK) -48V (GREEN) POWER FAIL/ OUTPUT GOOD RETURN +5V/+12V RETURN +5V/+12V RETURN +5V/+12V RETURN +12V +12V AC IN (GND) AC IN (LOAD) AC (NEUTRAL) AC IN (LOAD) AC (NEUTRAL) AC IN (GND)

  • Page 55: Call Processor

    The Call Processor connects to the system via five different RS-232 ports. The SMB and SSB connect the Call Processor to the Switch via the Network Interface Module (NetNIM). The MAB, RGB and RMB connect the Call Processor to ancillary equipment of the overall system.

  • Page 56: Call Processor Control

    5.3 CALL PROCESSOR CONTROL The Call Processor controls several different databases and secondary functions of the Switch. The following are some of the major functions of the Call Processor. 5.3.1 SYSTEM CONFIGURATION The system configuration provides for initializa- tion of modules and database management. When a...

  • Page 57: Keyboard Lock

    5.3.6 KEYBOARD LOCK The system operator has the ability to lock the keyboard by password control to prevent the unautho- rized use of the Call Processor. The password is a single level of control. 5.3.7 LOG OUT/LOG IN This function allows the operator to log out of Call Processor thereby locking the keyboard from unauthorized usage.
  • Page 58 CALL PROCESSOR This page intentionally left blank.

  • Page 59: Network Interface Module (Netnim)

    ETHERNET Figure 6-1 DATA BUS BLOCK DIAGRAM NETWORK INTERFACE MODULE (NetNIM) The Switch is allowed a Master and Slave NetNIM, enabled or disabled from operation on the data communication path. The master tells the slave when both of its clocks are off frequency and the slave clock is distributed, if the slave clocks are on frequency.

  • Page 60: Leds

    J13 and J14 select the Tx/Rx direction of the SMB lines. (See Figure 6-3.) 6.3.2 SWITCHES S1 - Reset Normally open, press to reset. Momentary switch used to reset the module. 6.4 ALIGNMENT SPECIFICATIONS The NetNIM alignment ensures the correct PCM Clock and Sync frequencies and sets the frequency detectors.

  • Page 61: Detector Setting

    6.4.1 DETECTOR SETTING For this alignment use a DC voltmeter with a 0.001V resolution. 1. Measure the voltage between TP34 and TP36. 2. Adjust R93 for 0V 0.005V. 3. Check U31, pins 1 and 2 for < 0.8V. 4. Measure the voltage between TP33 and TP35. 5.

  • Page 62: Netnim Alignment Points Diagram

    NETWORK INTERFACE MODULE (NetNIM) Figure 6-3 NetNIM ALIGNMENT POINTS DIAGRAM...

  • Page 63: Basic Board Module (Bbm)

    There are several switch selections for the proper internal routing and use of the audio. This occurs via switch S1 and J27. There are several internal commu- nication buses that are selected for operation of the microprocessor. These include both data and audio...

  • Page 64: Basic Board Module Block Diagram

    BASIC BOARD MODULE (BBM) Figure 7-1 BASIC BOARD MODULE BLOCK DIAGRAM...

  • Page 65: Bbm Setup Procedure

    7.2 BBM SETUP PROCEDURE Refer to the Tables in this section for switch settings, jumper placements and the backplane wire harness description. Also refer to Section 23 for more information on the backplane. 7.2.1 SWITCH SETTINGS Refer to the Basic Board Module alignment points diagram Figure 7-2 for the location of these switches.

  • Page 66: Bbm Alignment Procedures

    7.3 BBM ALIGNMENT PROCEDURES 7.3.1 INTRODUCTION The module is designed to operate at a maximum input level and maintain that level without added distortion or noise levels significantly different from the maximum input level. The overall distortion should be less than 5% with noise less than -45 dB, C- message weighted.

  • Page 67: Test Tasks

    Remove the input alignment tone from J1. 7.4 TEST TASKS The following are the eight available tests with the Test Switch S5 and the functions the module performs. These tests can be used for additional veri- fication of a module and the system.

  • Page 68: System Switch Equals "7

    "A" - both receive messages passed. b. "1" - main receive message failed. c. "2" - secondary receive message failed. 7.4.7 SYSTEM SWITCH EQUALS "7" 1. Closes the relays on the telephone line personality card to connect the telephone line and the Silent Slot of the VTM Bus to the main transmit audio.

  • Page 69: Test "2

    4. The tone should pass through the op amp 600 ohm line drivers, U28A and U28B. Adjust R44 for a level of -8 dBm 1 dB at J12. 5. The tone should pass P33, pins 5 and 6 to the personality card to transformer T201, pins 9 and 10 via the jumper.

  • Page 70: Test "5

    FSK goes to switch S1, close section 3. • The FSK goes through J27 with pins 2/3 jumpered together. • The FSK goes to switch S1, close section 2, open sections 1 and 4. • The FSK passes through level op amp U34B. •...

  • Page 71: Test "6

    7.5.6 TEST "6" This test is used in conjunction with Test "5" to verify the correct operation of the main and secondary PCMs. Use Test "1" and Test "8" to setup the cards. This test is the same as Test "5" but transmits in Slot 0 and receives in Slot 31.

  • Page 72: Cim Card Display/Tasks

    Table 7-6 CIM CARD DISPLAY/TASKS TASK Initialization Await Enable Idle Registration IDB Bus Access Error Transmit Hold CSB Bus Access Error Receive Duplex Task Duplex Task Hang Busy Hang Suspend Audio Selective Disable Dynamic Reassignment Channel Verification Interrogate Dial Tone DTMF Confirmation Ring All Call...

  • Page 73: Lem Card Display/Tasks

    Table 7-10 IDM CARD DISPLAY/TASKS TASK Initialization Await Enable Idle Transmit Receive Connect PTT Trunk Verification Interrogate Trunk Conversation Facility Acquisition Telephone Acquisition Await Trunk DIM Outgoing Conversation Ring Channel Channel Verification Channel Conversation All Call Standby No Trunk * With Green LED CR401 on. Table 7-11 LEM CARD DISPLAY/TASKS TASK Initialization...
  • Page 74 BASIC BOARD MODULE (BBM) Figure 7-2 BASIC BOARD MODULE ALIGNMENT POINTS DIAGRAM 7-12...

  • Page 75: Basic Board Module Card Edge Layout

    INJECTOR/ EXTRACTOR INJECTOR/ EXTRACTOR Figure 7-3 BASIC BOARD MODULE CARD EDGE LAYOUT 7-13 BASIC BOARD MODULE (BBM) (GRN) CR401 (YEL) CR403 (RED) ALARM CR402 (GRN) POWER CR404 GROUND OUTPUT TEST POINT INPUT TEST POINT R41 MAIN INPUT R42 MAIN OUTPUT MON/LINE J1 RX MON/LINE...
  • Page 76 BASIC BOARD MODULE (BBM) This page intentionally left blank. 7-14...

  • Page 77: Channel Interface Module (Cim)

    SECTION 8 CHANNEL INTERFACE MODULE (CIM) 8.1 DESCRIPTION Refer to 3000 Series Switch Service Information manual, Part No. 001-3139-102, for the component layout, parts list and schematic. Refer to Figure 7-1 for the Basic Board block diagram. The Channel Inter- face Module (CIM) connects the Switch to the Multi- Net and LTR Repeaters.

  • Page 78: Jumper Placement

    Table 8-1 CIM SWITCH SETTINGS Switch Open Sections Digital Communication Using Secondary Lines AFSK Communication Using Secondary Lines AFSK Communication On The Main Line 8.2.2 JUMPER PLACEMENT Table 8-2 CIM BOARD JUMPER PLACEMENT Description 1 to 2* Selects 27512 EPROM operation...

  • Page 79: Alignment Points Diagram

    CHANNEL INTERFACE MODULE (CIM) Figure 8-1 ALIGNMENT POINTS DIAGRAM...

  • Page 80: External Connections

    8.2.4 EXTERNAL CONNECTIONS When connecting the CIM to a RIM or Multi-Net Logic Drawer, cross connect the Tx lines with the Rx lines. Connect the Secondary Tx and Rx lines with the Drawers Tx and Rx Data lines. Table 8-4 CIM EXTERNAL CONNECTIONS RIM to CIM CONNECTIONS Label TB701...

  • Page 81: Cim Input And Output Levels

    Figure 8-2 CIM INPUT AND OUTPUT LEVELS 5. Adjust R41 to be -6 dBm at J11, +6 dBm if maximum level is sent by the ancillary equipment. 6. Select for normal operation (S5 all sections closed). 7. Reset the module, Press S2 and release. Example: Microwave has +7 dBm max output.

  • Page 82: Cim Audio Summation Personality

    8.4 CIM AUDIO SUMMATION PERSONALITY CARD The CIM Audio Summation Personality Card sums the CIM card transmit and receive audio output from the external connections. This summation provides voice recording of a channel's audio. The audio is summed to require only one voice track of a logging recorder (see Figure 8-3).

  • Page 83: Summation Board Alignment Points Diagram

    CHANNEL INTERFACE MODULE (CIM) Figure 8-3 SUMMATION BOARD ALIGNMENT POINTS DIAGRAM...
  • Page 84 CHANNEL INTERFACE MODULE (CIM) This page intentionally left blank.

  • Page 85: Conventional Channel Module (Ccm)

    SECTION 9 CONVENTIONAL CHANNEL MODULE (CCM) 9.1 DESCRIPTION Refer to 3000 Series Switch Service Information manual, Part No. 001-3139-102, for the component layout, parts list and schematic. Refer to Figure 7-1 for the Basic Board block diagram. The Conventional Channel Module (CCM) connects the Switch to a Conventional Repeater.

  • Page 86: Ccm Backplane External Contacts

    9.2.4 CCM BACKPLANE EXTERNAL CONTACTS See Backplane Section 23 for pinouts on the shelf backplane and wire harness pinouts. Table 9-3 CCM EXTERNAL CONNECTIONS Backplane Description P34 to P45 pin 27 Sec Rx + pin 28 Sec Rx - pin 29 EA lead pin 30 EB lead...

  • Page 87: Alignment Points Diagram

    CONVENTIONAL CHANNEL MODULE (CCM) Figure 9-1 ALIGNMENT POINTS DIAGRAM 9-11...
  • Page 88 CONVENTIONAL CHANNEL MODULE (CCM) This page intentionally left blank. 9-12...

  • Page 89: Dispatch Channel Module (Dcm)

    SECTION 10 DISPATCH CHANNEL MODULE (DCM) 10.1 DESCRIPTION Refer to 3000 Series Switch Service Information manual, Part No. 001-3139-102, for the component layout, parts list and schematic. Refer to Figure 7-1 for the Basic Board block diagram. The Dispatch Channel Module (DCM) connects the Switch to a Conventional Repeater.

  • Page 90: Dcm Backplane External Contacts

    10.2.4 DCM BACKPLANE EXTERNAL CONTACTS See the Backplane Section 23 for pinouts on the shelf backplane and wire harness pinouts. Table 10-3 DCM EXTERNAL CONNECTIONS Backplane Description P34 to P45 pin 27 Sec Rx + pin 1 pin 28 Sec Rx - pin 2 pin 29 EA lead...

  • Page 91: Alignment Points Diagram

    DISPATCH CHANNEL MODULE (DCM) Figure 10-1 ALIGNMENT POINTS DIAGRAM 10-3...
  • Page 92 DISPATCH CHANNEL MODULE (DCM) This page intentionally left blank. 10-4...

  • Page 93: Dispatch Interface Module (Dim)

    SECTION 11 DISPATCH INTERFACE MODULE (DIM) 11.1 DESCRIPTION Refer to 3000 Series Switch Service Information manual, Part No. 001-3139-102, for the component layout, parts list and schematic. Refer to Figure 7-1 for the Basic Board block diagram. The Dispatch Inter-...

  • Page 94: E-Lead Selection

    Table 11-3 BACKPLANE PLACEMENT Backplane Description P34 to P45 pin 27 Sec Rx + pin 1 pin 28 Sec Rx - pin 2 pin 29 EA lead pin 3 pin 30 EB lead pin 4 pin 31 Pri Rx Audio+ pin 5 pin 32 Pri Rx Audio-...

  • Page 95: Alignment

    14.Main Tx Audio Output Level From J1. a. Setup for alignment as in Step 1. b. Adjust R83 for a -3 dBm 0.5 dB level at TP3. c. Adjust R44 for a -12 dBm 0.5 dB level at J12. 4. Tone Remote PTT Tone Output Level. a.

  • Page 96: Tone Remote Dtmf Operation

    Secondary Transmit and Receive Not aligned since the DIM does not use FSK signaling. 11.5 TONE REMOTE DTMF OPERATION The following formats are the valid sequences of DTMF control. "N" is the digits 0 through 9. Press the starting digit. The tone remote console automatically keys, hold this first digit for 1 second to ensure the tone remote keys and passes the digit.

  • Page 97: Alignment Points Diagram

    DISPATCH INTERFACE MODULE (DIM) Figure 11-1 ALIGNMENT POINTS DIAGRAM 11-5...

  • Page 98: Ptt Tone Remote Card Block Diagram

    2175 Hz BANDPASS FILTER U216 U203 U217C FROM MAIN BOARD 2175 Hz NOTCH FILTER U201B/D U202 TO MAIN BOARD TO MAIN BOARD TRANSMIT DTMF U209 Figure 11-2 PTT TONE REMOTE CARD BLOCK DIAGRAM DISPATCH INTERFACE MODULE (DIM) HIGH LEVEL DETECTOR U210A/B U211A U206...

  • Page 99: Ptt Tone Remote Card Alignment Points Diag

    DISPATCH INTERFACE MODULE (DIM) Figure 11-3 PTT TONE REMOTE CARD ALIGNMENT POINTS DIAGRAM 11-7...
  • Page 100 DISPATCH INTERFACE MODULE (DIM) This page intentionally left blank. 11-8...

  • Page 101: Intelligent Dispatch Module (Idm)

    SECTION 12 INTELLIGENT DISPATCH MODULE (IDM) 12.1 DESCRIPTION Refer to 3000 Series Switch Service Information Manual, Part No. 001-3139-102, for the component layout, parts list and schematic. Refer to Figure 7-1 for the Basic Board block diagram. The Intelligent Dispatch Module (IDM) interfaces to a Multi-Net II dispatch console.

  • Page 102: Idm Setup Procedure

    Command and Control Communication The command and control communication to the Consoles takes place on a digital RS-232 link at 9600 baud. The digital link occurs on the Secondary lines. Table 12-1 IDM SWITCH SETTINGS Switch Open Sections 12.2.2 IDM JUMPER PLACEMENT...

  • Page 103: Alignment Points Diagram

    INTELLIGENT DISPATCH MODULE (IDM) Figure 12-2 ALIGNMENT POINTS DIAGRAM 12-3...

  • Page 104: Idm Alignment Specification

    12.3 IDM ALIGNMENT SPECIFICATION 12.3.1 PRE-ALIGNMENT The IDM is pre-aligned with the Basic Board Module alignment procedures, refer to Section 7.3. 1. Main Rx Audio Level From J1: a. Setup for alignment, input 1004 Hz tone at -12 dBm into J1 EQU. b.

  • Page 105: Pcm Summation Personality Card12-5

    Secondary Transmit and Receive Not aligned since the IDM does not use FSK signaling. 12.5 PCM SUMMATION PERSONALITY CARD The PCM Summation Personality Card sums multiple time slots on the PCM audio bus for the unse- lect audio for the Multi-Net Tracer Series of consoles (see Figure 12-3).

  • Page 106: Summation Board Alignment Points Diagram

    INTELLIGENT DISPATCH MODULE (IDM) Figure 12-3 SUMMATION BOARD ALIGNMENT POINTS DIAGRAM 12-6...

  • Page 107: System Network Module (Snm)

    SECTION 13 SYSTEM NETWORK MODULE (SNM) 13.1 DESCRIPTION Refer to 3000 Series Switch Service Information manual, Part No. 001-3139-102, for the component layout, parts list and schematic. Refer to Figure 7-1 for the Basic Board block diagram. The System Network Module (SNM) is the interface that allows Unique ID calling from RF units and multiple Switches to be connected in a total system network.

  • Page 108: Description

    Audio Frequency Shift Keyed data on the Main audio lines. 13.2.2 AFSK COMMUNICATION ON THE MAIN LINES Table 13-1 SNM SWITCH SETTINGS Switch Open Sections AFSK Communication On The Main Line. 13.2.3 SNM JUMPER PLACEMENT...

  • Page 109: Alignment Points Diagram

    SYSTEM NETWORK MODULE (SNM) Figure 13-2 ALIGNMENT POINTS DIAGRAM 13-3...

  • Page 110: Snm Cable Layout

    RXA- TXA+ TXA- NOTE: This cabling is used within a single Switch or between Switches to allow Unique ID calls to occur. 2. Set S5 for Test 1 (open section 1, close sections 2, 3 and 4). 3. Reset the module, Press S2 and release.

  • Page 111: Telephone Interface Module (Tim)

    SECTION 14 TELEPHONE INTERFACE MODULE (TIM) 14.1 DESCRIPTION The Telephone Interface Module (TIM) connects the Switch to the telephone lines and handles tele- phone line protocols. The TIM may be referred to as a Trunk Interface Module. Refer to page 31 for FCC regulations.

  • Page 112: Supervision

    14.1.1 SUPERVISION The TIM can be seized from either landside or internal. Landside seizure occurs by Direct Inward Dial (DID) or Two-Way Start (2WY). Internal seizure comes from the Intra-Terminal Data Bus (IDB) as a request for outgoing service on the telephone line (see Figure 14-15).

  • Page 113: Telephone Line Styles

    14.1.5 TELEPHONE LINE STYLES There are several different styles of telephone lines the TIM controls. The following styles of lines and their basic connection are supported. 1. Direct Inward Dialing (DID) The DID offers direct inward dialing of the tele- phone number and supplies the -48V DC battery voltage to the incoming lines.

  • Page 114: Transmit Audio

    14.2 4-WIRE E&M INTERFACE DESCRIPTION The 4-Wire E&M Interface Card connects the Switch with a 4-Wire audio circuit that supports Ear and Mouth (E&M) signaling. TELEPHONE INTERFACE MODULE (TIM) 14.2.1 AUDIO The audio circuit consists of a transmit (Tx) pair and a receive (Rx) pair.

  • Page 115: 8-Position Dip Switch S201

    There are five types of E&M interface signaling, Type I through Type V. Do not adjust S201 with the E&M card connected in any way to the Switch. Damage to the E&M card could result. Refer to Table 14-1 for S201 configurations for each type of signaling.

  • Page 116: Type I And V

    Table 14-2 E&M LEAD STATES M-Lead States for Type I through V Type Idle Ground Open Ground Open Open E-Lead State for all Types 7 (Off), 8 (On) Open 7 (On), 8 (Off) Ground 14.2.4 TYPE I AND V A straight interconnect between the trunk circuit and signaling circuit.

  • Page 117: Type Iv Trunk-Trunk

    TRUNK SIGNALING CIRCUIT M-LEAD E-LEAD TX AUDIO RX AUDIO Figure 14-7 TYPE II TRUNK-TRUNK 14.2.8 TYPE V TRUNK-TO-TRUNK This interface is a cross-connect between the trunk circuits. Four conductors are balanced audio and the M-Lead and E-Lead conductors are cross- connected (see Figure 14-8).

  • Page 118: E&M Lead Circuit Theory Of

    "break- before-make" switch. By sequencing the drive to the optoisolators U204 becomes an equivalent SPDT switch. When the output of the comparators goes low, they activate U213/U214. The E-Lead output from U212 is debounced by dual retriggerable monostable multivibrator U210.

  • Page 119: Wire E&M Block Diagram (-680)

    oscillator of U211 running at 3.7 kHz. With U244, pin 12 low the output of U210, pin 9 is a “1” (U210, pin 12 is constantly being retriggered). If a transient “0” during a logic “1” is encountered at the E-Lead, U210, pin 7 is retriggered causing U211, pin 3 to go Figure 14-13 4-WIRE E&M BLOCK DIAGRAM (-680) TELEPHONE INTERFACE MODULE (TIM)

  • Page 120: Did Personality Card Block Diagram (-660)

    TELEPHONE INTERFACE MODULE (TIM) Figure 14-14 DT & MBS PERSONALITY CARD BLOCK DIAGRAM (-670) Figure 14-15 DID PERSONALITY CARD BLOCK DIAGRAM (-660) 14-10...

  • Page 121: Tim Setup Procedure

    Jumper pin 1 to 2 for high impedance ground path for split 600 ohm inputs and outputs. Leave open if no ground path desired. * Indicates normal operation. 14.5.2 MAIN BOARD SWITCH SETTINGS The TIM does not use secondary signaling for Command and Control Communication (see Figure 14-18).
  • Page 122 The TIM should be pre-aligned using the Basic Board Module alignment procedures, Section 14-18. Input With Personality Card Installed 1. Jumper T201, pin 8 to T202, pin 12. 2. Insert 1004 Hz at -12 dBm with a 600 ohm driving impedance into the EQU of J1.

  • Page 123: 2-Way Tim Alignment

    Average Level. Some COs or PBXs use different Maximum Levels. The alignment tone in the Switch is -12 dB rela- tive to maximum audio level within the Switch. This procedure is used to set the transmit level at a level that is -12 dB relative to the maximum audio level of the telephone line.

  • Page 124: Output Hybrid Adjust

    Transmission Test Set. a. Switch in/out S201-S202 and adjust R261-R262 for a minimum level. b. Switch S201-S202 in or out until little change or degradation is noted. c. Tune R261-R262 for minimum, then switch S201-S202 for minimum and again tune R261- R262 for minimum.

  • Page 125: Did Setup And Alignment (-660)

    F2 Manual Device Control/Setup F4 User Setup F6 Diagnostic Control Y Displays digits in alarm display Enter, Enter Select F10 until the main menu is displayed All digits, both in-bound and out-bound are displayed on the Alarm Display. 14.8 DID SETUP AND ALIGNMENT (-660) 14.8.1 DID PERSONALITY CARD JUMPER SET- TINGS Table 14-6 DID JUMPER PLACEMENT...

  • Page 126: Did Operational Alignment

    d. Adjust R206 on the personality card for -12 dBm 0.5 dB at EP221. Verify the level across the 600 ohm resistor and 2.2 F cap is -16 dBm 2 dB, measure with a balanced non-grounded AC volt- meter. 7. Set S5 for normal operation (all closed). 8.

  • Page 127: E&M Setup And Alignment (-680)

    Connects Dial Tone circuit 2 to 3 Removes Dial Tone circuit J209 1 to 2 Connects SG to Switch 0V (gnd) 14.10.1 EQUIPMENT REQUIRED 1. Digital storage scope (Tektronix 2430 or equivalent with roll mode trigger capability from 100 ms to 1 second).

  • Page 128: Receiver Alignment

    call) and add in a 1 kHz tone at 2 kHz deviation (3 kHz deviation total). Adjust the E&M transmit level at TX+/TX- using R44 to the appropriate level (normally -7 dB). NOTE: If the 4-Wire circuit requires a different level, adjust R44 to this level.

  • Page 129: Alignment Points Diagram

    TELEPHONE INTERFACE MODULE (TIM) Figure 14-18 ALIGNMENT POINTS DIAGRAM 14-19...

  • Page 130: Dt & Mbs Alignment Points Diagram (-670)

    TELEPHONE INTERFACE MODULE (TIM) Figure 14-19 DT & MBS ALIGNMENT POINTS DIAGRAM (-670) 14-20...

  • Page 131: Did Alignment Points Diagram (-660)

    TELEPHONE INTERFACE MODULE (TIM) Figure 14-20 DID ALIGNMENT POINTS DIAGRAM (-660) 14-21...
  • Page 132 TELEPHONE INTERFACE MODULE (TIM) Figure 14-21 4-WIRE E&M ALIGNMENT POINTS DIAGRAM (-680) 14-22...

  • Page 133: Termset Modules

    (inv) E&M outputs. S18 Set to sig. This switch provides for normal (sig) or inverted (inv) E&M inputs. S11 Set to B. This switch swaps roles of E-Lead and M- Lead. Set to 600. This switch provides 2W port terminat- ing impedance.

  • Page 134: Switch Settings On 6132A (Did Applications)

    (i.e. .064 F total capacitance) provide for a capacitive balance. R38 This potentiometer controls the resistive balance in the variable mode of S4. S11 Set to B. This switch swaps roles of E-Lead and M- Lead. S12 Supervisory Mode. Set to RB (Reverse Battery) for DID applications.

  • Page 135: Xel Termset Rack

    2. Ensure that there is a connection from Slot-12, pin 27 to the power connector ground pin (see Figure 14-24). 3. Attach the grounding strap to earth ground. 4. The XEL Rack requires -48V DC from the Switch. See Figure 14-24 for wiring. POWER FOR SLOTS 7-12...

  • Page 136: Connection To The Phone Lines

    Termset rack (see Figure 14-26). Figure 14-25 TERMSET RACK (FRONT VIEW) Figure 14-26 NETWORK LINK (SWITCH RACK BACK VIEW) TELEPHONE INTERFACE MODULE (TIM) 2. Method 2: A punch down block and a 50-pin to 50- pin cable that also attaches to J1 or J2.

  • Page 137: Final Path Inspection

    Rx + level (in terms of Exciter deviation). Rx Gnd Tx + The purpose of tuning the Switch is to ensure all Tx Gnd audio coming into the Switch, either from an RF E-Lead channel, a Telco resource, or a Network Link, bus at M-Lead the same level.

  • Page 138: E&M Interface

    Once the repeater channel is tuned, it is used as a tool in tuning the interconnect channel. Average audio transmitted to the CO is defined as -7 dBm. 2 kHz of audio deviation in from a repeater is trans- mitted to the CO at a level of -7 dBm. Similarly, -7 dBm going to the CO from a remote location results in 2 kHz of audio transmitted from the Exciter.

  • Page 139: Tellabs 6132A/B Termset

    Figure 14-28 TELLABS 6132A/B TERMSET 8. A good way to measure the effectiveness of the balance across the Tellabs hybrid is to send a tone towards the CO and measure the energy reflected. A clear way of accomplishing this is to establish an interconnect, then inject a 1 kHz tone at 2 kHz modulation into the Receiver.

  • Page 140: Office

    12.Monitor the Exciter deviation. 13.Adjust R41 (Rx Audio) on the E&M Main Board such that 3 kHz is transmitted from the Exciter ( 1 kHz data + 2 kHz audio). 14.Make several calls, interconnect and dispatch comparing the levels. Make minor adjustments as needed to ensure interconnect and dispatch are the same level.

  • Page 141: Tellabs Card

    14.15 FCC USER INSTRUCTIONS AND CUSTOMER INFORMATION NOTE: This information does not apply to the 4-Wire E&M. The 4-Wire E&M does not direct connect to the telephone company equipment. In order to connect a DID or 2WY system to the network, provide the telephone company with: 1.
  • Page 142 TELEPHONE INTERFACE MODULE (TIM) This page intentionally left blank. 14-32...

  • Page 143: Data Buses

    SECTION 15 VOTER DIAGNOSTICS MODULE (VDM) 15.1 DESCRIPTION Refer to 3000 Series Switch Service Information manual, Part No. 001-3139-102, for the component layout, parts list and schematic. Refer to Figure 15-1 for the Basic Board block diagram. The Voter Diag- nostics Module (VDM) controls the receiver voter system.

  • Page 144: Jumper Placement

    62 pin 63 pin 64 15.3 VDM ALIGNMENT SPECIFICATIONS No alignment is required for the VDM. The setup procedures are to make the proper switch settings and connections. Figure 15-2 VDM I/O CONNECTIONS 15-2 VOTER DIAGNOSTICS MODULE (VDM) Wire Harness...

  • Page 145: Alignment Points Diagram

    VOTER DIAGNOSTICS MODULE (VDM) Figure 15-3 ALIGNMENT POINTS DIAGRAM 15-3...
  • Page 146 VOTER DIAGNOSTICS MODULE (VDM) This page intentionally left blank. 15-4...

  • Page 147: Power Termination Module (Ptm)

    PCM busses for each shelf. The PTM also provides each shelf with fuse protection for supply voltages. 16.2 SETUP PROCEDURE Table 16-1 S5/S7 SWITCH TERMINATION SETTINGS S5 - IDB Data (37.5 ohms) S7 - CSB Data (37.5 ohms) Number of Shelves...
  • Page 148 POWER TERMINATION MODULE (PTM) Figure 16-1 POWER TERMINATION MODULE ALIGNMENT POINTS DIAGRAM 16-2...

  • Page 149: Logging Encoder Module (Lem)

    SECTION 17 LOGGING ENCODER MODULE (LEM) 17.1 DESCRIPTION Refer to 3000 Series Switch Service Information manual, Part No. 001-3139-102, for the component layout, parts list and schematic. Refer to Figure 7-1 for the Basic Board block diagram. The Logging Encoder...

  • Page 150: Lem Setup Procedure

    17.2 LEM SETUP PROCEDURE 17.2.1 LEM SWITCH SETTINGS See Figure 17-2 for Alignment Points Diagram. Table 17-1 LEM SWITCH SETTINGS Switch Open Sections 17.2.2 LEM JUMPER PLACEMENT Table 17-2 LEM JUMPER PLACEMENT Description 1 to 2* Selects 27512 EPROM operation...
  • Page 151 Main Transmit 1. Determine the maximum level to be received by the ancillary equipment to be transmitted. 2. Set S5 for Test 1 (open section 1, close sections 2, 3 and 4). 3. Reset the module, Press S2 and release. 4.

  • Page 152: Alignment Points Diagram

    LOGGING ENCODER MODULE (LEM) Figure 17-2 ALIGNMENT POINTS DIAGRAM 17-4...

  • Page 153: Voice Tone Module (Vtm)

    PCM audio messages stored in PROMs that are 4 seconds in length and repeat continuously on the VTM PCM bus of the Switch (see Table 18-3). The start of the message is indicated in the transmission so modules can present the audio message to the user from the beginning of the message.

  • Page 154: Voice Buses

    VOICE TONE CHANNEL MODULE INTERFACE MODULE CIMs MASTER SYNC / MASTER CLOCK Table 18-3 VTM PCM BUS MESSAGES EPROM PART NO. SLOT 023-9998-132 023-9998-211 023-9998-137 023-9998-140 023-9998-212 023-9998-184 023-9998-213 023-9998-214 023-9998-215 023-9998-145 023-9998-146 023-9998-147 023-9998-216 023-9998-217 VOICE TONE MODULE BUS TX/RX PCM CONVENTIONAL WIDE...

  • Page 155: Vtm Card Edge Layout

    VOICE TONE MODULE (VTM) INJECTOR/ EXTRACTOR S2 MONITOR SWITCH ALARM (RED) POWER (GRN) GROUND (BLK) TRANSMIT LEVEL TEST POINT (RED) TRANSMIT INJECTOR/ EXTRACTOR Figure 18-2 VTM CARD EDGE LAYOUT 18-3...
  • Page 156 VOICE TONE MODULE (VTM) This page intentionally left blank. 18-4...

  • Page 157: Wide Area Module (Wam)

    SECTION 19 WIDE AREA MODULE (WAM) 19.1 DESCRIPTION Refer to 3000 Series Switch Service Information manual, Part No. 001-3139-102, for the component layout, parts list and schematic. Refer to Figure 7-1 for the Basic Board block diagram. The WAM communicates with the other modules...

  • Page 158: Description

    19.2 WAM SETUP PROCEDURE 19.2.1 WAM SWITCH SETTINGS See Figure 19-2 for Alignment Points Diagram. Table 19-1 WAM SWITCH SETTINGS Switch Open Sections 19.2.2 WAM JUMPER PLACEMENT Table 19-2 WAM JUMPER PLACEMENT Description 1 to 2 Selects 27512 EPROM operation...

  • Page 159: Alignment Points Diagram

    WIDE AREA MODULE (WAM) Figure 19-2 ALIGNMENT POINTS DIAGRAM 19-3...

  • Page 160: Wam E&M-Lead Connections

    WIDE AREA MODULE (WAM) 19.4 WAM E&M-LEAD CONNECTIONS NOTE: All WAM E&M Lead connection Examples and Figures reflect only one WAM configuration (WAC) and only one Switch per location. • Duplication of the following Examples and Figures are required for multiple, simultaneous WACs.

  • Page 161: One Location

    19.5.2 INSTALLATION The box is powered by +12V on pin 1. The +12V supply can be obtained from the Switch Bus Bar. The spades of the cable (PN 023-3239-320) in the kit are connected to the bus bar (Red to +12V, Black to...

  • Page 162: Wam Audio Cable Layout Two Locations

    M-LEAD WAM/SWITCH 1 SPLITTER BOX MA IN TXS+ (MA2) MA/OUT MB IN MB/OUT TXS- (MB2) MA2/OUT MB2/OUT LOCATION 1 (CENTRAL) Figure 19-6 WAM E&M LEAD CABLE LAYOUT 3 LOCATIONS 19.6 WAM AUDIO CONNECTIONS The audio of the WAMs are cross coupled to the other WAMs and back to themselves if circuitry permits.
  • Page 163 REMOTE LOCATION TXA+ TXA+ TXA- TXA- RXA+ RXA+ RXA- RXA- Figure 19-9 AUDIO CABLE LAYOUT TWO LOCATIONS WITH EXTERNAL AUDIO DEVICE A Location where at least two external interfaces are used for connection from the Host Location to the Remote Locations (as in Figure 19-5) is shown in Figure 19-10.
  • Page 164 WIDE AREA MODULE (WAM) This page intentionally left blank. 19-8...

  • Page 165: Data Bus Block Diagram

    SECTION 20 MULTI-NET CONSOLE MODULE (MCM) 20.1 DESCRIPTION Refer to 3000 Series Switch Service Information manual, Part No. 001-3139-102, for the component layout, parts list and schematic. Refer to Figure 8-1 for the Basic Board block diagram. The Multi-Net Console Module (MCM) interfaces to a VRCM-50 series dispatch console.

  • Page 166: Description

    Command and Control Communication The command and control communication to the Consoles takes place on a digital RS-232 link at 9600 baud. The digital link occurs on the Secondary lines. Table 20-1 MCM SWITCH SETTINGS Switch Open Sections 20.2.2 MCM JUMPER PLACEMENT...

  • Page 167: Alignment

    4. Normal Operation a. Set S5 to 0, normal operation (close sections 1, 2, 3, and 4). b. Reset the module, press S2 and release. c. Remove the input alignment tone from J1. NOTE: FSK is not aligned since it is not used on the MCM.

  • Page 168: Pcm Summation Personality Card20-4

    20.5 PCM SUMMATION PERSONALITY CARD The PCM Summation Personality Card sums multiple time slots on the PCM audio bus for the unse- lect audio for the VRCM-50 Series of consoles (see Figure 20-3). 20.5.1 INTERNAL CONNECTIONS 1. Plug the summation card into J32. 2.

  • Page 169: Alignment Points Diagram

    MULTI-NET CONSOLE MODULE (MCM) Figure 20-2 ALIGNMENT POINTS DIAGRAM 20-5...
  • Page 170 MULTI-NET CONSOLE MODULE (MCM) 1 2 3 4 5 6 7 8 9 10 11 Figure 20-3 SUMMATION BOARD (-760) ALIGNMENT POINTS DIAGRAM 20-6...

  • Page 171: Conventional Patch Module (Cpm)

    SECTION 21 CONVENTIONAL PATCH MODULE (CPM) 21.1 DESCRIPTION Refer to 3000 Series Switch Service Information manual, Part No. 001-3139-102, for the component layout, parts list and schematic. Refer to Figure 8-1 for the Basic Board Block diagram. The Conventional Patch Module (CPM) is used to dynamically patch a single conventional channel to a single trunked group.

  • Page 172: E-Lead Selection

    Table 21-3 BACKPLANE PLACEMENT Backplane Description P34 to P45 pin 27 Sec Rx + pin 1 pin 28 Sec Rx - pin 2 pin 29 EA lead pin 3 pin 30 EB lead pin 4 pin 31 Pri Rx Audio+ pin 5 pin 32 Pri Rx Audio-...

  • Page 173: Cpm Alignment Points Diagram

    CONVENTIONAL PATCH MODULE (CPM) Figure 21-1 CPM ALIGNMENT POINTS DIAGRAM 21-3...
  • Page 174 CONVENTIONAL PATCH MODULE (CPM) This page intentionally left blank. 21-4...

  • Page 175: Power Supply

    SECTION 22 POWER SUPPLY 22.1 INTRODUCTION The Switch may be powered by different types of power e.g.: • 110V AC Single Phase • 230V AC Single Phase A power supply may be removed and installed while power is applied to the Switch provided the Switch is equipped with a Redundant Supply.

  • Page 176: Power Supply

    BUS BAR ASSEMBLY (POWER SUPPLY HARNESS PN 023-3039-970) +5V SENSE (RED) +12V SENSE (BLUE) +12V (BLUE) +12V RETURN (BLACK) -48V RETURN (BLACK) -48V (GREEN) POWER FAIL/ OUTPUT GOOD RETURN +5V/+12V RETURN +5V/+12V RETURN +5V/+12V RETURN +12V +12V (POWER SUPPLY HARNESS PN 023-3039-969) AC IN (GND) AC IN (LOAD) AC (NEUTRAL)

  • Page 177: A5-A6 Connector

    FRONT VIEW Figure 22-3 A3-A4 CONNECTOR Figure 22-5 POWER SUPPLY TERMINAL BLOCKS FRONT VIEW Figure 22-4 A5-A6 CONNECTOR 22-3 POWER SUPPLY...

  • Page 178: Power Supply Drawer

    POWER SUPPLY Figure 22-6 POWER SUPPLY DRAWER 22-4...

  • Page 179: Shelf Power Supply Interconnect

    BACKPLANE P33 SHELF 2 (POWER SUPPLY HARNESS PN 023-3139-105) -48V -12V +12V +12V BACKPLANE P33 SHELF 1 (POWER SUPPLY HARNESS PN 023-3139-105) -48V -12V +12V +12V Figure 22-7 2-4 SHELF POWER SUPPLY INTERCONNECT POWER SUPPLY POSITION "B" AC IN (LOAD) AC IN (GND) AC (NEUTRAL) POWER SUPPLY POSITION "A"...

  • Page 180: Shelf Power Supply (Front View)

    Figure 22-8 2-4 SHELF POWER SUPPLY (FRONT VIEW) Figure 22-9 2-4 SHELF POWER SUPPLY (REAR VIEW) 22-6 POWER SUPPLY...

  • Page 181: Backplane

    23.1 DESCRIPTION The 3000 Series Switch shelf backplane contains slots that modules are inserted into, to derive the module address. The backplane distributes: • Power • PCM paths • Master clock • Master sync • Intra-Terminal data bus • Channel status bus •...

  • Page 182: Standard Shelf I/O Connections

    • Pin 3 - Input S7 SEC RX PCM SEC PCM SWITCH SETTINGS ARE FOR A 6-SHELF SYSTEM Figure 23-1 STANDARD SHELF BACKPLANE SWITCH AND JUMPER SETTINGS 5. J12 (pin 2 to pin 3) • Pin 1 - Output •...

  • Page 183: Cim Shelf I/O Connections

    Pin 3 - Output S7 SEC RX PCM SEC PCM SWITCH SETTINGS ARE FOR A 6-SHELF SYSTEM Figure 23-3 CIM/CCM SHELF BACKPLANE SWITCH AND JUMPER SETTINGS 23.4.2 SECONDARY PCM The normal jumper connection is shown in paren- thesis. 1. J17 (pin 1 to J18, pin 1/pin 2 to J18, pin 2) •...

  • Page 184: Netnim Shelf With Cim/Ccms

    Pin 4 - Primary Tx PCM S7 SEC RX PCM SEC PCM SWITCH SETTINGS ARE FOR A 6-SHELF SYSTEM Figure 23-4 NetNIM SHELF WITH CIM/CCMs SWITCH AND JUMPER SETTINGS 5. J11 (pin 1 to pin 2) • Pin 1 - Output •...

  • Page 185: Netnim Shelf Without Cim/Ccms

    Pin 4 - Primary Tx PCM S7 SEC RX PCM SEC PCM SWITCH SETTINGS ARE FOR A 6-SHELF SYSTEM Figure 23-5 NetNIM SHELF WITHOUT CIM/CCMs SWITCH AND JUMPER SETTINGS 5. J11 (pin 1 to pin 2) • Pin 1 - Output •...

  • Page 186: Shelf 3000 Series Switch

    SHELF 2 16 17 18 19 20 21 22 23 24 25 26 27 SHELF 1 POWER SUPPLY Figure 23-6 2-SHELF 3000 SERIES SWITCH SHELF 4 48 49 50 51 52 53 54 55 56 57 58 59 SHELF 3...

  • Page 187: Shelf Switch Rack Layout

    SHELF 6 SHELF 5 SHELF 4 SHELF 3 35 36 SHELF 2 SHELF 1 POWER SUPPLY "A" Figure 23-8 6-SHELF SWITCH RACK LAYOUT 23-7 BACKPLANE "B"...

  • Page 188: Shelf Switch Rack Setup

    112 113 114 115 116 117 118 119 120 121 122 123 SHELF 7 99 100 101 102 103 104 105 106 107 SHELF 6 SHELF 5 SHELF 4 51 52 SHELF 3 SHELF 2 SHELF 1 "A" POWER SUPPLY Figure 23-9 8-SHELF SWITCH RACK SETUP 23-8 BACKPLANE "B"...

  • Page 189: Shelf Switch Backplane Cables

    SHELF 2 SHELF 1 NIM SHELF POWER SUPPLY Figure 23-10 2-SHELF SWITCH BACKPLANE CABLES SHELF 4 SHELF 3 SHELF 2 SHELF 1 NIM SHELF POWER SUPPLY Figure 23-11 4-SHELF SWITCH BACKPLANE CABLES 23-9 BACKPLANE...

  • Page 190: Shelf Switch Backplane Cables

    023-3039-842 STANDARD SHELF 597-3003-295 597-3003-295 NIM SHELF "A" POWER SUPPLY Figure 23-12 6-SHELF SWITCH BACKPLANE CABLES 23-10 023-3039-841 SHELF 6 SHELF 5 023-3039-870 SHELF 4 SHELF 3 023-3039-870 SHELF 2 RS-232 M/F 023-3039-858 SHELF 1 "B" BACKPLANE...

  • Page 191: Shelf Switch Backplane Cables

    SHELF 8 023-3039-842 SHELF 7 STANDARD SHELF SHELF 6 SHELF 5 SHELF 4 SHELF 3 023-3039-842 SHELF 2 SHELF 1 NIM SHELF "A" POWER SUPPLY Figure 23-13 8-SHELF SWITCH BACKPLANE CABLES 23-11 023-3039-841 023-3039-841 "B" BACKPLANE...

  • Page 192: Netnim Shelf Backplane Wiring Layout

    Figure 23-14 BASIC BOARD BACKPLANE WIRING LAYOUT Figure 23-15 NetNIM SHELF BACKPLANE WIRING LAYOUT 23-12 J103 J102 J101 BACKPLANE J100...

  • Page 193: Telephone Terminal Block Layout

    NOT USED PIN NUMBERS RXS- (WHT/BLU) RXS+ (BLU/WHT) TXS- (WHT/ORN) TXS+ (ORN/WHT) EB (WHT/GRN) EA (GRN/WHT) MB (WHT/BRN) MA (BRN/WHT) RXA- (RING) (WHT/SLT) RXA+ (TIP) (SLT/WHT) TXA- (RED/BLU) TXA+ (BLU/RED) RXS- (RED/ORN) RXS+ (ORN/RED) TXS- (RED/GRN) TXS+ (GRN/RED) EB (RED/BRN) EA (BRN/RED) MB (RED/SLT) MA (SLT/RED)

  • Page 194: Backplane I/O Jacks

    RXA+ RXS+ RXS+ TXS- TXS- TXA- TXA+ TXS+ TXS+ RXA- RXS- RXS- P41/P45 RXA+ RXS+ RXS+ TXS- TXS- TXA- TXA+ TXS+ TXS+ RXA- RXS- RXS- J21 - P38/P39/P40/P41 Figure 23-17 BACKPLANE I/O JACKS RXS+ RXA+ TXS- TXA- TXA- TXA+ TXA+ TXS+ RXA- RXS-...

  • Page 195: Intercom

    2. AC Voltmeter, HP400E or equivalent 24.2.2 INSTALLATION PROCEDURE 1. Insert the Switch Intercom in an open slot in a card rack. Shelf-1, Slot-3 is preferred. 2. Insert a 1 kHz tone at 0 dBm into the Rx portion of J702.
  • Page 196 INTERCOM This page intentionally left blank. 24-2...

  • Page 197: Appendix Aerror Messages

    APPENDIX A ERROR MESSAGES A.1 IDB ERROR MESSAGES TO MESSAGE ACCOUNTING BUS FROM MODULES MESSAGE CODE DESCRIPTION RPTASGNERR Repeater Assignment Error from Repeater Interface Module LNKSTUPTO Link Setup Time-out on Channel Interface Bus RPTRESTRT Repeater Restarted Unexpected from Repeater Interface Module ERONRM Enable Repeater Order No Response Message DRONRM...

  • Page 198: Mab Error Messages From System Management Module

    A.2 MAB ERROR MESSAGES FROM SYSTEM MANAGEMENT MODULE MESSAGE CODE NO_MEM BAD_ADRS CLK_STAT CLK_TKVR UNEXP_DIM DIM_INIT DEV_ENAB CIM_INIT RESERVED CCM_INIT SNM_INIT DEVNOTDEF RPTR_ENA RPTR_DIS UID_TERM UNEXPTRM UID_RSGN FAIL_TRM FAIL_INT SIDRMTO NRSPSAO FAIL_DYN DRRMTO SUDFAIL SUDEXEFAIL DYNEXEFAIL UEXPDYNR SYS_BOOT SUDCFAIL REGOFAIL DIMRQFAIL SNMRQFAIL MAXDSC...
  • Page 199 MESSAGE CODE SA_NODETRM SA_TESTMOB SA_CHNFAIL SA_BUSYOUT SA_CHKIDLE DCM_INIT SUDRADDSBL RMF_LOGIN RMF_LOGOUT VDM_INIT NO_QSETUP IDM_INIT LEM_INIT DF_NOCIMRE GPM_IDMFAIL GPM_ADFAIL GPM_RCFAIL DESCRIPTION System Analyzer Fail No Determination - Continue Checking System Analyzer Test Mobile Failure System Analyzer Channel Failure System Analyzer Exceed Multiple Unique Identification Busy Count System Analyzer Exceed Busy Resolve Time-out Dispatch Channel Module Initialization Selective Unit Disable Kill Not Allowed by Radio...
  • Page 200 ERROR MESSAGES This page intentionally left blank.

  • Page 201: Appendix Bcall Sequences

    APPENDIX B CALL SEQUENCES B.1 GROUP CALL B.1.1 MOBILE TO MOBILE ON SAME SITE Use two mobiles with the same Home and list of Group IDs. Select the same Group on the mobiles. 1. Press the PTT on Mobile-1. • The CIM associated with the active repeater changes from Idle Task ‘2’...

  • Page 202: B.4 Mobile To Unique Id

    • Mobile-2 receives voice communication from both the DC and Mobile-1. 3. Release the PTT of Mobile-1. • The associated CIM changes to Transmit Task “3”. • Both mobiles now receive the DIM voice communication. If the associated DIM has Hang Time defined, the associated CIM enters Hang Task “7”...

  • Page 203: Mobile To Unique Id For A Mobile Outside

    Mobile-1 hears “Dial Tone” from O-CIM. 4. Press the PTT of Mobile-1. 5. When Mobile-1's transmit light is lit, Enter 7-DTMF digits, 3 for site outside the Switch and 4 for the Unique ID of Mobile-2 (terminating mobile. 6. Release the PTT of Mobile-1.

  • Page 204: Entry Outside The Switch

    Enter 5-DTMF digits, 2 for Home channel and 3 for the Group ID desired. • Enter 8-DTMF digits, 3 for different site within Switch, 2 for Home channel and 3 for Group ID desired. 6. Release the PTT of Mobile-1 to indicate completion of dialing.

  • Page 205: Mobile Originated Telephone Call

    6. Release the PTT of Mobile-1 to indicate completion of dialing. • O-CIM hears the “Confirmation Tone”. • Originating SNM (O-SNM) changes to SNM Outgoing Task “8”. • Destination SNM (D-SNM) changes to Incoming Seize Task “3”. • D-SNM changes to Incoming Task “4”. •...

  • Page 206: Landside (Tim) Originate To Mobile Within Switch Using A Did Line

    TIM disconnects the telephone line. • TIM changes to Idle Task “2”. B.9 LANDSIDE (TIM) ORIGINATE TO MOBILE WITHIN SWITCH USING A DID LINE 1. Dial the desired number for a mobile within the Switch. • The associated TIM changes from Idle Task “2”...

  • Page 207: Tim Originate To Mobile Outside Switch

    TIM changes to Idle Task “2”. • Both SNMs change to Idle Task “2”. B.12 LANDSIDE ORIGINATE TO MOBILE OUT- SIDE SWITCH USING A 2WY LINE NOTE: Some of these tasks change rapidly. 1. Dial the desired number for the 2WY line. •...

  • Page 208: Snm Unique Id Request Flowchart

    SNM UNIQUE ID REQUEST IDLE SERVICE PARSER DIM REQUEST WAIT DIM RESPONSE SNM IDLE DIM ACKNOWLEDGE WAIT FOR SNM ACKNOWLEDGE FAILURE TO CALL DESTINATION ACKNOWLEDGE DIM/SNM CONVERSATION SNM IDLE SNM IDLE WAIT FOR SNM IDLE SNM IDLE Figure B-1 SNM UNIQUE ID REQUEST FLOWCHART DIM REQUEST NO DIM CIM/SNM...

  • Page 209: Dim Unique Id Request Flowchart

    DIM UNIQUE ID CALL REQUEST IDLE SERVICE PARSER SNM REQUEST NO CARDS SNM REQUEST DIM IDLE SNM ACKNOWLEDGE IDLE WAIT FOR ACKNOWLEDGE TO CALL DESTINATION ORDER DIM ACKNOWLEDGE SNM IDLE DIM / SNM DIM IDLE CONVERSATION SNM IDLE SNM IDLE WAIT FOR SNM IDLE Figure B-2 DIM UNIQUE ID REQUEST FLOWCHART...

  • Page 210: Dialed Digits And Number Of Digits Flowchart

    FIRST DIGIT = 0 DIGIT = 1 ALLOW 0+ AN N11 DIALING NUMBER LOCAL LOCAL DEFAULT DEFAULT GLOBAL AREA CODE TRUNK SET TO DEFAULT LONG DISTANCE ALLOW LONG DISTANCE RETURN SELECTED TRUNK AND FORMAT BLOCKED Figure B-4 DIALED DIGITS AND NUMBER OF DIGITS FLOWCHART DIALED DIGITS USED WHEN CONNECTED TO STANDARD LINES.

  • Page 211: B-5 Telephone Tim Incoming Flowchart

    REQUEST WAIT FOR DIM RESPONSE ACKNOWLEDGE RESPONSE TIM ACKNOWLEDGE TO CALL DESTINATION ORDER RESPONSE RESPONSE TIM / DIM IDLE IDLE CONVERSATION Figure B-5 TELEPHONE TIM INCOMING FLOWCHART TIM INCOMING IDLE SERVICE PARSER IDLE TIM WAIT WAIT FOR FOR IDLE SNM IDLE ACK.
  • Page 212 CIM TELEPHONE CALL REQUEST WAIT FOR TIM ACKNOWLEDGE TIME OUT TIM IDLE CONVERSATION IDLE DISCONNECT IDLE Figure B-6 TELEPHONE CALLING CIM TELEPHONE CALL REQUEST FLOWCHART IDLE SERVICE PARSER TIM OUTGOING REQUEST ACKNOWLEDGE FAILURE DISCONNECT CIM CARD ACKNOWLEDGE WAIT FOR LANDSIDE ANSWER CIM IDLE CIM / TIM...
  • Page 213 USER INTERFACE REQUEST FOR DYNAMIC REASSIGNMENT BIT SET SETUP DYNAMIC REASSIGNMENT FAILURE REPORT Figure B-7 DYNAMIC REASSIGNMENT USER INTERFACE REQUEST FLOWCHART USER INTERFACE REQUEST FOR ACKNOWLEDGE REQUEST WAIT FOR SELECTIVE UNIT DISABLE EXECUTE COMPLETE (INDICATE RESULTS) Figure B-8 SELECTIVE UNIT DISABLE USER INTERFACE REQUEST FLOWCHART TIME OUT MODULE RESPONSE...
  • Page 214 Part Number 001-3139-005 10-03 Printed in U.S.A.

This manual is also suitable for:

Multi-net ii 3000 series

Table of Contents

Save PDF
