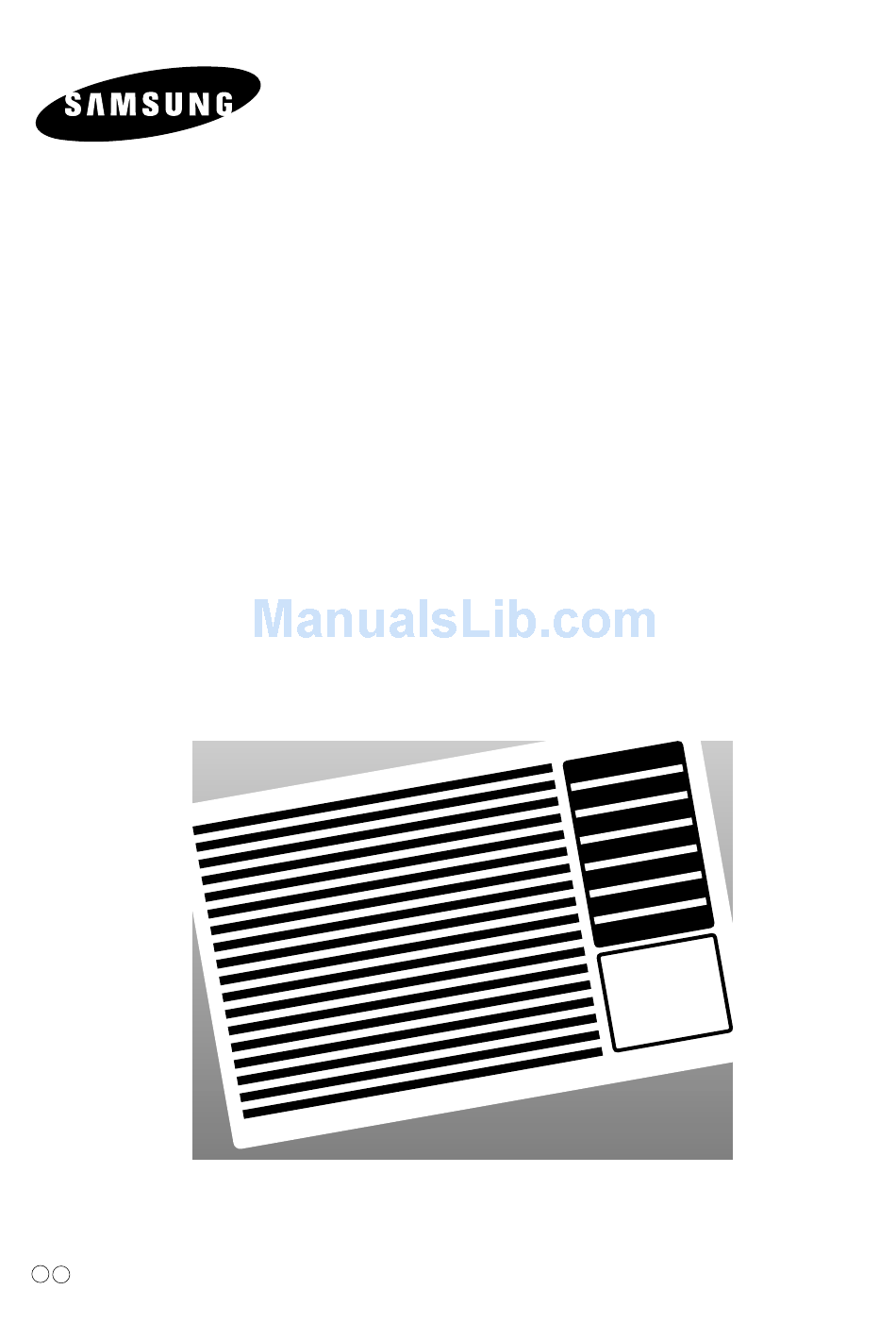

- Page 1 OWNER’S INSTRUCTIONS AW0700/AW1000 AW0800/AW1200 AW0700A WINDOW-TYPE ROOM AIR CONDITIONER ( Cool ) DB68-00963A(3)
-
Page 2: Safety Precautions
Safety Precautions The following safety precautions must be taken when using your air conditioner. 1 The unit must be plugged into an independent circuit. The air conditioner must be installed in accordance with national wiring regulations and safety regulations wherever applicable. 2 Some installation locations may require installation of a short circuit breaker or grounding. -
Page 3: Table Of Contents
Contents REPARING ONDITIONER Safety Precautions ..................Description of Each Component ..............Getting Started ....................PERATING ONDITIONER Cooling Your Room ..................Ventilating Your Room ..................Switching the Air Conditioner Off ..............Adjusting the Air Flow Direction Horizontally ..........Adjusting the Air Flow Direction Vertically ............ECOMMENDATIONS Power Failure .................... -
Page 4: Description Of Each Component
Description of Each Component HOW TO OPEN THE OPERATING UNIT. Simply open using the handle. The design and shape are subject to change, depending on the model. Air outlet Air inlet(Inside) Air flow blades (Up/down orientation) Air filter(Inside) Air inlet (Outside) Air flow direction Ventilation lever adjustable lever... -
Page 5: Getting Started
Getting Started You have just purchased a Samsung window-type room air conditioner which should be installed following your Owner’s Instructions. Your Owner's Instructions contain much valuable information on using your air conditioner. Please take the time to read them as they will help you take full advantage of the unit's... -
Page 6: Cooling Your Room
Cooling Your Room You must select the COOL mode if you wish to adjust the: Cooling temperature Fan speed when Cooling Turn the SELECTOR and set it to “ HI COOL ” , “ MED COOL ” or “ LOW COOL ”. Result: The air conditioner starts up in cool mode. -
Page 7: Ventilating Your Room
Ventilating Your Room If the air in your room is stale, you can ventilate the room using the Fan feature. If you wish to discharge stale air, push the ventilation lever on the front of the unit to the right and open position ( Result: The air inside the room circulates and stale air is discharged outside. -
Page 8: Adjusting The Air Flow Direction Horizontally
Adjusting the Air Flow Direction Horizontally The air flow direction blades can be adjusted to improve the efficiency of the air conditioner. The side by side air direction louvers are controlled by a lever. They regulate air discharge to the right, left or straight. Adjusting the Air Flow Direction Vertically The outer air flow blades on the right side of the unit can be adjusted to control the vertical air flow direction. -
Page 9: Power Failure
Power Failure If a power failure occurs, set the SELECTOR to OFF. When the power comes back on, wait five minutes before turning the unit back on. Temperature and Humidity Ranges The following table indicates the temperature and humidity ranges within which the air conditioner can be used. -
Page 10: Cleaning Your Air Conditioner
Cleaning Your Air Conditioner Be sure to clean the air filter periodically to maintain the air conditioner in the best condition for a long period of time. When cleaning the air conditioner, turn it off and pull out IMPORTANT the power plug. Hold the air filter handle, slightly pull it to the left side and open the front grille. -
Page 11: Solving Common Problems
Solving Common Problems Before contacting an authorized service center, perform the following simple checks. They may save you the time and the expense of an unnecessary call. Problem Explanation / Solution Check for a power failure. The air conditioner does not operate at all. Check the voltage. - Page 12 SAMSUNG or SAMSUNG's authorized service center. SAMSUNG will repair or replace any part found to be defective at no charge, as stipulated herein, with new or reconditioned parts during the limited warranty period specified above.
