Summary of Contents for Kenwood KDC-C20V

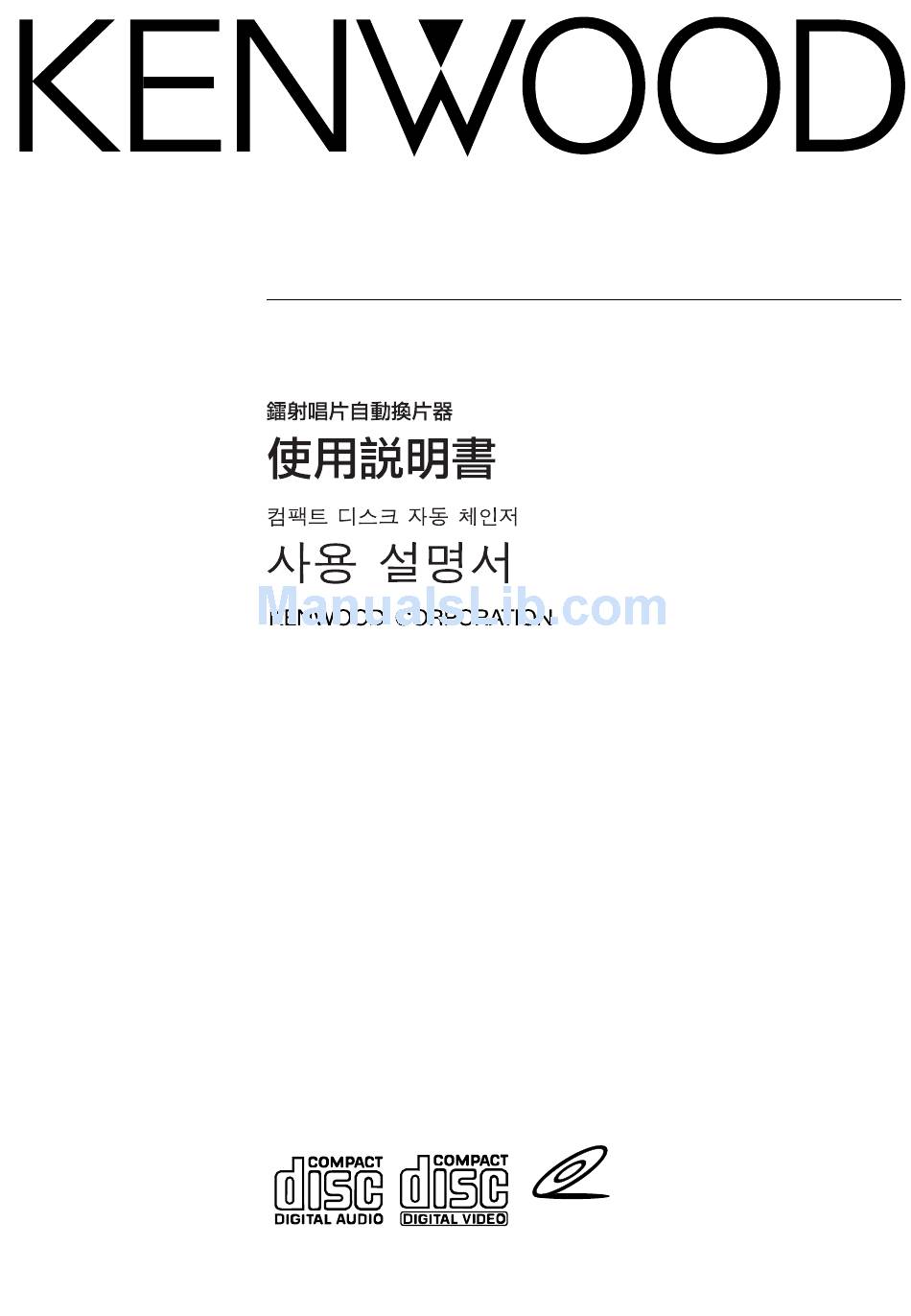

- Page 1 KDC-C20V VIDEO CD AUTO CHANGER INSTRUCTION MANUAL VIDEO CD © B64-1953-10 (MW)
-
Page 2: Warning / Safety Precautions
CD-R/CD-RW writing • If you smell or see smoke, turn the power off software or CD-R/CD-RW recorder.) Additionally, immediately and consult your Kenwood dealer. depending on the recording status, it may prove CAUTION impossible to play certain CDs recorded on CD-R Take the following precautions to keep the unit or CD-RW. -
Page 3: Installation
Stains, scratches, or warping can cause skipping, malfunction, or low sound quality. Take the following precautions to avoid damage to the compact discs. • Avoid touching the recorded side (the side without the titles on) when you hold a compact disc. •... - Page 4 Installation Use the holes marked ● to install the unit. CAUTION Do not tighten the screw B too securely at the time of installation, but tighten it securely after having fixed the bracket A. ■ Horizontal installation Angle adjustment switch position Ø4...
- Page 5 ■ Vertical installation Angle adjustment switch position AU X OF F ON Ø4 ■ In case of hanging in the trunk Angle adjustment switch position Ø4...
- Page 6 Connections O-N switch "S" "V" D Changer control cable (5m) NTSC / PAL Changer control terminal "NTSC" "PAL" Picture format Monitor unit (optional) selector switch F Video cable (4m) Control unit (optional) EMultiple audio selector switch (5m) CAUTION • Do not connect the changer control cable while the control unit is turned ON. •...
-
Page 7: Loading Compact Discs
Loading compact discs Projection Make sure the disc magazine is the right Insert the magazine into the CD changer way up with the "disc" logo on the top.Pull until it clicks. the tray out by the projection. Tray Close the CD changer door. NOTE Use the CD changer with its door closed to Place the disc on the tray with the label... -
Page 8: Operation
Operation ■ Switching the multiple audio Operate the KDC-C20V using the connected control unit. mode Operation is the same for the CD changer. The audio output mode switches in the (For details, refer to the control unit's disc following order when the included multiple control/CD changer mode.) audio selector switch is pressed while playing CDs:... -
Page 9: Specifications
Specifications Specifications subject to change without notice. Laser diode ....................GaAlAs (λ=780 nm) Digital Filter ....................8 Time Over Sampling D/A Converter ......................3 Level ∆∑ Spindle speed.....................500 ~ 200 rpm (CLV) Wow & Flutter..................Below Measurable Limit Frequency Response (±1 dB) ................5 Hz ~ 20 kHz Total harmonic distortion (1 kHz) ...................0.005 % Signal to Noise Ratio......................100 dB Dynamic range ........................95 dB...
