Summary of Contents for Centon 2GBMP4-008

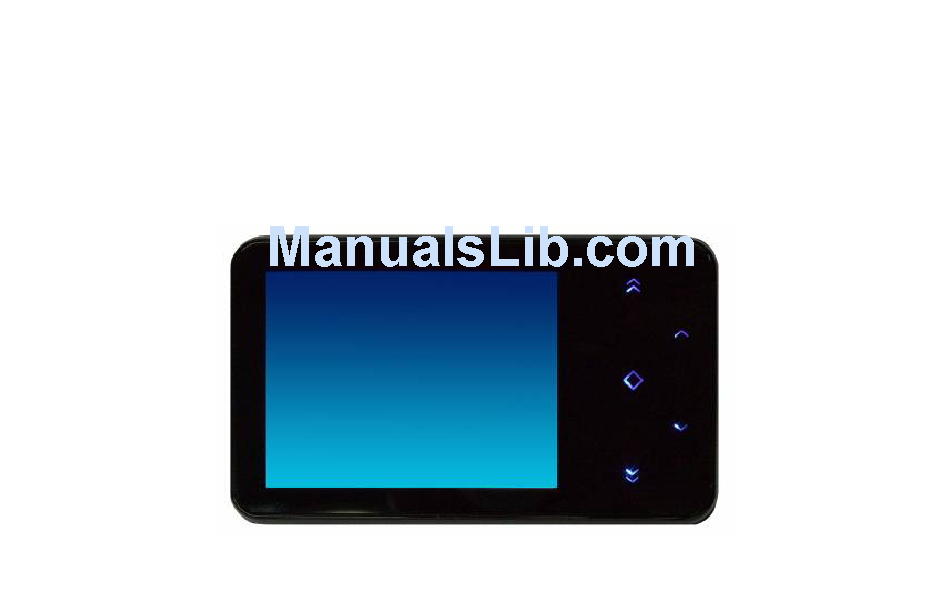

Page 1 Digital Music Player MP4 PLAYER...
Page 2: Table Of Contents
USER’S MANUAL Contents Precautions Characteristics About the Player Screen Description Basic Operation System Menu Listen to Music Voice REC...
Page 3 Resources Manager Picture Browse FM Tuner E-Book Game Function SD Card USB Disk Transfer and Play Video File Upgrade Player Driver Troubleshooting Specifications Precautions...
Page 4 This manual contains important safe measurements and correct operational information, so please read all the information carefully before you use the device in order to avoid any unexpected accidents.  Do not put the player in the condition of high temperature, humidity or dust. ...
Page 5 it will cause the program error.  We will not be responsible for any obligation for any memory loss caused by product damage, repair or other reasons. Please operate correctly as per the manual.  The player, no matter is powered on or not, once connected with the USB port of started computer, can be charged.
Page 6 C. No response with the pressing keys. Our Company reserves the right for the improvement of the product. It is subject to any change on the specifications and designs without further notice!
Page 8 Characteristics 2.4-inches 260K full-color TFT display (320X240). Multi music formats as MP3, WMA and WAV, good timber and real audio frequency display MPEG-4 video format play, full-screen play display, exterior-sound speaker play High-definition JPEG picture browse function Built-in hi-fi 8 Ohm speaker Microphone record and line-in record Energy-saving setting, brightness adjustable, customerized power off time Good timber, support 3D EQ surrounding effect, customerized EQ...
Page 9: About The Player
Listen to music while reading E-book, with bookmark function Listen to music while playing games Portable U-disk function, support Firmware Upgrade A-B repeat Micro-SD card slot About the Player...
Page 11: Screen Description
Screen Description ■Music Play...
Page 13 ■REC Mode...
Page 14 Microphone Record...
Page 15 Screen Description ■Video Play...
Page 17: Basic Operation
■Picture Browse/E-Book/Resources Manager Basic Operation...
Page 18  Power On/Off Power On: Push the power switch to ON position, long press key for 3 seconds, the player will display the Boot interface and enter the working mode before the Normal Power Off. Power Off: a. In Play state: short press to pause, further press for 3 seconds to power off.
Page 19  Power Reset If your player is blocked during the using, you can push [ON/OFF] power switch to restart the player.  Connect to Computer and Data File Transmission After starting the computer, you can connect the player to computer via USB cable to achieve the USB power supply or USB data transmission.
Page 20  Battery This player adopts built-in lithium batteries of high capacity. Full Partially used To be used Used up (time to charge) The usable time of battery electricity may be various according to different volume, type of playing file and pressing operation.
Page 21: System Menu
System Menu  Main Interface After entering the Main Interface, select your desired option among [Music ]/[Video ]/ [FM ]/ [Photo]/[Text]/[Record]/[Navigation]/[Game]/[Setting] circularly by pushing leftwards or rightwards, and short press the "MENU" key to enter the option menu, long press [MENU] key to exit the submenu and return to Main Interface...
Page 22  Setup In Main Interface, push leftwards or rightwards to select [Settings] option, short press "MENU" key to enter Setting interface (shown in right bottom), and select the sub-option to be set by pushing Leftwards or rightwards.  Display Setup Backlight time: six options of 5 sec., 10 sec., 15 sec., 20 sec., 30 sec., and always on.
Page 23 Four sub-options: Language, about, Upgrade and Default set. 1.Language Selection: three options of Simplified Chinese, Traditional Chinese, English, korea, japanese, spanish, french, deutsch, italiano, portuguese, russian. 2.About: player storage memory, remain memory and system software version no., these information are read- only, short press "MENU"...
Page 24: Listen To Music
In this menu, there are six options of Power: Off, 10 min.,15 min., 30 min., 60min. and 120 min. Listen to Music  Play/Stop/Pause...
Page 25 In Music Play menu, connect the earphone with player, select the desired song file by pushing leftwards or rightwards key, short press "MENU" key to begin the playing, then short press key to pause, operate it circularly. During the playing of music, the interface has real audio frequency display. The player only supports the Lyric Synchronous Display that the file shares the same name as LRC file of MP3 format, e.g., music file is named as “Angel.mp3”, the LRC file must be named as “Angel.Irc”, what’s more, they have to be in the same directory, long press "_"...
Page 26  A-B Repeat function In Music Play state, long press “PLAY/PAUSE” to begin the repeat, A will display on the screen; long press “PLAY/PAUSE” To end the repeat, A-B will display, the player will repeat between the beginning point and the ending point.
Page 27 Folder repeat repeatedly play all the songs in the folder. All once Play randomly the songs in the current folder. All repeat Repeatedly play all the songs. Intro Play all the songs of the first 10 seconds in the current folder. EQ Setup Normal/3D/Rock/Pop/Classic/bass/Jazz/User EQ, the above eight options will bring you different music effects;...
Page 28 play mode order shuffle  Video playing...
Page 29 While under the video playing menu, press " " to stop the video playing, long press "MENU" to exit, long press "rightwards" to fastward playing, long press "leftwards" to backward playing.
Page 30: Voice Rec
Voice REC  Voice REC In Main Interface, enter Record state, press “PLAY/PAUSE” key to start recording, press “PLAY/PAUSE” key to pause recording, long press “Menu” key to save the recorded file and enter next Record preparation state. Long press [MENU] key to save the record and exit the REC mode.
Page 31  REC Setup In “SETTING” interface, long press [MENU] key to exit the Main interface, and enter [Record] option, adjust the settings among [REC Quality]/[REC Volume]. REC Quality: high quality, common quality (the first one has larger REC file and better effect; the second one is in the opposite) REC Volume: five options of +1, +2, +3, +4 and +5.
Page 32 *The recorded voice files can be found in Music Play menu and played to try the effect. *If the screen displays “Full Space”, it indicates that there is no space for new recorded file, please delete other files to release more space. Resources Manager ...
Page 33 In Resources Manager, you can select music or video files, press " "key to display delete Dialog box, select “Yes” to delete and “No” to cancel. After the selection, short press "MENU" key to implement the selected option.
Page 34 Picture Browse  JPEG Browser In Main Interface, short press MENU key to confirm to enter Picture Browse mode Push Leftwards or rightwards key to select the previous or next picture.  Enter FM menu,Press Mode key to select: Manu,Auto,Mem,Pres,Del...
Page 35 Manu: Press "MENU" Key to confirm, press leftwards or rightwards to change the frequent manually, long press" MENU"to exit. Auto: Press "MENU" to enter, the player will automatically search,, Press leftwards or rightwards to select the station. Mem: press "MENU" key to enter, press leftwards or rightwards to select the stations, press "MENU" to...
Page 36 confirm store, the frequent display on screen will replace the frequent that stored before. First Short press MENU to exit mem,then long press MENU to return FM menu. Del: press "MENU" key to enter, press leftwards or rightwards to select the station that you want to delete, press "MENU"...
Page 37 In FM mode, the earphone is using as antenna, so please keeping the earphone is connected well.
Page 38 E-Book  Download TXT File Connect the player to computer, select the desired file to download and save the file as TXT format in portable disk.  Read File In Main Interface, enter Text option, push leftwards or rightwards key to select the desired file to read, then short press MENU key to read.
Page 39  Built-in Intellectual Game: Russian Diamond In System Menu, enter Game mode, short press key to enter Game Setup Interface.  Keys Description Russian Diamond is operated in horizontal, short press key to shift between Start and Pause functions, push leftwards or rightwards to control the movement of diamonds. Press MENU to change the shape. Short press +to fall down much more quickly, and long press _key to fall down a little quickly.
Page 40 USB Disk  USB Display Mode The player has a high-speed USB2.0 port with the transmission speed of 5M/S, and is a standard USB disk, supports the systems including Windows98 (it needs to install the driver), over Windows2K (it’s unnecessary to install the driver), Mac OS 10.3 and over, Linux Redhat 8.0 and over.
Page 41 If the battery is too low, the display will shows “Low battery to power off”, then the player will be powered off automatically. You can use the attached charger to charge the battery. During the charging, the battery icon will display the impulse, after the charging, the battery electricity will shows full grids (Fig.).
Page 42 1.Click and run the program of “AV Converter.exe”, shown as follows: 2.click "add ", show dialog as follows:...
Page 43 Convert and Play Video File 3.Select and set your desired parameters,select your desired video/audio file and AVI video file routine to be generated, click [Start to Convert] button, then begin to convert to AVI file.
Page 44 4.The successfully converted AVI video file can be played in MP4 player. During he operation, enter Video Play menu, select the corresponding file, short press [MODE] key to play in video, long press to exit (the Video Play interface refers to the Screen Description).
Page 45 Upgrade Player Driver The player can upgrade or resume the damaged player driver via the tool software in the attached disk. 1. For the first upgrading of computer, insert the drive disk into the CD-ROM of computer, then connect the MP4 player with computer (it requires you to press and hold the MENU key), till it appears the program Installation Interface.
Page 46 4.When the installation of programs required by computer is OK, you can begin the upgrading; select and run the firmware upgrading tool Consumer.exe (can be found in attached disk), then open the option and select Rock2*.rfw file (the Interface is as follows). 5.Connect the player to PC via USB cable (press and hold the MENU key before the On-line operation), then click [Burnt Firmware] till the Auto Upgrading is achieved.
Page 48 Note: Firmware upgrade is to improve and optimize the performance of the player. The normal work of the player would not be affected even if the firmware isn’t upgraded. The wrong operation of upgrading firmware would cause the device not to work normally! The firmware upgrade software of this player is not applied to other series of players.
Page 49 Troubleshooting If the player can not be played normally, please check as follows: Troubles Causes It cannot be turned on Check whether the player is powered on or not and whether the machine program is damaged or not The player is blocked Push the power switch to restart the player It can not be played Check whether the machine is powered on or not...
Page 50 It can not upload/download the Insert USB cable totally well after the Power on. Correctly install file or the disk can not be found the driver again. in computer It can not be recorded Check the enough memory and the electricity Words on display are deformed Make sure that you have selected the correct language It can not be used normally after...
Page 51: User's Manual
REC: WAV Picture: JPEG Supportable video format AVI, RM, VOB, DAT, RMVB etc. (should be converted) 85dB Max. output power 10mW in left and right Storage media Embedded Flash, memory 128MB/256MB/512MB/1GB/2GB, Power supply 3.7V li-ion battery Usable time of battery Video play: 4 hours MP3 play: 6hours (power save mode) Working temperature...
