Single Wall Oven Specifications
•
Product Shipping Weight (approx.) – 150 Lbs.
•
Voltage Rating – 120V / 60 Hz / 15 Amps
•
Connected Load (kW Rating) @ 120 Volts = .60 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @ 120V = 5 Amps
•
Always consult local and national electric and gas codes.
•
Oven ships with 3/4" factory regulator.
•
LP Gas convertible.
•
Do not obstruct flow of combustion air at oven vent nor around base
or beneath lower front panel of appliance. Oven requires fresh air for
proper burner combustion.
•
Minimum 19-3/8" clearance for oven door depth when open.
•
Full oven base of solid plywood or similar material required, capable
of supporting 150 Lbs.
Base must be level and cabinet front must be square.
•
•
Single Wall Oven is NOT approved to be used in side-by-side
installation.
•
Single Wall Oven is NOT approved to be used alone in under-counter
installation or in combination with any Frigidaire® Warmer Drawer or
Built-In Microwave Oven.
USA
10200 David Taylor Drive
Charlotte, NC 28262
•
•
CANADA
5855 Terry Fox Way
Mississauga, ON L5V 3E4
•
•
FGB24L2A 02/12
1-800-FRIGIDAIRE
frigidaire.com
•
•
1-800-265-8352
frigidaire.ca
•
•
© 2012 Electrolux Home Products, Inc

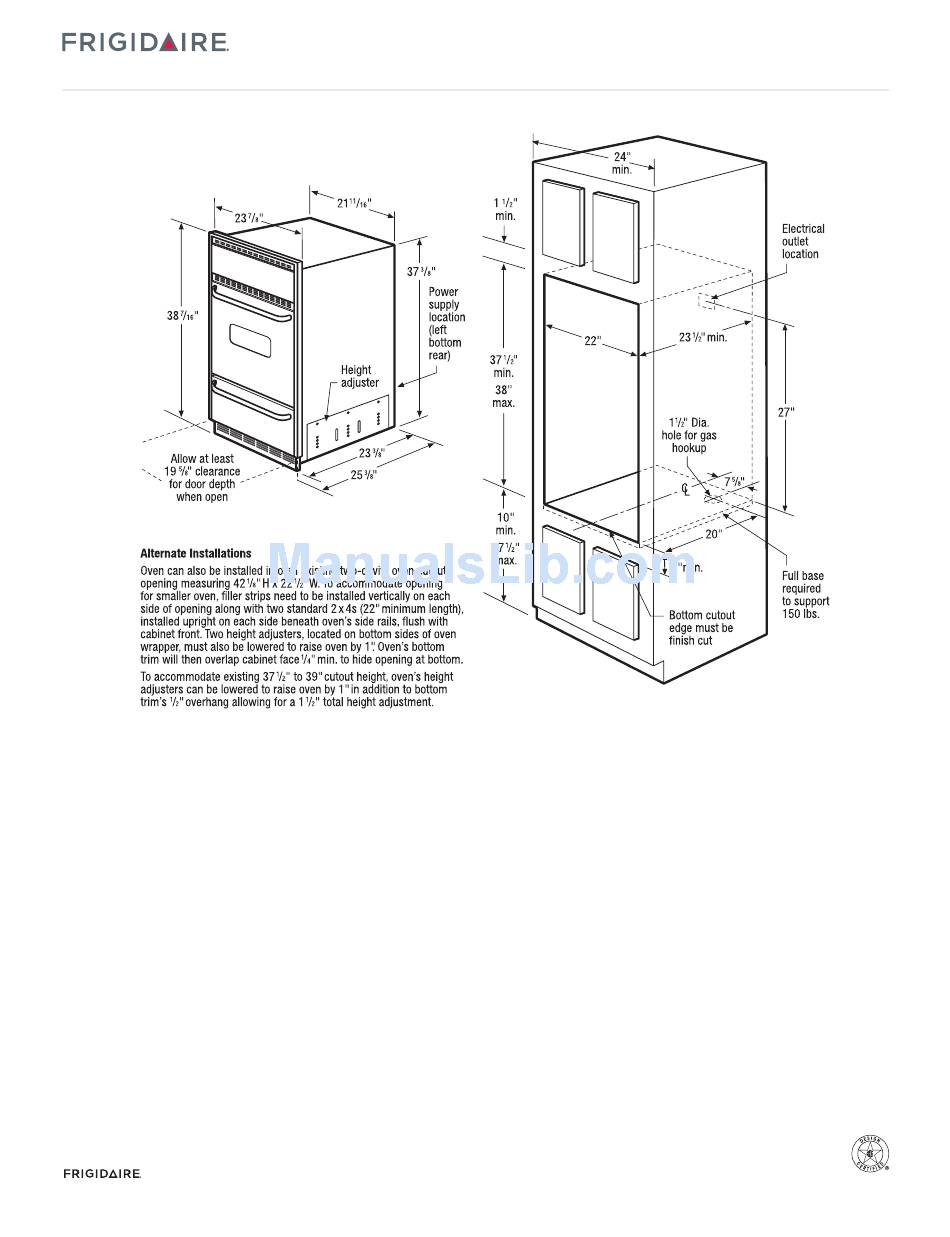

Single Wall Ovens
Alternate Installations
•
Oven can also be installed into an existing two-cavity oven cutout
opening measuring 42-1/8" H x 22-1/2" W. To accommodate opening
for smaller oven, filler strips need to be installed vertically on each
side of opening along with two standard 2 x 4s (22" minimum length),
installed upright on each side beneath oven's side rails, flush with
cabinet front. Two height adjusters, located on bottom sides of oven
wrapper, must also be lowered to raise oven by 1". Oven's bottom
trim will then overlap cabinet face 1/4" minimum to hide opening at
bottom.
•
To accommodate existing 37-1/2" to 39" cutout height, oven's height
adjusters must be lowered to raise oven by 1" in addition to bottom
trim's 1/2" overhang allowing for a 1-1/2" total height adjustment.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Accessories information available
on the web at frigidaire.com
FGB24L2A S / B
24" Gas
Specifications
subject to change.
