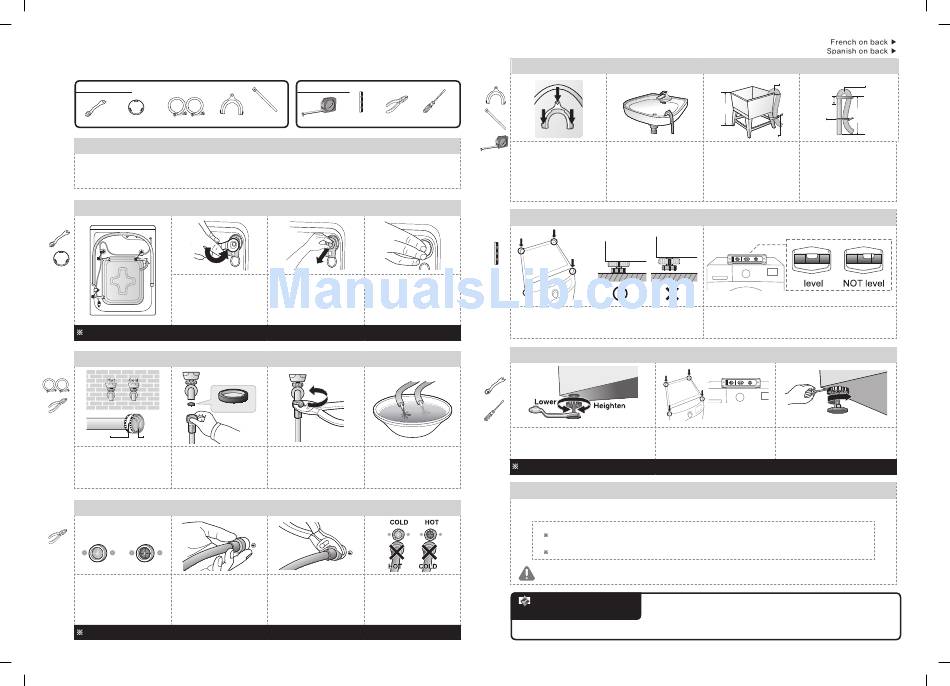

Samsung WF405ATPAWR/AA Installation Manual

INSTALLATION GUIDE

WASHING
MACHINE
Parts supplied
Wrench Bolt hole covers Water supply hoses Hose guide
1
PREPARATION.
□ CHECK : Solidly constructed fl oor (Not Carpeting and soft tile surfaces)
1. Check the installation location.
2. And move the washer to the installation location.
* When installing the washer on a pedestal, do the installation before next step.
2
REMOVING ALL SHIPPING BOLTS.
Remove all shipping bolts
at the back of washer with
supplied spanner.
CAUTION: Failure to remove the shipping bolts will cause vibration and noise.
3
COLD & HOT WATER HOSES INSTALLATION ON FAUCETS.
Rubber washer
Coupling Rubber
washer
Make sure a Rubber Tighten Coupling by hand
washer is inside each
until it is snug.
coupling on both ends.
4
WATER HOSES INSTALLATION ON WASHER.
COLD (Left) HOT (Right)
Water Water
Connect one end of the Tighten Coupling by hand
COLD/HOT water supply until it is snug.
hoses to the each COLD/
HOT water supply intakes
at the back of the washer.
CAUTION: Make sure that the HOT & COLD hoses are switched with each other.
Tools needed
Tie strap carpenter's
Tape measure Pilers Flat screwdrilver
(option) level
Hold the shipping bolt Fill the holes with the
with your hand and pull it
supplied bolt hole covers.
through the wide section of
the hole. Repeat for each
shipping bolt.
HOT COLD
Then tighten two-thirds of a Run water in a bowl or
turn with pliers. basin to get rid of any debris
inside hose. Check for HOT
and Cold water supply.
Then tighten two-thirds of a For proper operation, make
turn with pliers. sure both Hot & Cold hoses
from faucets are connected to
the corresponding Hot / Cold
water inlets on the washer.
5
CONNECTING THE DRAIN HOSE.
Case 1. Wash basin
Drain hose
Hose guide
To keep the drain hose The drain hose must be
spout bent, use the placed at a height between
supplied plastic hose 23.6 in (60cm) and 35.4 in
guide. (90cm).
6
MOVE THE WASHER TO ITS FINAL LOCATION AND MAKE SURE IT IS LEVELED.
Confi rm whether washer is well seated and does not
shake. Adjust leveling legs, if necessary.
7
LEVEL THE WASHER BY ADJUSTING THE FOUR LEVELING LEGS.
Level the washer by turning the leveling Check whether washer shakes
wheel in or out as required by using the and level again, if necessary.
supplied wrench.
CAUTION: Your washer must be leveled on all four sides. An unlevel washer may cause vibration.
8
Final Test : Water leakage , Vibration & Noise
1. Powering your washing machine.
2. Run a test cycle(Rinse+Spin) with small amount of laundry such as 4~5 Towels.
(1) Check for any leakage at the hose connections.
If water leaks while water is being supplied or drained, check the water connections. (Refer to Step 3,4,5)
(2) Check for vibration and noise.
If the washer rocks and vibrates excessively, level your washer again. (Refer to Step 6,7)
Visits by a Service Engineer to explain functions, maintenance or installation is
not covered by warranty.
INSTALLATION INSTALLATION
□
No water leakage
COMPLETION CHECKLIST
□
Water hose connected properly
□ □
Washer plugged in, power OK Drain hose connected properly
Case 2. Laundry tub Case 3. Stand pipe
Hose
Hose
retainer
retainer
8" Max
6" Min
96" Max
18" Min
96" Max
18" Min
Tie strap
Tie strap
Laundry tub must be no Laundry tub must be no
shorter than 18 in (46 cm) shorter than 18 in (46 cm) and
and no longer than 96 in no longer than 96 in (245 cm).
(245 cm). Do not insert the drain hose
too far into the stand pipe: 6
- 8 inches, and no more.
Your washer must be leveled on all four sides. Use a
carpenter's level on all four corners of your washer to
ensure it's level.
When your washer is leveled,
tighten the locking nuts using the
wrench or (-) fl athead screwdriver.
□
No vibration / noise
□
Washer leveled
□
Shipping bolts removed
