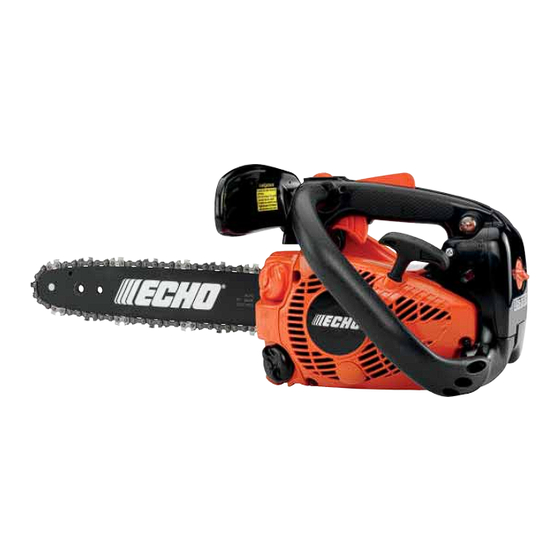

Echo MOTOSIERRA CS-271T Parts Catalog
  1. Manuals
  2. Brands
  3. Echo Manuals
  4. Chainsaw
  5. CS-271T
  6. Parts catalog

Echo MOTOSIERRA CS-271T Parts Catalog

Echo chainsaw user manual
Hide thumbs Also See for MOTOSIERRA CS-271T:
Table of Contents

Advertisement

Quick Links

See also: Service Manual , Operator's Manual
OPTIONAL ACCESSORIES &
ATTACHMENTS:
Bumper Spike
Chain Saw Carry Bag
12-20" Scabbard
ToughChest-18 Case
Chain Sharpening Kit
Guide Bar: .050" gauge
12" / 30cm Double Guard
Saw Chain: 3/8" chain pitch
12" / 30cm XtraGUARD
SAFETY EQUIPMENT
Helmet System
Chaps - 36' Apron
Chaps - 36" Full Wrap
Chaps - 40' Apron
Chaps - 40" Full Wrap
Hearing Protection
ACCESORIOS OPCIONALES
Paragolpes con púas
Bolso de transporte
Funda 30-50.8cm
ToughChest-18 estuche
Kit de afi lado para cadena
Guía de barra: 1.27mm galga
12" / 30cm Double Guard
Cadena: 9.53 mm tipo de cadena
12" / 30cm XtraGUARD
EQUIPO DE SEGURIDAD
Casco de seguridad
Chaparreras - Mandil 91cm
Chaparreras 91cm
Chaparreras - Mandil 102cm
Chaparreras 102cm
Protección de los oídos
ECHO, INCORPORATED
400 Oakwood Road
WWW.ECHO-USA.COM
©2011 ECHO, Incorporated. All Rights Reserved
C304000070
103942147
89850308034
99988801208
99988800720
®
91 12A0CD3745
®
91VG45CQ
99988801500
99988801300
99988801302
99988801301
99988801303
99988801502
C304000070
103942147
89850308034
99988801208
99988800720
®
91
12A0CD3745
®
91VG45CQ
99988801500
99988801300
99988801302
99988801301
99988801303
99988801502
Lake Zurich, Illinois 60047
PARTS CATALOG

LISTA DE PIEZAS

CS-271T

Chain Saw

MOTOSIERRA
26.9 cc
SERIAL NUMBER
NÚMERO DE SERIE
C21211001001-C21211999999
P/N 99922201271
REVISED 05/20/11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MOTOSIERRA CS-271T and is the answer not in the manual?

Questions and answers

Related Manuals for Echo MOTOSIERRA CS-271T

Summary of Contents for Echo MOTOSIERRA CS-271T

  • Page 1: Lista De Piezas

    Chaparreras - Mandil 91cm Chaparreras 91cm Chaparreras - Mandil 102cm Chaparreras 102cm Protección de los oídos ECHO, INCORPORATED 400 Oakwood Road Lake Zurich, Illinois 60047 WWW.ECHO-USA.COM ©2011 ECHO, Incorporated. All Rights Reserved PARTS CATALOG C304000070 103942147 89850308034 99988801208 99988800720 91VG45CQ 99988801500...

  • Page 2: Table Of Contents

    Table of Contents Tabla de Contenido Engine, Engine Housing Motor, Caja del motor Air Filter, Intake, Exhaust Filtro de aire, Admisión, Escape Flywheel, Recoil Starter Volante, Arrancador Autorretráctil Ignition Encendido Oil and Fuel System Sistema de aceite y combustible Carburetor Carburador Carburetor Carburador...

  • Page 3: Engine, Engine Housing

    CS-271T Chain Saw / Motosierra PART NUMBER QTY. DESCRIPTION P021038050 KIT, CYLINDER 90016205022 +BOLT H.S. 5×22 P021038070 ASSY, CRANKSHAFT V505000000 +SEAL, OIL 12 90080036001 +BEARING, BALL 6001 C3 P021038060 KIT, PISTON 10001411520 +WASHER, THRUST 8.2×13×0.5 10001504630 +RING, SNAP 10001322330 +PIN, PISTON A101000630 +RING, PISTON P021003437...

  • Page 4: Air Filter, Intake, Exhaust

    Air Filter, Intake, Exhaust Filtro de aire, Admisión, Escape PART NUMBER QTY. DESCRIPTION 90025304016 SCREW 4×16 A320000930 COVER, MUFFLER V341000180 DEFLECTOR, HEAT 90024204010 SCREW 4×10 A313001750 GUIDE, EXHAUST V104001850 GASKET, EXHAUST A310000420 SCREEN, SPARK ARRESTER 9110705045 BOLT, FLANGE HSH A300001610 MUFFLER, EXHAUST V104001860 GASKET, EXHAUST...

  • Page 5: Flywheel, Recoil Starter

    CS-271T Chain Saw / Motosierra PART NUMBER QTY. DESCRIPTION A409001130 FLYWHEEL 10014212330 KEY, WOODRUFF 90051500008 NUT, FLANGE M8 V452000030 SPRING, TORSION 17724704630 SPACER 5.2×8×2.1 A514000020 PAWL 90060300005 WASHER 5.5×12×0.8 V203000080 BOLT 5×14 A172002040 COVER, FAN A051002420 ASSY, RECOIL STARTER 17723661830 +SCREW A507000110 +CATCHER, PAWL...

  • Page 6: Ignition

    Ignition Encendido PART NUMBER QTY. DESCRIPTION A411001310 COIL, IGNITION 90023805018 SCREW 5×18 15011716430 WASHER 5.2×12×3 V475001900 SLEEVE, INSULATOR 7×8.6×30 V475003550 SLEEVE, INSULATOR 7×8.6×50 A427000013 CAP, SPARK PLUG A426000010 TERMINAL, SPARK PLUG 15901019830 PLUG, SPARK BPM-8Y A425000000 PLUG, SPARK BPMR-8Y 15611004920 GROMMET, HT CORD 15611407320 GROMMET...

  • Page 7: Oil And Fuel System

    CS-271T Chain Saw / Motosierra PART NUMBER QTY. DESCRIPTION 12318139130 BULB, PURGE V471001260 TUBE, PRIMER 2.4×5×150 V471001250 TUBE, FUEL RETURN 2.4×5×250 V470000320 TUBE, FUEL OUTLET V186000020 CONNECTOR, TUBE V471001230 TUBE, FUEL PICK-UP 3×5×210 13201309820 CLIP 6MM 13120514930 FILTER, FUEL P021038080 ASSY, FUEL CAP V581000590 +O-RING...

  • Page 8: Carburetor

    Carburetor Carburador - 8 - CS-271T Chain Saw / Motosierra REVISED 05/20/11...

  • Page 9: Carburador

    CS-271T Chain Saw / Motosierra PART NUMBER QTY. DESCRIPTION A021003610 CARBURETOR, WT-1008 DIAPHRAGM 12313404260 +SCREW, IDLE ADJUST 12313304260 +SPRING, IDLE ADJUST 12311003930 +SCREW 12312409520 +COVER, PUMP 12312515030 +GASKET, PUMP 12311215030 +DIAPHRAGM, PUMP 12312610631 +SCREEN, INLET 12312715030 +E-RING P003000380 +LEVER, THROTTLE 12311403930 +SCREW P003002250...

  • Page 10: Handles, Throttle Control

    Handles, Throttle Control Mangos, Control del Acelerador PART NUMBER QTY. DESCRIPTION P021001965 SET, REAR HANDLE V450000340 +SPRING, COMPRESSION 13002033330 +NUT 5 90025604016 +SCREW 4×16 90025305020 SCREW 5×20 V452000010 SPRING, TORSION C450000010 TRIGGER, THROTTLE C454000051 ROD, THROTTLE C460000002 LOCKOUT, THROTTLE A440000211 SWITCH, ON-OFF 10092139131 CUSHION 4...

  • Page 11: Chain Brake, Clutch

    CS-271T Chain Saw / Motosierra PART NUMBER QTY. DESCRIPTION P021038180 ASSY, CHAIN BRAKE C320000034 +BRAKE, CHAIN 9131805032 +SCREW 5×32 43316739130 +SPACER 5 V353000060 +COLLAR 5 90056250005 +NUT, FLANGE 5 90033030260 +PIN 3×26 C300000171 +GUARD, SPROCKET 43311635430 +SPACER 8×12×9 C334000070 +CONNECTOR, BRAKE C345000114 +COVER, BRAKE 90025304012...

  • Page 12: Chain, Guide Bar, Chain Tensioner

    Chain, Guide Bar, Chain Tensioner Cadena, Guía de barra, Tensor de la cadena PART NUMBER QTY. DESCRIPTION 2894901 KIT, KICK GUARD 90SG45CQ CHAIN, SAW 12" (30cm) - Micro-Lite 12A4CD3745 BAR, 12" (30cm) GUIDE- Micro-Lite V225000030 BOLT, STUD 8 C305000023 PLATE, INNER GUIDE V202000011 BOLT 4×12 43302635430...

  • Page 13: Labels

    X503010960 LABEL - MODEL CS-271T X505002061 LABEL, WARNING X505002071 LABEL, WARNING X502000340 LABEL, ECHO (WHITE) REVISED 05/20/11 + Denotes item is part of an assembly ++ Denotes item is part of a sub-assembly CANADA DESCRIPCIÓN ETIQUETA BARRA Y CADENA ETIQUETA BARRA Y CADENA ETIQUETA DE PRECAUCIÓN...
