   Summary of Contents for D-Link DUB-1310

  • Page 2: Preface

    Preface D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Manual Revisions Revision Date Description May 5, 2011 • Initial Release...

  • Page 3: Table Of Contents

    Manual Revisions ................2 Trademarks ..................2 Product.Overview............... 4 Package Contents ................4 System Requirements ..............4 Features ....................5 Hardware Overview ............... 6 Installation................7 Technical.Specifications............. 8 Contacting.Technical.Support........... 9 Warranty................10 Registration..............17 D-Link DUB-1310 User Manual...

  • Page 4: Product.overview

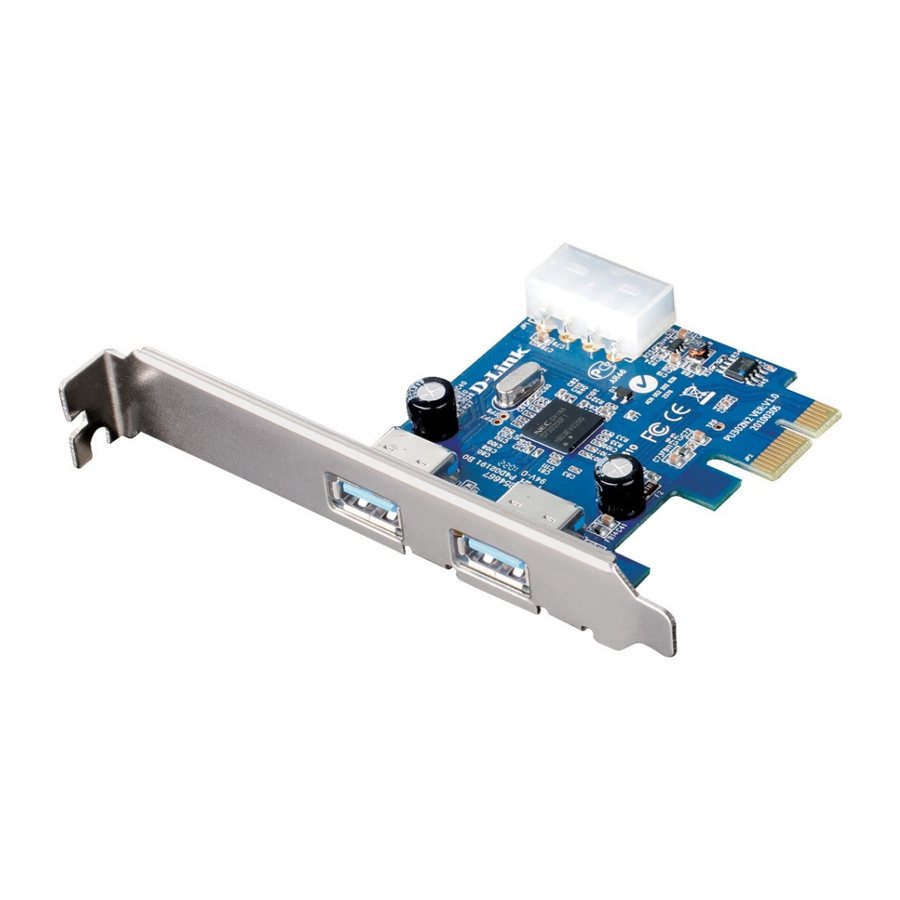

    Section 1 - Product Overview Product Overview Package Contents D-Link DUB-1310 2-Port USB 3.0 PCI Express Card Low Profile Bracket CD-ROM with drivers and user manual Quick Install Guide If any of the above items are missing, please contact your reseller.

  • Page 5: Features

    HD movies to a USB 3.0 external storage device faster than ever before. Plug.and.Play.Connectivity. Just run the Setup CD and then slide the DUB-1310 into an available PCI Express slot; it’s that simple to add 2 USB 3.0 ports to your PC.

  • Page 6: Hardware Overview

    Section 1 - Product Overview Hardware Overview 2 USB 3.0 Ports Connects to USB devices. PCIe Interface Connects to your desktop’s PCIe slot. Power Connector Connects to a 4-pin 5V peripheral power connector. D-Link DUB-1310 User Manual...

  • Page 7: Installation

    Section 2 - Installation Installation Step.1.- Before installing the DUB-1310, insert the CD-ROM into your CD drive. Click on Install from the autorun menu and follow the instructions to install the drivers. Step.2.- Shut down your computer and unplug the power cable from your computer. It is recommended to unplug all cables from your computer.

  • Page 8: Technical.specifications

    * Maximum transfer rate based on USB 3.0 specifications. Actual data throughput will vary. To meet USB 3.0 transfer speeds, USB 3.0 hubs, cables and devices are required. Using a USB 1.1 or USB 2.0 port will affect device performance. D-Link DUB-1310 User Manual...

  • Page 9: Contacting.technical.support

    • Hardware Revision (located on the label on the adapter (e.g. rev A1)) • Serial Number (s/n number located on the label on the adapter). You can find software updates and user documentation on the D-Link website as well as frequently asked questions and answers to technical issues.

  • Page 10: Warranty

    Any repair or replacement will be rendered by D-Link at an Authorized D-Link Service Office. The replacement hardware need not be new or have an identical make, model or part. D-Link may, at its option, replace the defective Hardware or any part thereof with any reconditioned product that D-Link reasonably determines is substantially equivalent (or superior) in all material respects to the defective Hardware.

  • Page 11

    D-Link further warrants that, during the Software Warranty Period, the magnetic media on which D-Link delivers the Software will be free of physical defects. The customer’s sole and exclusive remedy and the entire liability of D-Link and its suppliers under this Limited Warranty will be, at D-Link’s option, to replace the non-conforming Software (or defective media) with software that substantially conforms to D-Link’s...

  • Page 12

    • The customer must submit with the product as part of the claim a written description of the Hardware defect or Software nonconformance in sufficient detail to allow D-Link to confirm the same, along with proof of purchase of the product (such as a copy of the dated purchase invoice for the product) if the product is not registered.

  • Page 13

    Purolator Canada or any common carrier selected by D-Link. Return shipping charges shall be prepaid by D-Link if you use an address in Canada, otherwise we will ship the product to you freight collect. Expedited shipping is available upon request and provided shipping charges are prepaid by the customer.

  • Page 14

    FOR WARRANTY SERVICE) RESULTING FROM THE USE OF THE PRODUCT, RELATING TO WARRANTY SERVICE, OR ARISING OUT OF ANY BREACH OF THIS LIMITED WARRANTY, EVEN IF D-LINK HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THE SOLE REMEDY FOR A BREACH OF THE FOREGOING LIMITED WARRANTY IS REPAIR, REPLACEMENT OR REFUND OF THE DEFECTIVE OR NONCONFORMING PRODUCT.

  • Page 15

    The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user. For detailed warranty information applicable to products purchased outside the United States, please contact the corresponding local D-Link office.

  • Page 16

    This device has been designed to operate with an antenna having a maximum gain of 2 dB. Antenna having a higher gain is strictly prohibited per regulations of Industry Canada. The required antenna impedance is 50 ohms. D-Link DUB-1310 User Manual...

  • Page 17: Registration

    Appendix F - Registration Registration Register your product online at registration.dlink.com Product registration is entirely voluntary and failure to complete or return this form will not diminish your warranty rights. Version 1.0 May 5, 2011 D-Link DUB-1310 User Manual...
