September 2003
CA03310002E

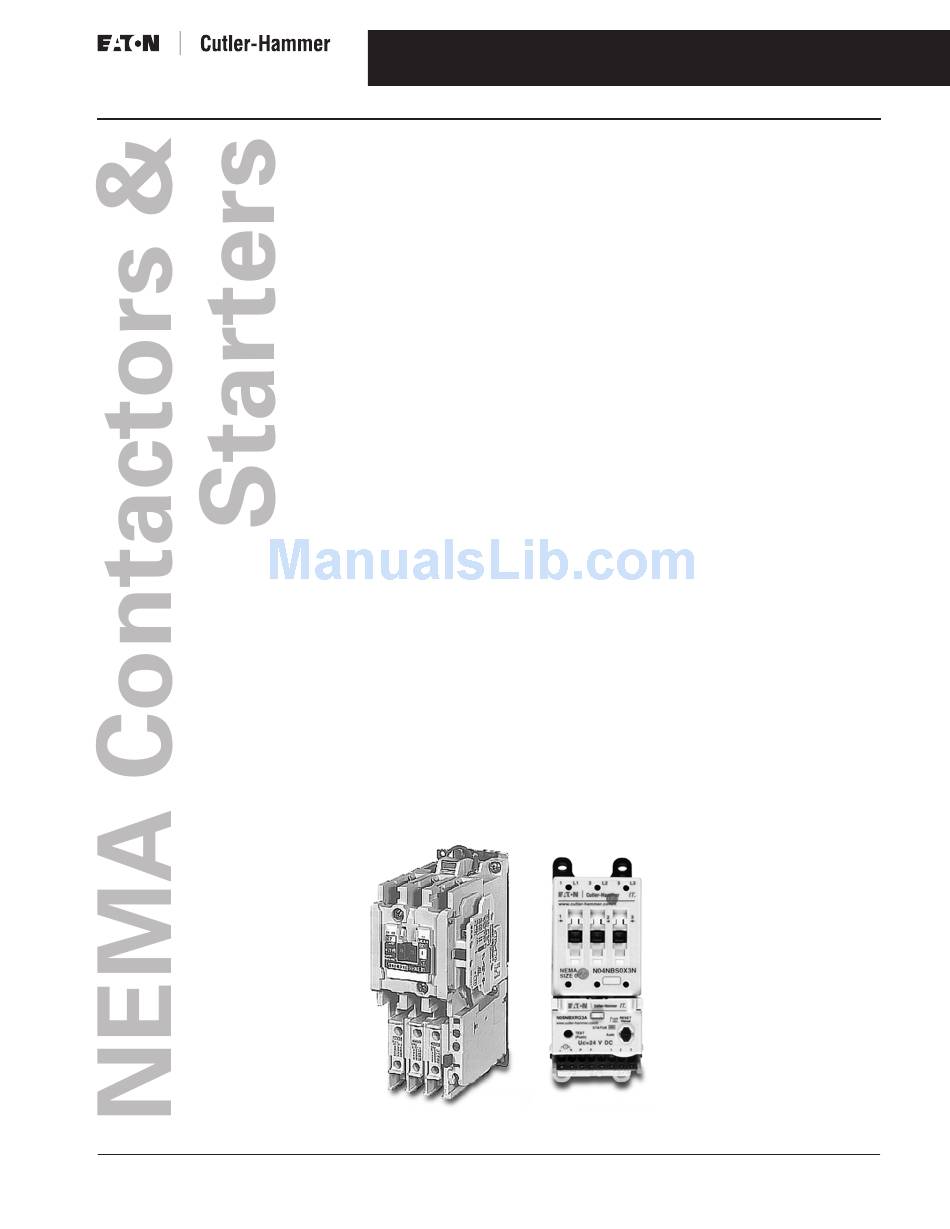

NEMA Contactors & Starters
Contents
Description
IT . Electro-Mechanical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Family Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Catalog Number Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Contactors — Full Voltage, Non-reversing and Reversing . . . . . . . . . . . . . .
Starters — Full Voltage, Non-reversing and Reversing. . . . . . . . . . . . . . . . .
Technical Data and Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Note: Supplement to Publication No. CA8102001E — Tab 33.
NEMA Contactors and Starters
For more information visit: www.cutler-hammer.eaton.com
1
Page
2
2
3
4
7
10
13
18
Advertisement
Table of Contents
Related Manuals for Eaton Cutler-Hammer CA03310002E
Summary of Contents for Eaton Cutler-Hammer CA03310002E
- Page 1 September 2003 CA03310002E For more information visit: www.cutler-hammer.eaton.com NEMA Contactors & Starters Contents Description IT . Electro-Mechanical ..........Product Family Overview .
-
Page 2: Product Family Overview

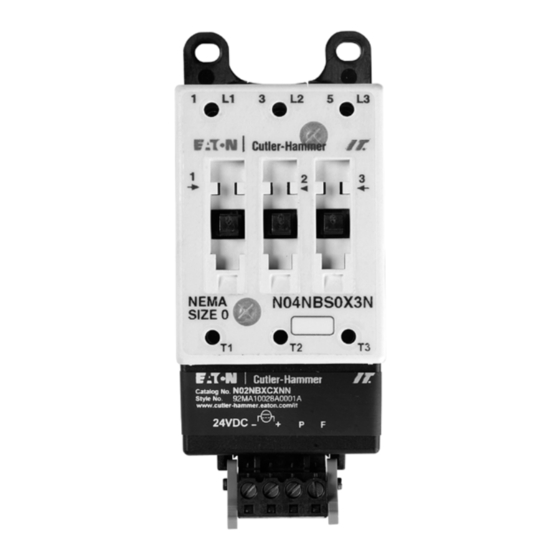

NEMA Contactors & Starters IT. Electro-Mechanical Product Family Overview NEMA, Size 0 Full Voltage Non-reversing Starter Product Description Eaton’s Cutler-Hammer Intelligent Technologies ( IT. ) Electro-Mechanical line of Contactors and Starters is the result of a substantial engineering, manufacturing and marketing effort involving extensive customer input, combined with new advances in solid- state technology. -
Page 3: Catalog Number Selection
September 2003 Catalog Number Selection (Open Components) Table 1. IT. Electro-Mechanical Catalog Numbering System Standard N = NEMA Configuration (Open Type) 02N = FVNR Coil Controller 03N = FVR Coil Controller 04N = Contact Block 05N = Solid-State Non-reversing Overload Relay 06N = Solid-State Reversing Overload Relay 101 = FVNR Starter 111 = FVNR Contactor... -
Page 4: Table Of Contents
NEMA Contactors & Starters IT. Electro-Mechanical Contactors — Full Voltage, Non-reversing and Reversing Contents Description Page Product Family Overview Product Description ..2 Standards and Certifications ... 2 Catalog Number Selection . -
Page 5: Product Selection
September 2003 Product Selection Non-reversing Contactors When Ordering Specify NEMA Size, Continuous Ampere Rating, Voltage, kW/hp and Non-reversing or Reversing Note: N111 N04N (Size 00 – 4) consists of an (Contact Block) and an N02N (Coil Controller), factory assembled. N111F (Size 5) has an internal coil controller, factory assembled. -
Page 6: Accessories
NEMA Contactors & Starters IT. Electro-Mechanical Contactors — Full Voltage, Non-reversing and Reversing Reversing Contactors When Ordering Specify NEMA Size, Continuous Ampere Rating, Voltage, kW/hp, and Non-reversing or Reversing Note: An N511 (Size 00 – 4) consists of two N04N (Contact Blocks), an N03N (FVR Coil Controller), Mechanical Interlock, Fanning Strips and Mounting Plate, factory... - Page 7 September 2003 Contents Description Page Product Family Overview Product Description ..2 Standards and Certifications ..2 Catalog Number Selection ... . . 3 Starters —...
-
Page 8: Product Selection
NEMA Contactors & Starters IT. Electro-Mechanical Starters — Full Voltage, Non-reversing and Reversing Product Selection Non-reversing Starters When Ordering Specify NEMA Size, Continuous Ampere Rating, Voltage, kW/hp, Non-reversing or Reversing and Overload Adjustment Range (Amperes) Note: N101 (00 – 4) consists of an N04N (Contact Block) and an N05N (Non-reversing Overload Relay), factory assembled. - Page 9 September 2003 Reversing Starters When Ordering Specify NEMA Size, Continuous Ampere Rating, Voltage, kW/hp, Non-reversing or Reversing and Overload Adjustment Range (Amperes) Note: An N501 (Size 00 – 4) consists of two N04N (Contact Blocks), N06N (Reversing Overload Relay), Fanning Strips, Mechanical Interlock and Mounting Plate, factory assembled.
-
Page 10: Technical Data
NEMA Contactors & Starters IT. Electro-Mechanical Technical Data and Specifications Table 6. Specifications Description Size 00, 0 Overall Dimensions in Inches (mm) — w x h x d Non-reversing 1.8 x 4.4 x 2.4 Contactor (45 x 111 x 60) Reversing 3.8 x 5.9 x 2.7 Contactor... - Page 11 September 2003 Table 6. Specifications, continued Description Size 00, 0 Finger Protection Front IP20 At Terminals IP10 At Terminals with max. IP20 size wire installed Terminals L1, L2, L3/T1, T2, T3 1 Wire per Terminal 14 – 8 AWG (stranded or solid) (1.5 –...
- Page 12 NEMA Contactors & Starters IT. Electro-Mechanical Technical Data and Specifications Electrical Life — AC-1, AC-2, AC-3 and AC-4 Utilization Categories Table 8. Utilization Categories The International Electrotechnical Commission (IEC) has developed utilization categories for contactors and auxiliary contacts. The IEC utilization categories are used to define the type of electrical load for estimating electrical life, and do not imply the devices are IEC rated.
-
Page 13: Accessories
September 2003 Modular Components — Contactor Field Assembly NEMA Non-reversing Contact Block Coil Controller EXAMPLE FOR A FULL VOLTAGE NON-REVERSING CONTACTOR: N04NCS1X3N + N02NCXCXNN = N111CS1X3N (2) NEMA Reversing Coil Contact Blocks Controller EXAMPLE FOR A FULL VOLTAGE REVERSING CONTACTOR: (2) N04NCS1X3N + N03NCXCXNN + EMRKTC (REVERSING KIT) = N511CS1X3N Figure 4. - Page 14 NEMA Contactors & Starters IT. Electro-Mechanical Accessories NEMA Contact Block Table 9. NEMA Contact Block Size Amperes Catalog Number N04NBSAX3N N04NBS0X3N N04NCS1X3N N04NDS2X3N N04NES3X3N N04NES4X3N Note: N04N + N05N = N101; N04N + N02N = N111 (45 – 140 mm) N04N + N06N = N501;...
-
Page 15: Auxiliary Contacts
September 2003 Auxiliary Contacts Auxiliary Contacts are available for mounting on Eaton’s Cutler-Hammer Intelligent Technologies (IT.) Electro-Mechanical Contactors and Starters. The various choices available for non-reversing models are shown in Tables 12 and 13, and their rat- ings in Tables 14 – 16. For reversing models, the number of auxiliaries indicated is for each of the contactors/starters in the assembly. - Page 16 NEMA Contactors & Starters IT. Electro-Mechanical Accessories — DSNAP DeviceNet Starter Network Adapter Product (DSNAP) Catalog Number D77B-DSNAP with 54 mm IT. Starter The DeviceNet Starter Network Adapter Product (DSNAP) is a front- mount device that serves as a single node on DeviceNet, providing commu- nication capability, control and moni- toring to Eaton’s Cutler-Hammer...
- Page 17 September 2003 Table 20. DeviceNet Specifications DeviceNet Connections Group 2 Master Slave Connection Set Polling Bit Strobe Explicit No UCMM DeviceNet Baud Rate 125K, 250K, 500K Table 21. DSNAP Specifications Description Specifications Transportation/Storage Temperature -58° to 176°F (-50° to 80°C) Humidity 0 –...
- Page 18 NEMA Contactors & Starters IT. Electro-Mechanical Dimensions Non-reversing Contactors (Sizes 00 – 1) Table 23. Approximate Dimensions in Inches (mm) NEMA Overall Size Width Height Depth Depth w/ Auxiliary 00, 0 (45) (111) (60) (91) 4.45 (54) (113) (60) (91) Line Terminals (1 L1, 3 L2, 5 L3) Standard...
-
Page 19: Dimensions
September 2003 Non-reversing Contactors (Sizes 2 – 4) Table 24. Approximate Dimensions in Inches (mm) NEMA Overall Size Width Height Depth Depth w/ Auxiliary (76) (150) (79) (107) 3, 4 (105) (203) (90) (119) Line Terminals (1 L1, 3 L2, 5 L3) Standard DIN Rail 1.38 x .3 (35 x 7.5) - Page 20 NEMA Contactors & Starters IT. Electro-Mechanical Dimensions Reversing Contactors (Sizes 00 – 4) Table 26. Approximate Dimensions in Inches (mm) NEMA Overall Size Width Height Depth 00, 0 (96) (149) (69) (114) (149) (67) (158) (188) (84) 3, 4 (216) (242) (97) Line Terminals...
- Page 21 September 2003 Reversing Contactors (Size 5) Table 27. Approximate Dimensions in Inches (mm) NEMA Overall Size Width Height Depth Depth w/Logic Level Auxiliary 11.7 17.2 (297) (436) (178) (208) Line Terminals (1 L1, 3 L2, 5 L3) Side Auxiliary Figure 13. Approximate Dimensions in Inches (mm) CA03310002E For more information visit: www.cutler-hammer.eaton.com NEMA Contactors &...
- Page 22 NEMA Contactors & Starters IT. Electro-Mechanical Dimensions Non-reversing Starters (Sizes 00 – 4) Table 28. Approximate Dimensions in Inches (mm) NEMA Overall Size Width Height Depth Depth w/ Auxiliary 00, 0 (45) (127) (63) (91) (54) (138) (63) (91) (76) (150) (79) (107)
- Page 23 September 2003 Non-reversing Starter (Size 5) Table 29. Approximate Dimensions in Inches (mm) NEMA Overall Size Width Length Depth Depth w/Logic Level Auxiliary 19.4 (145) (492) (178) (208) Line Terminals (1 L1, 3 L2, 5 L3) Side Auxiliary Load Terminals (2 T1, 6 T3) (4 T2) Figure 15.
- Page 24 NEMA Contactors & Starters IT. Electro-Mechanical Dimensions Reversing Starter (Size 5) Table 31. Approximate Dimensions in Inches (mm) NEMA Overall Size Width Length Depth Depth w/Logic Level Auxiliary 11.8 21.0 (300) (533) (178) (208) Line Terminals (1 L1, 3 L2, 5 L3) Side Auxiliary Load Terminals...
