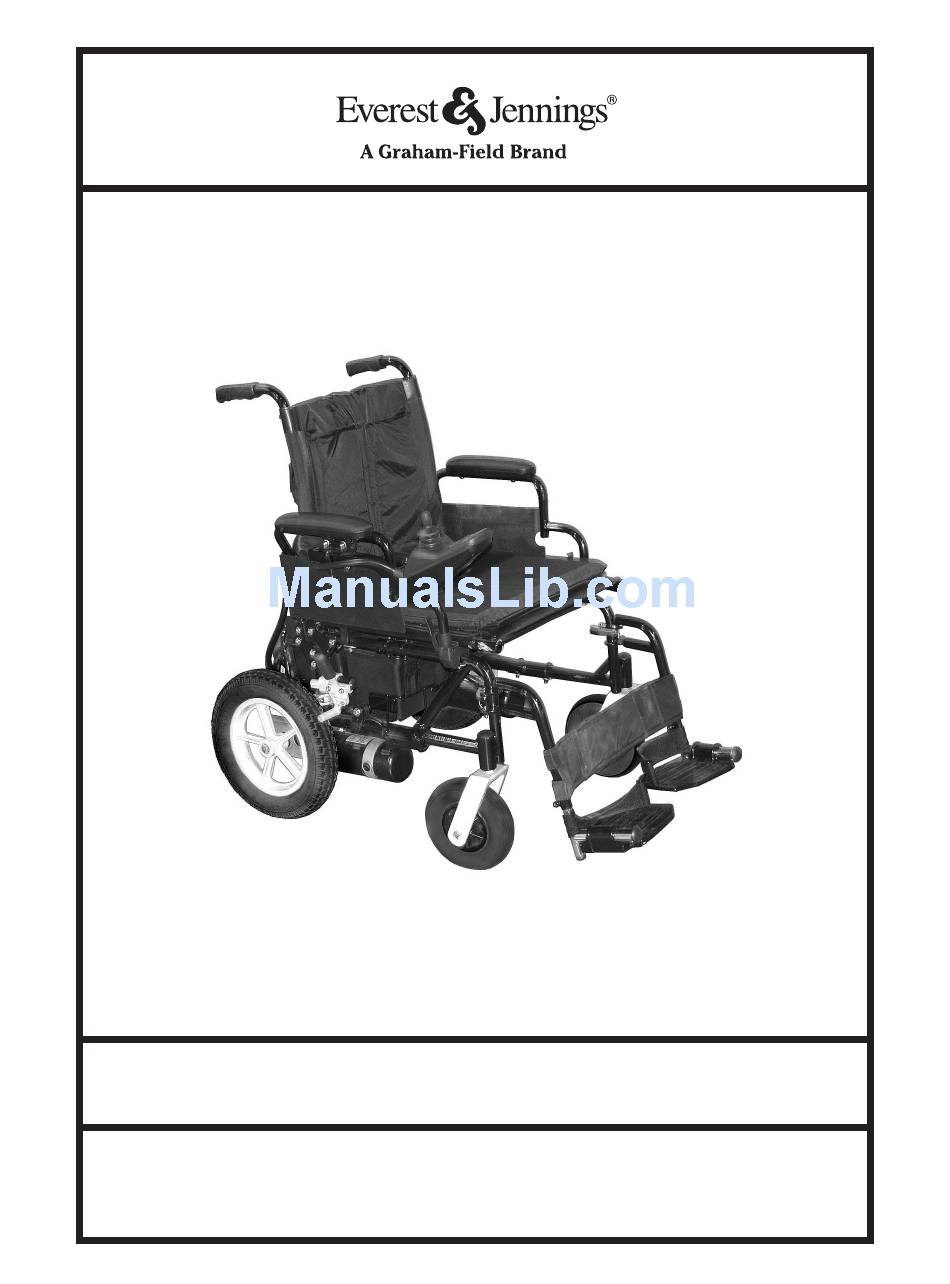

- Page 1 POWER III METRO ® POWER WHEELCHAIR OWNER’s MANuAL GF0600059RevB06 ©GF Health Products, Inc. November 2006 IMPORTANT: Read this manual before operating your Metro Power III Power Wheelchair. save this manual for later use.
-
Page 2: Table Of Contents
X tRaNsPORtING tHe MetRO POweR III ...39 XI lIMIted waRRaNty ...40 XII INdeX ...42 GF HealtH PROduCts, INC. Is NOt ResPONsIBle FOR tyPOGRaPHICal eRRORs. PaCkaGING, waRRaNtIes, sPeCIFICatIONs aNd PROduCts aRe suBjeCt tO CHaNGe wItHOut NOtICe. Metro Power III Owner’s Manual GF0600059RevB06, November 2006... -
Page 3: I Introduction
It is suitable for frequent users who require a power wheelchair fitted to their specific anatomy and best suited for indoor and limited outdoor use. Its ease of disassembly allows for easy transportation. -
Page 4: Safety Precautions
IMPORTANT: BEFORE usING YOuR Metro Power III, PLEAsE READ AND uNDERsTAND THE FOLLOWING sAFETY PRECAuTIONs. Protect your Metro Power III by having it serviced regularly. Whenever any part of your wheelchair is not functioning properly, a hazardous situation could result. Only excellent condition is acceptable where safety is concerned. - Page 5 Warning: Disengaging the rear wheel levers will also disengage the electromechani- cal park brakes and allow the wheelchair to roll. Warning: Do not lean over the top of the wheelchair back. This could cause the wheelchair to tip. Warning: Before leaning or reaching forward: To reduce the risk of tipping, sit back in the seat and rotate casters fully toward front of wheelchair.
- Page 6 Warning: The use of non-Graham-Field replacement parts could create a hazardous condition, which could result in serious injury. Warning: standard weight capacity for the Metro Power III wheelchair is 300 lb. (136 kg). Warning: Do not tow any loads or “piggyback” passengers or heavy packages.
-
Page 7: Electromagnetic Interference (Emi) From Radio Wave Sources
(HAM) transmitters, two-way radios, and cellular telephones. The interference (from radio wave sources) can cause the powered wheelchair to release its brakes, move by itself, or move in unintend- ed directions. It can also permanently damage the powered wheelchair’s control system. The intensity of the interfering EM energy can be measured in volts per meter (V/m). -
Page 8: Important Information
(source), the EM fields from hand-held radio wave sources (transceivers) are of special concern. It is possible to unintentionally bring high levels of EM energy very close to the powered wheelchair’s control system while using these devices. This can affect powered wheelchair movement and brak- ing. -
Page 9: Handling Tips
Proper balance is the key to maintaining the stability of your wheelchair. Reaching, bending, and transferring to or from a wheelchair will change the weight distribution and center of gravity of you and your wheelchair. When performing such activities, do so as instructed in the following para- graphs to avoid tipping the wheelchair. -
Page 10: Ramps And Inclines
Warning: Do not lean over the back upholstery; this could cause the wheelchair to tip. 1. Maneuver the wheelchair as close as possible to the object. The rear wheels will limit how close you can get. 2. Rotate both casters fully forward. If otherwise, go forward and then back the wheelchair toward the object to swing the casters fully forward. -
Page 11: Curbs And Steps
If possible, lean slightly backward to increase stability. It is critical to keep the wheelchair under control at all times. Descent should be made slowly and steadily, allowing the wheelchair’s control system to maintain a safe speed. Upon stopping, electro- mechanical park brakes will engage to prevent the wheelchair from rolling. -
Page 12: Getting Started
250 lb. user and fully charged U1 size batteries). Actual range will vary according to your weight, the amount of start/stop driving, ambient temperature, and the terrain on which you travel with your wheelchair. As you become more acquainted with your wheelchair, its range and performance capa- bilities will become more apparent. -
Page 13: Power Drive System
The JOYSTICK controls the speed and direction of wheelchair travel. The further you push the joy- stick from the rest position the faster your wheelchair will move. When the joystick is returned to the neutral (center) position or released, the control system will bring the wheelchair to a smooth stop. -
Page 14: Battery Gauge
The battery gauge gives you a more accurate reading about a minute after you start driving the wheelchair. The battery gauge also provides a diagnostics display when wheelchair electrical system problems occur. See TROUBLESHOOTING for a description of the battery gauge diagnostics. -
Page 15: Operating Instructions
2. Engage the rear wheels by turning the drive engagement levers (on the tops of the motors at rear of wheelchair) inward, toward the battery boxes; see picture above. 3. With the joystick in neutral, turn wheelchair power on (press the ON/OFF switch). The battery gauge will blink and then turn on after a second. -
Page 16: Adjustments
The Metro Power III offers several adjustments to enhance driving ease and comfort. Adjustments should be performed with wheelchair power off and the wheelchair unoccupied. Ensure that all components are in excellent condition before adjusting (Part VIII, MAINTENANCE, offers sugges- tions for maintaining your wheelchair in excellent condition). -
Page 17: Footrest-Detachable, Swingaway
Warning: The lowest part of the footplate extensions should be no closer to the ground than 2 inches (5.5 cm), to permit proper clearance. Warning: Do not stand on the footplates; this could cause the wheelchair to tip. Remove footrest 1. To release lock, pull swingaway release lever forward, toward front of wheelchair. - Page 18 Warning: The lowest part of the footplate extensions should be no closer to the ground than 2 inches (5.5 cm), to permit proper clearance. Warning: Do not stand on the footplates; this could cause the wheelchair to tip. Remove elevating legrest 1. To release lock, pull swingaway release lever forward, toward front of wheelchair.
- Page 19 Metro Power III Owner’s Manual " clamp " adjust legrest footplate extension length (left shown) leg panel elevating legrest (footplate extension not shown) GF0600059RevB06, November 2006 legrest hanger tube footplate extension tube legrest tube pad/ hinge plate assembly legrest tube stop hinge plate slot...
-
Page 20: Adjust Wheel Locks
6. Without moving the wheel lock assembly, tighten the mounting bracket bolts. 7. Repeat steps 1-6 for other wheel lock. Warning: After adjustment and before using wheelchair, check both wheel locks to ensure that the wheel locks will prevent the wheels from moving. -
Page 21: Batteries
This decrease is often misin- terpreted as a problem with the wheelchair system, when in fact the batteries have simply reached the end of their useful lives and should be replaced. Properly maintained batteries can be expected to last approximately 9 to 18 months. -
Page 22: Battery Charger Interface
Charges deeply discharged batteries, starting voltage as low as 1/2 volt. • UL and CSA approved. • Conveniently small and light weight. BatteRy CHaRGeR INteRFaCe BatteRy CHaRGeR BaCk PaNel GF0600059RevB06, November 2006 BatteRy CHaRGeR ON/OFF switch AC voltage switch AC fuse compartment line connector AC connector... -
Page 23: Line Connector
The AC connector plugs into the power outlet to charge the batteries. BatteRy CHaRGeR FRONt PaNel Output connector The output connector plugs into the wheelchair battery charger receptacle to charge the batteries. Red led The red LED shows power on (battery charger plugged into power outlet and ON/OFF switch turned on). -
Page 24: Battery Charger Safety
Warning: Batteries generate gases which can be explosive. To prevent arcing or burning near batteries, do not disconnect battery charger output connector from wheelchair battery charger receptacle when battery charger is operating. If charge cycle must be interrupted, move the battery charger ON/OFF switch to OFF and disconnect the battery charger AC connector from power outlet, then disconnect battery charger output connector from wheelchair battery charger receptacle. -
Page 25: Charging The Batteries
1. Ensure that power to both wheelchair and battery charger is OFF. 2. Connect the battery charger output connector to the wheelchair battery charger receptacle. 3. North America: Plug the battery charger AC connector into a properly grounded, 115 volt, 60 cycle single phase power outlet. -
Page 26: Remove Batteries
8. Use a Phillips screwdriver and 3/8” wrench to remove nuts and screws that secure wire terminals to battery terminals. Set aside for reassembly. Repeat for other battery. 9. Remove batteries from battery boxes. GF0600059RevB06, November 2006 Metro Power III Owner’s Manual... -
Page 27: Install Batteries
Metro Power III Owner’s Manual front of wheelchair cable to left motor connectors rear battery box rear battery Metro Power III battery connections GF0600059RevB06, November 2006 cable to integral controller battery cable cable to right motor black connectors front battery box... -
Page 28: Battery Maintenance
2. Clean all battery terminals and clamps with a wire brush (brushes for this purpose can be pur- chased at most automotive parts stores). 3. Reinstall batteries; see Install Batteries in previous REMOVE AND INSTALL BATTERIES section—follow steps 2-13. GF0600059RevB06, November 2006 BatteRy MaINteNaNCe Metro Power III Owner’s Manual... -
Page 29: Maintenance
We urge you to protect your power drive wheelchair investment by keeping your Metro Power III in top condition. Periodic inspection, adjustment, and replacement of worn parts will provide years of superb performance. When a component or part does not function properly, a potentially hazardous condition can result. -
Page 30: Controller Maintenance
Perform the following daily and weekly control system checks as directed. If the control system fails any of these checks, do not use the wheelchair; contact your Graham-Field dealer. CONtROl systeM daIly CHeCk joystick Turn controller ON/OFF switch off. - Page 31 3. Push the joystick slowly forward until you hear the park brakes operate. The wheelchair may start to move. 4. Immediately release the joystick. You must be able to hear each park brake operate within a few seconds. 5. Repeat the test a further three times, pushing the joystick slowly backward, left and right.
-
Page 32: Check Tires
If the nut is too loose, the caster will flutter or shimmy; if the nut is too tight, the wheelchair will be difficult to steer. If the caster stem requires adjustment, or the caster stem bearing requires replacement, visit a qualified Graham-Field dealer. Ensure that stems are firmly attached to forks, and that forks and stems are not bent. - Page 33 These signs indicate that the bearings are becoming worn and may require replacement. The caster bearings should be inspected every six months and replaced as needed. This should be performed by an Graham-Field dealer. Metro Power III Owner’s Manual GF0600059RevB06, November 2006...
-
Page 34: Troubleshooting
Old batteries discharge much more quickly than new batteries under the same driving conditions. This results in a decrease in the distance the wheelchair can travel before batteries need to be charged. This decrease is often misinterpreted as a problem with the wheelchair system, when in fact the bat- teries have simply reached the end of their useful life and should be replaced. - Page 35 Red & yellow None Charge battery if possible; controller and electrical system OK. bars lit Red bars only None Low batteries; controller and electrical system OK. Charge batteries. lit or slow flash Red, yellow, Possible Joystick out of neutral—leave joystick in neutral while turning wheelchair power on. Operate & green bars, joystick fault joystick to make sure it returns to neutral. Turn ON/OFF switch off and ON to reset. ripple up & down Metro Power III Owner’s Manual CORRECTIVE ACTION The controller safety circuits have operated and the controller has been prevented from moving the wheelchair. This indicates that there is a fault. Please follow this procedure: do not try to use the wheelchair; contact your dealer. None Controller is functioning correctly but you should charge the batteries as soon as possible. If the wheelchair does not travel at full speed or does not respond quickly enough, and battery condition is good, check speed control setting. If adjusting the speed control does not remedy the problem, there may be a nonhazardous fault. Contact your dealer. Reprogram to desired performance GF0600059RevB06, November 2006...
- Page 36 Battery gauge diagnostic guide table tHe FOllOwING systeM Faults wIll PReVeNt tHe wHeelCHaIR FROM dRIVING. BATTERY GAUGE SYSTEM LIGHTS FAULT CHECK / ACTION Bar 1 Low battery The batteries need charging or there is a bad connection to the batteries. Check the connections fast flash voltage to the batteries and the controller power connector. If the connections are good, try charging the batteries. Bars 1-2 Left motor The left motor has a bad connection. Ensure that the motor is connected properly and the fast flash disconnected controller connectors are secure. If problem persists, contact your dealer. Bars 1-3 Left motor The left motor has a short circuit to a battery connection. Contact your dealer. fast flash wiring fault. Bars 1-4 Right motor The right motor has a bad connection. Ensure that the motor is connected properly and the...
-
Page 37: Troubleshooting, Battery Charger
Warning: Before checking the AC fuse, disconnect the battery charger from both power outlet and wheelchair battery charger receptacle. To check the AC fuse: (see next page) Metro Power III Owner’s Manual volt—replace batteries. output fuse front panel back panel GF0600059RevB06, November 2006 AC voltage switch... - Page 38 Warning: Do NOT replace the AC fuse with the output fuse. They have different fuse ratings, and interchanging them could result in fire. Contact your Graham-Field dealer. Note: If you experience a problem with your battery charger and are unable to service it yourself, contact the dealer from whom you purchased the wheelchair. If the dealer is unable to help you, contact Graham-Field Customer Service at the number on the back cover for a list of qualified Graham-Field dealers in your area. GF0600059RevB06, November 2006 line connector back panel AC fuse compartment...
-
Page 39: Transporting The Metro Power Iii
Lift the opposite side up and toward you. Reassembly 1. Tip the wheelchair toward you, taking weight off the opposite wheel so that the tire won’t drag. Open the wheelchair by pulling the sides apart. Warning: To avoid injury while opening the wheelchair, do not place your hand be- tween the seat tubes and the side panels, and do not place your fingers beneath the seat tubes. -
Page 40: Limited Warranty
LIMITATIONS AND EXCLUSIONS: The foregoing warranty shall not apply to serial numbered products if the serial number has been removed or defaced. Products subjected to negligence, abuse, misuse, improper operation, improper maintenance, improper cleaning, improper storage, or damages beyond GF Health Products, Inc.’s control are not covered by this warranty, and that evaluation shall be solely determined by GF Health Products, Inc. This warranty shall not apply to problems arising from normal wear and tear or failure to follow instructions. The warranty shall GF0600059RevB06, November 2006 XI lIMIted waRRaNty WARRANTY PERIODS 6 mo. 1 yr. 3 yrs. 3 mo. 6 mo. - Page 41 Do not return products to our factory without prior authorization. This warranty contains the entire agreement between the parties and supersedes any prior, contrary or additional representations or understandings, whether oral or written, concerning our warranty policy. Metro Power III Owner’s Manual GF0600059RevB06, November 2006...
-
Page 42: Index
Clean wheelchair 32 Controller battery gauge 14 Controller diagnostic guide, general 34 Controller diagnostic guide table, battery gauge Controller extension position, adjust 16 GF0600059RevB06, November 2006 XII INdeX Controller maintenance 30 Control system daily check 30 Control system weekly check 30... - Page 43 Tools and cleaning supplies, maintenance, list Transporting the Metro Power III 39 Troubleshooting 34 Troubleshooting, battery charger 37 Troubleshooting, integral controller 34 Troubleshooting, power drive 34 Upholstery, clean & check 32 Warranty, Limited 40 Weight capacity 6 Metro Power III Owner’s Manual GF0600059RevB06, November 2006...
- Page 44 U.S.A., Corporate Headquarters: Graham-Field Health Products 2935 Northeast Parkway Atlanta, Georgia 30360 telephone: 800-347-5678, 770-447-1609 fax: 800-726-0601, 678-291-3232 www.grahamfield.com...
