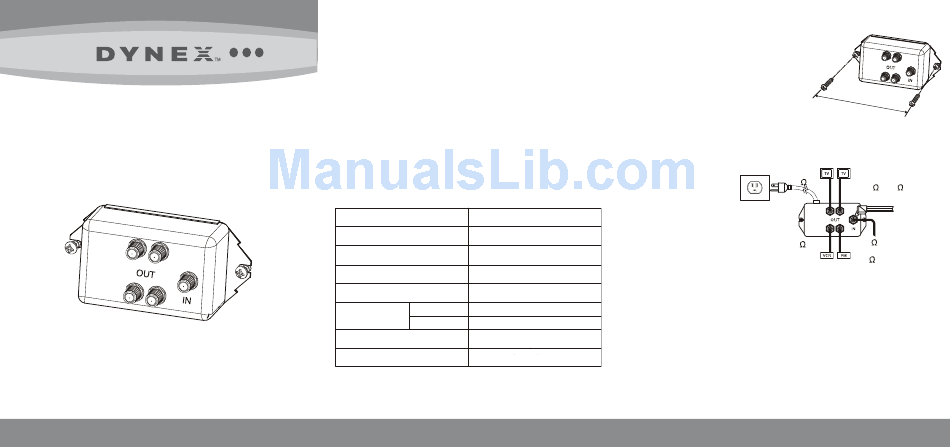

DX-AD113 UHF/VHF/FM Amplifier
QUICK SETUP GUIDE
Features
• Amplifies 50-900 MHz signals
• Low signal noise
• Flat frequency response
• Ultra stable circuit
• High sensitivity to ensure picture stability and clarity
• Easy installation, including screw brackets for stable wall mounting
• For indoor use only
Package contents
• UHF/VHF/FM amplifier
• Screws (2)
• Quick Setup Guide
Specifications
Bandwidth
50-900 MHz
Gain
4.5 dB
Response flatness
±2 dB
Maximum output (IMA 60 dB)
86 dBμV
Noise figure
5.5 dB
Input
75 ohm x 1
Impedance
Output
75 ohm x 4
Connectors
"F" female
Power requirement
120V ~ 60 Hz 0.02A 2.4W
Setting up your amplifier
1 To attach the amplifier to a wall, drill two pilot
holes 4.53 in. (115 mm) apart and install wall
anchors (if mounting to a brick or hollow wall)
before securing with the two provided
screws.
Tip: Attach the amplifier to the wall or
baseboard as close as possible to
where the antenna cable enters the house.
2 Attach a 75-ohm coaxial cable (not included) from the cable TV outlet
or TV to the IN connector on the amplifier.
Tip: If your antenna is equipped with a 300-ohm flat wire, you can attach it to an
female 75/300-ohm
75 cable
matching transformer
(not included) before
connecting to the
amplifier.
3 Attach additional
75-ohm coaxial
75 cable
cables (not included) from the
OUT connectors on the amplifier
to the RF inputs of each video
device you want to connect.
Tip: If you are not using all four
outputs on the amplifier, we recommend that you cap the unused outputs with a
75-ohm terminating resistor (not included) to prevent signal loss
4 Plug the amplifier into an AC power outlet. Your amplifier is now in
operation.
Maintaining your amplifier
Your amplifier contains no serviceable parts. Do not disassemble.
4.53 in. (115 mm)
75 /300
matching transformer
75 cable
or
300 flat wire
.
