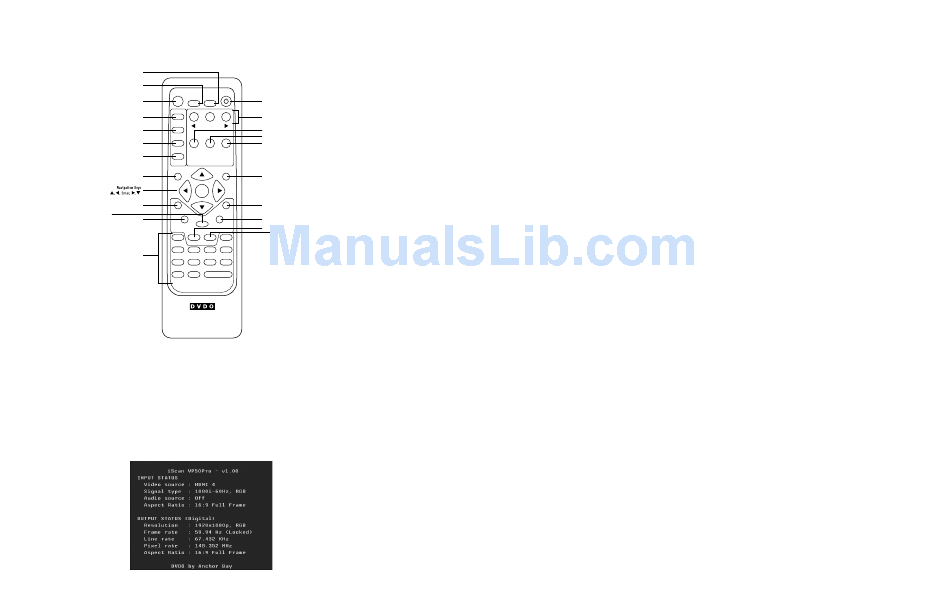

Remote Control Overview

for additional information about the functions of these buttons, turn to the pages given in
parentheses ( ).
6
Curtain
5
Info
STANDBY
INFO
5
Standby
28
Output Setup
OUTPUT
SETUP
26
Configuration
CONFIG
25
Picture Control
CONTROL DISPLAY
22 PROFILES
Input Adjust
INPUT
ADJUST
MENU
4
Menu
4
20
Border
18 BORDER
Aspect
20
Zoom
ZOOM
HDMI 1 4:3
18
Input Select HDMI 2 COMP 1
(HDMI 1, HDMI 2, HDMI 3, HDMI 4,
Component 1, Component 2,
HDMI 3 COMP 2
RGBHV/Component,
S-Video 1, S-Video 2,
Video 1, Video 2, AUTO)
HDMI 4 RGBHV
INPUT SELECT
An asterisk (*) indicates a feature that has not yet been implemented.
Power/Standby Buttons
The iscan Vp50 pro remote has a Power and a Standby button. The Power button always turns the
iscan Vp50 on and the Standby button always put the unit into standby mode.
pro
Info Button
This iscan Vp50 has an 'info' screen which brings up a window on the connected display which
pro
contains important input and output information which can help with troubleshooting. The software
version which is loaded in the unit will also be displayed on this window and on the front panel display
of the iscan.
5
POWER
CURTAIN
5
Power
Test Patterns
26
(Left, On/Off, Right)
ON/OFF
17
Display Profiles
TEST PATTERN
32
Viewing Modes
21
Input Aspect
Ratio
VIEWING INPUT
MODES ASPECT
RATIO
MEMORIES
EXIT
4
Exit
ENTER ENTER
*
Crop
CROP
20
Pan
21
PAN
4:3
ASPECT 21
16:9
16:9 SDI
S-VIDEO 1 VIDEO 1
S-VIDEO 2 VIDEO 2
AUTO
Curtain Button
The iscan Vp50 pro remote has a Curtain button which allows you to close a 'curtain' over the image.
This feature is especially useful when an image is paused on a display susceptible to burn-in or a tran-
sition while switching inputs as part of a macro on a universal remote or automation system.
Discrete IR Codes and Serial Automation Protocol
Almost all commands that are available in the On Screen Display can be executed discretely using a
programmable ir remote control or automation system connected via an rs232 serial connection.
These codes are available at www.anchorbaytech.com

Non-Volatile Memory Settings

The iscan Vp50 stores a variety of user settings in non-volatile memory. non-volatile memory
pro
retains its contents when power is lost. There is one group of system settings and one group of user
settings.

Installation Guidelines

Take special care with the iscan Vp50 installation to ensure optimal performance. pay particular atten-
pro
tion to the bulleted items that begin below and to other precautions that appear throughout this guide.
Do . . .
• install the iscan Vp50 pro on a solid, flat, level surface such as a table or shelf.
You can also install the iScan VP50 pro in a standard 9" equipment rack using an optional
rack-mount kit available from authorized DVDO resellers or directly from DVDO.
• select a dry, well-ventilated location.
• Use only the included external power supply.
• Avoid excessive humidity, sudden temperature changes or temperature extremes.
• Use only accessories recommended by the manufacturer to avoid fire, shock or other hazards.
• unplug your Vp50 pro before cleaning. use a damp cloth for cleaning.
Don't . . .
• install the iscan Vp50 pro on an unstable surface or one that is unable to support all
four of its feet, unless it is installed in an equipment rack.
• stack the iscan Vp50 directly above heat-producing equipment such as power
pro
amplifiers or other components that generate heat during use.
• Expose the iScan VP50 to a high temperatures, humidity, steam, smoke, dampness,
pro
or excessive dust. Avoid installing the iScan VP50
producing appliances.
• install the iscan Vp50 pro near unshielded TV or fM antennas, cable TV decoders, and
other rf -emitting devices that might cause interference.
• place the iscan Vp50 on a thick rug or carpet or cover the iscan Vp50
pro
This might prevent proper cooling.
• Attempt to service this unit. Instead, disconnect it and contact your Authorized DVDO
reseller or contact anchor bay Technologies directly.
• open or remove unit panels or make any adjustments not described in this manual.
Attempting to do so could expose you to dangerous electrical shock or other hazards.
it may also cause damage to your iscan Vp50 pro
• obstruct the front panel ir receiver window shown in "remote Control overview".
• do not attempt to use the remote control out of line of sight with the ir receiver.
doing so will cause improper operation.
near radiators and other heat
pro
with cloth.
pro
.
