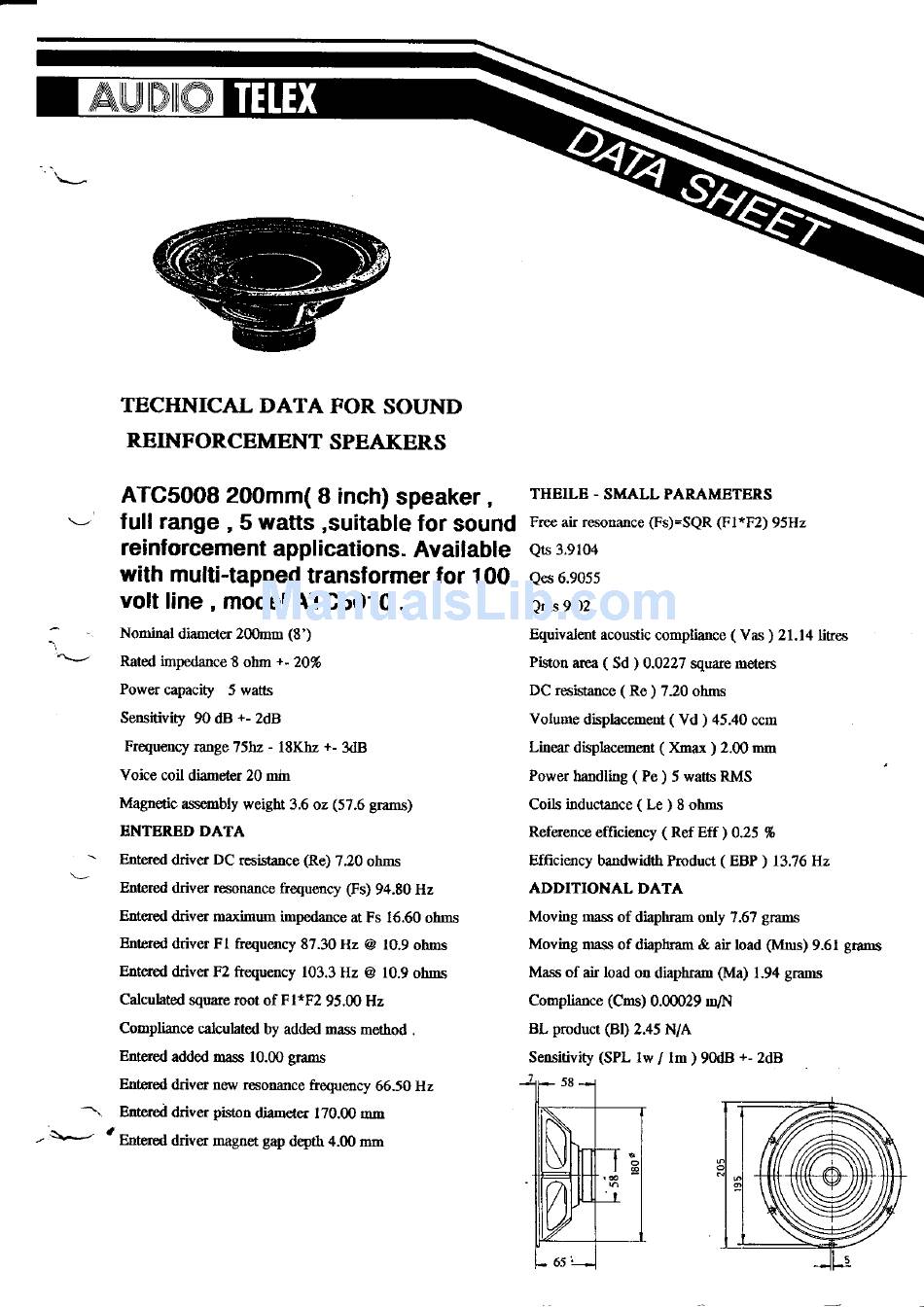

AUDIO TELEX ATC5008 Datasheet

TECHNICAL
DATA
REINFORCEMENT
FOR SOUND
SPEAKERS
ATC5008
2OOmm(
I
inch)
speaker,
lull
range
,
5
watts ,suitable for
sound
reinforcement applications. Available
with multi-tapped transformer
lor
100
volt line
,
modelATC5010
.
'\'-l
Rated impedance
8
ohm
+- 20%
Power
capacity
5 watts
Sensitivity
90
dB
+- 2dB
Frequency range 75hz
-
l8Khz +- 3dB
Yoice
coil
diameter
20 min
Magnetic
assembly weight
3.6
oz (57.6
grams)
ENTERBD
DATA
-
Enter€d
driver DC resistance (Re)
7.20
ohms
Entered driver resonance ftequency (Fs)
94.80
Hz
Ent€r€d driver maximum
impedaace
at
Fs
16.60 ohms
Entered driver
Fl
fiequency
87.30
Hz
@ 10,9
ohns
Enteral
driver F2 ftequency
103.3
Hz
@ 10.9 ohms
Calcuhted
square
root of
F
1*F2
95.00
Hz
Compliance
calculated by
added mass method
.
Entered added mass 10.00 grams
Entered driver new
resonance ftequency
66.50
Hz
Entercd
&iver
piston diameter
170.00
mm
'Eoter"d dri*o."gnet
gap depth
4.00 mm
THEILE - SMALL PARAMETERS
Frce
air rasonance (Fs)=SQR
(Fl*F2)
95Hz
Qts
3.9104
Qes 6.9055
Qms
9.02
Equiyalent
acoustic
compliance (
Vas
) 21.14 litras
Pisron
area
(
Sd
)
0.0227 square meters
DC resistance ( Re
) 7.20
ohns
Volume displacement ( Vd
)
45.40 ccm
Linear
displacement
( Xmax )
2.00 rnm
Power handling (
Pe ) 5 watts
RMS
Coils
inducrance
( Le )
8 ohms
Reference
efticiency ( Ref Eff
) 0.25
%
Efficiency
bandwidth Product ( EBP
) 13.76
Hz
ADDITIONAL DATA
Moving
mtcs
of
diaphram
only 7.67
grms
Moving
nass
of
diaphram
&
air
load
(Mnrs)
9.61 grams
Mass
of
air load on
diaphram
(Ma)
1.94 grams
Compliance
(Cns)
0.00029
rn/N
BL
product
(Bl)
2.45
N/A
Sensitivity (SPL
lw
/ lm ) 90dB +- 2dB
