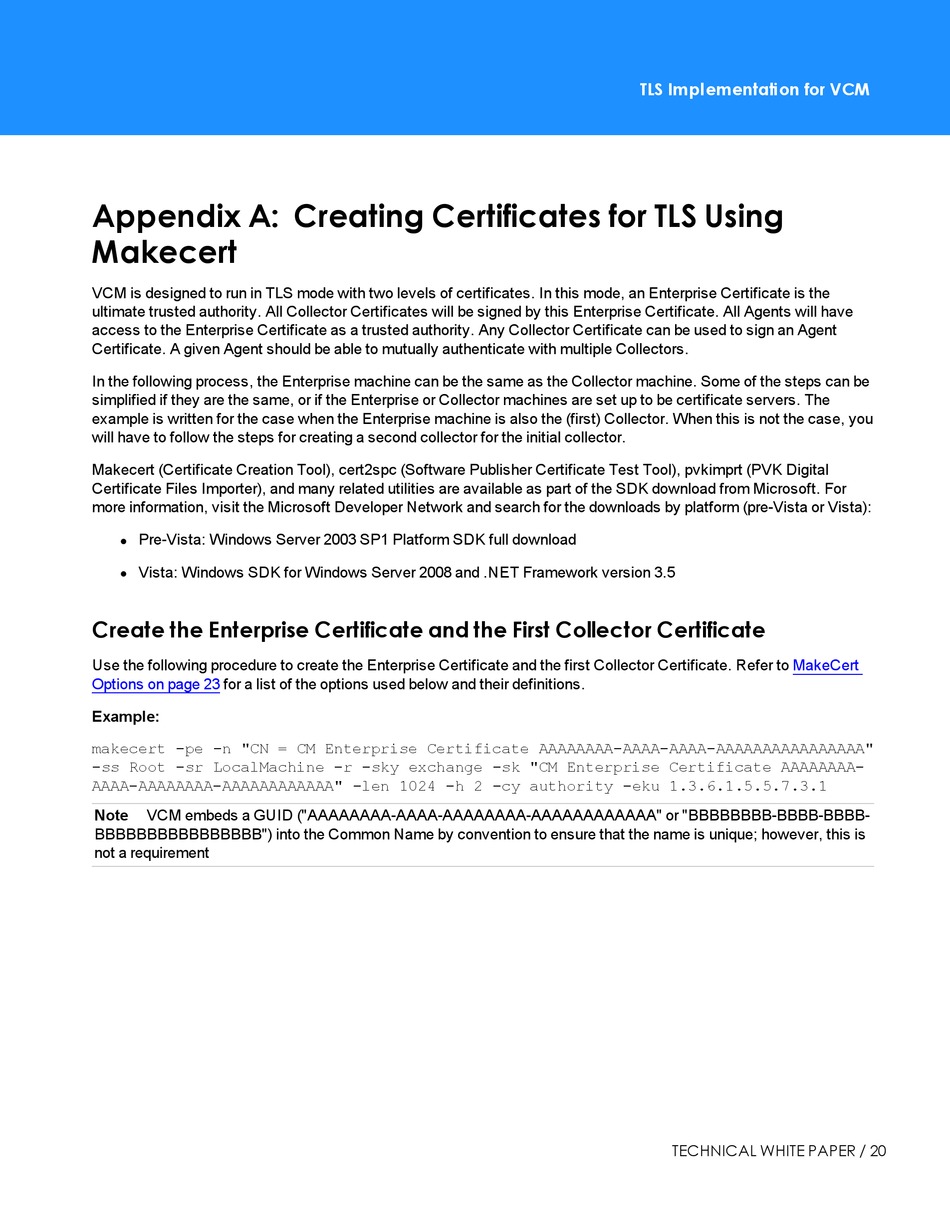

Appendix A: Creating Certificates for TLS Using

Makecert

VCM is designed to run in TLS mode with two levels of certificates. In this mode, an Enterprise Certificate is the

ultimate trusted authority. All Collector Certificates will be signed by this Enterprise Certificate. All Agents will have

access to the Enterprise Certificate as a trusted authority. Any Collector Certificate can be used to sign an Agent

Certificate. A given Agent should be able to mutually authenticate with multiple Collectors.

In the following process, the Enterprise machine can be the same as the Collector machine. Some of the steps can be

simplified if they are the same, or if the Enterprise or Collector machines are set up to be certificate servers. The

example is written for the case when the Enterprise machine is also the (first) Collector. When this is not the case, you

will have to follow the steps for creating a second collector for the initial collector.

Makecert (Certificate Creation Tool), cert2spc (Software Publisher Certificate Test Tool), pvkimprt (PVK Digital

Certificate Files Importer), and many related utilities are available as part of the SDK download from Microsoft. For

more information, visit the Microsoft Developer Network and search for the downloads by platform (pre-Vista or Vista):

Pre-Vista: Windows Server 2003 SP1 Platform SDK full download

Vista: Windows SDK for Windows Server 2008 and .NET Framework version 3.5

Use the following procedure to create the Enterprise Certificate and the first Collector Certificate. Refer to

Options on page 23

for a list of the options used below and their definitions.

Example:

makecert -pe -n "CN = CM Enterprise Certificate AAAAAAAA-AAAA-AAAA-AAAAAAAAAAAAAAAA"

-ss Root -sr LocalMachine -r -sky exchange -sk "CM Enterprise Certificate AAAAAAAA-

AAAA-AAAAAAAA-AAAAAAAAAAAA" -len 1024 -h 2 -cy authority -eku 1.3.6.1.5.5.7.3.1

Note

VCM embeds a GUID ("AAAAAAAA-AAAA-AAAAAAAA-AAAAAAAAAAAA" or "BBBBBBBB-BBBB-BBBB-

BBBBBBBBBBBBBBBB") into the Common Name by convention to ensure that the name is unique; however, this is

not a requirement

TLS Implementation for VCM

MakeCert

TECHNICAL WHITE PAPER / 20
