Cissell PROHC Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

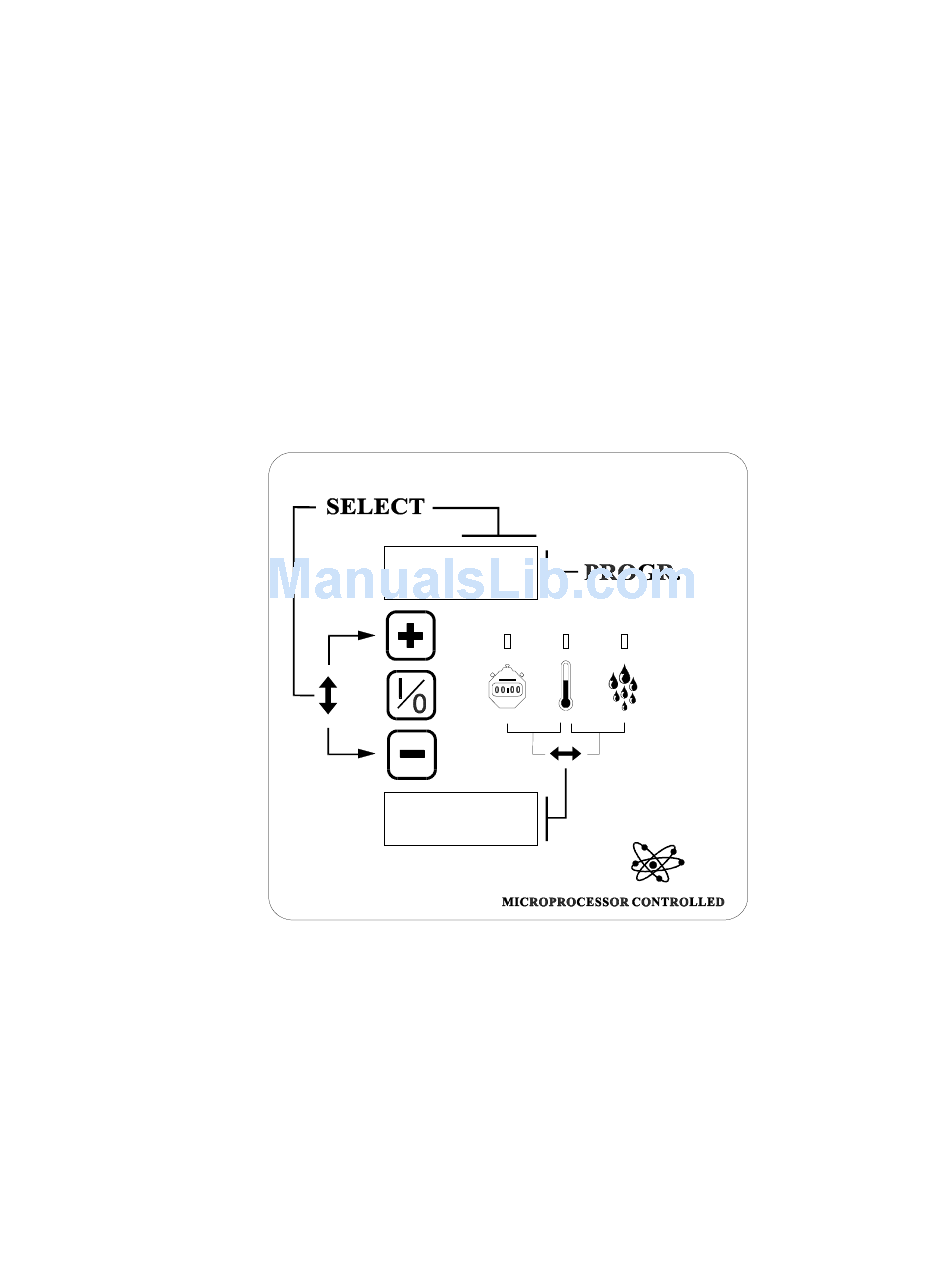

Instruction Manual
for the
Professional Humidity Control System
MANPROHC - 5/02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PROHC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Cissell PROHC

  • Page 1 Instruction Manual for the Professional Humidity Control System MANPROHC - 5/02...

  • Page 2: Table Of Contents

    Table of Contents 1 PRO/HC control system ................Setting menu ................4 Structure setting menu ............4 Selection setting menu ............ 4 Selection submenus ............... 5 Technical menu ................7 Program menu ................. 1 1 Display menu ..................2 2 3 Operating instructions ..............

  • Page 3: "Pro/Hc" Control System

    "PRO/HC" control system The “PRO/HC” is a very powerful control system by means of which you can obtain perfect drying results, especially when using the humidity control sensors (option). It is possible to preprogram 30 fixed drying programs. They can be selected and started directly by the user.

  • Page 4: Setting Menu

    Setting menu Structure of setting The setting menu is subdivided in three submenus. m e n u Technical menu. A dryer can be configurated according it’s own technical characteristics. For example, is it a dryer with reversing of the drum, is the dryer equipped with a resi- dual moisture measuring system etc...

  • Page 5: Selection Of Submenus

    S e l e c t i o n o f s u b m e n u s Selection of submenus or programming parameters in these submenus is done by means of the three push buttons in front of the operating panel. Select with the “+”...

  • Page 7: Technical Menu

    Technical menu TECH Press the middle button to continue. P o n d The lower display shows the drum capacity of the dryer. If necessary, select another value with the upper button. Press the middle button to continue. FloW To program whether the dryer operates with radial or axial airflow in the drum. - rAd: Radial current of air means that the air flows from the top to the bottom of the drum.
  • Page 9 SEnS Now it is shown on the bottom display (YES or no) whether the dryer is equipped with a residual moisture system with humidity sensors. Change this setting, if necessary, with the top button. Press the middle button to continue. If “no”...
  • Page 11 Programming menu Structure With the “PRO”, 2 variable and 3 fixed programs can be preprogrammed. The variable programs "MAnU " and "AutO " At the start, the user will have to program himself some data such as drying temperature, drying time or residual moisture and cooldown time. The fixed programs "1- 30 "...
  • Page 12 SEnS MAnu MAnu...
  • Page 13 Programming variable programs Manu or SEns Press the middle button FL.tE (flash temperature - default 5) On the lower display appears how many seconds the temperature indication during the drying cycle has to appear. The combination of parameters FL.tE and FL.FU (see further) will result in an alternate indication of the remaining drying time or residual moisture and temperature.
  • Page 15 CY.on (Cycle on) Here the pulsating function of the cycle contact can be programmed. The bottom display shows the time during which the cycle contact needs to be closed. Change this setting when necessary by means of the top or bottom button (0 to 40 seconds) and then confirm by means of the middle button.

  • Page 17: Program Menu

    On the lower display appears the guard time (anti-crease time). During this time (when cool down time is over) by moving the drum shortly now and then, creasing of the linen can be avoided. If necessary, change this program with the upper or lower button (0 to 99 minutes) and confirm afterwards with the middle button. G.STP (Guard stoptime - default 120) On the lower display appears the time that the drum has to stand still between the drum actions during the anti-crease time.
  • Page 19 The drying time of these programs can be built up in different subdivisions (max. 9). Programming of the fixed This way, it is possible to for example in the beginning of a drying time work with a higher p r o g r a m s temperature - in order to achieve a quicker drying - while to the end, this temperature - to avoid shrinking of the linen - will be decreased.
  • Page 20 SEnS tiME...
  • Page 21 XX-1 TiME of SEnS By means of the top button you can select between : TiME : drying by setting the drying time. SenS : drying by setting the residual moisture of the linen. Confirm this selection by means of the middle button. The bottom display now shows the drying time or the programmed residual moisture level of the linen.
  • Page 23 CY.rE (Cycle repeat)(default : 1) The bottom display shows how many times the contact needs to close and open. Change this setting when necessary by means of the top or bottom button (1 to 99 pulses) and then confirm by means of the middle button.
  • Page 25 On the lower display appears the guard time (anti-crease time). During this time (when cool down time is over) by moving the drum shortly now and then, creasing of the linen can be avoided. If necessary, change this program with the upper or lower button (0 to 99 minutes) and confirm afterwards with the middle button. G.STP (Guard stoptime - default 120) On the lower display appears the time that the drum has to stand still between the drum actions during the anti-crease time.
  • Page 26 Copying a program Copying a program and using it as a base for a new program can save you a lot of time. Then it is also possible to change the copied program. Follow the same procedure as when programming the fixed programs to get into the copying menu.

  • Page 27: Display Menu

    Display menu Some data regarding the dryer can be recalled here. DISP The upper display shows “disp” (display). Press the middle button to continue. The upper display shows “ind”. This is the “maintenance index”. The lower display shows the number of hours that the dryer has already operated.

  • Page 28: Operating Instructions

    Operating instructions Selecting a program The program number is mentioned on the upper display. Press the upper or lower button to select the wished program. It is only possible to select the program numbers which contain a program. It is also possible to select the standard programs (31 to 40) (see further: standard programs), provided that “YES”...
  • Page 29 Variable automatic program SEnS Press the middle button. dr.LE The residual moisture level of the linen appears on the bottom display. Select one of the 10 residual moisture levels (WEt3, WEt2, Wet1, Mid3, Mid2, Mid1, drY3, drY2, drY1 or E.drY) by means of the top or bottom button and then confirm by means of the middle button.

  • Page 30: Program Course

    Program number P r o g r a m c o u r s e On the upper display, the program number or name (MAnU - Auto) is always mentioned. If the drying time of a program consists of several subdivisions, next to the program number, you will find the number of the subdivision, where the program is actually situated at that moment.
  • Page 31 End of the drying time : transition to cool down time When a drying time is over (drying time over or % final residual moisture achieved), the cool down time starts automatically. On the upper display “CooL” is mentioned. During the cool down time, the lower display shows alternately the cool down temperature and the residual cool down time.
  • Page 33 Standard programs The Pro/HC is equipped with 10 standard programs. Those programs can be started directly but cannot be changed. It is however possible to copy them to a program number between 1 and 30 and then be changed. This way they can be used as a base for another program which allows you to save quite some time and programming work.

  • Page 34: Technical Remarks

    Technical remarks Gas circuit break For a gas heated dryer, the electronic ignition will only try to ignite once during 10 seconds. If this does not work and the flame detection does not detect a flame (eg. at gas power failure)the ignition relay goes in safety. When the drying cycle is restarted, a new ignition will take place.

  • Page 35: Sale Switch

    Er. 03 If the himidity sensor under the drum is defective, Er.03 (Error 03) will appear on the bottom display. Er.04 If the humidity sensor at the back of the burner is defective, Er.04 (Error 04) will appear on the bottom display. When one of above mentioned errors occur, the cycle will be continued, but all segments in which the residual moisture is being checked, will be left out.
