ACT RS485 CONVERTER Manual

12V DC
Power
Supply
0V
(300mA)
+12V
Pin Function
1 +12V
2 0V & Shield
3 B
4 A

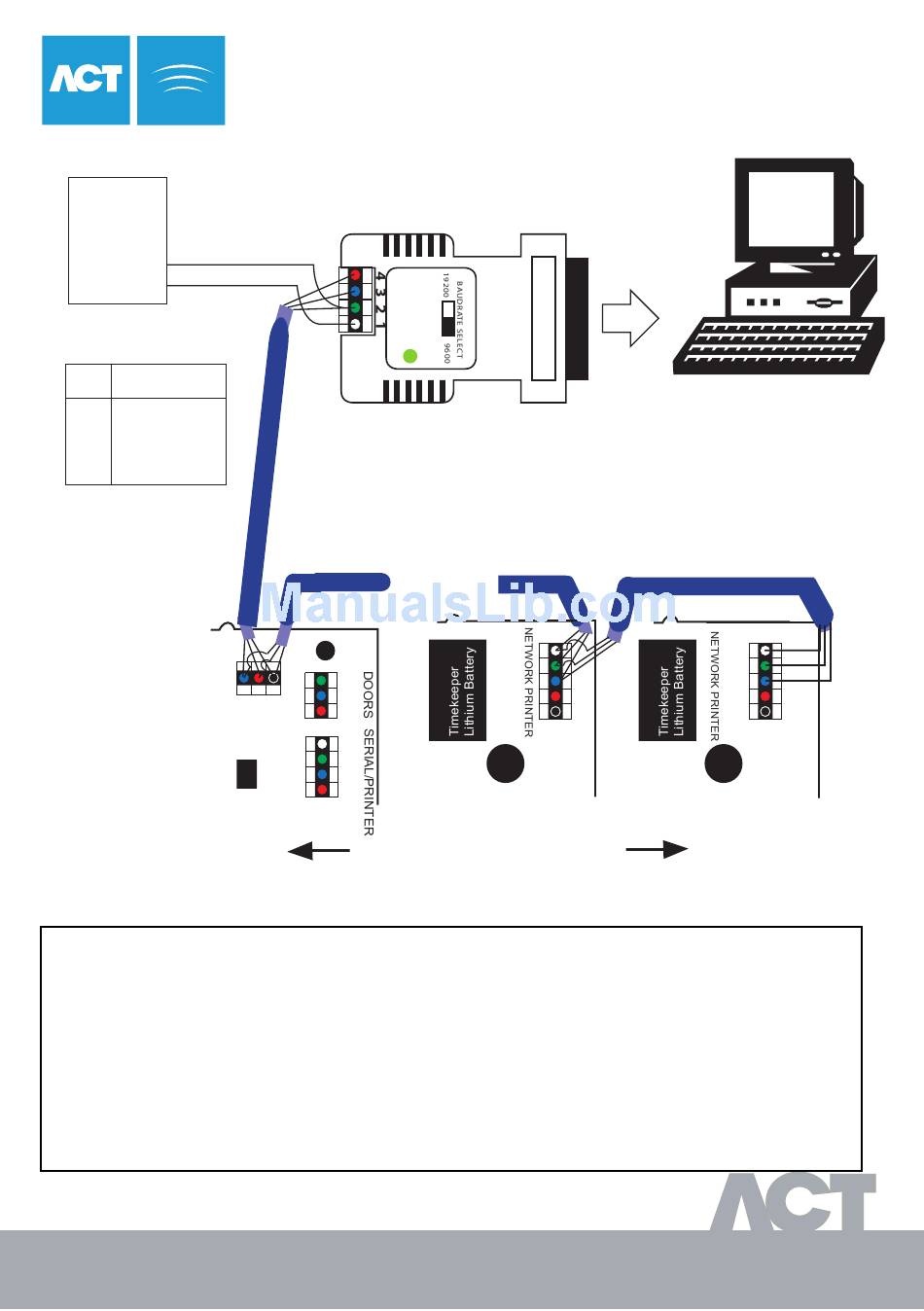

NETWORK
ACT 2000
1. From the Controller keypad Enter Installer Menu->Communications and set a unique address
for each controller on the network. Set Direct Connect to No.
2. From ACTWin create a new database. In the database creation wizard check RS-485
Automatic Interface.
3. Connect to the controllers from ACTWin. The LED on the RS485 converter should blink
rapidly indicating communications in progress.
18-00023 Issue 2
ACT, Unit C1, South City Business Centre, Tallaght, Dublin 24, Ireland.
Telephone: 353 1 466 2570

Single Line RS485 Converter

RS-485 Bus

To next Controller
A
B
A B 0V
0V
DTR
RX
TX
0V
RS485 line may be up to 1km in length
and connect up to 32 controllers

Setup for Network Operation

UK Lo-Call 0845-300 5204

RS-232

Network cable is single shielded twisted
pair: Belden 9501 or similar
A
B
0V
TX
RX
ACT 1000
Fax: 353 1 452 0427
ACTWin Software
A
B
0V
TX
RX
ACT 1000
www.accesscontrol.ie
E-mail: sales@accesscontrol.ie
Shield
