HYOSUNG GV 650 Assembly Sheet

Model: GV650
Reference

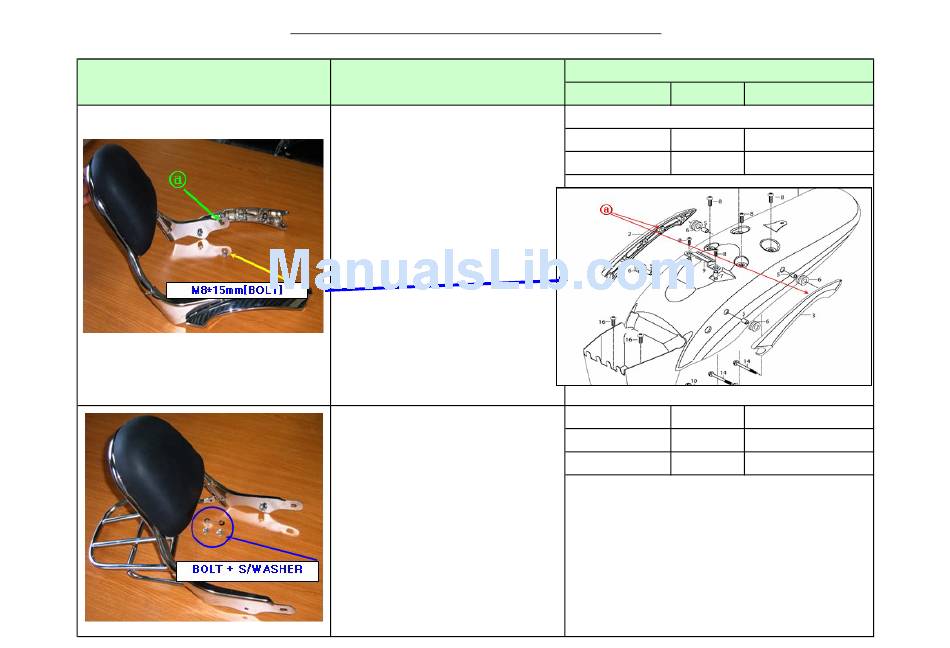

How to assemble BACK REST & CARRIER
Description
At first, disassemble PILLION Rider R & L.
1. Assemble PILLIONS and BACK REST
using M8*15mm BOLT to ⓐ point.
In case PILLION has no tapping hole,
please make 8mm tapping hole.
Then assemble the two parts to Frame.
Assemble CARRIER with BACK REST.

Required parts

Part name Qty

BACK REST

1
BOLT 2

CARRIER

1
BOLT 4
S/WASHER 4
Spec.
-
M8*15mm
-
M6*15mm
6mm
