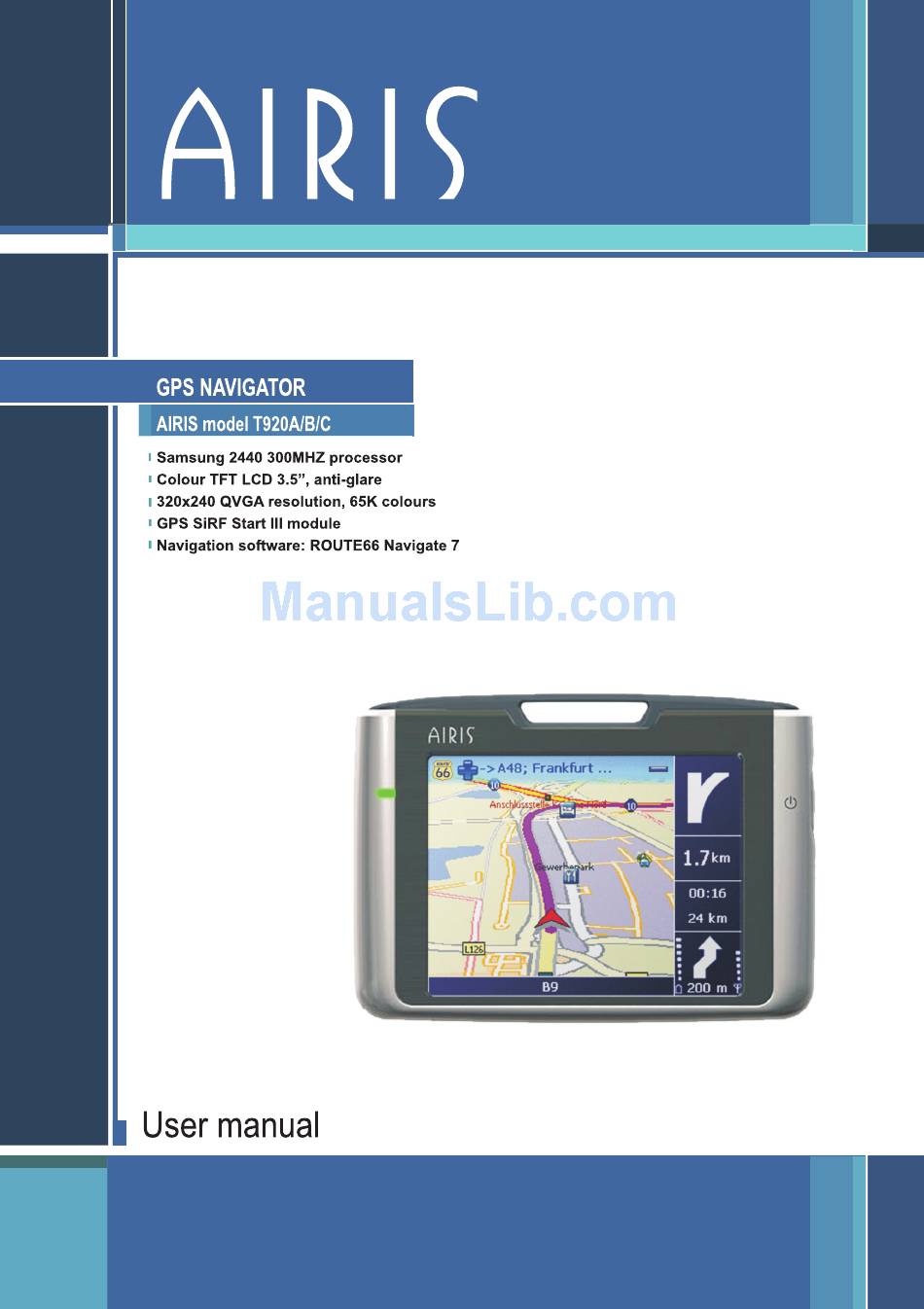

Summary of Contents for AIRIS T920A
- Page 2 Trademarks All brand and product names are trademarks or registered trademarks of their respective companies. Note The information in this manual is subject to change without notice.
-
Page 3: Table Of Contents
Table of Contents Precautions and Notices............... iii Getting Started ................. 1 1.1 Performing the Initial Start Up .............. 1 1.2 Connecting to AC Power and Charging the Battery......3 1.3 Using Your Device in a Vehicle............4 Using the Car Holder................4 Connecting the Car Charger .............. - Page 4 MP3 Player..................23 4.1 Starting and Exiting the MP3 Player........... 23 4.2 Playing MP3 Files................24 MP3 Playback Control................ 25 4.3 Using Play Lists .................. 26 Creating a Play List ................26 Opening a Play List ................27 Managing Your Play Lists..............28 4.4 Equalizer.....................
-
Page 5: Precautions And Notices
Precautions and Notices For your own safety, do not operate the controls of the product while driving. Use this product prudently. The product is intended for use solely as a navigation aid. It is not for precise measurement of direction, distance, location or topography. - Page 6 A car holder is needed when using the device in a car. Be sure that you place the device in an appropriate place, so as not to obstruct the driver’s view, or deployment of airbags. Do not mount where the driver’s Do not place unsecured field of vision is blocked.
-
Page 7: Getting Started
Getting Started This chapter tells you step by step how to perform the initial startup and introduces the components of your device. 1.1 Performing the Initial Start Up 1. Slide the ON/OFF switch to the ON (right) position. CAUTION: Always leave the ON/OFF switch in the ON position for normal operation. 2. - Page 8 NOTE: If multiple languages are available, you can change the language later on by tapping Setting Change Language. (See section 3.6 for details.) 3. The “Date & Time” screen appears. Tap the appropriate arrow button to select the time zone, date, and time. Then tap to continue.
-
Page 9: Connecting To Ac Power And Charging The Battery
1.2 Connecting to AC Power and Charging the Battery Fully charge the battery before using your device for the first time. Slide and click the connector converter onto the AC adapter. Connect the adapter cable to the bottom of your device. 3. -
Page 10: Using Your Device In A Vehicle
1.3 Using Your Device in a Vehicle A car holder and a car charger are supplied with your device. Using the Car Holder UTION: Select an appropriate location for the car holder. Never place the holder where the driver’s field of vision is blocked. If the car’s windshield is tinted with a reflective coating, an external antenna (optional) may be needed to route the antenna to the top of the car through a window. -
Page 11: Connecting The Car Charger
Connecting the Car Charger The car charger supplies power to your device when you are using the device in a CAUTION: To protect your device a gainst sudden surges in current, connect the car charger only after the car engine has been started. 1. -
Page 12: Understanding Hardware Features
1.4 Understanding Hardware Features NOTE: Depending upon the specific model purchased, the color of your de vice may not exactly match the device shown in this manual. Front Components Component Description See Also Glows bright amber to indicate th at the Section 1.2 Charge Indicator battery is charging, and turns green when the... -
Page 13: Back Components
Back Components Component Description See Also Tap the touch screen to make selections and enter Section 2.2 Stylus information. Pull the stylus out of its slot to use it, and store it in the slot when not in use. External This connector (under rubber dust cover) allows Antenna use of an optional external antenna with magnetic... -
Page 14: Left-Side Components
Left-Side Components Ref Component Description See Also Headphone C onnects to stereo headphones. Connector Right-Side Components Component Description See Also Power Button Turns the device on and off. Section 2.1... -
Page 15: Top Components
Top Components Component Description See Also Receives signa ls from the GPS satellites GPS Antenna verhead. SD/MMC Slot ccepts an SD (Secure Digital) or MMC Section 2.3 (MultiMediaCard) card for accessing data such s map data and MP3 music. ottom Components Component Description See Also... -
Page 17: Basic Skills
Basic Skills This chapter familiarizes you with the basic operations of your device such as using the Home screen and the hardware components. 2.1 Turning Your Device On and Off Use the power button on the side of your device to turn on and off your device. -
Page 18: Using The Stylus
Enables you to play MP3 files. Chapter 4 Allows you to customize system settings. Chapter 3 Whenever you quit an application, you are back to the Home screen. 2.2 Using the Stylus The stylus is your input device. You use it to navigate and select objects on the screen. -
Page 19: Using A Sd/Mmc Card
2.3 Using a SD/MMC Card Your device has a SD/MMC slot where you can insert an optional Secure Digital or MultiMediaCard storage card. NOTE: Make sure that no foreign objects enter the slot. Keep a SD or MMC card in a well-protected box to avoid dust and humidity when you are not using it. -
Page 21: System Settings
System Settings Your device has default system settings. You can customize the settings to suit your own personal needs. Once you change the settings, your new settings will remain until you change them again. 3.1 Using System Settings To open the Settings screen, tap the button on the Home screen. -
Page 22: Backlight
3.2 Backlight 1. Tap the button on the Home screen to open the Settings screen. Setting 2. Tap the button on the Settings screen. Backlight 3. Tap the left or right arrow to darken or brighten the screen. 4. Tap the button to save the changes and go back to the Settings screen. -
Page 23: Screen
2. Tap the button on the Settings screen. Volume 3. Tap the left or right arrow to decrease or increase the volume. 4. Tap the button to save the changes and go back to the Settings screen. 3.4 Screen You can calibrate the touch screen if it is not responding accurately to your stylus taps. - Page 24 3. Tap to start the calibration. 4. Tap and hold the centre of the target. 5. When the target moves to another position, tap and hold the centre of the new target. Repeat each time to complete the calibration process. 6.
-
Page 25: Power
3.5 Power To check the remaining power level of your battery and/or set up the power saving feature: 1. Tap the button on the Home screen. Setting 2. Tap the button. Power 3. The Power screen appears showing the remaining power of your battery. NOTE: If the level of power is too low, be sure to charge the battery with the AC adapter or the car charger. -
Page 26: Date&Time
3.6 Date&Time To set the date and time: 1. Tap the button on the Home screen. Setting 2. Tap to go to the next page. 3. Tap the button. Date&Time 4. To change the time zone, tap the left/right arrow in the Time Zone item. 5. -
Page 27: Change Language
6. To set the time, first tap the hour, minute, or second in the Time item and then tap the up arrow to increase or down arrow to decrease the value. 7. Tap the button to save the changes and go back to the Settings screen. 3.7 Change Language To change the system and voice language: 1. -
Page 28: Back
NOTE: The available language options depend on your region of purchase. 5. Tap the button to save the changes and go back to the Settings screen. 3.8 Back button brings you back to the Home screen. Back... -
Page 29: Mp3 Player
MP3 Player This chapter tells you how to play MP3 files on your device. 4.1 Starting and Exiting the MP3 Player The MP3 Player program turns your device into an MP3 player. It features: Playback of MP3 files Basic playback controls such as play, pause, stop, next and previous Graphic equalizer settings with 17 presets Playback includes single selection playback, repeat, single repeat, sampling... -
Page 30: Playing Mp3 Files
To exit the program, tap on the lower right of the screen. 4.2 Playing MP3 Files 1. To play MP3 files on your device, you must have the files ready in any of the two locations: • The \MP3 folder on a storage card •... -
Page 31: Mp3 Playback Control
5. To exit the program, tap on the lower right of the screen. You will return to the Home screen. MP3 Playback Control You can control the MP3 Player via the control buttons. See the table below for details: Control Name Description Button... -
Page 32: Using Play Lists
Sequence* Normal sequence (Default) Random sequence Open play list. (See Section 4.3 for more Open Play List information.) Equalizer Open or close the equalizer panel. (See Section 4.4 for more information.) Help Introduce the function and operation of each icon. Tap an icon to see a description line at the bottom of the screen. -
Page 33: Opening A Play List
2. To add a song in the play list, tap the Add Song button at the bottom of the screen. A screen appears displaying all the MP3 files. Tap the song you wish to add and then tap Add Song 3. -
Page 34: Managing Your Play Lists
Managing Your Play Lists When you have opened a play list, you can edit or remove the list. To remove a song from the list: Tap the song and then tap the Delete Song button at the bottom of the screen. -
Page 35: Using The Application Cd
Using the Application CD This chapter tells you how to install ActiveSync for transferring data between your device and a computer. 5.1 About the Application CD The Application CD provides two function items: ActiveSync Installs Microsoft® ActiveSync® with which you can copy data such as MP3 or map files to your storage card. -
Page 36: About Activesync
5.2 About ActiveSync ActiveSync allows you to establish the connection between your device and computer. CAUTION: Do not connect your device to your computer before ActiveSync is installed. Installing ActiveSync 1. Turn on your computer and your device. 2. Insert the Application CD into the CD-ROM drive of your computer. The auto run screen appears. -
Page 37: Using Activesync
Using ActiveSync Once ActiveSync is installed on your computer, you can use it to transfer files (i.e. MP3 files) between your device and your computer. CAUTION: Be discreet when you delete files from your device. Deleting files of which the function is unknown can cause programs or features to malfunction. -
Page 39: Troubleshooting And Maintenance
Troubleshooting and Maintenance Troubleshooting and Maintenance This chapter gives solutions to common problems you m ay encounter. It also vides guidelines on how to take care of your device. NOTE: If you encounter a problem you cannot solve, contact an authorized service center for assistance. -
Page 40: Troubleshooting
Wait for 1 minute. 4. Your device turns on and displays the initial start up screen. Complete the settings as described in section 1.1. 6.2 Troubleshooting Power Problems Power does not turn on when using battery power The remaining battery power may be too low to run your device. Connect the AC adapter to your device and to AC power. -
Page 41: Connection Problems
Screen responds slowly Make sure that your device is not running out of battery power. If the problem still exists, reset your system. Screen freezes Reset your system. Screen is hard to read Make sure that the backlight of the display is on and if necessary adjust the brightness. -
Page 42: Maintaining Your Device
6.3 Maintaining Your Device Taking good care of your device will ensure trouble-free operation and reduce the risk of damage to your device. Keep your device away from excessive moisture and extreme temperatures. Avoid exposing your device to direct sunlight or strong ultraviolet light for extended periods of time. -
Page 43: Regulatory Information
Regulatory Information NOTE: Marking labels located on the exterior of your device indicate the regulations that your model complies with. Please check the marking labels on your device and refer to the corresponding statements in this chapter. Some notices apply to specific models only. 7.1 Regulations Statements European Notice Products with the CE marking comply with Radio &... -
Page 44: Safety Precautions
The manufacturer cannot be held responsible for modifications made by the User and the consequences thereof, which may alter the conformity of the product with the CE Marking. 7.2 Safety Precautions About Charging Use only the AC adapter (PHIHONG, PSC05R-050 PH) supplied with your device. - Page 45 Important instructions (for service personnel only) Caution: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. Replace only with the same or equivalent type recommended by the manufacturer. The battery must be recycled or disposed of properly. Use the battery only in the specified equipment.
