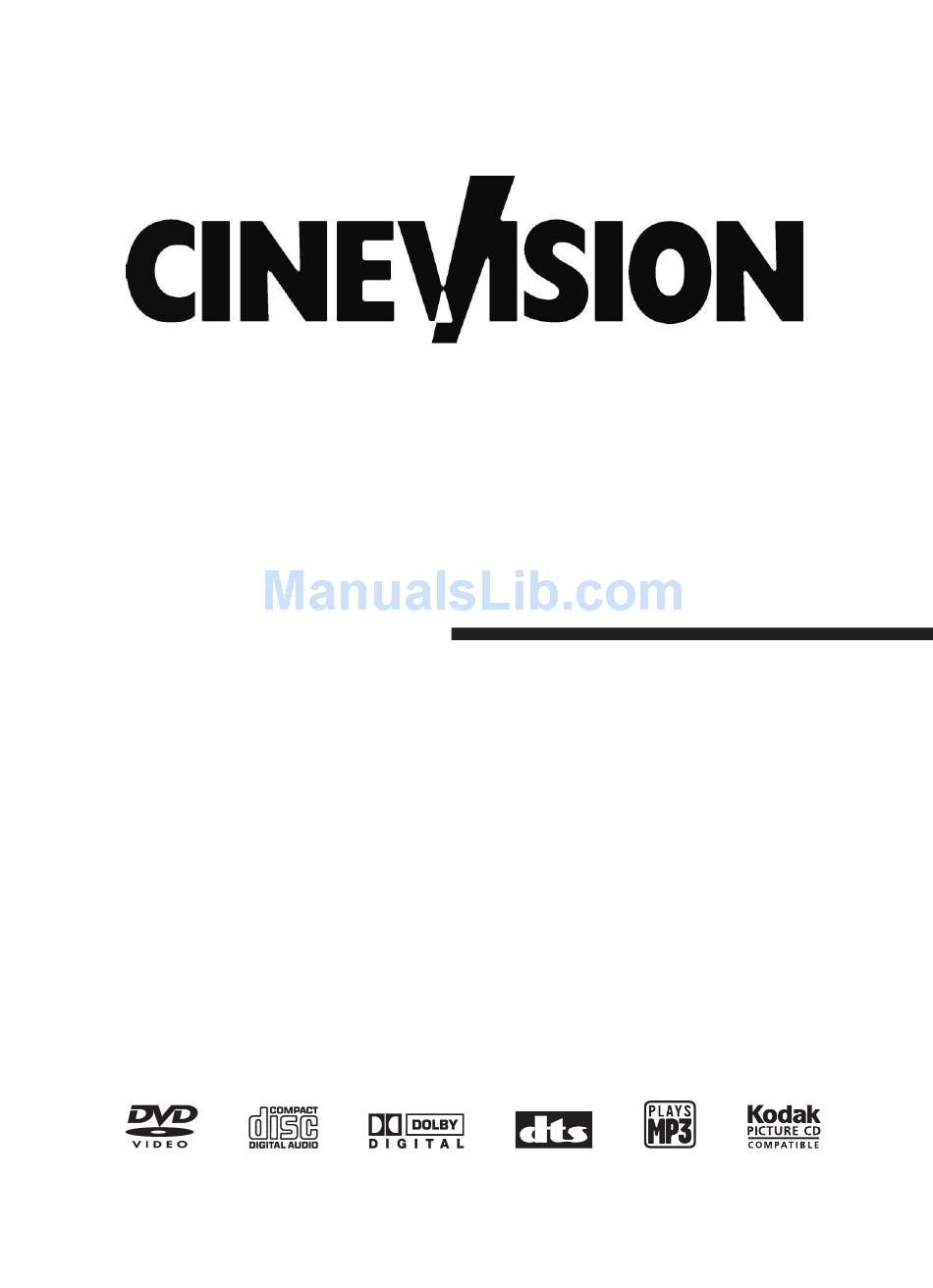

  • Page 1 DVP650 User's Manual DVP650 User's Manual DVD Player DVD Player...

  • Page 2: Table Of Contents

    Content Introduction Safety Precautions Important Safety Instructions Caution Features Front Panel and Rear Panel Illustration Remote Control Connections Connecting to a TV set Connecting to an AV Receiver with 2 Channel Analog Audio Input Connecting to an AV Receiver with Digital Audio Input Basic Playback Basic Operation Advanced Features...

  • Page 3: Introduction

    Safety Precautions CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN THE LIGHTNING FLASH WITH ARROW- HEAD SYMBOL WITHIN AN EQUI- LATERAL TRIANGLE IS INTENDED TO A- LERT THE USER TO THE PRESENCE OF UNINSULATED "DANGEROUS VOLTAGE" WITHIN THE UNIT'S CABINET THAT MAY BE OF SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF ELECTRIC SHOCK TO PERSONS.

  • Page 4: Important Safety Instructions

    Important Safety Instructions 1. Read Instructions All the safety and operating instructions should be read before the product is operated. 2. Retain Instructions The safety and operating instructions should be retained for future reference. 3. Heed Warnings All warnings on the product and in the operating instructions should be adhered to.
  • Page 5 Important Safety Instructions 15. Outdoor Antenna Grounding If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of...

  • Page 6: Caution

    Caution Please use the original box and packing materials for safe transportation of this product. It is normal for the cover and rear panel to become warm after the player has been operating for an extended period of time. Do not move this product during playback. Doing so may cause damage to the pickup and the disc.

  • Page 7: Features

    Picture CD Compatible" logo is a trademark of Eastman Kodak Company and is used with permission. Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished Works. 1992-1997 Dolby Laboratories, Inc. All rights reserved. MP3 files on CD-R/CD-RW Multi-angle Closed Caption...

  • Page 8: Front Panel And Rear Panel Illustration

    Rear panel component video output 2 channel audio output AUDIO VIDEO digital output disc tray DVD CD MP3 PLAYER power indicator composite video output VIDEO S-VIDEO COAXIAL AUDIO VIDEO s-video output coaxial Introduction open/close DVP650 play previous stop pause next...

  • Page 9: Remote Control

    Remote Control POWER 0-9 keys VOL/CH STOP NAVIGATION ARROWS PAUSE/STEP TITLE ZOOM ANGLE Note: 1. Please note that reference numbers for the remote are described beginning on page 19 of this manual. 2. In this manual, " " " remote respectively. POWER OPEN/CLOSE OSD/SETUP...

  • Page 10: Connections

    Connecting to a TV Set WHITE Notes: There are three ways of connecting the player's AV output to the TV set: 1. S-video cable and left/right audio cable [set the (Video Type) to (S-Video)].(See page 16) 2. Composite video cable and left/right audio cable. 3.

  • Page 11: Connecting To An Av Receiver With 2 Channel Analog Audio Input

    Connecting to an AV Amplifier with 2 Channel Analog Audio Input WHITE Notes: 1. Set the TV to the AV input connected to the DVD player. 2. Set the receiver to the AV input connected to the DVD player. VIDEO S-VIDEO COAXIAL AUDIO...

  • Page 12: Connecting To An Av Amplifier With Digital Audio Input

    Connecting to an AV Amplifier with Digital Audio Input Coaxial Notes: 1. Select the Coaxial digital audio output. 2. Set the player's audio out to Bitstream or PCM mode (see page 16). 3. Set the receiver to the AV input connected to the DVD player. VIDEO S-VIDEO COAXIAL...

  • Page 13: Basic Playback

    Press OPEN/CLOSE again to close the disc tray. -12- Basic Playback DVP650 STEP 3 - Press the PLAY button on the front panel or remote control. The player will automatically read and identify the disc, and begin playback.

  • Page 14: Advanced Features

    Modes and Features Setup ON SCREEN DISPLAY (OSD)/SETUP ON SCREEN DISPLAY (OSD)/SETUP In stop mode, press OSD/SETUP, and the TV screen will display the Setup Menu as follows: Language Video A. Press OK to display each submenu B. Press OSD/SETUP to exit the Setup Menu Language Setup Select [Language] in the Setup Menu, and press OK to display Language Video...
  • Page 15 Modes and Features Setup Language Setup Select [Subtitle], and press OK or Language Video Menu/OSD Subtitle Audio Disc Menu Auto OSD A. Press OK to confirm B. Press OSD/SETUP to exit the Setup Menu Select [Audio],and press OK or Language Video Menu/OSD Subtitle Audio...
  • Page 16 Modes and Features Setup Video Setup Select [Video] in the Setup Menu,and pr ess OK to display Language Video Press TV Display select the menu Video Out item . Press OK B. Press MENU/RETURN or Select [TV Display], and press OK or Language Video TV Display Video Out...
  • Page 17 Modes and Features Setup Video Setup Select [Video Out], and press OK or Language Video TV Display Video Out A. Press OK to confirm [S-Video]----S-video output Note: The Composite video output is always available. Audio Setup Select [Audio] in the Setup Menu, and press OK to display the [Audio] submenu: Language Video DTS Out Press...
  • Page 18 Modes and Features Setup Audio Setup [PCM]----Digital audio output in PCM (pulse code modulation) format; use for stereo [Bitstream]----Digital audio out in original format; use if you connect to an A/V receiver with a Dolby Digital or DTS decoder. [Off]----No digital audio out. Rating Setup Select [Rating] in the Setup Menu, and press OK to display the [Rating] submenu: Language Video...
  • Page 19 Modes and Features Setup Other Setup items Select [Other] in the Setup Menu, and press OK to display the [Other] submenu: Language Video Screen Saver Press Auto Power Off select the menu Background item . Press OK B. Press MENU/RETURN or Select [Screen Saver] , and press OK or...

  • Page 20: Remote Control Operation

    Remote Control Operation POWER OPEN/CLOSE 0-9 keys CLEAR During playback, press POWER to stop the player and return to standby mode. While the player is in standby, press POWER or any key on the front panel to resume normal operation. To open the disc tray, press OPEN/CLOSE.
  • Page 21 Remote Control Operation VOL/CH Press VOL/CH, and the [Channel/Volume] menu will display as follows: Press select the menu item Select [Volume], the screen will display as follows: Press VOL/CH again to exit the menu. Select [Channel] , the screen will A.
  • Page 22 Remote Control Operation OSD/SETUP During playback, press OSD/SETUP to display the current time counter position. Press OSD/SETUP again to display additional information about the playing disc. Disc type Track Disc type Current title Title 1/10 Audio type Audio Subtitle Subtitle For CDs, press OSD/SETUP a third time to display the dynamic frequency spectrum.
  • Page 23 Remote Control Operation SEARCH During playback, press SEARCH, and the [Track Search] menu will display as follows: Track Search Time Search Time Title Chapter Use the number keys to input the desired Time, Title or Chapter then press OK to confirm. Press SEARCH again , the [Disc Search] menu will display as follows: Disc Search Time...
  • Page 24 Remote Control Operation STOP PAUSE/STEP During DVD, CD or VCD playback, press FF once to play These keys are used to input the time, as well as title, chapter and track numbers. the next chapter, title or track. During DVD, CD or VCD playback, press and hold FF to When a numeric item is displayed on the screen, press the 0-9 keys to select the desired entry, and press ENTER to confirm.
  • Page 25 Remote Control Operation PLAY Note: MP3 discs and some DVD discs do not have a 10 second review feature. MENU/RETURN TITLE Note: 1. During CD/VCD/SVCD playback, points A and B must be within the same track. 2. This function is subject to the disc. Press PLAY from stop mode to start playback.
  • Page 26 Remote Control Operation PLAY MODE Press PLAY MODE to display the [ lay SVCD Play Mode Repeat Program Select [Repeat], and press OK or SVCD Play Mode Repeat Program A. Press OK to confirm B. Press PLAY MODE or MENU/RETURN to exit the menu Note: PBC (Playback Control used to navigate VCDs) is not available for CDs.
  • Page 27 Remote Control Operation While [Program] is on, press OK to display the [Program] submenu: SVCD Play Mode 1 _ _ 4 _ _ 5 _ _ 3 _ _ 6 _ _ << Clear All Play Mode 1 _ _:_ _ 4 _ _:_ _ 2 _ _:_ _ 5 _ _:_ _...
  • Page 28 Remote Control Operation ZOOM ANGLE During DVD playback Note: This function is disc specific. AUDIO During DVD playback During SVCD playback Note: This function is disc specific . SUBTITLE During VCD/SVCD/DVD playback, press ZOOM to magnify the image as follows: Q Off Press ANGLE to view scenes from different camera angles.

  • Page 29: Mp3 Playback

    MP3 Playback Supported formats Disc format: ISO 9660, Joliet Music file formats: Mp3 MP3 bit rate (data rate): 32-192kbps Total number of music files and albums: around 350 per disc Sampling rate: (CBR) 32kHz/44.1kHz/48kHz/64kHz; Note: The player will not identify or play MP3 discs under the following conditions: recording format is not supported, badly scratched or deformed disc, MP3 recorded in CD-R or CD-RW which is not finalized, or a dirty pickup.

  • Page 30: Advanced Features

    The introduction of KODAK Picture CD A Kodak Picture CD has the size and shape of a regular CD. You can order a KODAK Picture CD simply by checking the box on the photofinishing envelope when you drop off a roll of film (35 mm or Advanced Photo System (APS) color print film) at the time of processing in Kodak Express store displaying "Kodak Picture CD"...

  • Page 31: Zoom Function

    Zoom Function: This player provides both Zoom in/out and Zoom pan function. Press the ZOOM consecutively, the picture will zoom in/out in turn as followings: Note: During the ZOOM function, slideshow transitions and image rotation are disabled. Q off: close zoom, press PLAY Q1, Q2, Q3: zoom in;...

  • Page 32: Other

    Troubleshooting If you have any questions, please consult the troubleshooting guide below. If you cannot solve the problem, please contact our customer support department at NO PICTURE OR SOUND Ensure the power button is on. Ensure the power outlet is operational. Ensure the power cord is not damaged.

  • Page 33: Specifications

    Specifications Power requirements: 110-240V, 50/60Hz Power consumption: 25W Video standard: NTSC Unit Weight: 6.4 Lbs (2.9kg) Unit Dimensions: 16.5in(W) x 12.0in(D) x 2.2in(H) (product),(418mm(W) x 305mm(D) x 55mm(H)) Video out Video out: 1.0V(p-p)/75 , sync, negative polarity, RCA pin Jack x 1 S-video output connector(separate Y C signal output connector): Y output: 1.0V(p-p)/ 75 , sync, negative polarity C output: 0.286 V(p-p)/75...

  • Page 34: Remote Control Preparation

    Point the remote control directly at the player's remote sensor. Do not leave the remote control in an extremely hot or humid place. Do not spill water or put anything wet on the remote control. Battery life is ~1 year under normal conditions. -33- Other DVP650...
  • Page 35 POWER OPEN/CLOSE VOL/CH STOP PAUSE/ STEP TITLE EQUALIZER ZOOM ANGLE SUBTITLE OSD/SETUP SEARCH CLEAR PLAY MENU/ RETURN PLAY MODE AUDIO...
