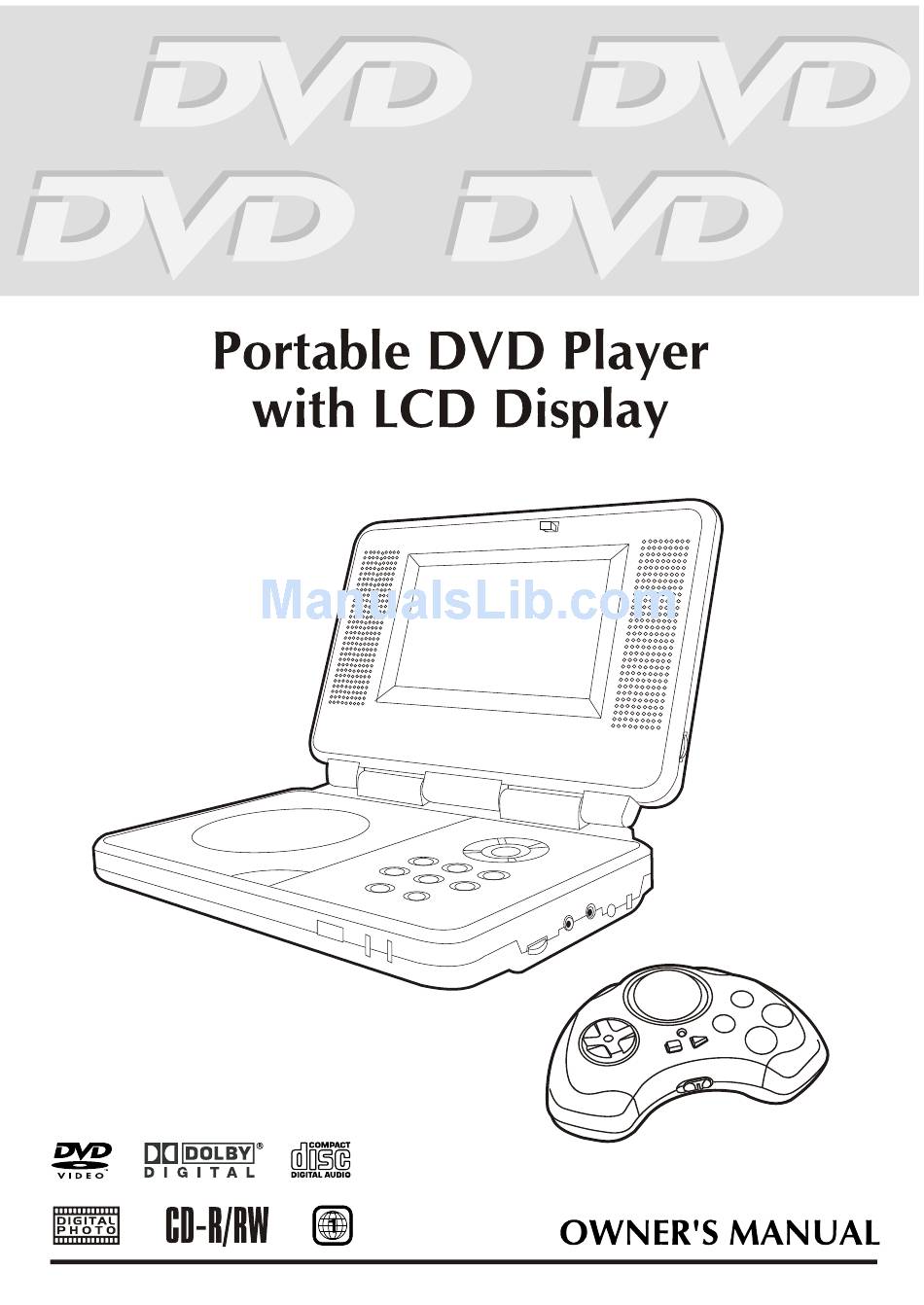

Page 2: Safety Precautions
SAFETY PRECAUTIONS The following mark and symbols are located on bottom of the unit. WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED. -
Page 3: Important Safety Instruction
IMPORTANT SAFETY INSTRUCTIONS 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. -
Page 4: Table Of Contents
Safety Precautions ...1 Important Safety Instruction ... 2 Table Of Contents ... 3 Disc Formats ... 4 Accessories ... 5 Remote Control ... 5 Control Reference Guide ... 6-7 Power Supply ... 8-10 Using the AC adaptor ... 8 Using the car adaptor ... 8 Using the rechargeable battery pack ... -
Page 5: Disc Formats
The unit can playback DVDs [8cm/12cm disc] Audio CDs [8cm/12cm disc] Region Management Information Region Management Information: This unit is designed and manufactured to respond to the Region Management Information that is encoded on DVD discs. If the Region number printed on the DVD disc does not correspond to the Region number of this unit, this unit cannot play that disc. -
Page 6: Accessories
Please check and identify the supplied accessories. Use numbers indicated in parentheses when asking for replacement parts. • To order accessories www.1800customersupport.com) Remote control (with battery) (043-R13232-011) ... x 1 AC adaptor (133-010902-003) ... x 1 AC power cord (134-A13211-20P) ... x 1 Car power adaptor (133-030025-000) ... -
Page 7: Control Reference Guide
CONTROL REFERENCE GUIDE Remote Control 1) ZOOM button Zoom into an image of a DVD. TV MODE button In stop mode, select whether to output the video signal. TV shows "AUTO" means output signal depends on DVD (either NTSC or PAL). TV shows "PAL"... -
Page 8: Control Reference Guide
CONTROL REFERENCE GUIDE Unit 16 17 18 Cursor ( ) button Use to highlight selections on a menu screen and make adjust certain settings. ENTER button Confirm selections on a menu screen. BRIGHTNESS button Adjust the relative lightness or darkness of the colour. DIGITAL OUT jack AV IN / DVD switch Turn off to AV IN mode. -
Page 9: Power Supply
A. Using the AC adaptor This AC adaptor operates on AC between 100V and 240V, but • In the U.S.A. and Canada, the AC power supply cord must be connected to a 120V AC power supply only. • When connecting to an AC supply outside of the U.S.A. and Canada, use a plug adaptor to suit the AC outlet configuration. -
Page 10: Using The Rechargeable Battery Pack
C. Using the rechargeable battery pack • Charge the rechargeable battery pack before using them for the first time. • The rechargeable battery pack is suitable when adapting the unit for portable use and when it is convenient for you to enjoy the unique functions of the unit out of doors. To recharge the battery Remove the rechargeable battery pack from the unit (if being used). -
Page 11: Using The Rechargeable Battery Pack
Disconnecting the Battery Pack to the unit. Push the button to disconnect the RECHARGEABLE BATTERY PACK Condition and attention: • When RECHARGEABLE BATTERY PACK battery is low, player will stop playing. • During the playback, if the battery is low, the BATTERY LOW indicator on the unit front panel will turns into red and blink. -
Page 12: Connecting Other Equipment
CONNECTING OTHER EQUIPMENT A. Connecting the Game Consoles / other Video Equipment • you can connect your Game Consoles or other Video Equipment to playback through the system. Right side of unit To AV IN/OUT Jack AUDIO/VIDEO CABLE (included) Watching a Video Equipment 1. -
Page 13: Another Source Connection
CONNECTING OTHER EQUIPMENT C. Another source connection This unit can play Dolby Digital, but only in two channels. Analogue connection Right side of unit AUDIO/VIDEO CABLE (included) Digital connection Audio equipment with digital audio input jack Listening to another audio equipment 1. -
Page 14: Connecting Other Equipment
ADJUSTING THE SOUND Dolby Digital (for DVD) Dolby Digital is a sound system developed by Dolby Laboratories Inc. that gives movie theatre ambience to audio output when the unit is connected to a Dolby Digital 5.1 channel processor or amplifier. -
Page 15: Playing A Disc
Basic playback This owner’s manual explains the basic instructions of this unit. Some DVD discs are produced in a manner that allows specific or limited operation during playback. As such, the unit may not respond to all operating commands. This is not a defect in the unit. Refer to the instruction notes of discs. -
Page 16: Fast Foward/Fast Reverse
Fast Forward/Fast Reverse 1. Press the SEARCH SEARCH button of the remote unit when a disc is playing. • The disc begins fast scan at x2 speed. • Four speeds are available. Each time SEARCH SEARCH button is pressed, the speed of fast scan changes in the following sequence: Note : You also can press and hold... -
Page 17: Angle Selection
Angle selection Some DVDs contain scenes which have been shot from a number of different angles. For these discs, the same scene can be viewed from each of these different angles. 1. While you are playing a DVD with different angles recorded, press the ANGLE button to view the number of the current angle. -
Page 18: Special Functions
Basic playback DISPLAY function Using DISPLAY, you can check and change the current settings of the following items: ANGLE, AUDIO and SUBTITLE. • While the disc is playing, press the DISPLAY button of the remote unit to display the screen shown below. Elapsed time: Elapsed time from the beginning of the chapter which is currently playing. -
Page 19: Locating A Specific Title
Basic playback Locating a specific title If a DVD disc contains title numbers, you can locate a specific title by directly selecting a title number. 1.Press the GOTO button. 2. Press button to highlight a specific field and press the corresponding number button(s) for the title you want. -
Page 20: Locating A Specific Time
Basic playback Locating a specific time You can move to a specific location by entering its corresponding time (hours, minutes, seconds) 1. Press the GOTO button. 2. Press button to highlight time. 3. Press the corresponding number buttons for the setting point you want. •... -
Page 21: Cd / Dvd Programmable Memory
Advanced CD / DVD PROGRAMMABLE MEMORY playback Programmable memory The two types of programmed playback provided by this unit are title/chapter programmed playback and title programmed playback. Title / Chapter programmed playback 1. Press the MEM (Memory) button while the disc is stopped. 2. -
Page 22: Repeating A Chapter
Advanced playback You can play a specific title or chapter repeatedly. (Title repeat, chapter repeat, A-B repeat) Repeating a title You can play the same title repeatedly. 1. While the disc is playing, press the REPEAT DISC button until the “ ”... -
Page 23: Repeating A Specific Section Dvd Cd
Advanced playback Repeating a specific section You can play a specific section repeatedly. 1. While the disc is playing, press the REPEAT A-B button at the beginning of the section ( Rep A- repeatedly. 2. Press the REPEAT A-B button again at the end of the section ) is displayed. -
Page 24: Playing Picture File Disc
PLAYING PICTURE FILE DISC This unit can play Picture files recorded on CD-R and CD-RW discs Playing a Picture file disc 1. Press the OPEN button to open the disc door. 2. Hold the Picture disc by its sides and carefully make it fit onto the central support of compartment with the label side facing up you until you hear a “click”. -
Page 25: Customizing The Function Settings
CUSTOMIZING THE FUNCTION SETTINGS LANGUAGE setting 1. Press the SETUP button in stop mode. 2. Use button to one language, then press the ENTER button. The screen will change to your selected language wordings immediately. 3. To exit the SETUP MENU and return to the normal screen, press the RETURN button. -
Page 26: Audio Setting
CUSTOMIZING THE FUNCTION SETTINGS Brightness 1. Press the SETUP button in stop mode. 2. Use button to select Video, then press the ENTER button. 3. Use button to select Brightness, and then press the ENTER button. 4. Use button to shift and select the Off/On, then press the ENTER button. 5. -
Page 27: Rating Setting
CUSTOMIZING THE FUNCTION SETTINGS Virtual Effect (for CD and DVD only) If you want to obtain expansive virtual surround sound effects from just two speakers. 1. Press the SETUP button in stop mode. 2. Press button to select Audio, press the ENTER button. 3. -
Page 28: Language Code List For Disc Language
LANGUAGE CODE LIST FOR DISC LANGUAGE Code Language Name Code Afar Abkhazian Afrikaans Ameharic Arabic Assamese Aymara Azerbaijani Bashkir Byerlorussian Bulgarian Bihari Bislama Bengali Bangla Tibetan Breton Catalan Corsican Czech Welsh Danish German Bhutani Greek English Esperanto Spanish Estonian Basque Persian Finnish Fiji... -
Page 29: Maintenance
Cleaning Disc A defective or soiled disc inserted into the unit can cause sound to drop out during playback. Handle the disc by holding its inner and outer edges. • Do NOT touch the surface of the unlabeled side of the disc. •... -
Page 30: Trouble Shooting Guide
TROUBLE SHOOTING GUIDE SYMPTOM CAUSE (AND REMEDY) No power. • Check that the AC adaptor and AC power cord is connected. • You cannot turn on the unit. • Remove any obstacles between the remote and the unit. The remote does not function. -
Page 31: Carrying Bag Installation
CARRYING BAG INSTALLATION 1. 1. 1. 1. 1. Insert the unit into bag as shown. 2. 2. 2. 2. 2. Insert the straps on carrying bag as shown. 3. 3. 3. 3. 3. Take straps and hook up the neck headrest of the driver's seat as shown. -
Page 32: Game Pad (Connections)
GAME PAD (CONNECTIONS) Connecting the Video game system (Red) (White) (Yellow) Playing a Video game system 1. Turn on the unit, slide the FUNCTION button to select "AV IN". 2. Turn on the video game system and follow the instructions provided with it to play game. Right side of unit (Red) (White)
