Summary of Contents for Gigabyte Q1742F

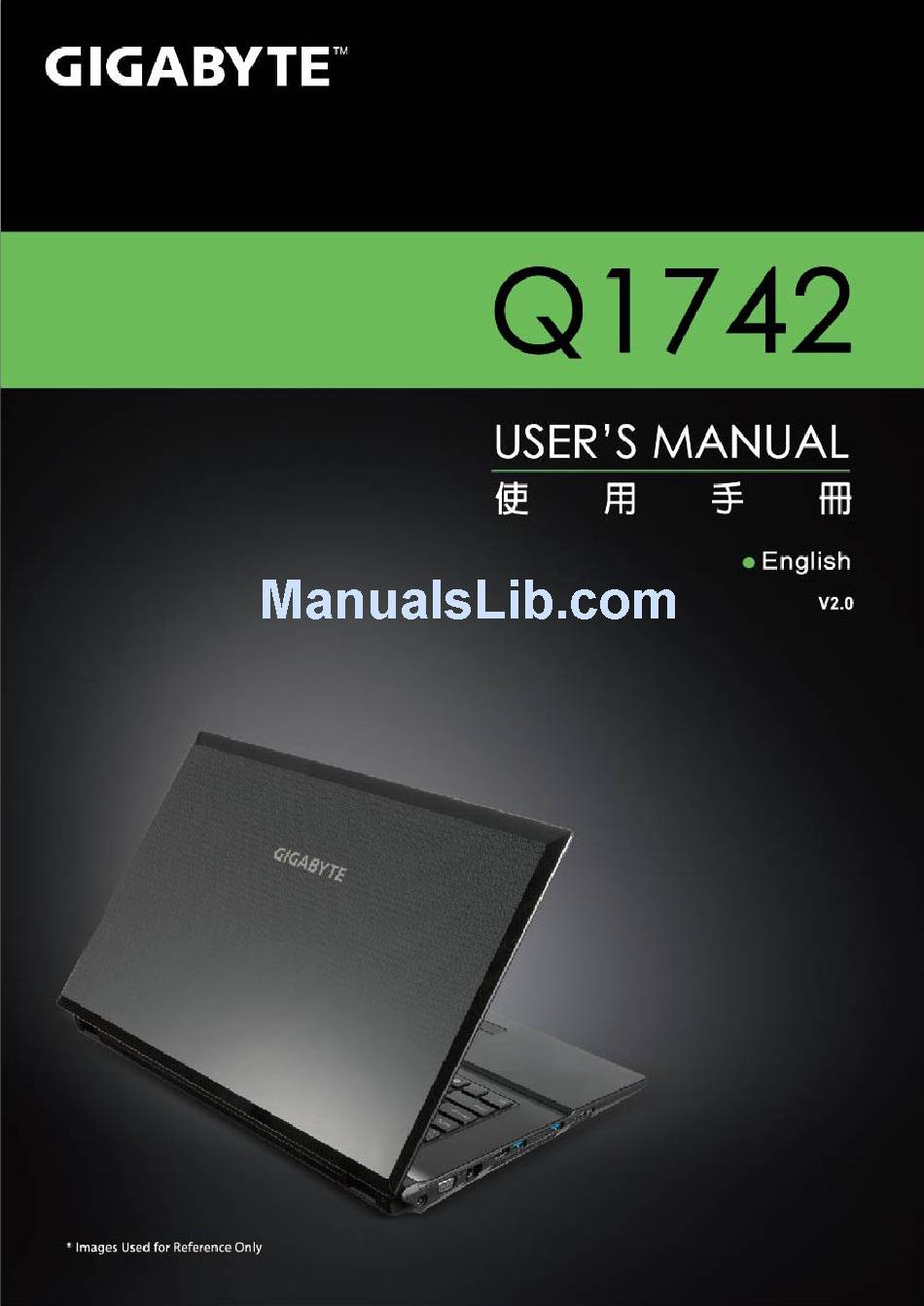

- Page 2 Congratulations on the Purchase of Your GIGABYTE Notebook Q1742! This Manual will help you to get started with setting up your notebook.For more detailed information, please visit our website at www.gigabyte.com.All specifications are subject to the manufacturer's configuration at the time of shipping and may change without prior notice, written or otherwise.
-
Page 3: Switching On The Power
Connect the power cord to the AC adapter. Connect the AC adapter to the DC-in jack on the left side of the notebook.. Connect the power cord to the power outlet. Switching on the Power : After you turn on the Q1742 for the very first time, do not turn it off until the operating system has been configured. -
Page 4: Left View
Your GIGABYTE Notebook Tour Top View Webcam Display Power Button Keyboard TouchPad+Mouse Built-In Microphone Status Indicators Wireless LAN Status LED HDD Status LED Num. Lock Indicator Caps Lock Indicator Scroll Lock Indicator Left View DC-in Jack External Moniter (VGA) Port... -
Page 5: Right View
Right View Microphone Jack Headphone Jack USB 2.0 Port Optical Disc Drive Kensington Lock Slot Front & Bottom & Rear View Power Indicators Battery Bay Component Compartment Speakers HDD Compartment Power LED Battery Status LED... -
Page 6: Function & Hot Key Indicators
Function & Hot Key Indicators Using the <Fn> key with another key creates a hot key, providing a quick and convenient method for controlling various functions. To use a hot key, first hold down the <Fn> key. Next, press the second key (ex:<~>, <F1>~<F12>, NumLk, ScrLk) in the combination. -
Page 7: Gigabyte Smart Recovery
GIGABYTE Smart Recovery ● System Recovery (Restore your Q1742 operating system) : The hard drive of the Q1742 has a hidden partition that contains a full backup image of the operating system that can be used to recover the system in the event that something happens to the operating system. -
Page 8: Specification
Specification SKU Type Q1742N Q1742F ® 3rd Generation Intel Core™ Processors ® Genuine Windows 7 Compliant 17.3" HD+ 1600x900 17.3" FHD 1920x1080 Display LED backlight LED backlight System Memory DDRIII, 2 slots (Max 8GB) ® Chipset Mobile Intel HM76 Express Chipsets ®... - Page 9 Appendix Warranty & Service: ■ For Warranty, Service and related information, please refer to the warranty card or GIGABYTE service website as the following link: http://www.gigabyte.com/support-downloads/technical-support.aspx FAQ: ■ For FAQ (Frequent Asked Questions), please refer to the following link: http://www.gigabyte.com/support-downloads/faq.aspx...
