Dolby Laboratories Headphones Important Safety Instructions

IMPORTANT SAFETY
INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a damp cloth.
Protable Cart Warning
7. Do not block any of the ventilation
openings. Install in accordance with the 12. Unplug this apparatus during
manufacturers instructions.
lightning storms or when unused for
8. Do not install near any heat sources long periods of time.
such as radiators, heat registers, stoves, 13. Refer all servicing to qualified
or other apparatus (including amplifiers)
service personnel. Servicing is
that produce heat.
required when the apparatus has
9. Protect the power cord from being been damaged in any way, such as
walked on or pinched particularly at
power-supply cord or plug is
plugs, convenience receptacles, and the
damaged, liquid has been spilled or
point where they exit from the apparatus. objects have fallen into the
10. Only use attachments/accessories apparatus, the apparatus has been
specified by the manufacturer.
exposed to rain or moisture, does
11. Use only with a cart, stand, tripod, not operate normally, or has been
bracket, or table specified by the dropped.
manufacturer, or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination
to avoid injury from tip-over.
DISC FORMATS
The unit can playback
DVDs Audio CDs
[8cm/12cm disc] [8cm/12cm disc] Compatible
Region Management Information
Region Management Information: This unit is designed and manufactured to respond to the region
management information that is encoded on DVDs. If the region number printed on the DVD does
not correspond to the region number of this unit, it cannot play that disc.
The region number of this unit is 1.
Disc Function or Operation that is Not Available
When the symbol appears on the screen, it indicates that the function or operation attempted
is not available at that time. This occurs because the DVD manufacturer determines the specific
functions of DVDs. Certain functions may not be available on some DVDs. Be sure to read the
documentation provided with the DVD.
Icons Used on DVDs
2 1. English
Language selections for audio
2. French
Sample lcons
1. English
2
Language selections for subtitles
2. French
Note:
LB Screen aspect ratio
• When playing a CD-G (Graphics)
or CD EXTRA disc, the audio
Multiple camera angles
2
portion will be played, but the
Region code indicator
graphic images will not be 1
shown.
Titles, Chapters and Tracks
• DVDs are divided into "titles" and "chapters". If the
disc has more than one movie on it, each movie would
be a separate "title". "Chapters" are sections of titles.
• Audio CDs are divided into "tracks". A "track" is
usually one song on an audio CD.
Note:
• Numbers identify each title, chapter, and track on a disc. Most discs have these numbers
recorded on them, but some do not.
Notes on Unauthorized Discs
You may not be able to play some DVDs on this unit, particularly if they were purchased from
outside your geographic area or made for business purposes.
ACCESSORIES
Please check and identify the supplied accessories.
• To order accessories contact web site (http://www.1800customersupport.com/venturer)
Mounting strap ..................................... x 1
Remote control (with battery) ................ x 1
Carrying bag ........................................ x 1
Car power adapter ................................ x 1
AAA battery (for wireless headphone).. x 4
Wireless headphone ............................. x 2
REMOTE CONTROL
TO CHANGE REMOTE BATTERY
Using the Remote Control
• Point the remote control at the REMOTE 1. Open the
SENSOR located on the unit.
battery door.
• When there is a strong ambient light source,
the performance of the infrared REMOTE
2. Insert one
SENSOR may be degraded, causing
CR2025 (3V)
unreliable operation.
size battery.
• The recommended effective distance for
remote operation is about 16 feet (5 meters).
BATTERY REPLACEMENT
When the battery becomes weak, the operating
Remove the plastic sheet
distance of the remote control will be greatly
before operating the
reduced. You will need to replace the battery.
remote control.
Note: If the remote control will not be used for a long time, remove the battery to avoid damage
caused by the corrosive effects of battery leakage.
WARNING: Do not dispose of battery in fire. Battery may explode or leak.
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the
same or equivalent type.
E - 2

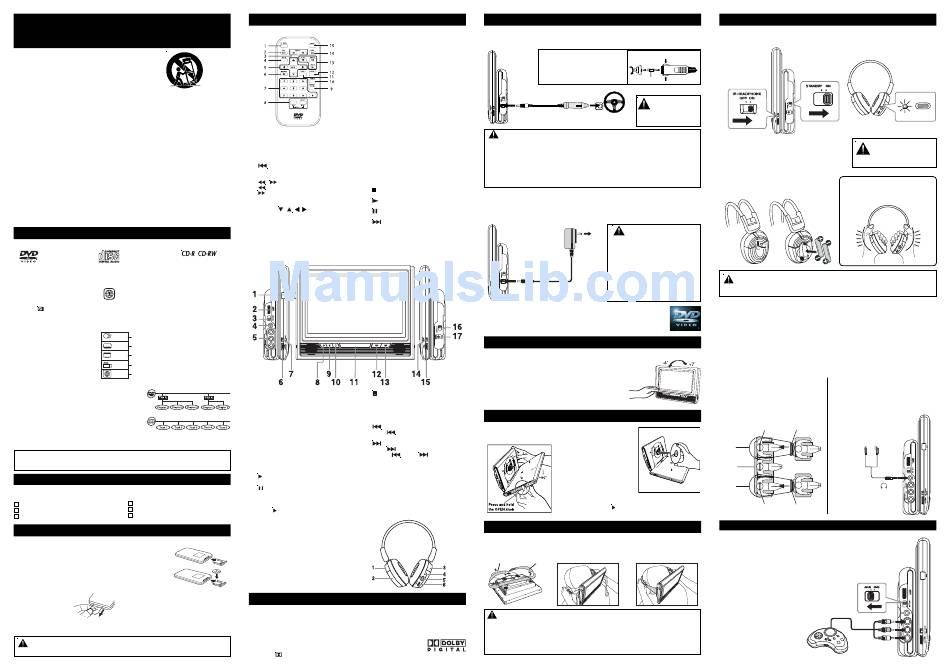

CONTROL REFERENCE GUIDE
Remote Control
7) Number (0 - 9) buttons
Use when creating programs, and also
use to select a CD track directly.
8) SETUP button
In stop mode, open and close the SETUP
menu.
REPEAT A-B button
Perform point-to-point repeat playback on
a DVD or CD.
REPEAT DISC button
Repeat chapter or title of a DVD.
Repeat single track or an entire CD.
9) SUBTITLE button
Select one of the subtitle languages
programmed on a DVD.
RETURN button
Return to the normal operation after using
the SETUP menu of a DVD.
10) AUDIO button
1) TV MODE button
Select one of the audio sound tracks
When the STOP button has been pressed,
programmed on a DVD or select the audio
this feature allows you to select TV shape
output mode on an audio CD.
format. Pan Scan, Letter Box or Wide-
11) ANGLE button
screen will be toggled by pressing this
Switches between multiple camera angles
button once.
when the DVD you are playing has multiple
2) PREV button
camera angles recorded.
Move back through titles, chapters or tracks
12) DISPLAY button
on a disc.
Change disc status information displayed
3) / SEARCH buttons
on the screen.
SEARCH: Fast reverse playback.
13) STOP button
SEARCH: Fast forward playback.
Stop playing a disc.
4) GOTO button
PLAY button
Skip directly to a location on a DVD.
Press to start or resume playback of a disc.
5) Cursor ( , , , ) buttons
PAUSE button
Use to highlight selections on a menu
Pause playback, frame advance.
screen and adjust certain settings.
14) NEXT button
ENTER button
Move forward through titles, chapters or
Confirm selections on a menu screen.
tracks on a disc.
6) MEMORY button
15) MENU button
In stop mode, enter the number of a
Open and close DVD menu.
selected chapter or track.
Unit
1) Open Knob 10) STOP button
Open the door. Stop playing a disc.
2) VOLUME Control 11) Remote sensor & IR transmitting LEDs
Adjust the volume. Receives the remote control unit signals.
3) AV IN / DVD Switch IR transmitting LEDs transmit audio signal
Select between the DVD player or an to IR headphone.
external video source. 12) PREV
4) Earphone / Headphone Jack Press to go back to previous chapters
5) Audio & Video In / Out Jacks / tracks.
6) Brightness Control 13) NEXT
Adjust the relative lightness or darkness of Press to advance chapters / tracks.
the color. Hold the PREV /
7) SCREEN Switch select fast reverse playback or fast forward
WIDE : Wide screen playback.
NORMAL : Normal screen 14) IR Headphone Switch
8) PLAY button Switch on or off the wireless headphone.
Press to start or resume playback of a disc. 15) Color Control
9) PAUSE button Adjust for color intensity.
Press to pause playback of disc. Each 16) STANDBY (power off) / ON switch
time you press the PAUSE button the 17) CAR PLUG 12V / DC IN 9V jack
picture advances one frame. Press the
PLAY button to resume playback.
Wireless IR Headphone
1) Left Infrared Sensors
To receive infrared light from transmitter.
2) Battery Cover
3) Right Infrared Sensors
To receive infrared light from transmitter.
4) Power LED
To indicate the power is on.
5) POWER ON/OFF Switch
To turn on and off the transmitter
6) VOLUME Control
Adjust the volume.
SOUND SYSTEM
Dolby Digital
Dolby Digital is a technology developed by Dolby Laboratories. Soundtracks encoded in Dolby
Digital can reproduce from one to 5.1 discrete channels of excellent quality audio.
The unit automatically recognizes the Dolby Digital bitstream and provides a downmix suitable for
two-channel listening. An additional Dolby Digital decoder is required for reproduction of the
discrete multi-channel soundtracks available on many DVDs.
Manufactured under license from Dolby Laboratories.
'Dolby' and the double-D symbol are trademarks of Dolby Laboratories.
E - 3
POWER SUPPLY
A. Using the Car Power Adapter inside a vehicle
The included car power adapter is designed for use with vehicles that have a 12V, negative ground
electrical system.
CAUTION:
RIGHT SIDE
OF UNIT
For continued protection againt
risk of fire, replace only with
same type and rating of fuse.
1 To Car Plug
Car Power Adapter
12V jack
To the cigarette
2
lighter socket
Cautions:
• Use this unit only with the included car power adapter. Use with other car power adapters
could damage the unit or even your vehicle.
• In the interest of traffic safety, do not operate this unit or view videos while driving a vehicle.
• Make sure the unit is fastened securely to prevent it from falling or flying through the air in the
event of an accident.
• When the inside of the cigarette lighter socket is dirty with ashes or dust, the plug section may become
hot due to poor contact. Be sure to clean the cigarette lighter socket before use.
• After use, disconnect the 12V car power adapter from both the unit and cigarette lighter socket.
B.Using the AC Adapter (optional) in home
You can also power this unit by connecting an AC adapter (not supplied).
Before you buy an AC Adapter, please note the only AC adapter suitable for this unit is DC 9V
1.5A, with plus center polarity. Please check voltage & current (A) before buying an AC adapter.
To order an AC Adapter, please visit: www.1800customersuppor t.com/venturer.
RIGHT SIDE
AC
OF UNIT
Adapter 2
To AC
Outlet
1
To DC IN 9V jack
To order an AC Adapter, please visit:
www.1800customersupport.com/venturer
or call 1-800-252-6123
Turning on the Unit
1. Slide the STANDBY(power off)/ON switch on the right side of unit to the "ON"
position.
2. The DVD logo (start-up picture) will appear on the screen.
SCREEN VIEWING ANGLE ADJUSTMENT
The unit is designed to allow users to have a comfortable viewing angle. The viewing angle can be
adjusted as top -4°~ +7°.
• Push screen frame to adjust viewing angle.
Caution:
• Do not force the screen frame over its maximum viewing
angle settings as stated above. Attempting this will result
in damage to the unit.
COMPACT DISC OPERATION
1. Press and hold the OPEN
2. Hold the disc by its sides and
knob to open the disc door.
carefully place it onto the
central spindle in the disc
compartment, with the label
side facing up. Push the disc
NEXT buttons to
down until you hear a "click " .
3. Close the disc door.
It takes a short while for your
unit to load the disc. After
loading, the
automatically star t playing
most DVDs.
4. If the unit does
automatically start playing the
DVD, press the
button.
INSTALLING THE UNIT IN A VEHICLE
Installing the Unit in a Vehicle
• Use the mounting strap provided when installing the unit onto the back of a vehicle's headrest.
1) Loop the safety band around the
Elastic
Mounting
headrest.
Safety Band
Strap
SAFETY WARNING!
• This unit should never be used by the vehicle's driver or left unsecured in the vehicle while
the vehicle is moving.
• If this unit is being used in your vehicle, be sure that it is secured or held safely, and does not
obstruct any safety device, including air bags or seat belts.
• All passengers should wear seat belts when using this unit in a moving vehicle.
• If in doubt, please contact your vehicle manufacturer for further advice.
E - 4
USING THE WIRELESS IR HEADPHONE / HEADPHONES
A. Using the Wireless Headphones
• Turn on the supplied wireless headphones. Turn down the volume on the headphone.
• Turn on the unit. Press the IR HEADPHONE ON / OFF to "ON" then adjust volume level.
RIGHT SIDE
Fuse Replacement instructions
OF UNIT
Press and hold
FUSE Press and hold
WARNING:
Disconnect the car
power adapter when
not in use. Not for use in
24V vehicles.
Note:
When the HEADPHONE ON / OFF switch is "ON",
you can adjust the unit's volume to minimum to
disable speaker of main unit.
To listen to the unit's speakers, slide the
HEADPHONE ON / OFF switch to "OFF".
TO INSTALL BATTERIES
1. Open the battery door.
2. Insert 2 AAA batteries (include).
Cautions:
• Use of an incorrect AC adapter will
damage the unit.
• When the unit is not going to be used
for long time, disconnect the AC
adapter from the power outlet.
• Turn off the unit before unplugging the
AC adapter from the unit to avoid the unit
WAR N I N G : Do n ot d i s p o s e of b at te r i es i n fire. B at te r i es m ay exp l o de o r l e a k.
being damaged.
CAU T I O N : D a n g e r o f ex p lo s i o n i f b at t er i e s a re i n c o rr e c t l y re p l a c e d. R e p l a c e
• To prevent electrical shock, match wide
blade of plug to wide slot of wall outlet, o n l y wi t h t h e s a m e o r e q u i va l e n t t y p e.
then and fully insert.
IMPORTANT NOTES:
• The wireless IR headphone is designed to conserve power when not in use.
Therefore it will automatically switch off after 2 minutes if no audio signal is
received. Press the ON/OFF button on the headphone to reactivate.
• Direct sunlight and other wireless IR signals will degrade the receiving sensor and
may cause interference. If you experience such problems, don't mount the mobile
DVD player under direct sunlight and turn off other equipment that emits IR signals.
• IR light travels in a straight line; don't place any object between the Wireless IR
headphone and the IR LEDs on the mobile DVD player.
• If the IR headphone is not used for a long time, please remove the batteries to
prevent battery leakage and corrosion.
Optimal sound reception
Below shows the reception of the wireless
infrared headphone. For optimal sound
reception, it is recommended that you place
the DVD player in a high position directly
facing the wireless headphones.
Frequency "A"
headphone
Optimal
sound
reception
Not optimal
sound
reception
unit will
Optimal
sound
reception
not
PLAY
Frequency "B"
headphone
Connecting a Game System
1. Turn on the unit. Slide the AV IN / DVD switch to "AV IN"
2) Tightly wrap the mounting 2. Turn on the video equipment and follow the instructions provided with it.
strap around the headrest.
Notes:
• Make sure to use the correct Audio/Video cable.
Connecting the plugs incorrectly may cause a weak
signal.
• Due to copyright protection, DVD movies cannot be
copied. If you copy a DVD movie onto a videotape,
the resulting copy will be unclear, with poor sound
quality. This is NOT caused by a defective DVD
system.
Game system
(not include)
ON/OFF
Caution:
Avoid listening to sound at
levels which may be
harmful to your ears.
Note: Do NOT cover the infrared sensor
areas with hands. This will block the
sensors from receiving the infrared
light from the transmitter.
Sensor
Sensor
area
area
B. Using Headphones / Earphones
• Turn down the volume before connecting,
and then adjust the level.
• When headphones / ear phones are
connected, no sound will emit from the unit's
speaker.
Frequency "A"
Headphones / Earphones
DVD player
(3.5mm diameter plug)
(not include)
To jacks
LEFT SIDE
Frequency "B"
OF UNIT
DVD player
CONNECTIONS
LEFT SIDE
OF UNIT
Yellow
Red
White
To Audio/Video
IN jacks
E - 5
