EN221 and EN310 Non-Spring Return Electronic Actuators
a

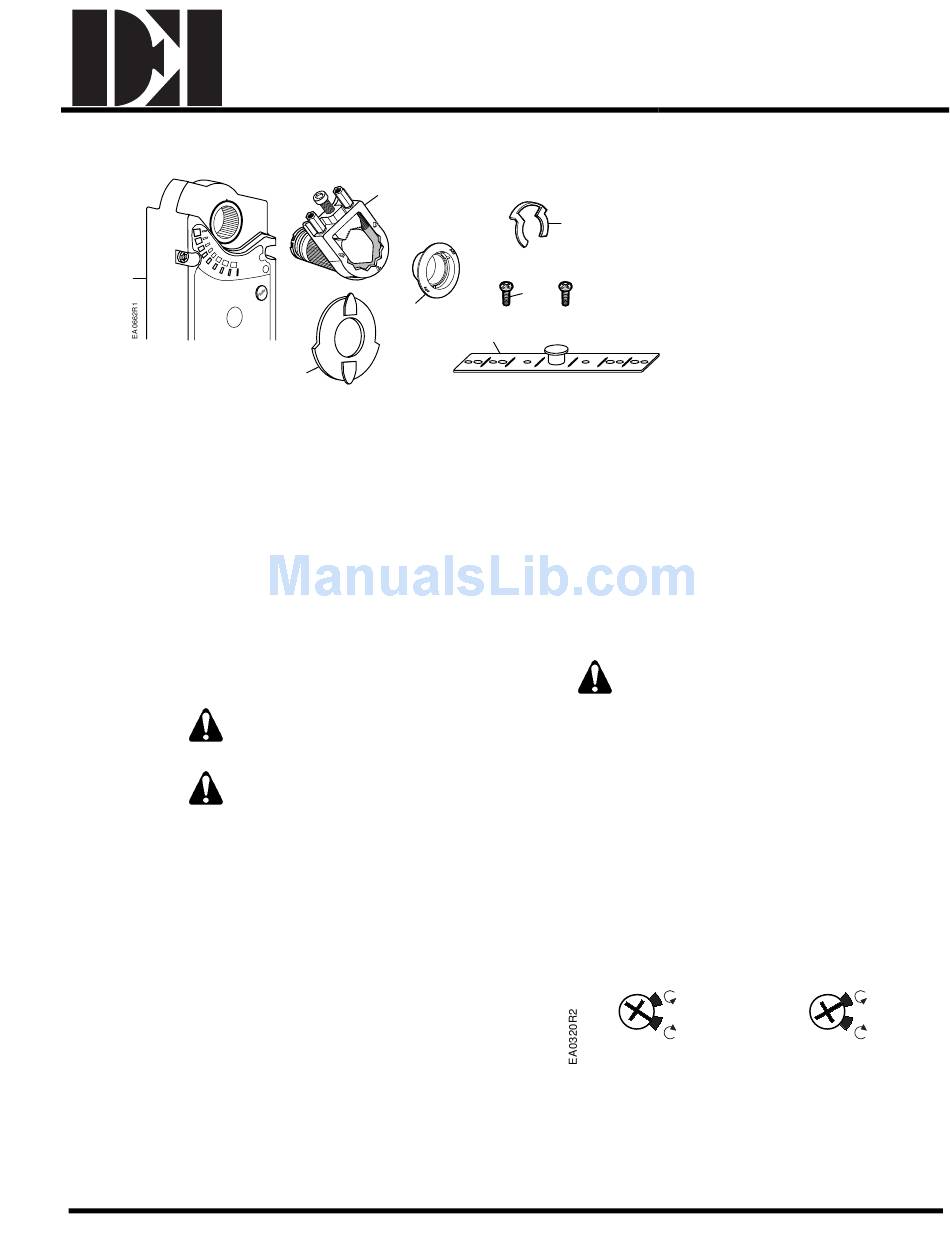

Figure 1. Parts of the EN221 and EN310 Actuators.
Product Description
This installation instruction describes the steps for
direct-coupled mounting of the EN221 and EN310
series non-spring return (NSR) electronic actuators.
Product Numbers
EN221x
EN310x
Installation Conventions
WARNING:
Personal injury or loss of life may
occur if you do not follow the
procedures as specified.
CAUTION:
Equipment damage or loss of
data may occur if you do not
follow procedure as specified.
Required Tools
•
10 mm (13/32-inch) open-end wrench
•
Drill
-
4 mm (5/32-inch) drill bit
•
Phillips screwdriver
•
Marker or pencil
•
Adjustable pliers
Expected Installation Time
30 minutes
UL Doc. No. 129-272
Rev. 5, Jan., 2005
Dodge Engineering & Controls, Inc.
Toll Free (877) 334-2875 Fax: (978) 244-1422
b
e
c
d
g
f
Prerequisite
The actuator is shipped from the factory with a 5°
pre-load to ensure tight close-off of the damper. To
release the pre-load, press the PUSH button before
mounting the actuator.
Installation
NOTE:
You must place the actuator on the
damper shaft so that the front of the
actuator is accessible. The label and the
manual override button are on the front
side.
1. Place the actuator on the damper shaft with the
front of the actuator accessible. The label and
the manual override button are on the front side.
2. For the EN221B2x and EN310B2x only:
Determine the rotation of the damper shaft. Set
the direction of rotation arrow to match the
rotation.
CLOCKWISE
Figure 2. Direction of Rotation Switch.
3. For all models: See Figure 3 and Figure 4 for
clockwise-to-open (CW) installation. See Figure
5 and Figure 6 for counterclockwise-to-open
(CCW) installation.
EAI/EN-1
Installation
a. Actuator
b. U-bolt shaft adapter
c. Position indicator
d. Shaft adapter locking
clip
e. Position indicator
adapter
f.
Mounting bracket
g. Mounting screws
WARNING:
Do not open the actuator.
COUNTER CLOCKWISE
Dodge Engineering & Controls, Inc.
Advertisement
Related Manuals for DEI EN221
Summary of Contents for DEI EN221
-
Page 1: Product Description
Dodge Engineering & Controls, Inc. Toll Free (877) 334-2875 Fax: (978) 244-1422 EN221 and EN310 Non-Spring Return Electronic Actuators Figure 1. Parts of the EN221 and EN310 Actuators. Product Description This installation instruction describes the steps for direct-coupled mounting of the EN221 and EN310 series non-spring return (NSR) electronic actuators. - Page 2 Dodge Engineering & Controls, Inc. Toll Free (877) 334-2875 Fax: (978) 244-1422 EN221 and EN310 Non-Spring Return Electronic Actuators For Tandem Applications • The direction of rotation switches must be set identically on both actuators according to the clockwise or counterclockwise rotation of the damper shaft.
- Page 3 Dodge Engineering & Controls, Inc. Toll Free (877) 334-2875 Fax: (978) 244-1422 EN221 and EN310 Non-Spring Return Electronic Actuators Figure 5. Shaft Adapter Placement for Counterclockwise Rotation on Short and Long Shafts. Figure 6. Mount the Actuator to the Damper Shaft.
-
Page 4: Manual Override
Dodge Engineering & Controls, Inc. Toll Free (877) 334-2875 Fax: (978) 244-1422 EN221 and EN310 Non-Spring Return Electronic Actuators Manual Override To move the damper blades without power present, do the following: 1. Hold down the PUSH button. 2. Make adjustments to the damper position. - Page 5 Dodge Engineering & Controls, Inc. Toll Free (877) 334-2875 Fax: (978) 244-1422 EN221 and EN310 Non-Spring Return Electronic Actuators PUSH Figure 12. 4. Determine the angle of rotation for the damper blade shaft. Subtract that amount from 90°. 5. Remove the shaft adapter and insert it with the position indicator pointing to mark on the scale calculated in the previous step.
- Page 6 Dodge Engineering & Controls, Inc. Toll Free (877) 334-2875 Fax: (978) 244-1422 EN221 and EN310 Non-Spring Return Electronic Actuators Factory setting: Switch A 5° Switch B 85° To change the settings of A and B: • Make sure the actuator is in the 0 position. The scale is valid only in the 0 position.
- Page 7 Dodge Engineering & Controls, Inc. Toll Free (877) 334-2875 Fax: (978) 244-1422 EN221 and EN310 Non-Spring Return Electronic Actuators Settings: Offset U0 = 2, Span: ∆U = 16V Umin = minimum control signal Umax = maximum control signal Wiring •...
- Page 8 Dodge Engineering & Controls, Inc. Toll Free (877) 334-2875 Fax: (978) 244-1422 EN221 and EN310 Non-Spring Return Electronic Actuators Three-Position Control (24 VAC) S2 S3 Figure 21. Table 1. Three-Position Control 24 VAC. Standard Function Symbol Control signal clockwise Control signal...
- Page 9 Dodge Engineering & Controls, Inc. Toll Free (877) 334-2875 Fax: (978) 244-1422 EN221 and EN310 Non-Spring Return Electronic Actuators Start-Up/Commissioning Three-Position Control, 24 VAC 1. Check that the wires are connected correctly. 2. Connect wires 1 (red) and 6 (violet) to a Digital Multimeter (DMM) with the dial set at VAC. Apply a control signal (24 VAC) to wire 6 to verify that the operating voltage is within range.
- Page 10 Dodge Engineering & Controls, Inc. Toll Free (877) 334-2875 Fax: (978) 244-1422 EN221 and EN310 Non-Spring Return Electronic Actuators Modulating Control, 24 VAC 1. Check that the wires are connected correctly. 2. Check that the offset (start point) and span are set correctly, if used.
- Page 11 1-11/32 1-11/32 34 mm 34 mm min. 2-1/2 in. 60 mm Figure 23. Dimensions of the EN221 and EN310 Actuator and Mounting Bracket. UL Doc. No. 129-272 Rev. 5, Jan., 2005 2 1/4 in. 57 mm 1-1/8 in. 28 mm 11 in.
- Page 12 Dodge Engineering & Controls, Inc. Toll Free (877) 334-2875 Fax: (978) 244-1422 EN221 and EN310 Non-Spring Return Electronic Actuators 3 1/8 in. 78 mm 13.5 mm 9 in. 230 mm 3 5/8 in. 92 mm ASK73.1U Figure 24. Dimensions of the Mounting Brackets used in Tandem Applications in Inches (Millimeters).
- Page 13 Dodge Engineering & Controls, Inc. Toll Free (877) 334-2875 Fax: (978) 244-1422 EN221 and EN310 Non-Spring Return Electronic Actuators Sizing Actuators for Damper Applications The number of actuators required depends on several factors. To determine the quantity of actuators required for the installation: •...
- Page 14 Dodge Engineering & Controls, Inc. Toll Free (877) 334-2875 Fax: (978) 244-1422 EN221 and EN310 Non-Spring Return Electronic Actuators ACCESSORIES NOTE: The auxiliary switches and/or the control signal adjustment cannot be added in the field. Order the product number that includes the option(s), if required.
-
Page 15: Service Parts
Dodge Engineering & Controls, Inc. Toll Free (877) 334-2875 Fax: (978) 244-1422 EN221 and EN310 Non-Spring Return Electronic Actuators Figure 5. Tandem Mount Bracket. Figure 6. Self Centering Shaft Adapter. Service Parts 985-003 Position indicators (package of 10). UL Doc. No. 129-272 Rev. - Page 16 Dodge Engineering & Controls, Inc. EN221 and EN310 Non-Spring Return Electronic Actuator General Installation ...EAI/EN – 1 Mounting ...EAI/EN – 1-3 Manual Override ...EAI/EN – 4 Mechanical Range Adjustment...EAI/EN – 4-5 Mounting for NEMA 2 ...EAI/EN – 5 Dual Auxiliary Switch (-S option) ...EAI/EN – 5-6 Zero Span Control Signal Adjustment (-ZS option) ...EAI/EN –...
