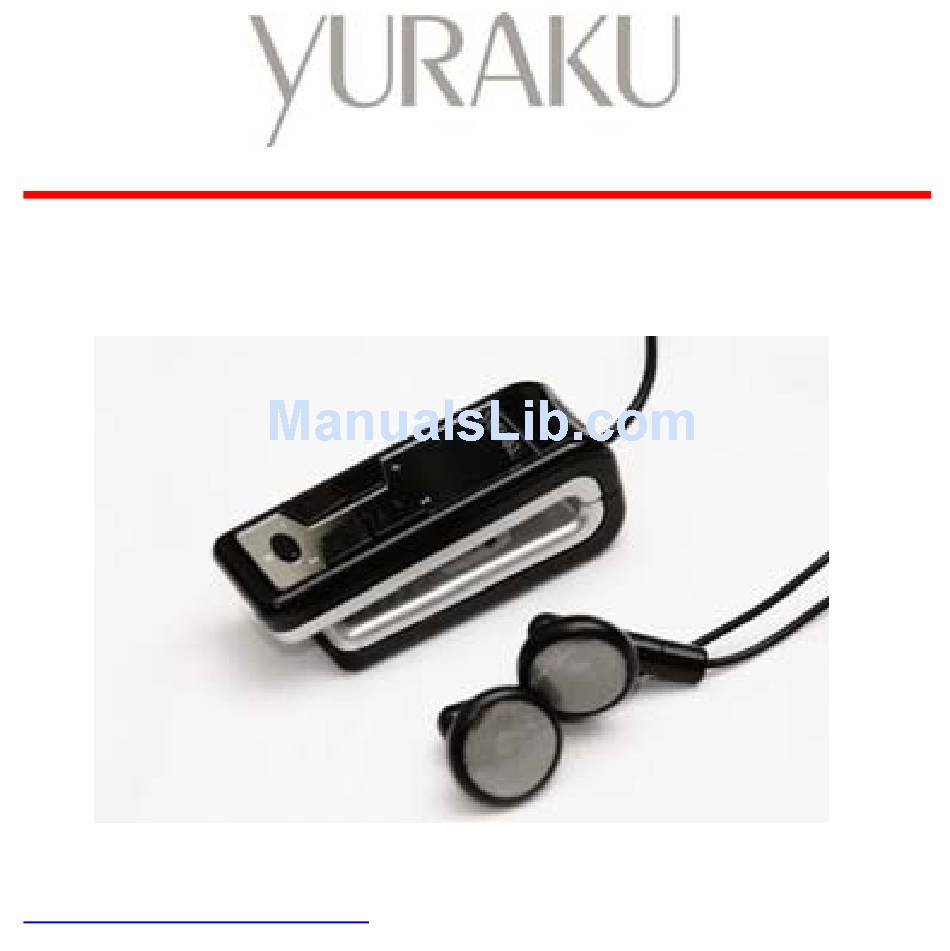

Yur.Beat AURA Bluetooth
Instruction Manual
http://www.Yuraku.com.sg

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the YUR.BEAT AURA Bluetooth and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for YURAKU YUR.BEAT AURA Bluetooth

Summary of Contents for YURAKU YUR.BEAT AURA Bluetooth

  • Page 1 Yur.Beat AURA Bluetooth Instruction Manual http://www.Yuraku.com.sg...

  • Page 2: Connection Diagram

    Connection Diagram Vol + Vol - Earphones Power button Next Stop On/Off Previous Inline control: Pairing / vocal battery checks / Play functions...
  • Page 3 Declaration of Conformity EC-Declaration of conformity to the essential requirements to the applicable EMC Directive 2004/108/EC We, Yuraku GmBH of Germany declare under our sole responsibility as authorized representative that the following product Brand Name: Model Name: Model Number: Is fully conformity with the essential requirement of the European Directive 2004/108/EC. This declaration is...
  • Page 4 Information • Do not violate or infringe the copyright law and other international copyright laws while using this player for recording. • The copyright law forbids unauthorized reproduction of copyrighted music for any other purpose other than self-entertainment without the author’s permission. •...

  • Page 5: Safety Rules

    Safety Rules • Please follow the rules depicted in this manual closely to ensure your safety. Before using the player, we would strongly encourage you to read through this user manual • Be more wary of any edges, uneven surfaces, metal parts, accessories and its packaging so as to prevent any possible injury or damage.
  • Page 6 other objects. • When plugging in/out the headphone/earphones or wires please hold the player and jacks firmly to prevent the wires from breaking and the player from dropping. • If using the player while walking, do pay attention to the traffic situations and road conditions.
  • Page 7 Yur.Beat AURA Bluetooth Introduction A Bluetooth headset, the Yur.Beat AURA Bluetooth provides wireless communication with your mobile phone and plays digital music files. Features: • Digital music player with Bluetooth v1.2 headset function • Supports MP3 and WMA music files •...
  • Page 8 Yur.Beat AURA Bluetooth Connecting to a PC Operation Procedure Ensure that the player is switched off before connecting the player to a PC via the provided USB cable to upgrade firmware or copy music into the player. After connecting to your PC, the system will create a removable drive in “My Computer”...
  • Page 9 Yur.Beat AURA Bluetooth Once all procedures have been completed, please follow the steps below to remove the player to avoid causing damage to your files. Removing hardware 1. Double-click using the left button of your mouse on the icon that says “safely remove hardware”, as can be seen from the image...
  • Page 10 Yur.Beat AURA Bluetooth 2. When the icon appears, click the “Stop” button to remove the hardware safely. The player then be detached from the USB Cable. Copying music files to the player Please refer previous section -“Connecting to a PC” to connect a PC to the player using a USB cable or a USB adapter.
  • Page 11 Yur.Beat AURA Bluetooth “Copy.” Next, locate the Removable Drive (F:\) in “My Computer”. After doing so, right click on the mouse to “Paste” the selected files to F:\. . Another way is to hold the left button of the mouse on the files you wish to copy, and drag the files to the Removable Drive.
  • Page 12 Yur.Beat AURA Bluetooth After the file copy process has been completed, please refer to the steps as mentioned in previous page so as to remove the player safely. All specifications and information are subject to changes without prior notice...

  • Page 13: Key Functions

    Yur.Beat AURA Bluetooth Key Functions This player comes with:- • 6 control buttons • One inline control of the stereo earphones PLAY button • 5 buttons on the player UP/DOWN, NEXT/PREV and STOP • 1 RESET button hidden under the rubber stopper.
  • Page 14 Yur.Beat AURA Bluetooth All specifications and information are subject to changes without prior notice...
  • Page 15 Yur.Beat AURA Bluetooth All spec ific ations and information are subject to changes without prior notice...

  • Page 16: Basic Function

    Yur.Beat AURA Bluetooth Basic Function Switching the player On/Off Switching on the player • Press and release PLAY to turn on the player • The player takes about 3 sec to start up, depending on the number of songs stored in it •...
  • Page 17 Yur.Beat AURA Bluetooth Overview of Button Events vs. Corresponding Actions Buttons Events Actions PLAY 1. Power On when it is at standby 2. Play/Pause while playing 3. Pick up phone when there’s incoming call. PLAY PH<5se Give Battery level indication...
  • Page 18 Yur.Beat AURA Bluetooth PLAY PH>5se Enter Pairing Mode STOP Stop music while playing Reject an incoming call hang up the call. STOP PH<5se Change play mode (Normal Random) STOP PH>5se Shutdown PREV Previous song All specifications and information are subject to changes without prior notice...
  • Page 19 Yur.Beat AURA Bluetooth PREV Rewind NEXT Next song NEXT Fast Forward PR or Volume Up DOWN PR or Volume Down NOTE: PR = Press and Release PH = Press and Hold All specifications and information are subject to changes without prior notice...

  • Page 20: Led Indicator

    Yur.Beat AURA Bluetooth LED Indicator State LED status Playing with battery Blue LED blinks every 10 sec >30% Playing with battery Red LED blinks every 10 sec <30% During Pairing Blue alternating moderately During USB read Blue alternating and write...
  • Page 21 Yur.Beat AURA Bluetooth During idle Blue LED blinks moderately with battery >30% During idle Red LED blinks moderately with battery <30% During charging Blue LED blinks moderately with battery >30% During charging Red LED blinks moderately with battery <30% After fully charged...

  • Page 22: Operating In Music Mode

    Yur.Beat AURA Bluetooth Operating in Music Mode Once the player is turned on, press the NEXT or PREV button to search for the desired track. Press the PLAY button to pause the music, press again to resume playing. Normal playing operation •...

  • Page 23: Operating As A Bluetooth Headset

    Yur.Beat AURA Bluetooth Change play mode • Press and hold the STOP button for about 1 sec then release • You will hear the selected playmode, which is either “Normal” or “Random NOTE: Please refer to the “Button events vs Corresponding Actions”...
  • Page 24 Yur.Beat AURA Bluetooth Use your handphone to look for this Device (GI07-BTHS-MP3) Once it is found, select this device and key in the password: “0000”. Once has been paired successfully, the message “Pair Success!” will be played To disconnect, press and hold the STOP button to shutdown the player NOTE: If pairing has failed, a message “Pair...

  • Page 25: Operating As A Usb Drive

    Yur.Beat AURA Bluetooth Answer incoming call Press and release the PLAY button Reject incoming call Press and release the STOP button Stop a call session Press and release the STOP button Operating as a USB Drive Shutdown the player first.

  • Page 26: Power Charge

    Yur.Beat AURA Bluetooth The computer will recognize it as a USB Mass Storage Class and it can be found in “My Computer” Power Charge • Use the USB charger provided to charge the player. • Charge until the Blue LED blinks very quickly NOTE: Turn off the power when it is not in use.

  • Page 27: Troubleshooting

    Yur.Beat AURA Bluetooth Trouble Shooting 1. There is no sound when playing. Possible fault and remedy: Check to find if the volume is adjusted too low. If it is too low, turn it up .Make sure that the earphones are properly connected, or they are working properly.
  • Page 28 Yur.Beat AURA Bluetooth is advised to never disconnect the player while data and files are being transmitted between the player and your PC. Why music files cannot be downloaded when linked to a PC? Possible fault and remedy: • Management driver not installed. Install again.

  • Page 29: Product Specification

    Yur.Beat AURA Bluetooth Product Specification STMP3507 BGA Chipset CSR BC03 V1.2 Bluetooth mp3,wav, wma Music Format 128MB/ 256MB/ 512MB/ 1GB/ 2GB Capacity USB2.0 interface USB type MP3: 8kbps~320kbps, Compress rate WMA: 5Kbps~192kbps ≥90dB Output (L) 10mW+ (R) 10mW (320hm) Frequency...
  • Page 30 Yur.Beat AURA Bluetooth - end - All specifications and information are subject to changes without prior notice...
