Related Manuals for YAKUMO TFT 15 SL
Summary of Contents for YAKUMO TFT 15 SL

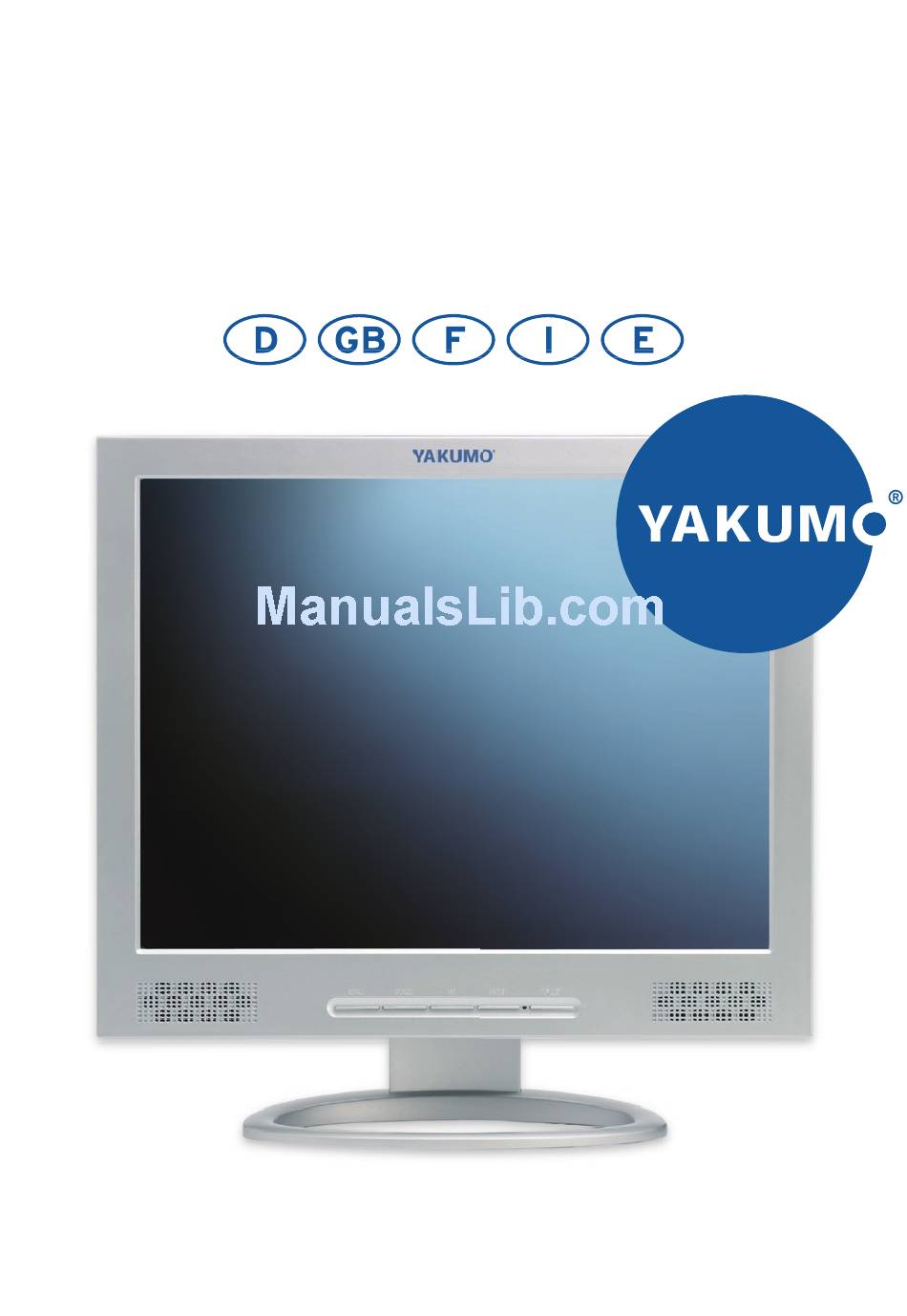

- Page 1 Handbuch Manual Manuel Y akumo TFT 15 SL Flachbildschirm...
- Page 5 Your monitor Pedestal AC Adapter AC Power cord Signal cable Audio cable This manual...
- Page 6 2.1 Install the pedestal To attach the base to your monitor, please following the steps for installation of the pedestal as below: step 1 step 2 step 3...
- Page 7 MENU DOWN AUTO POWER...
-
Page 8: Switching The Monitor On/Off
4.1 SWITCHING THE MONITOR ON/OFF This ON/OFF button is used for switching the monitor on and off. Note: The ON/OFF switch does not disconnect the device from the mains voltage. To completely disconnect the mains voltage. Please remove the power plug from the socket. 4.2 POWER INDICATOR This indicator lights up green when the monitor operates normally. - Page 9 BRIGHTNESS Color Select Menu...
- Page 11 Mode Resolution Horizontal Vertical 720 x 400 31.47 kHz 70 Hz 640 x 480 31.47 kHz 60 Hz 640 x 480 37.86 kHz 72.8 Hz 640 x 480 37.5 kHz 75 Hz 800 x 600 37.88 kHz 60.3 Hz 800 x 600 48.08 kHz 72.2 Hz 800 x 600...
- Page 12 Technical Information...
- Page 13 5.2 Troubleshooting Before calling for service, check the information in this section to see if you can remedy any problems by yourself. If you need assistance, please call the dealer where you purchased the LCD monitor. There is no SCREEN image The power cord is securely connected to the monitor, the adaptor, and the wall outlet.
- Page 14 5.3 Visual Inspection Even the normal pixels on the LCD screen reach 99.99% or higher, there may be 0.01% or less pixels showing dark or light while displaying.
