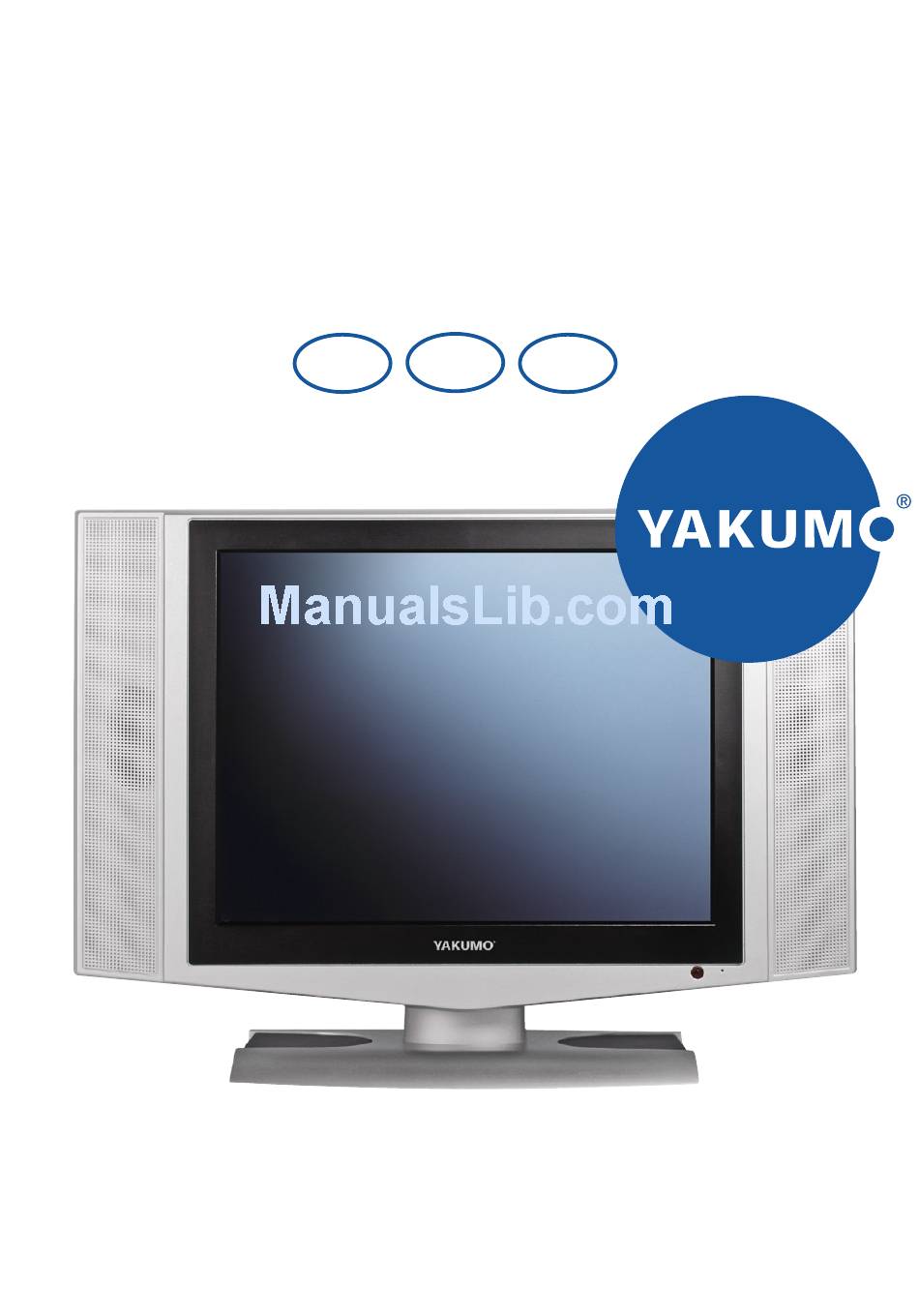

- Page 1 Handbuch Manual Manuel Y akumo LCD TV 38F LCD TV...
-
Page 2: Table Of Contents
TABLE OF CONTENTS PRECAUTIONS ……………………………………….……………1 OSD MANUAL ………………………………………………………1 REMOTE CONTROLLER ………………………………………….2 Illustration of the keys on the remote control …………………….3 Menu picture................4 Input mode PC ................4 Input mode AV / Scart / S-Video……………………………………5 Input mode TV………………………………………………………..6 CONNECT PERIPHERAL EQUIPMENT …………………………8 Production Specifications …………………………………………..9 Maintaining your TV…………………………………………………10 Troubleshooting……………………………………………………..11... -
Page 3: Precautions
Precautions 1. Read all of these instructions and save this manual for later use. 2. Follow all warnings and instructions on the product. 3. Do not cover or block the ventilation holes in the case. 4. Do not insert sharp objects or spill liquid into the LCD TV through the cabinet slots;... -
Page 4: Remote Controller
Control Panel Functions: 1- INPUT –Select the input signals 2- ESC –Exit 3- MENU – Enter into MENU / ENTER 4- ＜VOL –Volume down / Left orientation 5- VOL＞ –Volume up / Right orientation 6- <PRO –TV channel down change channels on sequence 7- PRO>... -
Page 5: Illustration Of The Keys On The Remote Control
Illustration of the keys on the remote control: 1. POWER Power supply switch 2. INPUT Select TV / SCART / PC / AV / S-VIDEO 3. ESC Exit 4. MENU MENU / ENTER 5. MUTE MUTE ＜VOL Volume down / Left orientation 7. -
Page 6: Menu Picture
Menu picture Picture of Name of Instructions submenu submenu 1、Brightness : Adjust the brightness of the picture,the image becomes brighter as the number increase. 2、Contrast:Adjust the contrast of the picture,the image becomes higher as the number increase. 3、Colour setting: Select between PC MENU 9300k/6500k/user define 4、... -
Page 7: Input Mode Av / Scart / S-Video
Input mode AV / Scart / S-Video: 1- Press MENU button to either display the “VIDEO” or “AUDIO”or “GENERAL” menu. 2- Press KEY CH+/CH- to scroll through the parameters 3- Press ＜ VOL / VOL ＞buttons to make changes to the parameters 4-Press the ESC button to exit the menu . -
Page 8: Input Mode Tv
Input mode TV Press MENU button to either display the “VIDEO” or “AUDIO” or “TV” or “GENERAL” menu. Press KEY CH+/CH- to scroll through the parameters Press ＜ VOL / VOL ＞buttons to make changes to the parameters Press the ESC button to exit the menu . Picture of submenu Instructions Name of submenu... - Page 9 Picture of submenu Instructions Name of submenu 1、 Channel: Change the TV channel. 2、System: Select the TV standard. 3 、 Skip ： If want skip a channel, you can turn it on and this channel will be skip in the next time. 、...
-
Page 10: Connect Peripheral Equipment
CONNECTION AND PREPARATION Remove the back plate at the back of the TV as shown on the illustration opposite. Lay the LCD TV with the screen down on a table, as it will be easier to connect your peripheral equipment. Please take precaution not to damage the screen. -
Page 11: Production Specifications
Production Specifications: Color active matrix TFT (Thin-Film- Cell Type Transistor) LCD panel Active size 15 inch Display Area 304(h) x 228 (v) MM resolution XGA 1024(H) X 768(V) Panel spec Pixel Pitch 0.297 x 0.297 Brightness / Contrast 160 nit/ 300:1 Viewing Angle 45 (L/R) 50 (U/D) Response Time... -
Page 12: Maintaining Your Tv
Maintaining Your TV Periodically cleaning the exterior of your TV can reduce the chance of dust being collected which can block the ventilation holes; hence, prolonging the life of your TV. Please refer to the instructions below for cleaning your TV: 1. -
Page 13: Troubleshooting
Troubleshooting When there is no picture or sound ‧ Make sure the AC adapter is properly inserted in the Power outlet. • Reception other than those of broadcasting stations can be considered. • Make sure the input mode is set to TV. •... - Page 14 When there picture is not clear. ‧ The reception may be weak. ‧ The state of the broadcast may also bad. ‧ Make sure the antenna is not disconnected. When the picture is light or improperly tinted. ‧ Check color adjustment. ‧...
- Page 15 When the picture is not sharp. ‧ The reception may be weak. ‧ The state of the broadcast may also be bad. ‧ Make sure the antenna is not disconnected. When the picture moves. ‧ The reception may be weak. ‧...
- Page 16 LCD TV USER MANUAL When there are stripes on the screen or colors fade. ‧ Is the unit receiving interference from other devices? ‧ Transmission antennas of radio broadcasting station and transmission antennas of amateur radio and cellular phones may also cause interference. ‧...
- Page 17 yakumo.com...
