Audio Output Connection - SABINE TRUE MOBILITY WIRELESS SYSTEM SWM3000 Operating Manual

Section Five: Receiver & Transmitter Setup
CAUTIONS
- Since the installation of the antennas influ-
ences the operating efficiency of the receiver,
the most important rule is to minimize the dis-
tance between receiving antenna and trans-
mitter for better reception and performance.
- Keep the system away from electrical-noise
sources (electric motors, refrigerators, arc
welders, etc.). Place the receiver at least one
meter above floor level. Keep all transmitters
at least 3 meters away from a receiver an-
tenna.
Your True Mobility receiver can be installed into an EIA standard rack-mount case using the rack-mount
brackets provided. A Rear-to-Front Antenna Converter Kit (SWA100) is available to improve reception on
rack-mounted receivers.

5.2.3 Audio Output Connection

Connect the unbalanced output (1/4 inch jack) of your True Mobility receiver to the unbalanced mic input
of your mixer or amplifier; or the balanced output (XLR connector) of your receiver to the balanced mic
input of your mixer or amplifier.
NOTE 1 : The Level Switch af-
fects only the Unbalanced Out-
put on the receiver. In the "Low"
position, the output is the same
as the Balanced (XLR) output.
In the "High" position, the output
is 10 dB higher than the XLR out-
put.
NOTE 2 : Guitar Output: Using ¼-inch jack cable, plug one end into
the receiver's unbalanced output and the other end to the input of a
guitar amplifier. Switch the Level Switch to the High position.
12
*

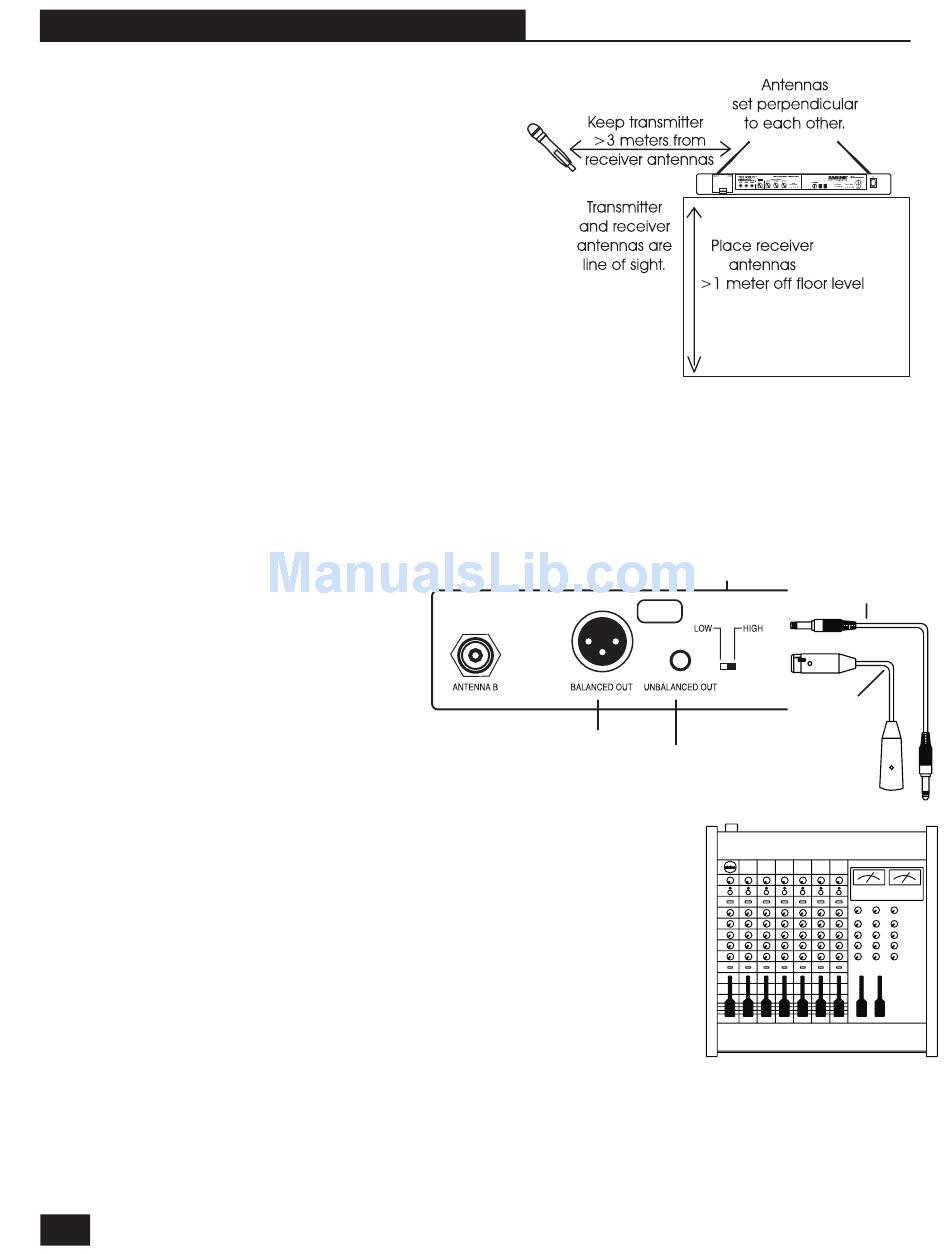

Figure 5c - Receiver &
Antenna Placement
Balanced Output (XLR)
Unbalanced Output (¼-inch)
Figure 5d - Audio Output Connection (mic level only)
* See Section Ten for allowable
distance between transmitter
and receiver.
Level Switch
Unbalanced Output
Cord (¼-inch)
MIC LEVEL
ONLY
Balanced
Output Cord
(XLR)
Mixer or Amplifier
