2.4 GHz Smart Spectrum
Extension Antenna Kit
SWA6SS, SW71-R, SW72-R, & SW72-NDR
SWASS-EXT benefits
• Wall mount or mic-stand mount
• Straight and right angle TNC connectors
• 130 degree reception pattern
• +18 dB gain (SWASS-EXT)
• +22/+44 dB switchable gain (SWASS-EXT-2)
• Wood-tone finish
• Phantom-powered from either the receiver or
the distribution amp; Power LED indicator
(SWA-EXT-2)
Included with the SWASS-EXT

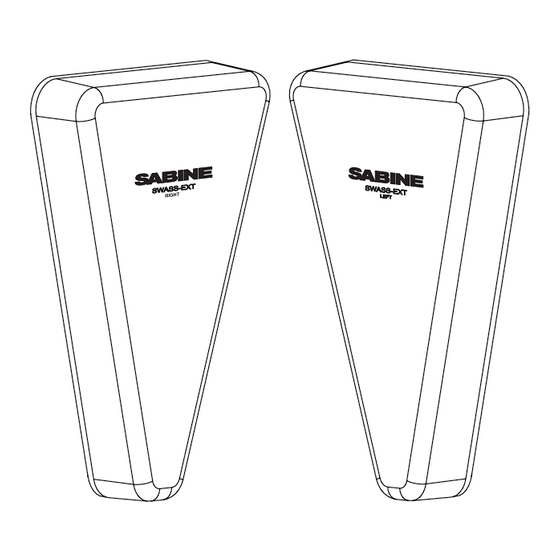

• One pair of antennas (left & right), each with
mic stand mounts attached
• Two European mic stand adaptor inserts
• Four straight TNC male crimp connectors
• Two right angle TNC male to female con-
nectors
• Operating Guide
SWASS-EXT
SWASS-EXT-2
Operating Guide
for use with models:
®
Advertisement
Related Manuals for SABINE SWASS-EXT
Summary of Contents for SABINE SWASS-EXT
- Page 1 • Wall mount or mic-stand mount • Straight and right angle TNC connectors • 130 degree reception pattern • +18 dB gain (SWASS-EXT) • +22/+44 dB switchable gain (SWASS-EXT-2) • Wood-tone finish • Phantom-powered from either the receiver or the distribution amp; Power LED indicator...
- Page 2 OVERVIEW The SWASS-EXT Antenna Extension Kit is designed for use with Sabine SWM7000 2.4 GHz wireless microphone receivers and antenna distribution amplifiers. The SWASS- EXT allows for optimal placement of external antennas for maximum wireless performance. One SWASS-EXT kit can accommodate up to 70 receiver channels. (See block diagram detail on page 10).
- Page 3 4 times, to 14 meters. With RG-8 cable, the maximum length is extended to 88 meters! Power for the Extension Antenna is delivered from any Sabine SWM7000 series receiver or SWA6SS Antenna Distribution Amplifier. An additional advantage of using Sabine’s SWASS-EXT Extension Antenna stems from its more focused, directional nature.
-
Page 4: General Instructions
Line-of-sight path Connect the SWASS-EXT “Left” and “Right” Antennas to either antenna input on your SWM7000 receiver or SWA6SS Antenna Distribution Amplifier. NOTE: SWASS- EXT antennas are sold in Left / Right pairs and must be installed as such. Do not install a “Right”... -
Page 5: Mounting Instructions
MOUNTING INSTRUCTIONS SWASS-EXT Antennas can be permanently mounted on wall surfaces, or affixed to the top of microphone stands for convenient re-positioning. ICROPHONE TAND OUNTING Attach SWASS-EXT Antenna Kits to microphone stands and position stands in desired locations. Gently pry the wood-grained exterior case from the rest of the antenna as- sembly. - Page 6 OUNTING CAUTION: Be careful not to scratch or damage the interior components of the SWASS- EXT Antenna Kit. Interior components can be disassembled and reassembled using fin- gers. Do not use metal pliers, wrenches, screwdrivers or knives to unscrew or tighten interior antenna components to the metal antenna bracket frame.
- Page 7 Replace the wood-grain antenna ex- terior case. SWASS-EXT-2 I NSTRUCTIONS The SWASS-EXT-2 has two features not found on the stan- dard SWASS-EXT: switchable gain and a phantom power LED indicator. 1. To switch gain settings, start by removing the cover.
-
Page 8: Installation Cautions
Both of these facts mean such uses of the RF spectrum are less likely to cause interference with, or suffer from interference from the use of, Sabine’s systems. Your first step in checking for interference should be utilizing the Scan function in the SWM7000 Remote Control Software. - Page 9 Fortu- nately, Sabine systems are only affected by such ovens in close proximity to receiver antennas. That protection, plus the availability of 70 different RF channels to choose from, makes serious interference problems arising from microwave ovens avoidable and un- likely.
- Page 10 SWASS-EXT “Left” External Antenna SWASS-EXT “Right” External Antenna NOTE: SWASS-EXT antennas are sold in Left / Right pairs and must be installed as such. Do not install a “Right” antenna with another “Right” an- tenna; or conversely, a “Left” antenna with other another “Left” antenna.
-
Page 11: Warranty
Sabine does not assume liability for personal injury or property THIS LIMITED WARRANTY VALID ONLY WHEN PURCHASED AND damage arising out of or caused by a non-Sabine alteration or attachment, REGISTERED IN THE UNITED STATES OR CANADA. ALL EXPORTED... - Page 12 The inputs to the receiver & antenna distributor amplifier have phantom ower available for this purpose. DO NOT SHORT TO GROUND 13301 NW US Highway 441 • Alachua, Florida 32615-5-8544 USA +USA (386) 418-2000 • +USA (386) 418-2001 (fax) • www.Sabine.com...
