INSTRUCTION MANUAL

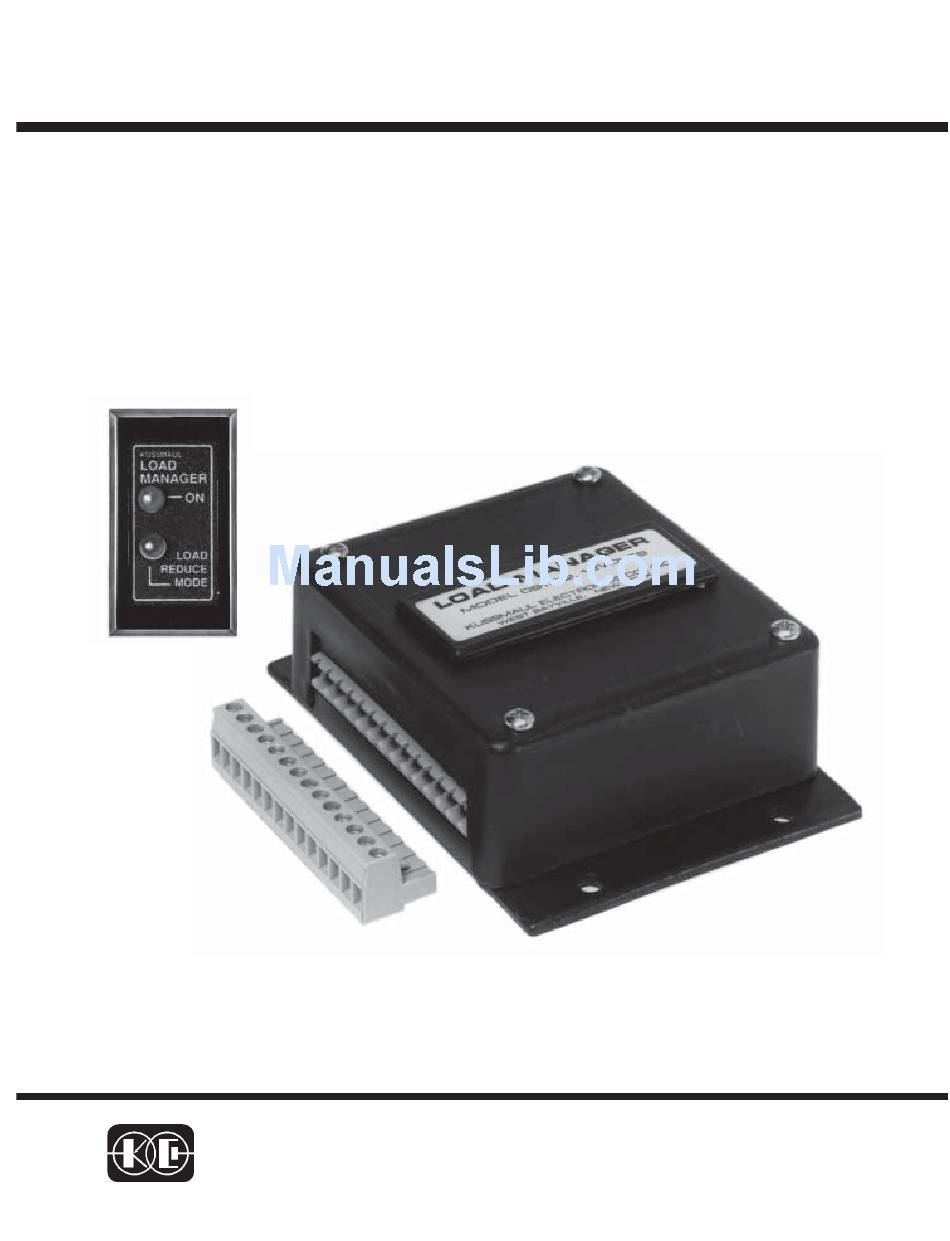

LOAD MANAGER

A START-UP AND SHUT DOWN

LOAD SEQUENCER AND

AUTOMATIC LOAD SHEDDING SYSTEM

3 YEAR WARRANTY

KUSSMAUL ELECTRONICS CO., INC

170 CHERRY AVE., WEST SAYVILLE, N.Y. 11796

631-567-0314

TEL: in NY 631-567-0314

631-567-0314

MODEL #091-32

800-346-0857

TOLL FREE: 800-346-0857

800-346-0857

BOOK# 091-32-1

631-567-5826

FAX: 631-567-5826

631-567-5826

Need help?

Do you have a question about the 091-32 and is the answer not in the manual?

Questions and answers

Summary of Contents for KUSSMAUL 091-32

Page 1 BOOK# 091-32-1 INSTRUCTION MANUAL LOAD MANAGER A START-UP AND SHUT DOWN LOAD SEQUENCER AND AUTOMATIC LOAD SHEDDING SYSTEM MODEL #091-32 3 YEAR WARRANTY KUSSMAUL ELECTRONICS CO., INC 170 CHERRY AVE., WEST SAYVILLE, N.Y. 11796 631-567-0314 631-567-0314 800-346-0857 800-346-0857 631-567-5826 631-567-5826...
Page 2 INTRODUCTION The LOAD MANAGER is a device which: 1. Sequentially energizes and deenergizes relays at approximately 1/2 second intervals in order to reduce transients in a vehicle’s electrical system. 2. Detects when the vehicle’s electrical load is greater than the output of the alternator.
Page 3 CAUTION There are 5 switches, each with 5 levers. Only one lever on each switch may be in the “ON” position. Each switch controls the operation of a relay. The actuation sequence of a particular relay is controlled by the individual levers of each switch. Lever #5 is the lowest priority, while lever #1 is the highest.
Page 4 APPLICATION NOTES FOR MODEL 091-32 LOD MANAGER The Load Manager is a control which sequentially energizes and deenergizes 7 relay circuits by connecting the coils of these relays to ground. In addition a voltage sensor senses the vehicle's battery voltage and when this drops below a preset level, the Load Manager will deenergize relays until the sensed voltage has stabilized.
Page 5 Pin 11: This is the output to the display. The Load Manager display contains two LED's. One LED, the green one, is illuminated whenever the +12 volts is applied to the display. This indicates that the load management circuit is active. The red LED is illuminated by grounding the yellow wire of the display.
Page 6 Figure 2, Basic Switch Settings...
Page 7 Figure 3, Outline, load Manager...
Page 8 LOAD MANAGER 091-32...
Page 9 Vehicle Identification Vehicle Owner WARRANTY All products of Kussmaul Electronics Company Inc. are warranted to be free of defects of material or workmanship. Liability is limited to repairing or replacing at our factory, without charge, any material or defects which become apparent in normal use within 3 years from the date the equipment was shipped.
