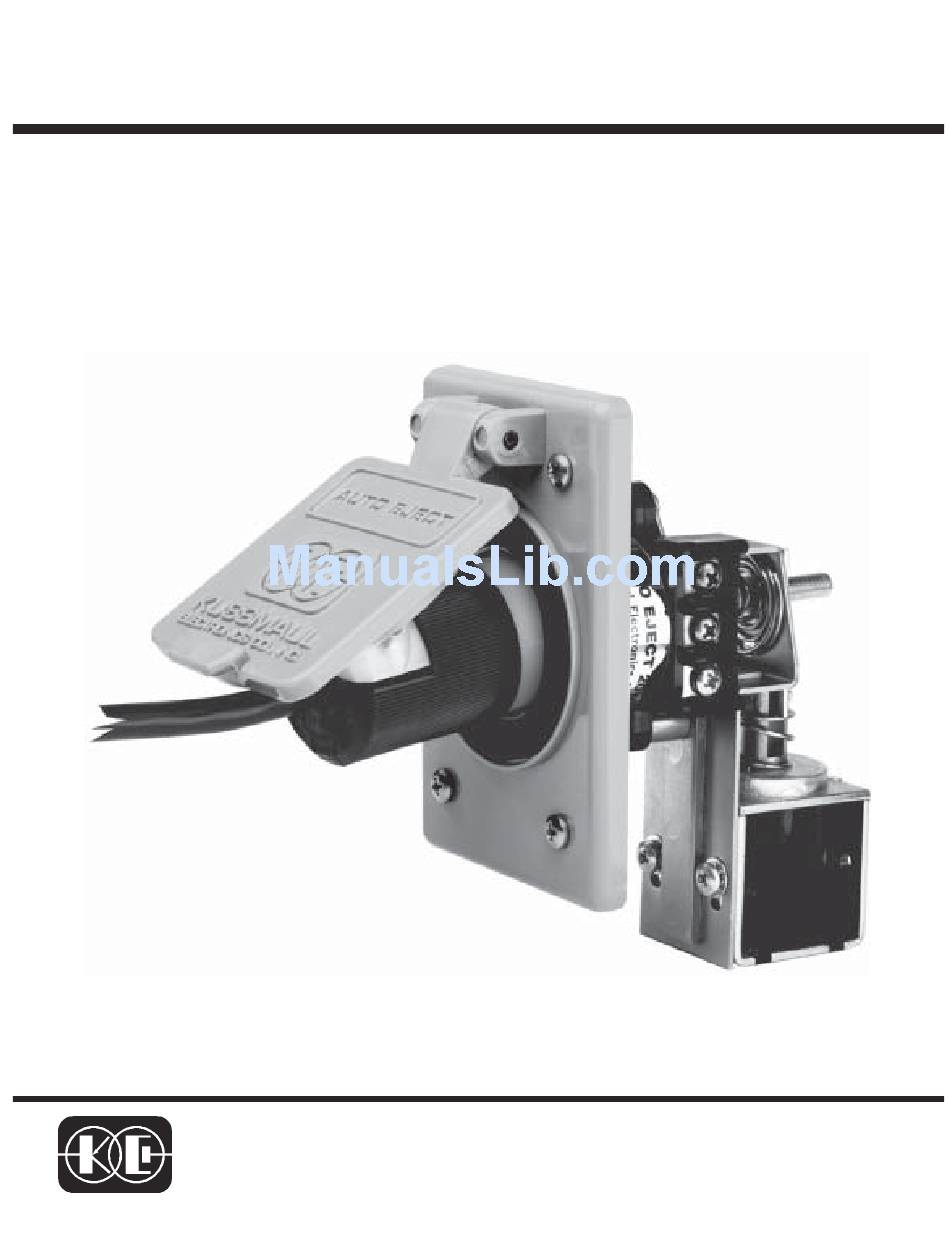

- Page 1 2-10-00 file: 091-20WP-XX INSTRUCTION MANUAL AUTO EJECT WP AUTOMATIC SHORE LINE DISCONNECT 1 YEAR WARRANTY KUSSMAUL ELECTRONICS CO., INC 170 CHERRY AVE., WEST SAYVILLE, N.Y. 11796-1221 TEL: in NY 631-567-0314 TOLL FREE: 800-346-0857 FAX: 631-567-5826...
- Page 2 CAUTION The AUTO EJECT must be connected to the starter circuit so that the solenoid is energized only while the engine is cranking. If the solenoid is energized continuously it will OVERHEAT and BURN OUT. If the AUTO EJECT is installed where the rear mechanism can accumulate dirt, grime or water you must...
- Page 3 INSTALLATION INSTRUCTIONS 1. Locate a convenient place on the vehicle to mount the AUTO EJECT. A minimum clearance of 4” behind the mounting panel is required as well as 3 3/4” below the center line to clear the ejection mechanism. 2.
- Page 4 3/16” DIA HOLE 2 1/4” DIA HOLE DRILL THESE TWO HOLES FIRST 3.250 2.125 1/2” DIA HOLE 1.875 Hole Template AUTO EJECT AUTO EJECT ENCLOSURE DYNAMIC DISCONNECT MODEL # 091-18-098 The Model 091-18-098 Dynamic Disconnect is a coupling device wired between an Auto Eject and the vehicle and serves to only connect the A.C.
- Page 5 Vehicle Identification Vehicle Owner WARRANTY All product of Kussmaul Electronics Company Inc. are warranted to be free of defects of material or workmanship. Liability is limited to repairing or replacing at our factory, without charge, any material or defects which become apparent in normal use within 1 years from the date the equipment was shipped.
