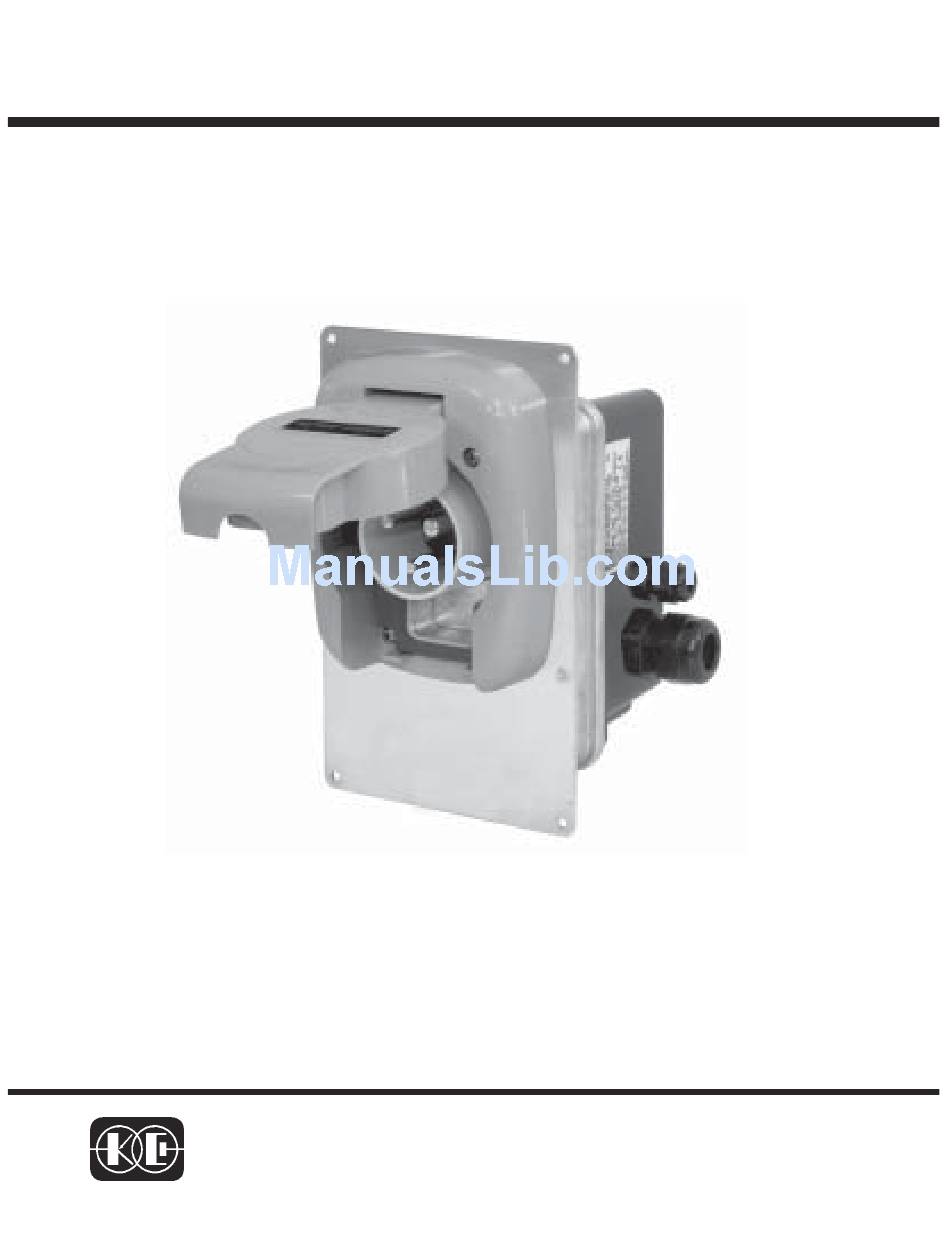

- Page 1 FILE: 091-159-XXX.P65 5-23-2006 INSTRUCTION MANUAL SUPER 30 AUTO EJECT AUTOMATIC SHORE LINE DISCONNECT 30 AMP MODEL # 091-159-XXX 1 YEAR WARRANTY KUSSMAUL ELECTRONICS CO., INC 170 CHERRY AVE., WEST SAYVILLE, N.Y. 11796 TEL: in NY 631-567-0314 TOLL FREE: 800-346-0857 FAX: 631-567-5826...
-
Page 2: Installation Instructions
INTRODUCTION The Super 30 Auto Eject is a completely sealed automatic power line disconnect. This prevents contamination of the mechanism by road dirt and ensures long reliable life even when mounted in the most severe environment. A novel plug detector closes and opens the 120 volt A.C. circuit after the mating connector is inserted and before the connector is ejected. -
Page 3: Test And Operation
Do not permit the shore line to drop to the floor when it is ejected. Keep from falling by utilizing a bungee cord restraint, cord reel or some other device. Dropping the connector may result in damage or breakage. Kussmaul Electronics does not warrant the connector. ABOUT CONNECTORS The Super 30 Auto Eject is supplied with mating connector. - Page 5 TORQUE SCREWS TO 16 LB-IN GROUND 10 AWG MINIMUM NEUTRAL TO AC LOAD ON VEHICLE LINE BACK OF SUPER 30 AUTO EJECT WITH REAR PLASTIC COVER REMOVED 3 CONDUCTOR 10 AWG MINIMUM STRIP WIRES 5" FROM OUTER JACKET UNLESS OTHERWISE SPECIFIED: DIMENSIONS ARE IN INCHES TOLERANCES WEST SAYVILLE, NY...
- Page 6 CONNECTOR ON PC BOARD NOTE: FUSE 3 AMP FUSE FOR 12 VOLT 2 AMP FUSE FOR 24 VOLT PC BOARD + 12 VOLTS FUSE CONTINUOUS GROUND TO STARTER 3 CONDUCTOR 18 AWG WIRE TOP OF SUPER 30 AUTO EJECT WITH REAR PLASTIC COVER REMOVED UNLESS OTHERWISE SPECIFIED: DIMENSIONS ARE IN INCHES TOLERANCES...
- Page 8 4.190 1.010 6.210 1.475 4.735 0.330 4.676 0.250 1.282 6.123 8.874 0.500 5.356 UNLESS OTHERWISE SPECIFIED: DIMENSIONS ARE IN INCHES TOLERANCES WEST SAYVILLE, NY DECIMALS ANGULAR .005 .001 .XXX OUTLINE DRAWING DO NOT SCALE DRAWING DRAWN T. Nugent SIZE DWG NO. 091-159 FINSH MAT:...
-
Page 9: Year Warranty
Kussmaul Electronics Company, Inc. shall have no liability for damages of any kind to associated equipment arising from the installation and /or use of the Kussmaul Electronics Company, Inc.
