KUSSMAUL 091-148-12 Installation And Wiring Instructions

SAFETY LOCK
A CONTROLLER WHICH PERMITS
UNATTENDED ENGINE OPERATION
BUT PREVENTS UNAUTHORIZED
USE OF THE VEHICLE
SIMPLE INSTALLATION
PERMITS ENGINE
TO RUN WITH THE
IGNITION KEY REMOVED
ENGINE STOPS AND CANNOT BE
RESTARTED IF ATTEMPT IS MADE
TO DRIVE AWAY
This simple, low cost controller bypasses the ignition
switch when activated by the closure of a momentary
switch. The operator may then remove the ignition key
without shutting the engine down. Movement of the
vehicle is prohibited by interlocking the SAFETY LOCK
with a switch operated by the foot brake, a neutral
safety switch on the gearshift or a parking brake
operated switch. Operating any one of these will cause
the relay in the SAFETY LOCK to drop out and interrupt
the ignition circuit to stop the engine. The authorized
operator need only insert the key and turn on the
ignition to operate the vehicle. With the key in the lock
and turned on, the ignition circuit is completed as
normal and the opening of the SAFETY LOCK relay
has no effect on engine operation.

SPECIFICATIONS:

Volts: 12 volts, D.C.
Relay Contacts: Normally Open, 30 Amps.
Weight: 4 ounces
Enclosure: unsealed
KUSSMAUL ELECTRONICS COMPANY, INC.
170 CHERRY AVE., WEST SAYVILLE, NY 11796
TELEPHONE in NY: 631-567-0314 TOLL FREE: 800-346-0857 TELEPHONE in NY: 631-567-0314 TOLL FREE: 800-346-0857 TELEPHONE in NY: 631-567-0314 TOLL FREE: 800-346-0857 TELEPHONE in NY: 631-567-0314 TOLL FREE: 800-346-0857 TELEPHONE in NY: 631-567-0314 TOLL FREE: 800-346-0857

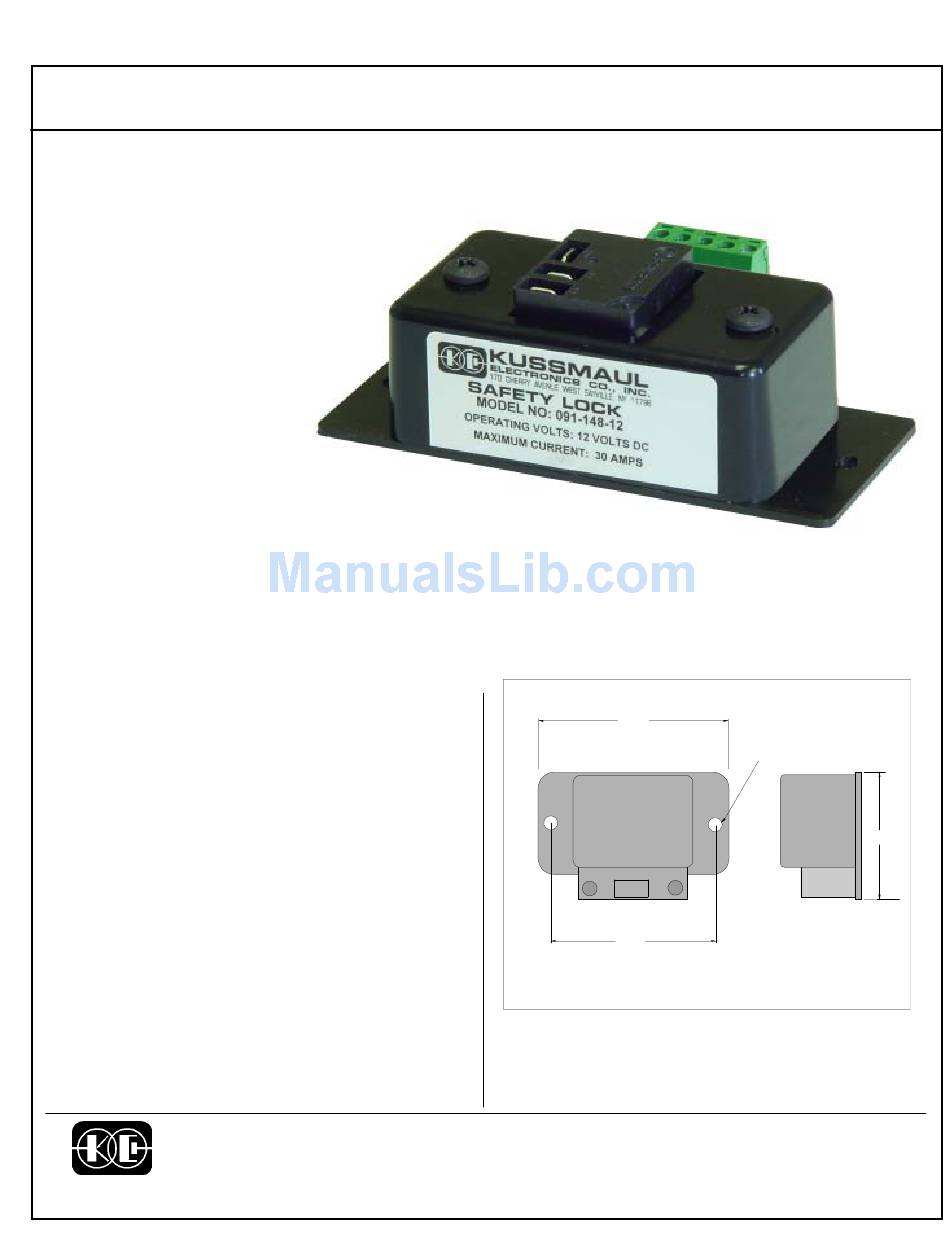

AUTOMATIC SAFETY LOCK
MODEL #091-148-12
4.50
4.00
OUTLINE DRAWING
FAX: 631-567-5826 e-mail: sales@kussmaul.com FAX: 631-567-5826 e-mail: sales@kussmaul.com FAX: 631-567-5826 e-mail: sales@kussmaul.com FAX: 631-567-5826 e-mail: sales@kussmaul.com FAX: 631-567-5826 e-mail: sales@kussmaul.com
3/16" DIA.
2.625
