NOVAK RC8 - 8-2008 Manual

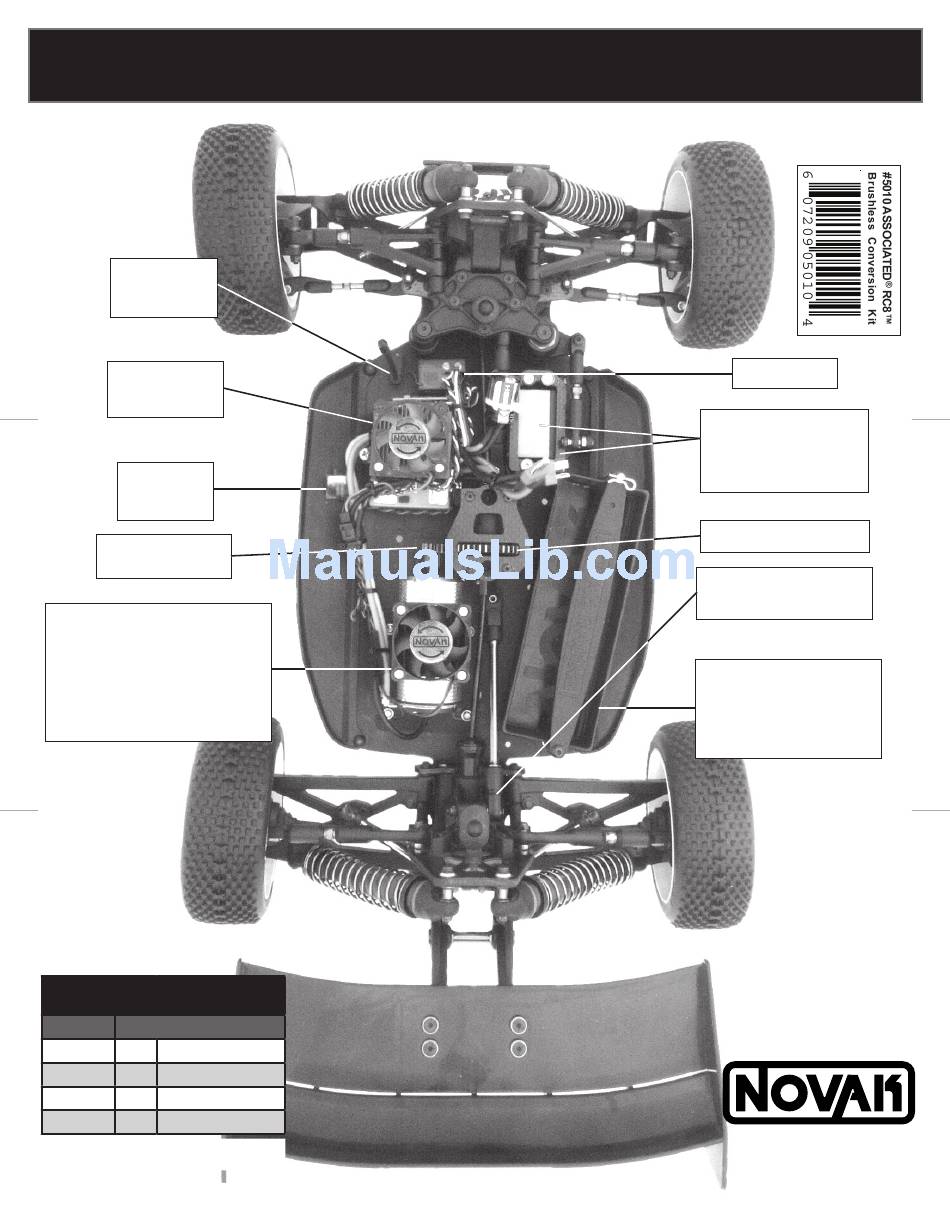

figure 14
Antenna
Mount
Novak HV
ESC
ON/OFF
Switch
Pinion Gear
refer to chart
Novak 550-size HV
Brushless Motor
with Cooling
Fan Installed
Motor solder tabs face outside
of the buggy.
Pinion Gear Recommendations
Two 2S Li-Po Packs
Motor Mod 1 Pinion Gear
HV4.5 9T Novak #5109
HV5.5 11T Novak #5100
HV6.5 13T Novak #5102
HV7.5 15T Novak #5104
Motor operating temperature is the ONLY way to
set vehicle gearing. The motor and ESC should
not exceed 160-170 F MAX at end of run.
o
RC8™ is a registered trademark of Team Associated
VEHICLE SPECIFIC SHEET
#5010 ASSOCIATED RC8 KIT DIAGRAM
.
®
P5
#55-5010D-1
8/2008
Receiver
Steering Servo
and Mount
Servo shown
horizontally mounted
Spur Gear: 44T
F/R Differential
Ratio: 4.30
Battery Box
(LEFT)
Box mounted as far toward
center of car for body
clearance and optimum
weight balance.
