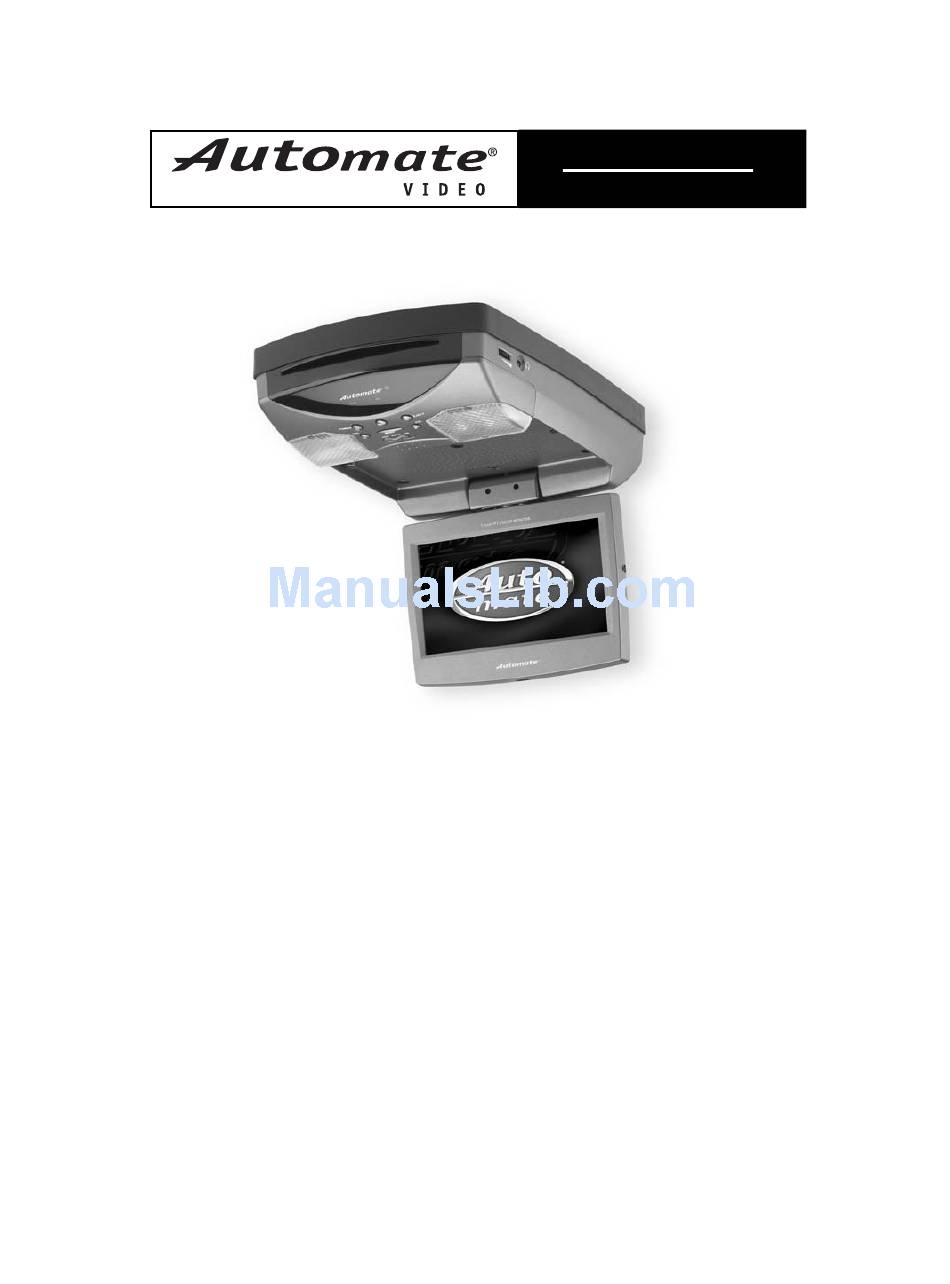

Automate Video OHD070A Owner's Installation Manual

Directed electronics mobile video system owner's and installation guide
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
7" Mobile Video System
M M O O D D E E L L O O H H D D 0 0 7 7 0 0 A A
© 2004 Directed Electronics, Inc. N83070A 12-04
O O W W N N E E R R ' ' S S G G U U I I D D E E
I I N N S S T T A A L L L L A A T T I I O O N N G G U U I I D D E E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OHD070A and is the answer not in the manual?

Questions and answers

Related Manuals for Automate Video OHD070A

Summary of Contents for Automate Video OHD070A

  • Page 1 M M O O D D E E L L O O H H D D 0 0 7 7 0 0 A A © 2004 Directed Electronics, Inc. N83070A 12-04 O O W W N N E E R R ’ ’ S S G G U U I I D D E E...
  • Page 2 NECTION WITH THE SALE OF THE PRODUCT. DIRECTED HAS ABSOLUTELY NO LIABIL- ITY FOR ANY AND ALL ACTS OF THIRD PARTIES INCLUDING ITS LICENSED DEALERS OR INSTALLERS. IN NO EVENT WILL DIRECTED ELECTRONICS, INC. BE LIABLE FOR ANY INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES (INCLUDING LOSS OF PROFITS),...

  • Page 3: Table Of Contents

    Random ...19 Program...19 Mode Selection ...19 Volume Level Adjustment ...19 Light Switch...20 Jack for Earphone ...20 Earphone Volume Adjustment...20 Remote Sensor (IR) ...20 Turning the Unit ON/OFF ...20 Monitor Release ...20 Infrared Transmitting Window ...20 © 2004 Directed Electronics, Inc.
  • Page 4 The mobile DVD player is a Class I laser product. This mobile DVD player uses a laser beam which could cause vision damage. Do not open the covers to this unit, there are no owner serviceable parts inside. © 2004 Directed Electronics, Inc.
  • Page 5 17. While Driving, keep the volume level low enough to be aware of road and traf- fic conditions. 18. The unit should be installed in a horizontal position with the front end up at a convenient angle, but not more than 30 degrees. © 2004 Directed Electronics, Inc.
  • Page 6 This system incorporates the use of on screen display menu controls that allow you to configure the system to suit your own personal preferences. To view other great products from Directed Electronics, please visit the Directed Video page at www.directed.com.

  • Page 7: Your Warranty

    12 cm disc C C D D 12 cm disc M M P P 3 3 12 cm disc The following disc formats are N N O O T T supported by this player. DVD-ROM DVD-R/DVD-RAM © 2004 Directed Electronics, Inc. CD-G...

  • Page 8: Installation

    M M O O U U N N T T I I N N G G V V I I D D E E O O S S Y Y S S T T E E M M © 2004 Directed Electronics, Inc.
  • Page 9 6. Insert five rubber caps into the screw holes. 7. When the installation has completed, you can turn the display upward or down- ward, left or right to adjust the viewing angle. (See the arrowhead symbol in the figure above). © 2004 Directed Electronics, Inc. Mounting Bracket Levers...
  • Page 10 O O P P T T I I O O N N A A L L D D I I G G I I T T A A L L W W I I R R I I N N G G 1 1 0 0 © 2004 Directed Electronics, Inc.
  • Page 11 V V i i d d e e o o S S y y s s t t e e m m C C o o n n t t r r o o l l s s a a n n d d D D e e s s c c r r i i p p t t i i o o n n © 2004 Directed Electronics, Inc.
  • Page 12 13. 6.4 inch TFT Color Monitor 14. Earphone Volume Controls 15. Jacks for Earphone 16. IR Transmitting Window 17. OPEN Button: Press the button to deploy the screen display from the unit’s base. 18. Speakers (qty-2) 19. Speaker On/Off button © 2004 Directed Electronics, Inc.
  • Page 13 2. EJECT Press to eject the disc. 3. MUTE Press to mute the sound. 4. SUBTITLE Changing of the SUBTITLE language on multi-subtitle lan- gauge DVD disc. © 2004 Directed Electronics, Inc. POWER EJECT SUBTITLE ANGLE DISPLAY PAL/NTSC AUDIO SETUP...
  • Page 14 Adjust the following items when MENU has been selected. 25. ZOOM Allows the picture to be increased in size. 1 1 4 4 buttons served as cursor buttons to select item © 2004 Directed Electronics, Inc. to search to skip...

  • Page 15: Remote Control

    Point the remote control towards the player front face IR mark (remote control sig- nal receiver). Operation angle: The remote will function in about up to a ±30 degree angle from the front of the IR receiver. © 2004 Directed Electronics, Inc. 1 1 5 5...
  • Page 16 Each time the button is pressed, the speed of rapid forward /reverse changes according to the disc as follow: DVD: Normal playback 2X 4X 6X 8X VCD/CD: 1 1 6 6 button (item 3 on the figure above). © 2004 Directed Electronics, Inc. PLAY...

  • Page 17: Mute

    PLAY on the remote control to resume normal playback. M M U U T T E E Will mute the audio, but the disc continues playing. When you unmute the audio (press MUTE again), audio will resume. © 2004 Directed Electronics, Inc. buttons 1 1 7 7...

  • Page 18: Repeat

    Press GOTO button twice, the screen will display the following message: TITLE 01/01 TIME -- : --: -- 00:00:25 You can select the item you want to watch through the TIME setting by using numeric buttons and then the ENTER key. 1 1 8 8 © 2004 Directed Electronics, Inc.

  • Page 19: Program

    V V O O L L U U M M E E L L E E V V E E L L A A D D J J U U S S T T M M E E N N T T Press VOL +/VOL- on the front panel or VOLUME +/- on the remote control to increase or decrease the volume level. © 2004 Directed Electronics, Inc. PLAY button, "PROGRAM P01:04" 1 1 9 9...

  • Page 20: Jack For Earphone

    There are six infrared transmitting lights inside the window on the unit, the user can put on the infrared wireless headphones supplied with the unit and hear the audio signal without the use of wires or cables from the unit to the headphones. 2 2 0 0 © 2004 Directed Electronics, Inc.

  • Page 21: Transmit

    VOL +/VOL- buttons on the unit or VOLUME +/- buttons on the remote control. S S E E A A R R C C H H This menu selection is not used with this model. © 2004 Directed Electronics, Inc. M M E E N N U U 16:9...
  • Page 22 (4) Press DISPLAY a fourth time: CHAPTER REMAIN 00:01:39 The remaining playing time for the chapter presently playing is displayed. (5) Press DISPLAY a fifth time: The message is cleared off the screen. 2 2 2 2 © 2004 Directed Electronics, Inc.
  • Page 23 The message is cleared off the screen. C C D D (1) Press DISPLAY for the first time: SINGLE ELAPSED 00:00:25 TRACK: 01/14 The elapsed playing time for the track presently playing is displayed. © 2004 Directed Electronics, Inc. 2 2 3 3...
  • Page 24 M M P P 3 3 The following applies when the system is set for NO MENU in SMARTNAV, this fea- ture is discussed later in this guide. (1) Press DISPLAY for the first time: 2 2 4 4 © 2004 Directed Electronics, Inc.
  • Page 25 V V C C D D / / C C D D Press AUDIO on the remote control during playback. It is possible to switch the sound between monaural (left/right) and stereo sound, as given below. MONO LEFT © 2004 Directed Electronics, Inc. MONO RIGHT STEREO will be dis-...
  • Page 26 The function only works for discs having scenes recorded at different angles. ❍ When no different angle is recorded, the left top corner. 2 2 6 6 will be dis- will be displayed at the screen’s © 2004 Directed Electronics, Inc.

  • Page 27: Play Mode

    Stop button has been pressed. T T V V O O P P E E R R A A T T I I O O N N This function is not available on this system. © 2004 Directed Electronics, Inc. ROOT MP3 MUSIC...

  • Page 28: General Setup

    P P R R E E F F E E R R E E N N C C E E S S S S E E T T U U P P This setup page includes the configuration of support features. For details refer to PREFERENCES SETUP MENU. 2 2 8 8 buttons. © 2004 Directed Electronics, Inc.

  • Page 29: Angle Mark

    W W I I D D E E ( ( F F O O R R 1 1 6 6 : : 9 9 T T V V ) ) Select when a wide-screen format. © 2004 Directed Electronics, Inc. NORMAL/P...
  • Page 30 A A N N G G L L E E M M A A R R K K TV DISPLAY PIC MODE ANGLE MARK OSD LANG CAPTIONS SCR SAVER MAIN PAGE 3 3 0 0 AUTO HI-RES N-FLICKER © 2004 Directed Electronics, Inc.

  • Page 31: On Screen Displays

    PIC MODE ANGLE MARK OSD LANG CAPTIONS SCR SAVER MAIN PAGE Activate the CAPTIONS feature by selecting ON. And deactivate this feature by selecting OFF. © 2004 Directed Electronics, Inc. (the ENGLISH FRENCH GERMAN ITALIAN SPANISH buttons. 3 3 1 1...
  • Page 32 S S P P E E A A K K E E R R S S E E T T U U P P DOWNMIX MAIN PAGE This is to activate the audio output from DOLBY AC3 5.1 DOWNMIX to 2 channel mode. 3 3 2 2 LT/RT STEREO © 2004 Directed Electronics, Inc.
  • Page 33 A A U U D D I I O O O O U U T T AUDIO OUT OP MODE DYNAMIC LPCM MAIN PAGE This feature is not applicable for this model. © 2004 Directed Electronics, Inc. ANALOG SPDIF/RAW SPDIF/PCM 3 3 3 3...

  • Page 34: Audio Out

    LPCM MAIN PAGE Select DYNAMIC and adjust the dynamic range of a Dolby Digital encoded program. There are 8 steps between full compression and off compression. 3 3 4 4 LINE OUT RF REMOD FULL © 2004 Directed Electronics, Inc.
  • Page 35 TV TYPE AUDIO SUBTITLE DISC MENU PARENTAL PASSWORD DEFAULTS SMART NAV LOGO MAIN PAGE This system can play discs recorded in either PAL or NTSC format. © 2004 Directed Electronics, Inc. LPCM 48K LPCM 96K AUTO NTSC 3 3 5 5...
  • Page 36 TV TYPE AUDIO SUBTITLE DISC MENU PARENTAL PASSWORD DEFAULTS SMART NAV LOGO MAIN PAGE Select the preferred AUDIO language soundtrack by using the cursor buttons. 3 3 6 6 ENGLISH FRENCH SPANISH CHINESE JAPANESE GERMAN ITALIAN © 2004 Directed Electronics, Inc.
  • Page 37 TV TYPE AUDIO SUBTITLE DISC MENU PARENTAL PASSWORD DEFAULTS SMART NAV LOGO MAIN PAGE Select the preferred DISC MENU language by using the cursor buttons. © 2004 Directed Electronics, Inc. ENGLISH FRENCH SPANISH CHINESE JAPANESE GERMAN ITALIAN ENGLISH FRENCH SPANISH...
  • Page 38 Ensure that you write down and keep the new password in a secure location. 3 3 8 8 3 PG 4 PG 13 6 PG-R 7 NC-17 8 ADULT NO PARENTAL CHANGE © 2004 Directed Electronics, Inc.

  • Page 39: Smart Nav

    TV TYPE AUDIO SUBTITLE DISC MENU PARENTAL PASSWORD DEFAULTS SMART NAV LOGO MAIN PAGE This feature allows you to select NO MENU mode or WITH MENU mode. © 2004 Directed Electronics, Inc. RESET NO MENU WITH MENU 3 3 9 9...
  • Page 40 L L O O G G O O TV TYPE AUDIO SUBTITLE DISC MENU PARENTAL PASSWORD DEFAULTS SMART NAV LOGO MAIN PAGE The LOGO feature is inactive. 4 4 0 0 ORIG LOGO CUST LOGO © 2004 Directed Electronics, Inc.

  • Page 41: General Setup

    Audio Setup Preferences © 2004 Directed Electronics, Inc. S S u u b b - - M M e e n n u u D D e e f f a a u u l l t t S S e e t t t t i i n n g g...

  • Page 42: Cleaning The Lcd Screen

    Near car heaters. On the seats or dashboard. D D I I S S C C C C L L E E A A N N I I N N G G 4 4 2 2 © 2004 Directed Electronics, Inc.
  • Page 43 N N o o t t e e : : A disc may become somewhat scratched (although not enough to make it unus- able) depending on you handle it and conditions in the usage environment. These scratches are not an indication of any problem with the player. © 2004 Directed Electronics, Inc. 4 4 3 3...
  • Page 44 Press the Power button to turn the unit off, then press it again to turn the power back on. 8. No sound a. Check audio connections. b. Volume set too low, increase the volume setting. 9. No audio at digital output 4 4 4 4 © 2004 Directed Electronics, Inc.
  • Page 45 Make sure that the remote control is pointed towards the remote sensor located on the system. 11. Buttons do not work. a. Turn the unit off and then back on with the power On/Off button at the front of the unit. © 2004 Directed Electronics, Inc. 4 4 5 5...
  • Page 46 80 dB (JIS) S/N ratio Wow & Flutter—below measurable limits Infrared audio transmitter (support IR receiver stereo headphone, L-channel 2.3 MHz/R-channel 2.8 MHz) Effective listening angle: 30° Effective range: 4 meters 9–16 VDC Less than 2A © 2004 Directed Electronics, Inc.
  • Page 47 Directed is ISO 9001 registered. Quality Directed Electronics products are sold and serviced throughout North America and around the world. Call ( ( 8 8 0 0 0 0 ) ) 2 2 7 7 4 4 - - 0 0 2 2 0 0 0 0 for more information about our products and services.
