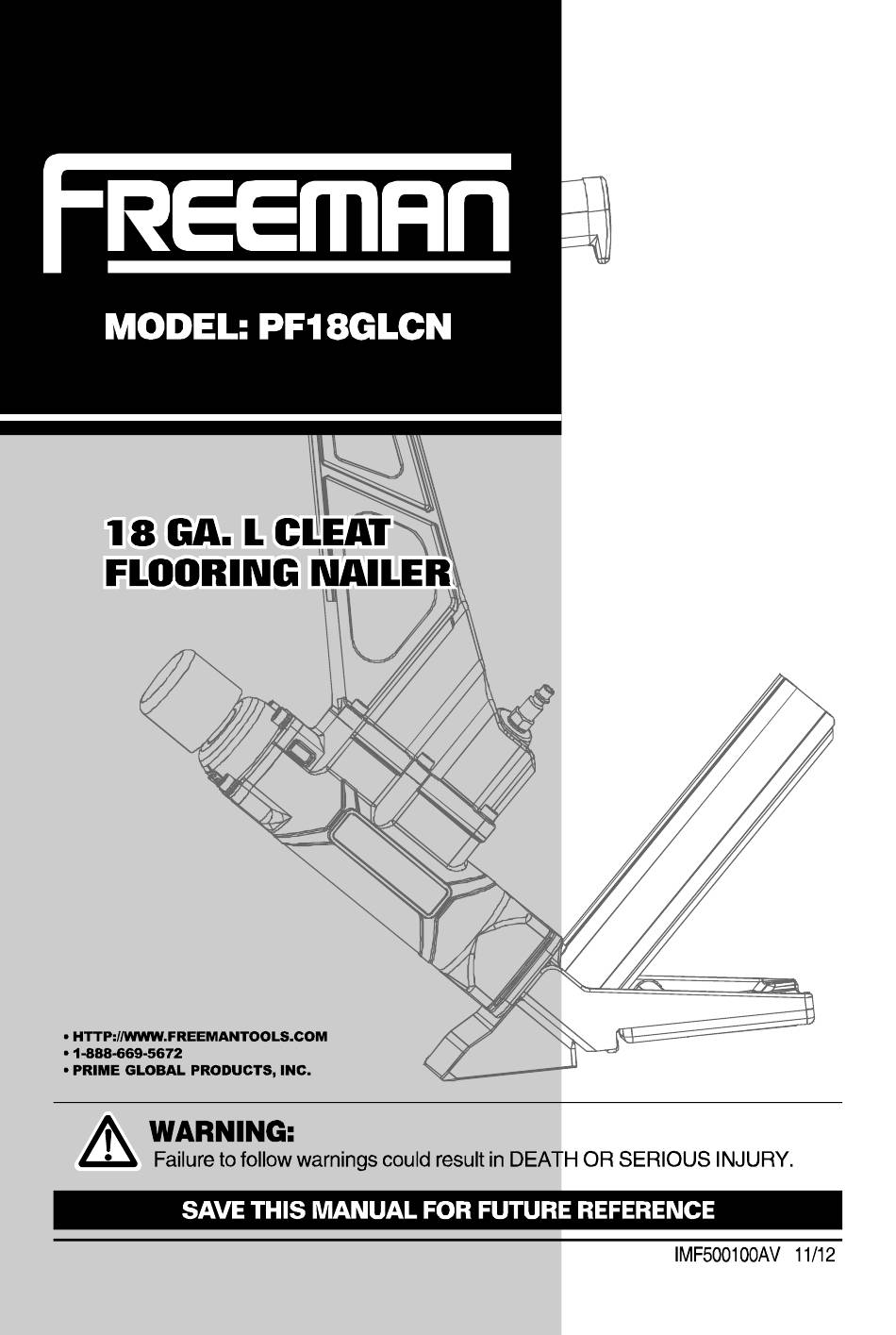

- Page 1 RE€mnn MODEL: PFI 8GLCN L CLEAT FLOORING NAILER • HITP://WWW.FREEMANTOOLS.COM • 1-888-669-5672 • PRIME GLOBAL PRODUCTS, INC. WARNING: Failure to follow warnings could result in DEATH OR SERIOUS INJURY. SAVE THIS MANUAL FUTURE REFERENCE IMF500100AV 11/12...
- Page 2 REEman MODEL: PF18GLCN GENERAL SAFETY RULES UNPACKING FEATURES OPERATION LOADING CLEAT NAILS UNLOADING CLEAT NAILS CHANGE THE FOOT PLATE ADJUSTING THE FRONT FOOT SETTING PRESSURE OPERATING TOOL CLEARING JAMS MAINTENANCE RECOMMENDED HOOKUP TROUBLESHOOTING P-12 WARRANTIES p 12 AWARNING: The warnings...
- Page 3 REEman MODEL: PF18GLCN In this manual, on the labels, packages and all other information provided with this tool, the following signal words and meanings are intended to explain the levels of risk associated with this tool. SYMBOLS SIGNAL MEANING Indicates a potentially hazardous situation, which, if not avoided, WARNING: could result in death or serious injury.
- Page 4 REEman MODEL: PF18GLCN TOOL USE AND CARE OPERATION Know this tool. Read manual carefully, learn Do not drive fasteners near edge its applications and limitations, as well as the material. The workpiece may split causing the specific potential hazards related to this tool.
- Page 5 REEman MODEL: PF18GLCN LOADING TOOL A WARNING: load tool with fasteners when operating controls Do not attempt to modify this tool activated. create accessories not recommended O Never place a hand or any part of body use with this tool. Any such alteration fastener discharge area of tool.
- Page 6 REEman MODEL: PF18GLCN and Grip Arm——— Hammer Cap Air Plug Air Cap Magazine Body Shoe Foot Plate OPERATION Figure 1 LOADING CLEAT NAILS Rear of 1. Connect the tool to the air source. magazine(A) 2. Insert strip of fasteners from rear of magazine(A).
- Page 7 REEman MODEL: PF18GLCN Figure 2 A WARNING: The tool may fire when it first connected to the air source. Always connect the tool to Bypass Pusher the air source before loading fasteners lever(C) prevent injury from unintended cycling. Always make sure the tool's...
- Page 8 REEman MODEL: PF18GLCN 1. Disconnect the tool from the air source. 5. Loosen these two Bolts (G) and two Small Plates (H) to ensure move the Front Foot (F) in 2. Empty the magazine completely. 3. Fire the tool into a piece of scrap wood to the range of the Adjust Groove (l).
- Page 9 REEman MODEL: PF18GLCN OPERATING THE TOOL A WARNING: 1 Attach the tool to the air source. Start your An improperly functioning tool must compressor and check the pressure, making be used. Do not actuate tool unless sure it is set between 70—115psi.
- Page 10 REEman MODEL: PF18GLCN Nose Bolts (L) Driverguide (M) 2. Tum the tool so the air inlet is facing up. Place 2—3 drops of pneumatic fastening tool oil into air inlet. Do not use detergent oils, oil additives, or air—tool oils...
- Page 11 REEman MODEL: PF18GLCN RECOMMENDED HOOKUP CAUTION: only specified Lubricate tool with The air compressor must be able to maintain a lubricants. minimum of 70 psi when the tool is being used. 2. An inadequate air supply can cause a loss of power and inconsistent driving.
- Page 12 Freeman Wearing Parts ninety(90) days from the original purchase date due to a defect in material and workmanship. PGP Inc. shall repair or replace, at its option, a Freeman Product that has a defect in materials or workmanship. The original purchaser must returnthe complete Freeman Product,postage prepaid and insured, with proof of purchase to PGP Inc.or...
- Page 13 Georgia. Any dispute arising out of the sale and/or use of the Freeman Product that is the subject of these limited warranties shall be brought in Cherokee County, Georgia.
- Page 14 • HTTP:UWWW.FREEMANTOOLS.COM • 1-888-669-5672 • PRIME GLOBAL PRODUCTS, INC.
