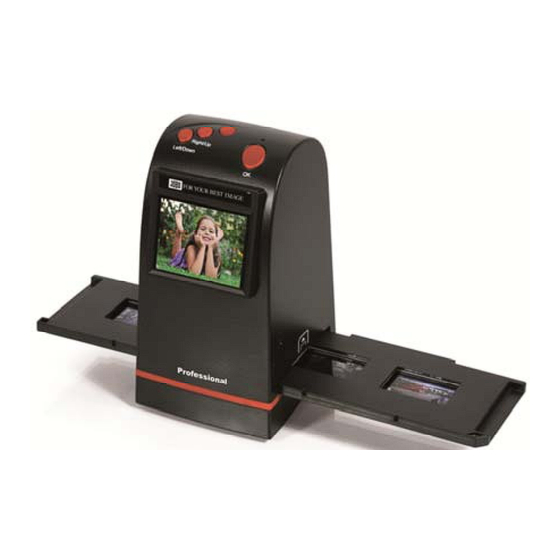

JOBO SNAPSCAN 9000 - V1.5 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

SnapScan 9000
-Patent pending-
User Manual
Version 1.5
November 2010


Advertisement

Table of Contents
loading

Related Manuals for JOBO SNAPSCAN 9000 - V1.5

Summary of Contents for JOBO SNAPSCAN 9000 - V1.5

  • Page 1 SnapScan 9000  -Patent pending- User Manual Version 1.5 November 2010  ...
  • Page 2 Declaration of Conformity      JOBO International GmbH,   We declare Eintrachtstr. 14,   D‐51645 Gummersbach    that the “SnapScan 9000”    complies with the following directives: EN 55022:2006+A1:2007 Radio interference suppression (ITE). Limits and methods of measurement EN 55024:1998/A2:2003 EMC Immunity to Radiated Fields (ITE) EN61000-3-2:2006 Elektromagnetic Compatibility (EMC-Part 3-2)

  • Page 3: Table Of Contents

    Index I. Unpack SnapScan9000............4 Install film into the film holder........6 III. Quick Start..............9 IV. Operation Guide............14 1. Capture ..............14 2. Film Type ..............32 3. Setting Mode............. 35 V. Specification...............38 Waste Management............39 Packaging ..............39 Disposal of WEEE (Waste Electrical and Electronic Equipment) 39 Service ................40...
  • Page 4 I. Unpack SnapScan9000 JOBO SnapScan 9000 Negative Holder User Manual USB power core USB/Video cable Roll Film Holder Clean brush 2 x Rapid slide feeder...
  • Page 5 Note  We strongly suggest using a clean, dry, non-alcohol cotton swab to clean the glass surface periodically to produce a clear image during operation.  Clean dust from Film Scanner back light, to use the clean brush to wipe the dust. ...

  • Page 6: Ii. Install Film Into The Film Holder

    Install film into the film holder • Insert slides into the rapid slide feeder 1. Put a stack of slides into the feeder  Film Slot  After the slides are placed into the holder  and the holder is placed into the slot of the  scanner (refer to „Quick Start“) the slides  can be slide into the scanner by moving the  holder backward and forward.  The slides are positioned automatically  inside the scanner.       ● Install the Negative Film into holder 1. Open the film holder as illustrated 2. Install film into negative film slot 3.
  • Page 7 ● Install the Roll Film into holder: 1. Take out the roll film holder from package 2. Insert roll film into film slot 3. Pull out the roll film in another side...
  • Page 8 Note  To avoid mirror image, follow the serial numbers (from left to right) on top of film when install negative film into holder Figure 1   If the image is upside down [see fig.2], the image can be corrected by Flip function in Button of device before capture.

  • Page 9: Iii. Quick Start

    III. Quick Start Power button Power status LED Right/+ button     OK button   Left/‐  button Film Slot   SD card Slot   USB port   TV out jack...
  • Page 10 1. Put Film onto the film cartridge 2. Insert the film cartridge into JOBO SnapScan 9000...
  • Page 11 3. Connect power USB cable to SnapScan 9000 4. Turn on Device by pressing the power button...
  • Page 12 5. Press OK button to capture the image 6. Follow the menu on display for scanning...
  • Page 13 7. After finished the capture, take out the SD card which stored capture images 8. Or read picture from PC by MSDC mode...

  • Page 14: Iv. Operation Guide

    IV. Operation Guide Home: Main menu Capture Playback Film Type Setting USB mode Capture: capture mode (default) • Playback: playback mode • Film Type: define the film type which loaded in cartridge • USB mode: MSDC (Mass Storage Device Class) mode • Setting: TV out and format option •...
  • Page 15 1.1 Capture: <Up>/<Down> (Button) <Up> Right/Up <OK> Go Next  <Down>   button Left/Down   <Up> Press <Up> button to enter Mirror/Flip adjustment (see Chapter 1.2) • <Down> Press <Down> button to enter Brightness/Color adjustment (see Chapter 1.3) •...
  • Page 16 1.2 Capture: <Up>/<Down> - Mirror/Flip (Button) <Up> Right/Up <OK> Go Back  to 1.1Capture  <Down>  button Left/Down  <Up> Press <Up> button to change image left to right • <Down> Press <Down> button to upside down image •...
  • Page 17 1.3 Capture: <Up>/<Down> - Brightness/Color (Button) <Up> Right/Up <OK> Go Back  to 1.1Capture  <Down>   button Left/Down <Up> Press <Up> button to enter Brightness adjustment (See Chapter 1.4) • <Down> Press <Down> button to enter Color adjustment (See Chapter 1.5) •...
  • Page 18 1.4 Capture: <Up>/<Down> - Brightness (Button) <Up> Right/Up <OK> Go Back  to 1.1Capture  <Down>   button Left/Down  <Up> Press <Up> button to increase Brightness with ranges of -3 to 3 • <Down> Press <Down> button to decrease Brightness with ranges of -3 to 3 •...
  • Page 19 1.5 Capture: <Up>/<Down> - Color Red (Button) <Up> Right/Up <OK> Go Next  to Color Green  <Down>   button Left/Down <Up> Press <Up> button to increase red color with ranges of -3 to 3 • <Down> Press <Down> button to decrease red color with ranges of -3 to 3 •...
  • Page 20 1.6 Capture: <Up>/<Down> - Color Green (Button) <Up> Right/Up <OK> Go Next  to Color Blue  <Down>   button Left/Down <Up> Press <Up> button to increase green color with ranges of -3 to 3 • <Down> Press <Down> button to decrease green color with ranges of -3 to 3 •...
  • Page 21 1.7 Capture: <Up>/<Down> - Color Blue (Button) <Up> Right/Up <OK> Go Back  to 1.1Capture  <Down>   button Left/Down <Up> Press <Up> button to increase blue color with ranges of -3 to 3 • <Down> Press <Down> button to decrease blue color with ranges of -3 to 3 •...
  • Page 22 1.8 Capture mode Live view indicator  (flashing at 0.5sec rate)  Once enter capture mode, there will be a red indicator on left top corner to indicate it is in live view mode. When the film cartridge is inserted into the scanner slot, the image always shows the positive image according to previous defined Film Type (after power on.
  • Page 23 1.10 Live View -> Capture/Edit Menu Live View Capture/Edit Menu Once press OK button in live view, the edit menu will be appeared. When user press OK button again, the current image will be saved into SD card. The display will return to live view again.
  • Page 24 1.12 Capture: Rotate +/-90 degrees User can apply the up/down button for further editing (rotate +90/-90). Once user confirm rotate +90 degrees, they can press the OK button, the image will be rotate +90 degrees and cursor will remain at Save. Press OK button again will save the rotated image to SD card and screen will return to live view.
  • Page 25 1.14 Capture: Home Go back to main menu, press OK button when select Home icon. 1.15 Exit from Edit mode back to Capture mode (Live View) Next image in  film cartridge Once User presses OK button for save or cancel option, display will return to capture mode/live view.
  • Page 26 Once the internal memory or SD card is full, user can see a SD card full once press OK button. User has to down load the images to PC or replace another SD card for continue capture. 1.17 SD card locked SD card locked  ...
  • Page 27 1.19 Playback Playback Press Down button to Playback mode when power on SnapScan 9000 or access the main menu by Home icon if during operation. Press OK button to confirm the selection. 1.20 Playback: Auto Slide Show Slide show mode Once user enter playback mode (default to slide show), 2.4 TFT will auto display all images stored in SD card with 2 seconds interval from previous captured image.
  • Page 28 1.21 Playback: Edit Menu Press 2x OK during playback Rotate +90 Exit Delete Rotate ‐90 Mirror Save Flip Rotate +90: captured image rotate +90 degrees • Rotate -90: captured image rotate -90 degrees • Mirror: change image left to right • Flip: upside down image •...
  • Page 29 1.23 Slide Show -> Single picture -> Edit mode Pausse Slide show mode Edit mode Single picture mode  Use Up/Down button  to scroll picture to be modified 1.24 Playback: Rotate/Mirror/Flip/Save If user wants to Rotate +90 degrees by OK button, the image will be rotate +90 degrees and cursor will remains at Save. Press OK button again to save modified result and next picture will be shown (N+1).
  • Page 30 1.25 Playback: Exit Once user select the EXIT function in edit menu, the display will go back to slide show starting with the current picture in internal memory or SD card without saving any change of present picture 1.26 Playback: Delete Delete will delete the present selected picture and next picture will be shown (N+1).
  • Page 31 1.27 Playback: Home Go back to main menu, press OK button when select Home icon 1.28 Playback: No Picture If there’s no picture inside internal memory or SD card when enter playback mode, a No picture symbol will show on display.

  • Page 32: Film Type

    2. Film Type Film Type Change film type definition by enter Film Type menu when power on SnapScan 9000 or access the main menu by Home icon if during operation. Press down button for Film Type and press OK to confirm. 2.1 Film Type: Select Film Type Color Negative ...
  • Page 33 2.2 Film Type: Example Color Negative  film B&W  Loaded   Negative film Into   Cartridge Slide...
  • Page 34 2.3 USB Mode USB mode  After finished capture, user can download the stored images from internal memory or SD card to PC by selecting USB mode. Press OK button when connect USB cable to PC, SnapScan 9000 becomes a mass storage device. User can review or edit images once PC detected the external storage device.

  • Page 35: Setting Mode

    3. Setting Mode. Setting mode The setting mode covers TV out and format option. User can connect the device to TV and finish the operation with TV display. Moreover, the scanned images can be playback on TV display to share with family. If the SD card was formatted by the other devices and not readable by scanner, user can apply the format function in scanner to correct required format.
  • Page 36 3.2 Setting: TV out When user want to switch the display from on device LCD to TV display, user can connect device to TV and select PAL or NTSC as required in TV out menu by OK button. Then, the TV display will show the same option for scanning operation. Or directly enter playback mode to slide show captured images on TV.
  • Page 37 Note If there’s no SD card inside device, the internal memory will be formatted once process Format. Instead, if SD card is inserted in device, SD card will be formatted. Good bye page...

  • Page 38: V. Specification

    V. Specification Image Sensor: 9 mega CMOS sensor Lens: Precision Glass Element Fixed Focus LCD: 2.4’’ Color TFT LCD (2.5” optional) Internal memory: 24MB NAND Flash (for saving images) Focus Range: Fixed focus Exposure Control: 6 levels of control Color Balance: 6 levels of control Scan Quality: 2,400 dpi 3,600 interpolated...

  • Page 39: Waste Management

    Waste Management Packaging To avoid damage and pollution of the product the Photoframe will be delivered within a packaging. Zum Schutz vor Schäden wird das Gerät in einer Transportverpackung ausgeliefert. These Packaging can be recycled. Disposal of WEEE (Waste Electrical and Electronic Equipment) Devices marked with the WEEE logo are subject to the European Community Directive 2002/96/EC.

  • Page 40: Service

    Service Within the uncommon situation of failures further Information for Service can found at the Homepage www.jobo.com...
