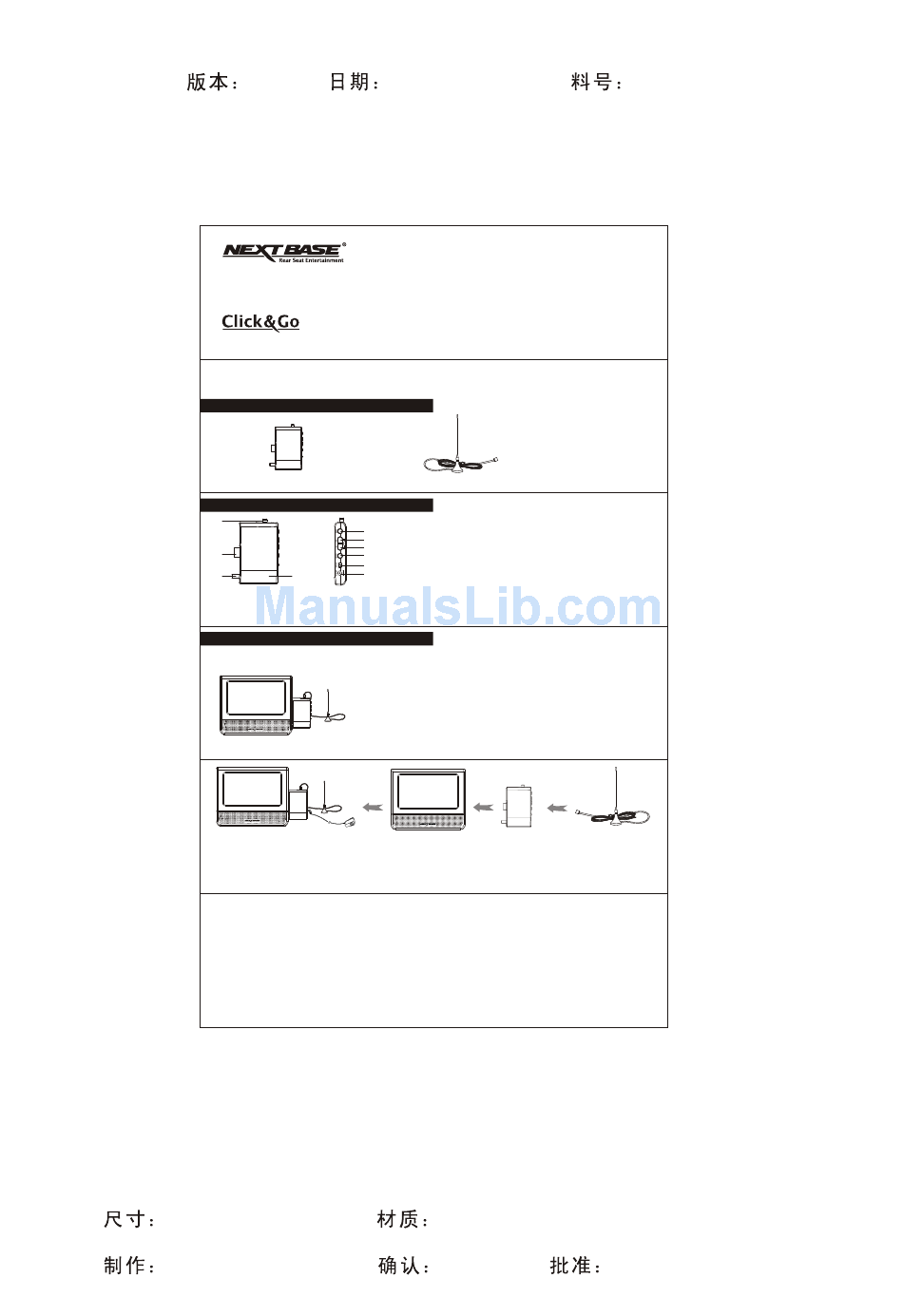

NextBase SEG BOX-C Quick Manual

Seg Box-C manual
A0
Exclusively for Click&Go Series DVD players
Series Compatible
Thank you for purchasing this Seg Box-C. Please read the information below
carefully before operating and keep it for future reference.

Package contents:

Seg Box - C

Parts introduction:

1
2
4
3
Notes:
This device is designed for receiving ISDB-T TV channels. Make sure the TV system matches with the country's
TV system.

Connecting the Seg Box:

1. Connect Seg Box to Click series DVD players
Connect the Seg box directly to the Click DVD player or monitor when it is used inside car.
Connect the AC-DC adapter of Click DVD player to both DC In Jack of Seg Box and AC power outlet in case
adapter is used in supplying power to DVD player.
2. Turn on the DVD player and switch the player to AV In mode.
3. Switch the Seg Box to On and the LED indicator will light.
4. The Seg Box will scan automatically when using for the first time, all the channels found will be saved automa-
tically. If there is no channel found, the prompt message "NO SIGNAL" will appear. Any time when CH+ and
CH- are pressed simultaneously, the device will scan automatically.

5. Menu Button

3 items in the Menu: Tamanho de tela, EPG and Legenda. You can operate them by using the buttons CH+ ,CH-
and ENTER.
Tamanho de tela--- 2 display modes: Normal and T ela cheia
EPG--- Electronic Program Guide, use this item to check and select the program.
Legenda--- Used for desligada and ligada selection.
168 X 98 mm
Baobao
2009.09.25
Seg Box-C
Antenna
1. Antenna Connector
5
2. iX Plug
6
7
3. DC Out Plug
8
9 4. LED indicator
10
5. Menu Button
6. Ch+ (Channel Up)
7. Ch- (Channel Down)
8. Enter
9. Power On/Off
10. DC In Jack
